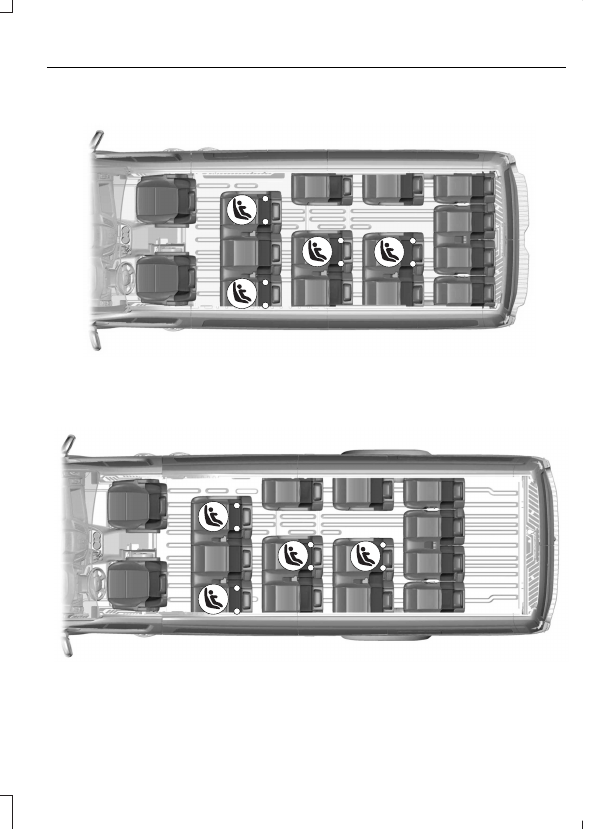

Your vehicle has LATCH lower anchors for
child restraint installation at the seating
positions marked with the child restraint
symbol.

Note: In addition to those shown, other
seating positions may also have LATCH
lower anchor points. You can identify these
with the child restraint symbol shown on
those seating positions.

E177639

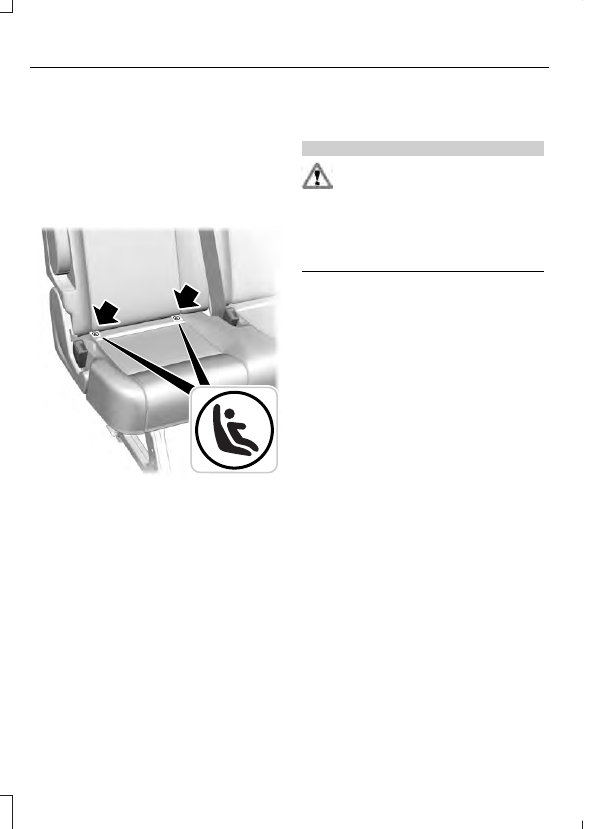

The LATCH anchors are at the rear section
of the rear seat between the cushion and
seat backrest above the symbols as
shown. Follow the child restraint
manufacturer's instructions to correctly
install a child restraint with LATCH
attachments. Follow the instructions on
attaching child safety restraints with tether
straps.

Attach LATCH lower attachments of the
child restraint only to the anchors shown.

Use of Inboard Lower Anchors from the
Outermost Seating Positions (Center
Seating Use)

WARNING

The standardized spacing for LATCH
lower anchors is 11 in (280 mm)
center to center. Do not use LATCH

lower anchors for the center seating
position unless the child restraint
manufacturer's instructions permit and
specify using anchors spaced at least as
far apart as those in this vehicle.

Do not attach a child restraint to any lower
anchor if an adjacent child restraint is
attached to that anchor.

Each time you use the safety restraint,
check that the seat is correctly attached
to the lower anchors and tether anchor, if
applicable. Tug the child restraint from side
to side and forward and back where it is
secured to your vehicle. The seat should
move less than 1 in (2.5 cm) when you do
this for a correct installation.

If the safety restraint is not anchored
correctly, the risk of a child being injured in
a crash greatly increases.

Combining Seatbelt and LATCH Lower
Anchors for Attaching Child Safety
Restraints

When used in combination, either the
seatbelt or the LATCH lower anchors may
be attached first, provided a correct
installation is achieved. Attach the tether
strap afterward, if included with the child
restraint.

Using Tether Straps

Many forward-facing child safety
restraints include a tether strap
which extends from the back of

the child safety restraint and hooks to an
anchoring point called the top tether
anchor. Tether straps are available as an
accessory for many older safety restraints.

Contact the manufacturer of your child
restraint for information about ordering a
tether strap, or to obtain a longer tether
strap if the tether strap on the safety
restraint does not reach the appropriate
top tether anchor in your vehicle.

Once the child safety restraint has been
installed using either the seatbelt, the
lower anchors of the LATCH system, or
both, you can attach the top tether strap.

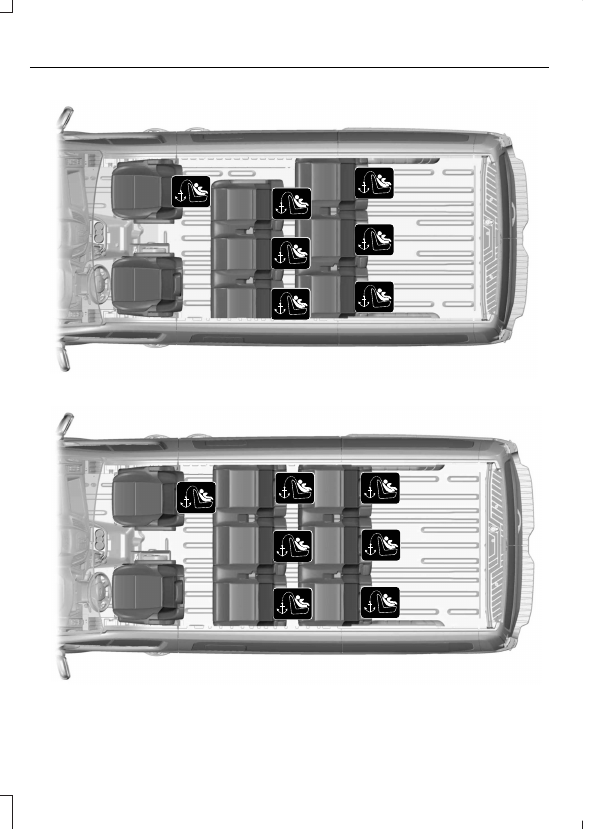

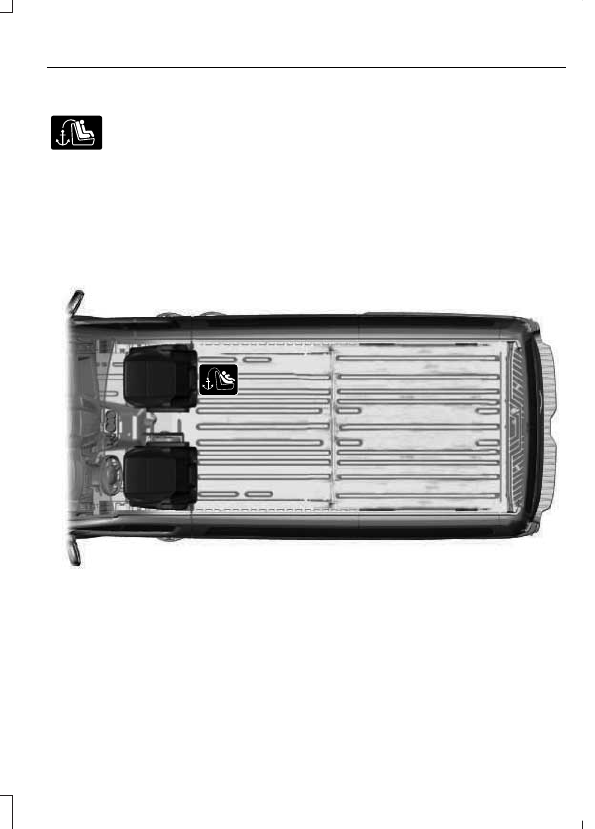

The tether strap anchors in your vehicle
are in the following positions (shown from
top view):

E254595
