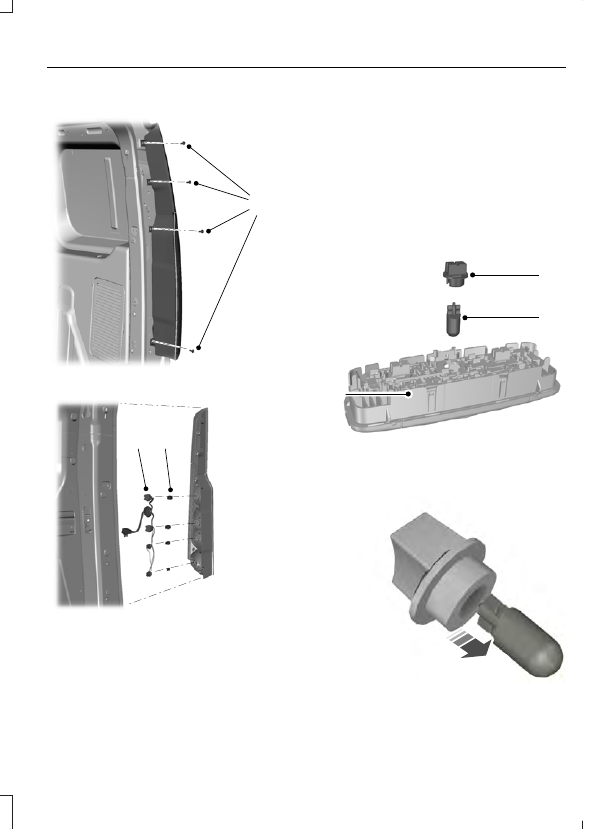

Rear Lamps

1

E165484

1.

Remove the screws.

2

3

E165485

2. Turn the bulb holders counterclockwise

to remove them.

3. Remove the bulbs by pulling them

straight out.

Central High Mounted Brake Lamp

These are not serviceable items, see an
authorized dealer if they fail.

License Plate Lamp

These are not serviceable items, see an
authorized dealer if they fail.

Interior Lamps

Front Interior Lamp

E99452

2

3

1

1.

Carefully remove the lamp.

2. Turn the bulb holder counterclockwise

and remove it.

E73939

3

3. Remove the bulb by pulling it straight

out.

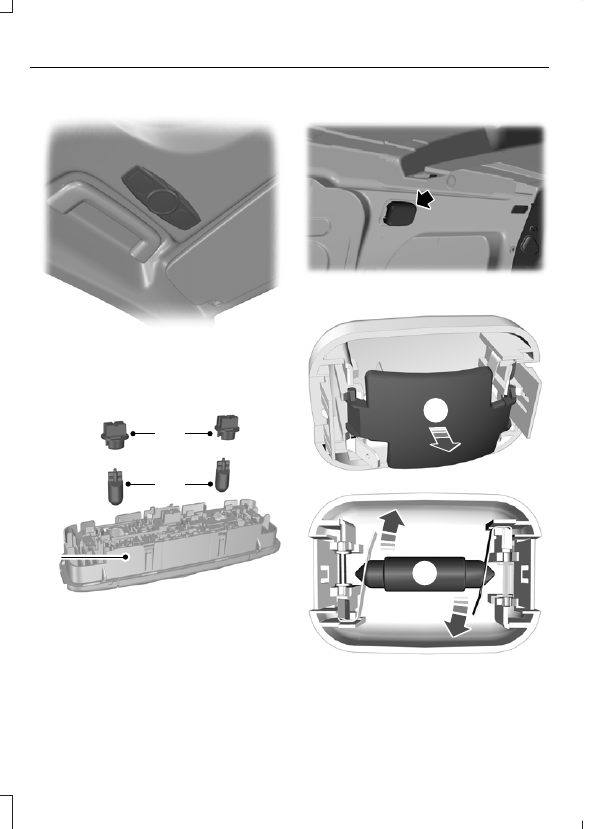

Front Interior LED Lamps

E125092

Note: If your vehicle has LED lamps these
are not serviceable items, see an authorized
dealer if they fail.

Reading Lamps

E99453

2

3

1

1.

Carefully remove the lamp.

2. Turn the bulb holder counterclockwise

and remove it.

3. Remove the bulb by pulling it straight

out.

Cargo Area Lamp

E163429

1.

Pry off the lamp cover.

E166153

2

3

2. Remove the cover.

3. Remove the bulb.

BULB SPECIFICATION CHART

Power (watt)

Specification

Lamp

21/5

W21/5W

Brake and rear lamp.

55

H11

Cornering lamps.

24

PY24W

Front direction indicator.

55

H11

Front fog lamp.

5

W5W

Front side lamp.

5

W5W

Front side marker lamp.

55

H9

Headlamp high beam.

55

H11

Headlamp low beam.

5

W5W

Side direction indicator.

5

W5W

License plate lamp.

21

WY21W

Rear direction indicator.

16

W16W

Reversing lamp.

Interior Lamps

Power (watt)

Specification

Lamp

10

211 Festoon

Luggage compartment lamp.

5

W5W

Map lamp.

6

W6W

Interior lamp.

LED

LED

Interior lamp.

*

*

Vehicles with panoramic roof.

LED lamps are not servicable, see an authorized dealer if they fail.

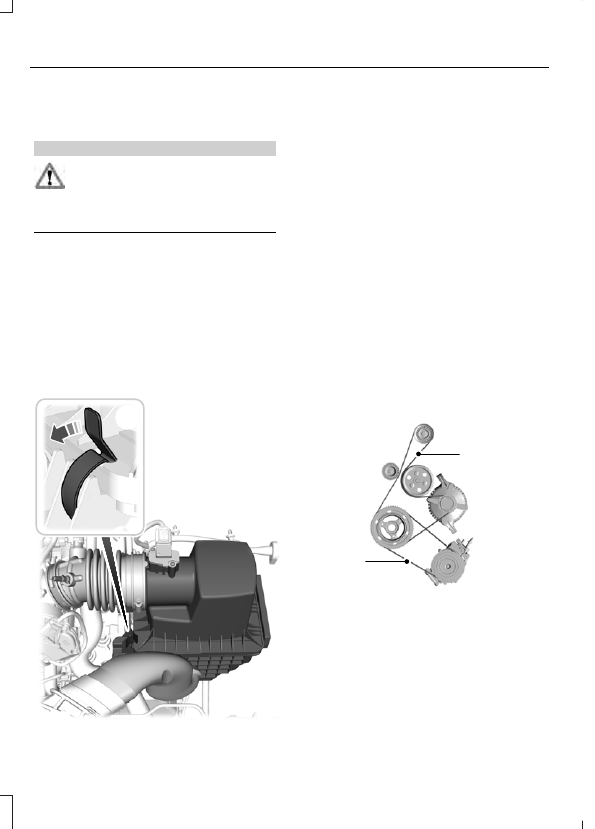

CHANGING THE ENGINE AIR
FILTER

WARNING

To reduce the risk of vehicle damage
and personal burn injuries, do not
start your engine with the air cleaner

removed and do not remove it while the
engine is running.

Change the air filter element at the correct
service interval.  See Scheduled
Maintenance (page 388).

Use the correct specification air filter
element.  See Motorcraft Parts (page
255).

Note:  Failure to use the correct air filter
element may result in severe engine
damage.  Resulting component damage
may not be covered by the vehicle Warranty.

E167022

x2

1.

Release the clips that secure the air
filter cover to the housing.

2. Carefully lift the air filter housing cover.

3. Remove the air filter element from the

air filter housing.

4. Wipe any dirt or debris from the air filter

housing and cover to make sure no dirt
gets in the engine and that you have a
good seal.

5. Install a new air filter element.

6. Install the air filter housing cover.  Be

careful not to crimp the filter element
edges between the air filter housing
and cover.  This could cause filter
damage and allow unfiltered air to
enter the engine if it is not properly
seated.

7.

Engage the clips to secure the air filter
housing cover to the air filter housing.

DRIVE BELT ROUTING

E161383

A

B

The generator drive belt is on the
first pulley closest to the engine.

A

The air conditioning drive belt is
on the second pulley furthest
from the engine.

B
