ADJUSTING THE HEADLAMPS

Vertical Aim Adjustment

If your vehicle has been involved in a crash,
have the aim of the headlamp beam
checked by an authorized dealer.

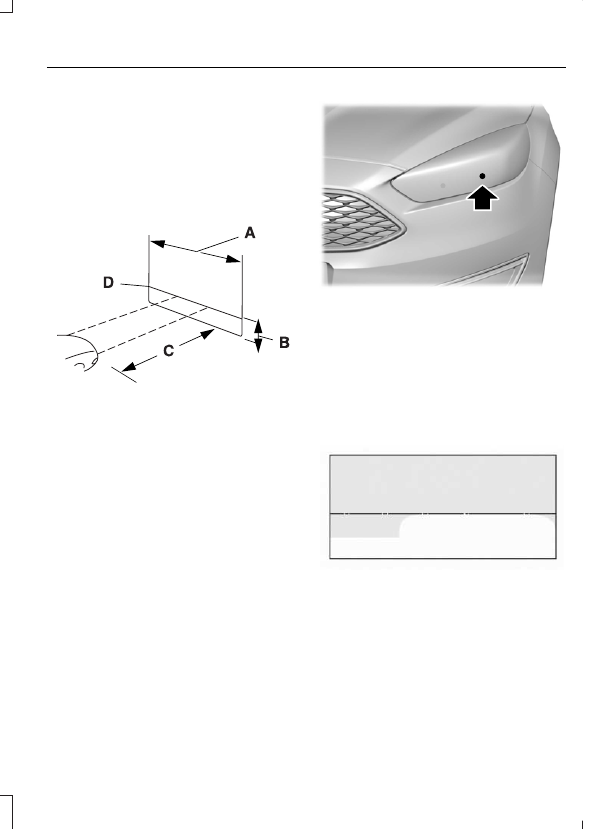

Headlamp Aiming Target

E142592

8 ft (2.4 m)

A

Ground to the center of the
headlamp low beam bulb

B

25 ft (7.6 m)

C

Horizontal reference line

D

Vertical Aim Adjustment Procedure

1.

Park your vehicle on level ground
approximately 25 ft (7.6 m) from a wall
or screen.

2. Measure the distance from the ground

to the center of the headlamp low
beam bulb and mark an 8 ft (2.4 m)
long horizontal reference line on the
wall or screen at this height.

E199411

Note: There may be an identifying mark on
the lens to help you locate the center of the
bulb.

Note: To see a clearer light pattern while
adjusting one headlamp, you may want to
block the light from the other headlamp.

3. Switch on the low beam headlamps

and open the hood.

E142465

4. On the wall or screen you will observe

a flat zone of high intensity light
located at the top of the beam pattern.
If the top edge of the flat zone of high
intensity light is not on the horizontal
reference line, adjust the aim of the
headlamp beam.

E164485

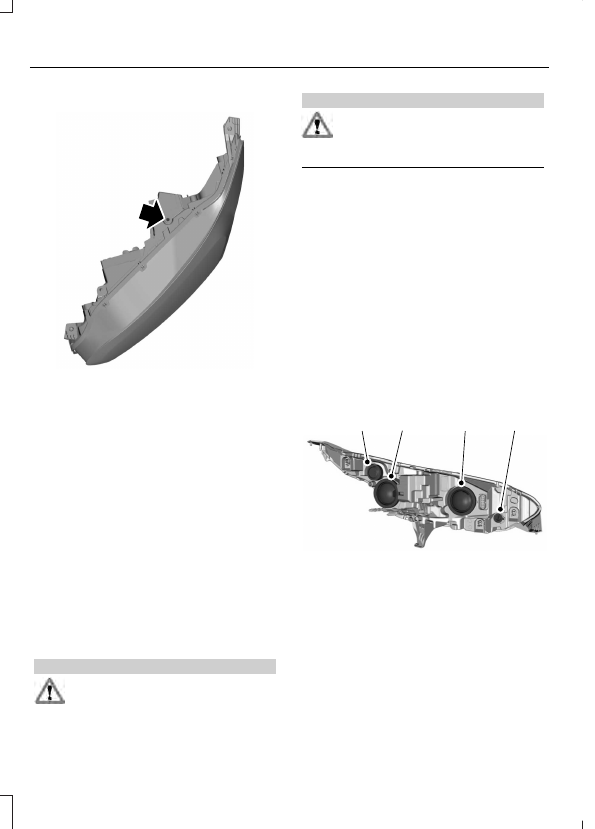

5. Locate the vertical adjuster on each

headlamp. Use a suitable tool, for
example a screwdriver or hexagonal
socket, to turn the adjuster clockwise
or counterclockwise to adjust the
vertical aim of the headlamp. The
horizontal edge of the brighter light
should touch the horizontal reference
line.

6. Close the hood and switch off the

lamps.

Horizontal Aim Adjustment

The horizontal aim of the headlamp beam
on your vehicle is not adjustable.

CHANGING A BULB

WARNINGS

Switch the lamps and the ignition off.
Failure to do so could result in
serious personal injury.

WARNINGS

Bulbs can become hot, let the bulb
cool down before removing it. Failure
to do so could result in personal

injury.

The following instructions describe how to
remove the bulbs. Fit replacements in the
reverse order unless otherwise stated.

You must fit bulbs of the correct
specification.  See Bulb Specification
Chart (page 217).

Note: We recommended that you see an
authorized dealer to change the headlamp
bulbs if your vehicle is fitted with air
conditioning. Some bulbs are difficult to
access.

Headlamp

Remove the covers to gain access to the
bulbs.

A

B

C

D

E171011

Side marker

A

Headlamp low beam and side
lamp

B

Headlamp high beam

C

Direction indicator

D

Side Marker

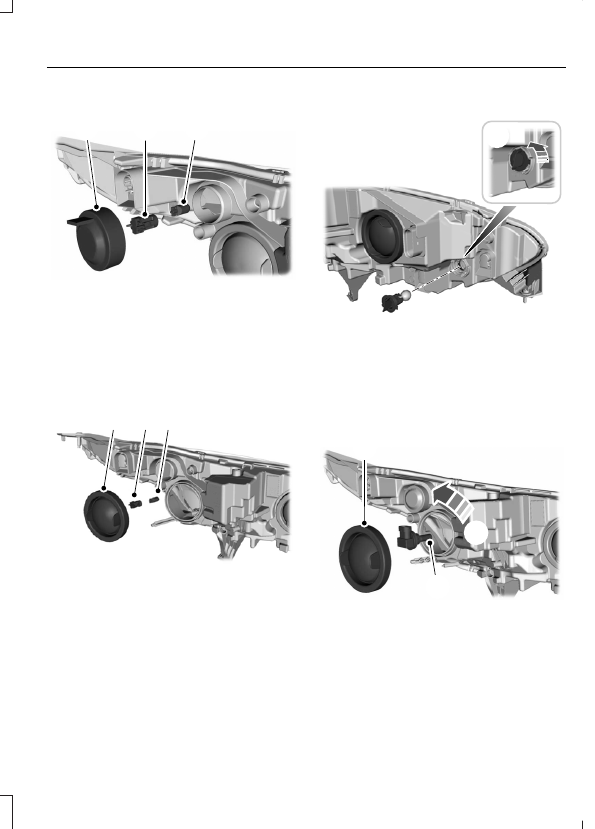

1

2

3

E171012

1.

Remove the cover.

2. Remove the bulb holder by pulling it

straight out.

3. Remove the bulb from the bulb holder

by pulling it straight out.

Side Lamp

E171075

3

1

4

1.

Remove the cover.

2. Remove headlamp low beam bulb.

3. Remove the side lamp bulb holder by

pulling it straight out.

4. Remove the bulb from the bulb holder

by pulling it straight out.

Direction Indicator

1

E165475

1.

Turn the bulb holder counterclockwise
and remove it.

Note: You cannot separate the bulb from
the bulb holder.

Headlamp Low Beam

1

3

2

E171013

1.

Remove the cover.

2. Turn the bulb holder counterclockwise

and remove it.

3. Remove the bulb by pulling it straight

out.

Note: Do not touch the glass of the bulb.

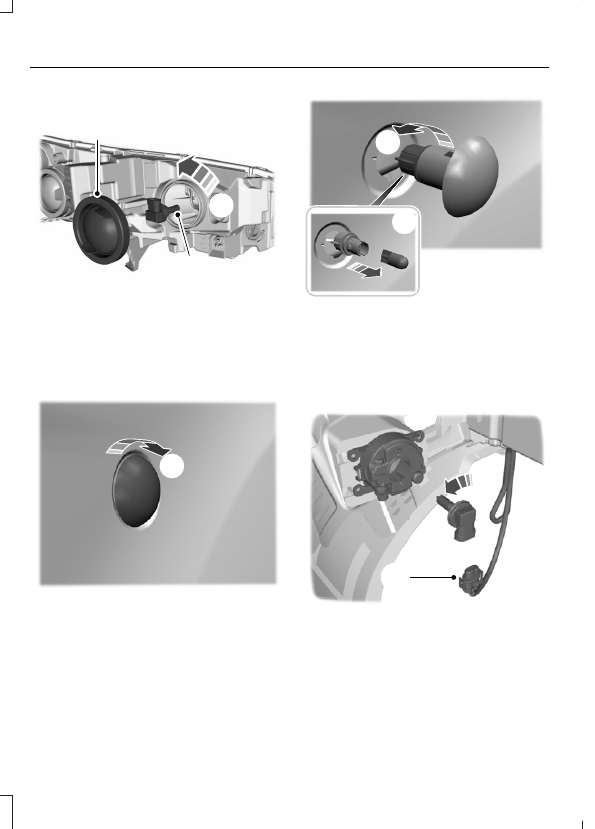

Headlamp High Beam

1

3

2

E171014

1.

Remove the cover.

2. Turn the bulb holder counterclockwise

and remove it.

Note: Do not touch the glass of the bulb.

Side Direction Indicator

1

E165495

1.

Turn the lamp clockwise and remove
it.

E165496

2

3

2. Hold the bulb holder and turn the lamp

counterclockwise and remove it.

3. Remove the bulb by pulling it straight

out.

Front Fog Lamps

E71062

1

2

1.

Disconnect the electrical connector.

2. Turn the bulb holder counterclockwise

and remove it.

Note: Do not touch the glass of the bulb.

Note: You cannot separate the bulb from
the bulb holder.
