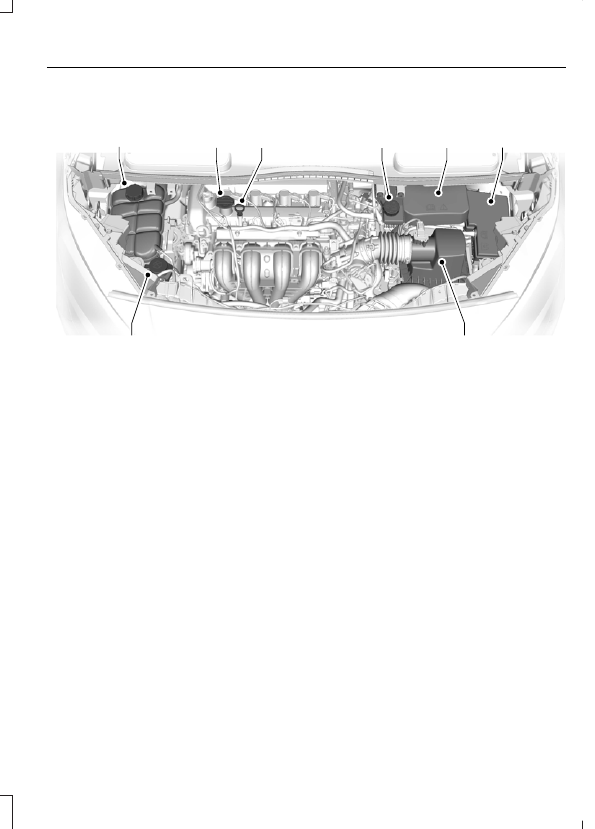

UNDER HOOD OVERVIEW

E166456

Engine coolant reservoir

: See Engine Coolant Check (page 202).

Engine oil filler cap

: See Engine Oil Check (page 200).

Engine oil dipstick

: See Engine Oil Check (page 200).

Brake fluid reservoir

: See Brake Fluid Check (page 206).

Battery: See Changing the 12V Battery (page 206).

Engine compartment fuse box: See Fuses (page 185).

Air cleaner: See Changing the Engine Air Filter (page 218).

Windshield and rear window washer fluid reservoir: See Washer Fluid Check
(page 206).

The filler caps and the engine oil dipstick are colored for easy identification.

ENGINE OIL DIPSTICK

E142462

Minimum

Maximum

ENGINE OIL CHECK

WARNING

Do not work on a hot engine.

To check the engine oil level consistently
and accurately, do the following:

Make sure the parking brake is on. Make
sure the transmission is in park (P) or
neutral (N).

2. Run the engine until it reaches normal

operating temperature.

3. Make sure that your vehicle is on level

ground.

4. Switch the engine off and wait 15

minutes for the oil to drain into the oil
pan. Checking the engine oil level too
soon after you switch the engine off
may result in an inaccurate reading.

5. Open the hood. See Opening and

Closing the Hood (page 197).

6. Remove the dipstick and wipe it with

a clean, lint-free cloth. See Under
Hood Overview (page 199).

Replace the dipstick and remove it
again to check the oil level. See
Engine Oil Dipstick (page 200).

8. Make sure that the oil level is between

the maximum and minimum marks. If
the oil level is at the minimum mark,
add oil immediately. See Capacities
and Specifications (page 257).

9. If the oil level is correct, replace the

dipstick and make sure it is fully seated.

Note: Do not remove the dipstick when the
engine is running.

Note: If the oil level is between the
maximum and minimum marks, the oil level
is acceptable. Do not add oil.

Note: The oil consumption of new engines
reaches its normal level after approximately
3,000 mi (5,000 km).

Adding Engine Oil

WARNINGS

Do not add engine oil when the
engine is hot. Failure to follow this
instruction could result in personal

injury.

Do not remove the filler cap when
the engine is running.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that may
not be covered by the vehicle Warranty.

E142732

Only use oils certified for gasoline engines
by the American Petroleum Institute (API).
An oil with this trademark symbol
conforms to the current engine and
emission system protection standards and
fuel economy requirements of the
International Lubricants Specification
Advisory Committee (ILSAC).

To top up the engine oil level do the
following:

Clean the area surrounding the engine
oil filler cap before you remove it.

2. Remove the engine oil filler cap. See

Under Hood Overview (page 199).
Turn it counterclockwise and remove
it.

3. Add engine oil that meets Ford

specifications. See Capacities and
Specifications (page 257). You may
have to use a funnel to pour the engine
oil into the opening.

4. Recheck the oil level.

5. If the oil level is correct, replace the

dipstick and make sure it is fully seated.

6. Replace the engine oil filler cap. Turn

it clockwise until you feel a strong
resistance.

Note: Do not add oil further than the
maximum mark. Oil levels above the
maximum mark may cause engine damage.

Note: Make sure you install the oil filler cap
correctly.

Note: Soak up any spillage with an
absorbent cloth immediately.

OIL CHANGE INDICATOR
RESET

Resetting the Oil Life Monitoring
System

Only reset the oil life monitoring system
after changing the engine oil and oil filter.

Switch the ignition on. Do not start the
engine.

2. Press the accelerator and brake pedals

at the same time.

3. Keep the accelerator and brake pedals

fully pressed.

4. After three seconds, a message

confirming that the reset is in progress
displays.

5. After 25 seconds, a message

confirming that the reset is complete
displays.

6. Release the accelerator and brake

pedals.

The message confirming that the reset
is complete no longer displays.

8. Switch the ignition off.

ENGINE COOLING FAN

WARNING

Keep your hands and clothing clear
of the engine cooling fan.

Under certain conditions, the engine
cooling fan may continue to run for several
minutes after you switch your vehicle off.

ENGINE COOLANT CHECK

WARNINGS

Do not remove the coolant reservoir
cap when the cooling system is hot.
Wait 10 minutes for the cooling

system to cool down. Cover the coolant
reservoir cap with a thick cloth to prevent
the possibility of scalding and slowly
remove the cap. Failure to follow this
instruction could result in personal injury.

Do not put coolant in the windshield
washer fluid reservoir. If sprayed on
the windshield, coolant could make

it difficult to see through the windshield.

To reduce the risk of personal injury,
make sure the engine is cool before
unscrewing the coolant pressure

relief cap. The cooling system is under
pressure. Steam and hot liquid can come
out forcefully when you loosen the cap
slightly.

Do not add coolant further than the
MAX mark.

When the engine is cold, check the
concentration and level of the coolant at
the intervals listed in the scheduled
maintenance information. See Scheduled
Maintenance (page 388).

Note: Make sure that the coolant level is
between the MIN and MAX marks on the
coolant reservoir.

Note: Coolant expands when it is hot. The
level may extend beyond the MAX mark.

Maintain coolant concentration within
48% to 50%, which equates to a freeze
point between -30°F (-34°C) and -34°F
(-37°C). Coolant concentration should be
checked using a refractometer. We do not
recommend the use of hydrometers or
coolant test strips for measuring coolant
concentration.

Adding Coolant

WARNING

Never remove the coolant reservoir
cap when the engine is running or
hot.

Note: Automotive fluids are not
interchangeable. Take care not to put
engine coolant in the windshield washer
fluid reservoir or windshield washer fluid in
the engine coolant reservoir.

Note: Do not use stop leak pellets, cooling
system sealants, or non-specified additives
as they can cause damage to the engine
cooling or heating systems. Resulting
component damage may not be covered by
the vehicle Warranty.

It is very important to use prediluted
coolant approved to the correct
specification in order to avoid plugging the
small passageways in the engine cooling
system. See Capacities and
Specifications (page 255). Do not mix
different colors or types of coolant in your
vehicle. Mixing of engine coolants or using
an incorrect coolant may harm the engine
or cooling system components and may
not be covered by the vehicle Warranty.

Note: If prediluted coolant is not available,
use the approved concentrated coolant
diluting it to 50/50 with distilled water. See
Capacities and Specifications (page 255).
Using water that has not been deionised
may contribute to deposit formation,
corrosion and plugging of the small cooling
system passageways.

Note: Coolants marketed for all makes and
models may not be approved to Ford
specifications and may cause damage to
the cooling system. Resulting component
damage may not be covered by the vehicle
Warranty.
