Ford Transit Connect (2018 year). Manual - part 47

Protected Component

Fuse Rating

Fuse Number

Glove compartment lamp.
Overhead console switch bank.

Not used.

20 A

F61

Autowipers.

5 A

F62

Auto-dimming interior mirror.

Not used.

-

F63

Not used.

-

F64

Liftgate release.

10 A

F65

Front door double locking and unlock relay.

20 A

F66

SYNC module.

7.5 A

F67

Front display interface module.
Global positioning system module.

Not used.

-

F68

Instrument panel cluster.

5 A

F69

Central locking relay.

20 A

F70

Heating control head (manual air conditioning).

10 A

F71

Dual automatic temperature control.

Steering wheel module.

7.5 A

F72

Data link connector.

7.5 A

F73

Battery backup sounder.

High beam headlamp.

15 A

F74

Front fog lamp.

15 A

F75

Reversing lamp.

10 A

F76

Washer pump.

20 A

F77

Ignition switch.

5 A

F78*

Audio unit.

15 A

F79

DVD navigation system.
Touchscreen.
Hazard flasher switch.
Door lock switch.

Not used.

-

F80

Protected Component

Fuse Rating

Fuse Number

Power sunroof.

5 A

F81

Interior motion sensor.

Washer pump.

20 A

F82

Central locking.

20 A

F83

DD FF unlock supply (ground fuse).

20 A

F84

DD FF double lock (ground fuse).

Ignition switch.

7.5 A

F85

Airbag module.

10 A

F86

Occupant classification system.
Passenger airbag deactivation switch.

Not used.

-

F87

Not used.

-

F88

Not used.

-

F89

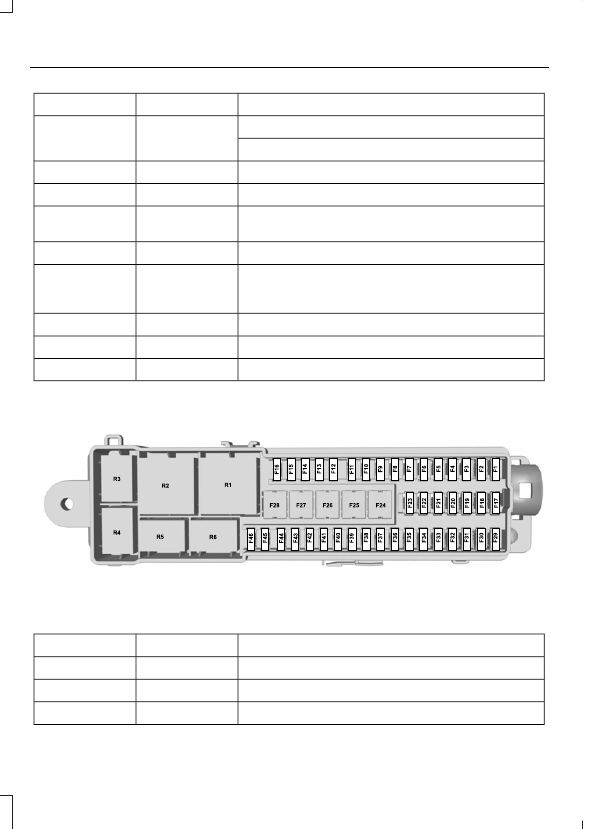

Cargo Compartment Fuse Box

E129927

Protected Component

Fuse Rating

Fuse Number

Rear heating, ventilation and air conditioning.

10 A

F1

Driver seat adjuster.

25 A

F2

Driver door module.

25 A

F3

Protected Component

Fuse Rating

Fuse Number

Passenger door module.

25 A

F4

Not used.

-

F5

Door control unit rear left.

25 A

F6

Door control unit rear right.

25 A

F7

Not used.

-

F8

Not used.

-

F9

Not used.

-

F10

Not used.

-

F11

Not used.

-

F12

Not used.

-

F13

Not used.

-

F14

Not used.

-

F15

Not used.

-

F16

Not used.

-

F17

Not used.

-

F18

Not used.

-

F19

Not used.

-

F20

Not used.

-

F21

Not used.

-

F22

Not used.

-

F23

Not used.

-

F24

Rear blower motor.

40 A

F25

Accessories.

40 A

F26

Trailer tow module.

Taxi.

40 A

F27

Not used.

-

F28

Rear view camera.

5 A

F29

Protected Component

Fuse Rating

Fuse Number

Parking aid.

5 A

F30

Not used.

-

F31

Not used.

-

F32

Not used.

-

F33

Driver heated seat.

15 A

F34

Passenger heated seat.

15 A

F35

Not used.

-

F36

Power sunblind.

20 A

F37

Taxi.

10 A

F38

Not used.

-

F39

Not used.

-

F40

Taxi connector.

10 A

F41

Taxi connector.

20 A

F42

Not used.

-

F43

Not used.

-

F44

Not used.

-

F45

Not used.

-

F46

Circuits switched

Relay Number

Ignition switch.

R1

Rear heating, ventilation and air conditioning.

R2

Ventilation and air conditioning motor.

Not used.

R3

Not used.

R4

Not used.

R5

Not used.

R6
