Ford Transit Connect (2016 year). Manual - part 47

Circuits switched

Relay

Ignition switch.

Rear heating, ventilation and air conditioning motor.

Ventilation and air conditioning motor.

Not used.

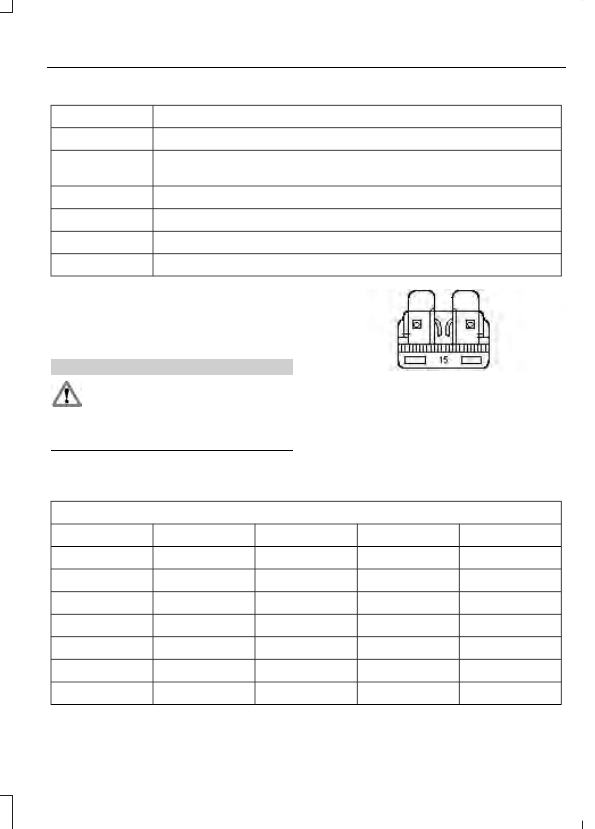

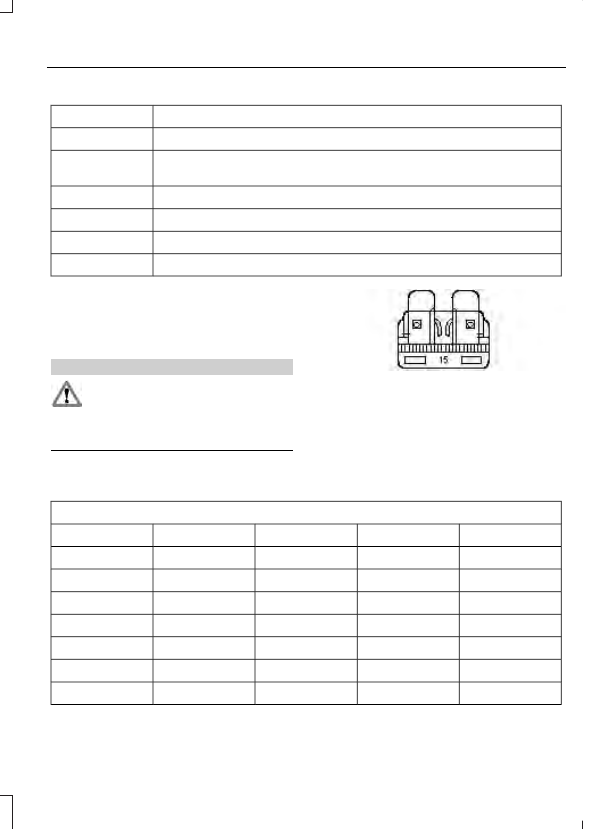

CHANGING A FUSE

Fuses

WARNING

Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage

rating can cause severe wire damage and
could start a fire.

E142430

If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.

Standard Fuse Amperage Rating and Color

Color

J-type fuses

M-type fuses

Dual micro fuses

Micro fuses

Fuse rating

Tan

Brown

7.5A

Red

10A

Grey

Blue

15A

Blue

Light Blue

Yellow

20A

White

25A

Pink

Green

30A

Color

J-type fuses

M-type fuses

Dual micro fuses

Micro fuses

Fuse rating

Green

40A

Red

50A

Yellow

60A

GENERAL INFORMATION

Have your vehicle serviced regularly to help
maintain its roadworthiness and resale
value. There is a large network of
authorized dealers that are there to help
you with their professional servicing
expertise. We believe that their specially
trained technicians are best qualified to
service your vehicle properly and expertly.
They are supported by a wide range of
highly specialized tools developed
specifically for servicing your vehicle.

If your vehicle requires professional service,
an authorized dealer can provide the
necessary parts and service. Check your
warranty information to find out which
parts and services are covered.

Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications. Motorcraft® parts are
designed and built to provide the best
performance in your vehicle.

Precautions

•

Do not work on a hot engine.

•

Make sure that nothing gets caught in
moving parts.

•

Do not work on a vehicle with the
engine running in an enclosed space,
unless you are sure you have enough
ventilation.

•

Keep all open flames and other burning
material (such as cigarettes) away
from the battery and all fuel related
parts.

Working with the Engine Off

Set the parking brake and shift to park
(P).

2. Switch off the engine.

3. Block the wheels.

Working with the Engine On

WARNING

To reduce the risk of vehicle damage
and/or personal burn injuries, do not
start your engine with the air cleaner

removed and do not remove it while the
engine is running.

Set the parking brake and shift to park
(P).

2. Block the wheels.

OPENING AND CLOSING THE
HOOD

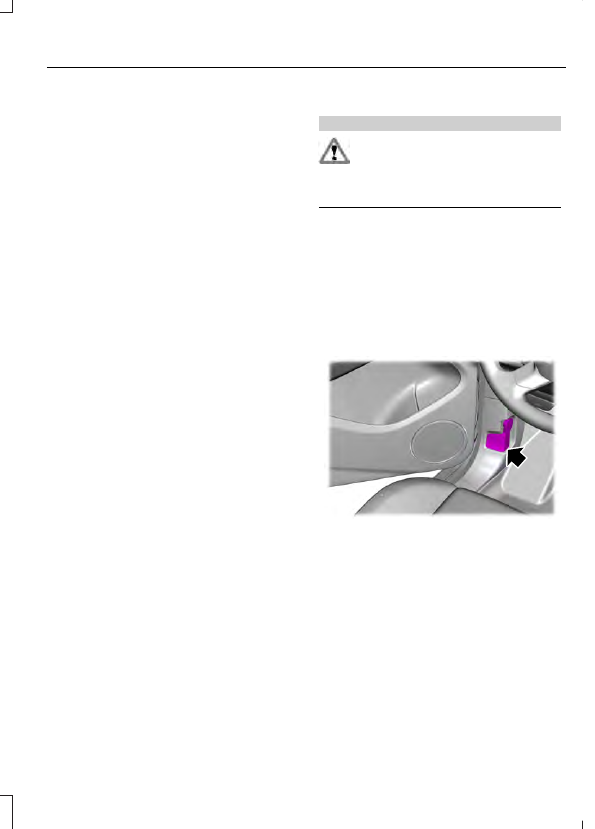

Opening the Hood

E164919

Open the front door.

2. Pull the hood release handle.

E164920

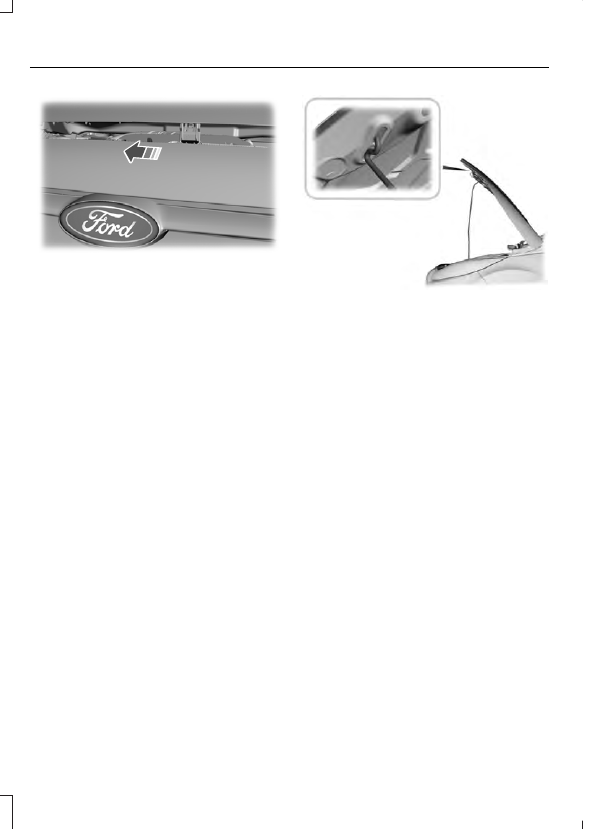

3. Move the catch to the left.

E87786

4. Open the hood and support it with the

support rod.

Closing the Hood

Remove the support rod from the catch
and secure correctly.

2. Lower the hood and allow it to drop

under its own weight for the last 8
inches to 12 inches (20 centimeters
to 30 centimeters).

Note: Make sure the hood is fully closed.
