Ford Transit Connect (2016 year). Manual - part 45

Circuits protected

Fuse rating

Fuse

Heated rear window.

30A

**

F9

Blower motor.

40A

**

F10

Rear floor console auxiliary power point.

20A

**

F11

Cargo area auxiliary power point.

Powertrain control module.

30A

**

F12

Starter relay.

30A

**

F13

Right-hand heated windshield.

40A

**

F14

Cargo-area auxiliary power point.

20A

**

F15

Luggage compartment auxiliary power point.

Heated windshield.

40A

**

F16

Floor console auxiliary power point.

20A

**

F17

Accessories - Van only.

40A

**

F18

Anti-lock brake system.

5A

*

F19

Stability Control.

Horn.

15A

*

F20

Stop lamp switch.

5A

*

F21

Battery monitor system - 1.6 GTDI engine only.

15A

*

F22

Power supply voltage - powertrain control module
2.5 L engine only.

10A

*

Relay coils.

5A

*

F23

Not used.

-

F24

Door control unit (van only).

25A

*

F25

Engine control relay coil feed - 2.5 L engine only.

5A

*

F26

Air conditioning clutch.

15A

*

F27

Rear power window.

25A

*

F28

Circuits protected

Fuse rating

Fuse

Front power window.

25A

*

F29

Ignition switch position II output (van only).

5A

*

F30

Taxi roof lamp switch.

15A

*

F31

Engine control module.

15A

*

F32

Engine control module.

10A

*

F33

Fuel injectors.

10A

*

F34

Vehicle power 4.

15A

*

F35

Active grill shutter - 1.6 GTDI and 2.5L engine only.

5A

*

F36

Battery saver relay.

5A

*

F37

Engine control module.

15A

*

F38

Transmission control module.

Taxi block connector.

10A

*

F39

Electronic power assist steering.

5A

*

F40

Body control module.

20A

*

F41

Rear window wiper.

15A

*

F42

Heated front seat - Van.

15A

*

F43

Accessories - Van.

20A

*

Headlamp control module.

15A

*

F44

Air conditioning switch - Taxi.

5A

*

Power exterior mirror - without door control unit.

10A

*

F45

Windshield wiper.

40A

**

F46

Circuits protected

Fuse rating

Fuse

Heated exterior mirror - without door control unit.

7.5A

*

F47

Body control module.

25A

*

F48

*

Mini fuses

**

Cartridge fuses

Circuits switched

Relay

Not used.

R1

Horn.

R2

Battery saver relay.

R3

Heated rear window.

R4

Rear window wiper.

R5

Not used.

R6

Heated windshield.

R7

Accessory delay.

R8

DCU power feed (van).

Relay - Van.

R9

Starter motor.

R10

Air conditioning clutch.

R11

Cooling fan.

R12

Blower motor.

R13

Electronic engine control.

R14

Not used.

R15

Ignition.

R16

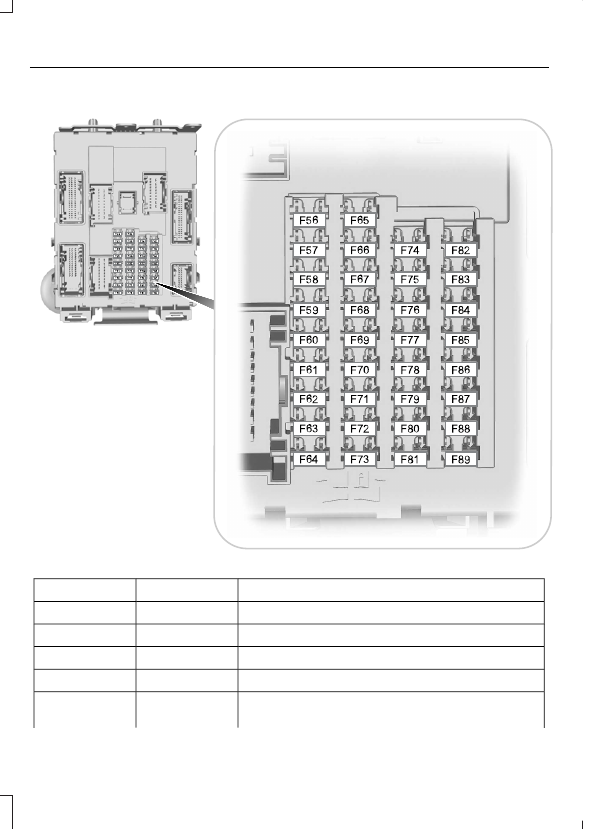

Passenger Compartment Fuse Box

E129926

Circuits protected

Fuse rating

Fuse

Fuel pump.

20A

F56

Not used.

-

F57

Not used.

-

F58

Passive anti-theft system transceiver.

5A

F59

Interior lamp.

10A

F60

Driver door switch pack.
