Ford Super Duty (2018 year). Manual - part 14

E151800

Note: Do not touch the battery contacts or
the printed circuit board with the
screwdriver.

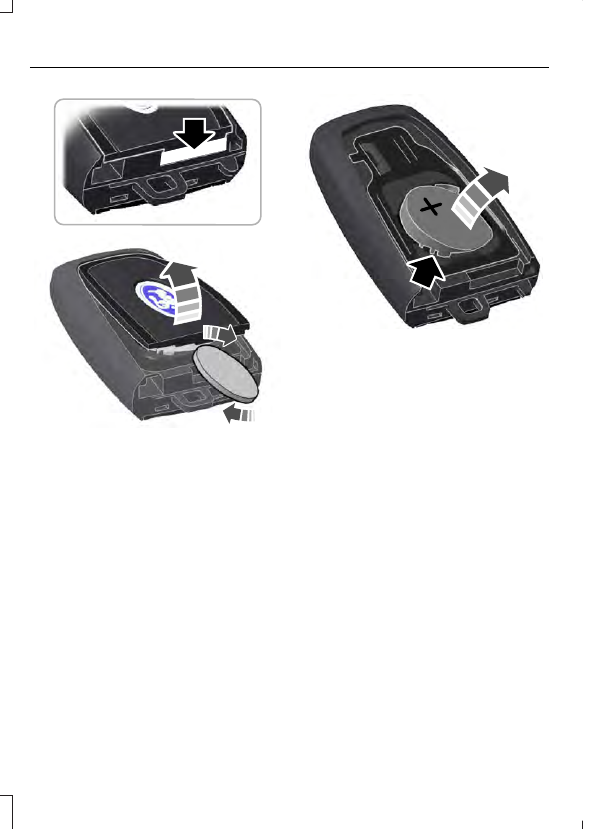

4. Insert a suitable tool, for example a

screwdriver, in the position shown to
release the battery.

E151801

5. Remove the battery.

6. Insert a new battery with the + facing

upward.

7.

Reinstall the battery housing cover
onto the transmitter.

Intelligent Access Key

The remote control uses one coin-type
three-volt lithium battery CR2032 or
equivalent.

E226462

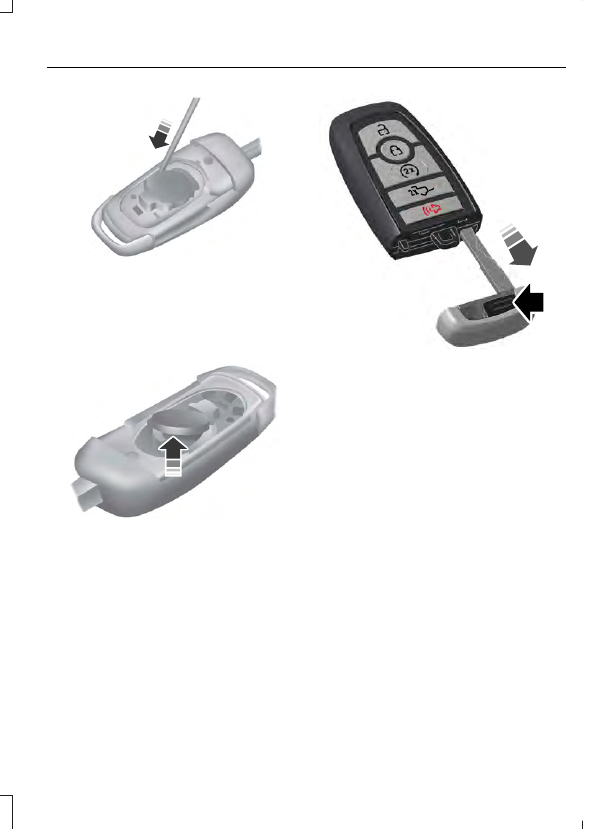

1.

Press the release button and pull the
key blade out.

E218401

2. Twist a thin coin under the tab hidden

behind the key blade head to remove
the battery cover.

E218402

3. Insert a suitable tool, for example a

screwdriver, in the position shown and
carefully remove the battery.

4. Insert a new battery with the + facing

upward.

5. Reinstall the battery housing cover

onto the transmitter and install the key
blade.

Memory Feature

 (If Equipped)

You can use the remote control to recall
memory positions.

Press the unlock button on a linked remote
control to recall memory positions.  If you
enable the easy entry and exit feature, the
seat moves to the easy entry position.  The
seat moves to the driver memory position
when you switch the ignition on.

Linking a Preset Position to your
Remote Control

See Memory Function (page 161).

Car Finder

E138623

Press the button twice within
three seconds.  A tone sounds
and the direction indicators

flash.  We recommend you use this method
to locate your vehicle, rather than using
the panic alarm.

Sounding the Panic Alarm

E138624

Press the button to sound the
panic alarm.  Press the button
again or switch the ignition on to

turn it off.

Note: The panic alarm only operates when
the ignition is off.

Remote Start

 (If Equipped)

WARNING

To avoid exhaust fumes, do not use
remote start if your vehicle is parked
indoors or in areas that are not well

ventilated.

Note: Do not use remote start if your fuel
level is low.

E138625

The remote start button is on the
transmitter.

This feature allows you to start your
vehicle from the outside.  The transmitter
has an extended operating range.

You can configure vehicles with automatic
climate control to turn on the automatic
climate control when you remote start your
vehicle.  See Automatic Climate Control
(page 150).  A manual climate control
system runs at the setting you set it to
when you switched your vehicle off.

Many states and provinces restrict the use
of remote start. Check your local and state
or provincial laws for specific requirements
regarding remote start systems.

The remote start system does not work if
any of the following occur:
•

The ignition is on.

•

The anti-theft alarm triggers.

•

You switch off the feature.

•

The hood is open.

•

The transmission is not in park (P).

•

The battery voltage is below the
minimum operating voltage.

•

The service engine soon light is on.

Remote Control Feedback

An LED on the remote control provides
status feedback of remote start or stop
commands.

Status

LED

Remote start or

extension

successful

Solid green

Remote stop

successful; vehicle

off

Solid red

Remote start or

stop failed

Blinking red

Waiting for status

update

Blinking green

Remote Starting Your Vehicle

Note: You must press each button within
three seconds of each other.

E138626

The label on your transmitter details the
starting procedure.

To remote start your vehicle:

1.

Press the lock button.

2. Press the remote start button twice.

The exterior lamps flash twice.

The horn sounds if the system fails to start,
unless quiet start is on.  Quiet start runs
the blower fan at a slower speed to reduce
noise.  You can switch it on or off in the
information display.  See General
Information (page 114).

Note: If you do not follow this sequence,
your vehicle does not start remotely, the
direction indicators do not flash twice and
the horn does not sound.

Note:  If you remote start your vehicle with
an integrated keyhead transmitter, you must
switch on the ignition before driving your
vehicle.  If you remote start your vehicle with
an intelligent access transmitter, you must
press the push button ignition switch on the
instrument panel once while applying the
brake pedal before driving your vehicle.

The power windows do not work during
remote start and the radio does not turn
on automatically.

The parking lamps remain on and your
vehicle runs for 5, 10 or 15 minutes
depending on the setting.

Extending the Engine Running Time

To extend the engine running time duration
of your vehicle during remote start, repeat
steps 1 and 2 while the engine is running.
If the duration is set to 10 minutes, the
duration extends by another 10 minutes.
For example, if your vehicle had been
running from the first remote start for 5
minutes, your vehicle continues to run now
for a total of 20 minutes.  You can extend
the remote start up to a maximum of 35
minutes.

Wait at least five seconds before remote
starting after the engine stops running.

Turning Your Vehicle Off After Remote
Starting

E138625

Press the button once.  The
parking lamps turn off.

You may have to be closer to the

vehicle than when starting due to ground
reflection and the added noise of the
running vehicle.

You can turn the remote start system on
or off using the information display. See
General Information (page 114).

REPLACING A LOST KEY OR
REMOTE CONTROL
