Front Fog Lamp

 (If Equipped)

E203699

1.

Use a suitable tool, for example a
screwdriver, to carefully remove the
housing cover.

Note: To remove push pins, use a
flat-bladed screwdriver to pull up the center
release pin.

2. Disconnect the electrical connector.

E174588

3. Turn the bulb holder counterclockwise

and remove it.

Note: You cannot separate the bulb from
the bulb holder.

Note: Do not touch the bulb glass.

Rear Direction Indicator and
Reversing Lamp

2

3

4

E203701

1.

Switch all of the lamps and the ignition
off.

2. Use a suitable tool, for example a

screwdriver, to carefully remove the
screw covers.

3. Remove the retaining bolts from the

lamp assembly.

4. Gently pull the lamp assembly away

from the vehicle.

5. Release the wire from the securing clip.

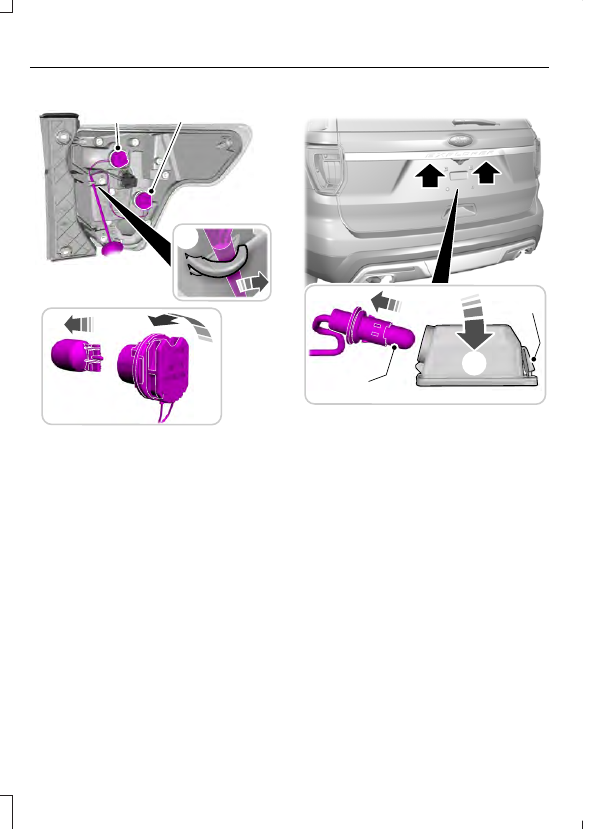

6. Turn the bulb holder counterclockwise

and remove it.

7.

Remove the bulb by pulling it straight
out.

B

E203702

5

6

A

Reverse lamp.

A

Rear direction indicator.

B

LED Lamps

LED lamps are not serviceable items.  See
an authorized dealer if they fail.

The following lamps are LED:
•

Front side marker lamps.

•

Daytime running lamps. If Equipped.

•

Headlamp low beam.

•

Rear side marker lamp.

•

Brake and rear lamp.

•

Central high mounted brake lamp.

License Plate Lamp

E203703

1

3

2

1.

Use a suitable tool, for example a
screwdriver, to carefully remove the
lamp.

2. Turn the bulb holder counterclockwise

and remove it.

3. Remove the bulb by pulling it straight

out.

BULB SPECIFICATION CHART

Replacement bulbs are specified in the
chart below.  Headlamp bulbs must be
marked with an authorized D.O.T. marking
for North America to make sure they have
the proper lamp performance, light
brightness, light pattern and safe visibility.
The correct bulbs will not damage the
lamp assembly or void the lamp assembly
warranty and will provide quality bulb
illumination time.

Exterior Lamps

Power (Watt)

Specification

Lamp

LED

LED

Front park lamps.

LED

LED

Front side marker lamp.

LED

LED

Front warning lamp.

27

3757NA

Front direction indicator.

1

LED

LED

Daytime running lamps. If Equipped.

LED

LED

Headlamp low beam.

65

9005LL

Headlamp high beam.

LED

LED

Front auxillary warning lamp.

LED

LED

Exterior mirror warning lamp.

LED

LED

Rear side marker lamp.

LED

LED

Rear quarter window warning lamp.

LED

LED

Rear auxillary warning lamp.

LED

LED

Brake and rear lamp.

LED

LED

Central high mounted brake lamp.

21

WY21W

Rear direction indicator.

21

W21W

Reversing lamp.

5

W5W

License plate lamp.

LED

LED

Spot Lamp

1

LED lamp when optional Warn, Park, Turn lamp is fitted.

Note: LED lamps are not serviceable. See an authorized dealer if they fail.

Interior Lamps

Power (Watt)

Specification

Lamp

4

194

Glove compartment lamp.

5

168

Map lamp.

A6224PF

Vanity mirror lamp.

Power (Watt)

Specification

Lamp

LED

LED

Rear Dome Lamp.

10

12854

Second and third row task lamp.

2

LED

White LED

Second and third row task lamp - White LED.

LED

Red LED

Second and third row task lamp - Red LED.

2

Conventional bulb.

Note: LED lamps are not serviceable. See an authorized dealer if they fail.
