Replace the wiper blades at least annually
for optimum performance.

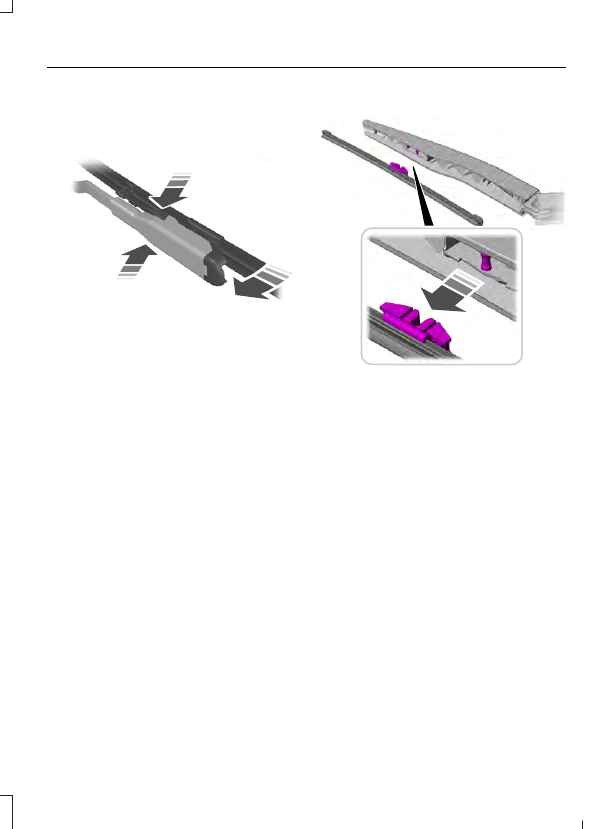

Front Wiper Blades

E129990

1

1

2

1.

Lift the wiper arm and then press the
wiper blade locking buttons together.

Note: Do not hold the wiper blade when
lifting the wiper arm.

Note: Make sure that the wiper arm does
not spring back against the glass when the
wiper blade is not attached.

2. Slightly rotate the wiper blade.

3. Remove the wiper blade.

4. Install in the reverse order.

Note: Make sure that the wiper blade locks
into place.

Rear Window Wiper Blade

E183236

1.

Lift the wiper arm.

Note: Do not hold the wiper blade when
lifting the wiper arm.

Note: Make sure that the wiper arm does
not spring back against the glass when the
wiper blade is not attached.

2. Remove the wiper blade.

Note: Make sure that the wiper blade locks
into place.

ADJUSTING THE HEADLAMPS

Vertical Aim Adjustment

If your vehicle has been involved in a crash,
have the aim of the headlamp beam
checked by an authorized dealer.

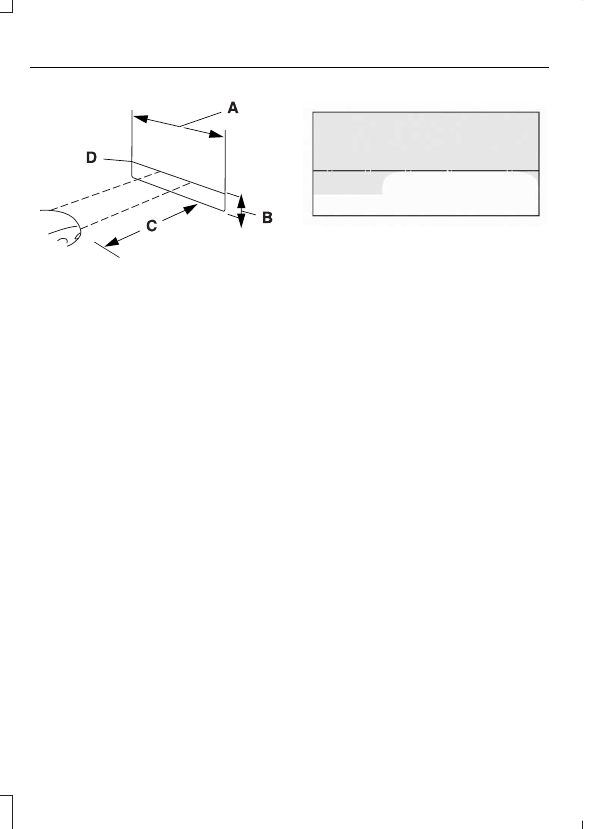

E142592

8 ft (2.4 m)

A

Ground to the center of the
headlamp high beam bulb

B

25 ft (7.6 m)

C

Horizontal reference line

D

Vertical Aim Adjustment Procedure

1.

Park your vehicle on level ground
approximately 25 ft (7.6 m) from a wall
or screen.

2. Measure the distance from the ground

to the center of the headlamp high
beam bulb and mark an 8 ft (2.4 m)
long horizontal reference line on the
wall or screen at this height.

Note: There may be an identifying mark on
the lens to help you locate the center line
of the headlamp high beam bulb. Refer to
the graphic below step 4.

Note: To see a clearer light pattern for
adjusting, you may want to block the light
from one headlamp while adjusting the
other.

3. Switch on the low beam headlamps

and open the hood.

E142465

4. On the wall or screen you will observe

a flat zone of high intensity light
located at the top of the beam pattern.
If the top edge of the flat zone of high
intensity light is not on the horizontal
reference line, adjust the aim of the
headlamp beam.

E203691

5

5. Use a suitable tool, for example a

screwdriver or socket wrench, to turn
the adjuster clockwise or
counterclockwise to adjust the vertical
aim of the headlamp. The horizontal
edge of the brighter light should touch
the horizontal reference line.

6. Close the hood and switch off the

lamps.

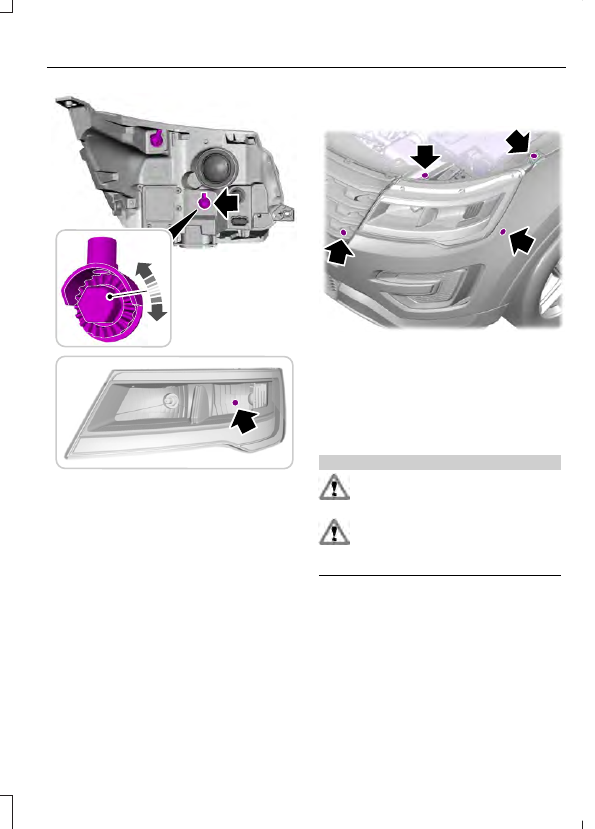

REMOVING A HEADLAMP

E203692

To gain access to the headlamp securing
bolts and to remove the headlamp
assembly, you must first remove the front
fascia and front bumper assemblies. We
recommend you see an authorized dealer.

CHANGING A BULB

WARNINGS

Switch the lamps and the ignition off.
Failure to do so could result in
serious personal injury.

Bulbs can become hot. Let the bulb
cool down before removing it. Failure
to do so could result in personal

injury.

Use the correct specification bulb.  See
Bulb Specification Chart (page 204).
Install in the reverse order unless otherwise
stated.

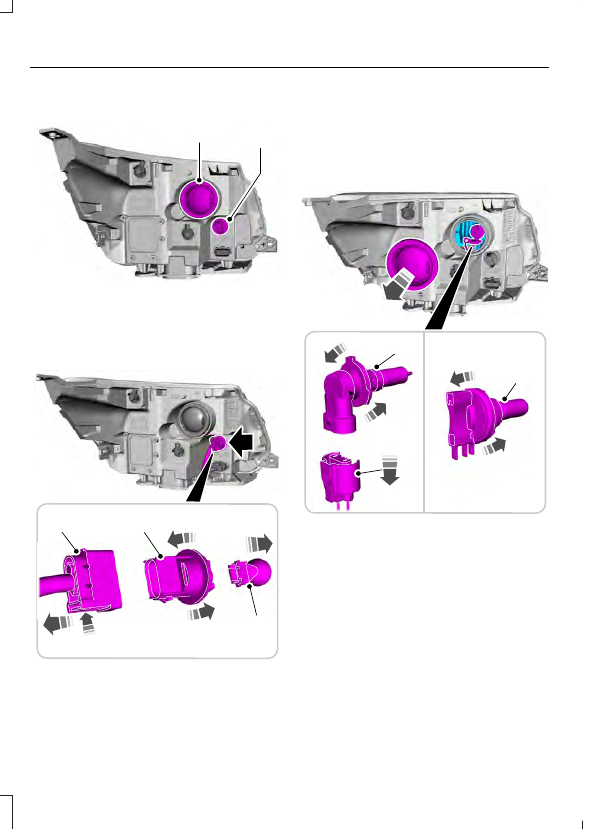

Headlamp

E203696

A

B

Headlamp high beam.

A

Front direction indicator.

B

Front Direction Indicator

E203698

4

2

3

1.

Switch all of the lamps and the ignition
off.

2. Disconnect the electrical connector.

3. Turn the bulb holder counterclockwise

and remove it.

4. Remove the bulb by pulling it straight

out.

Headlamp High Beam

E203697

2

3

4

4

1.

Switch all of the lamps and the ignition
off.

2. Carefully remove the cover.

3. Disconnect the electrical connector.

4. Turn the bulb holder counterclockwise

and remove it.

Note: You cannot separate the bulb from
the bulb holder.

Note: Do not touch the bulb glass.
