Ford Police Interceptor Utility (2018 year). Manual - part 12

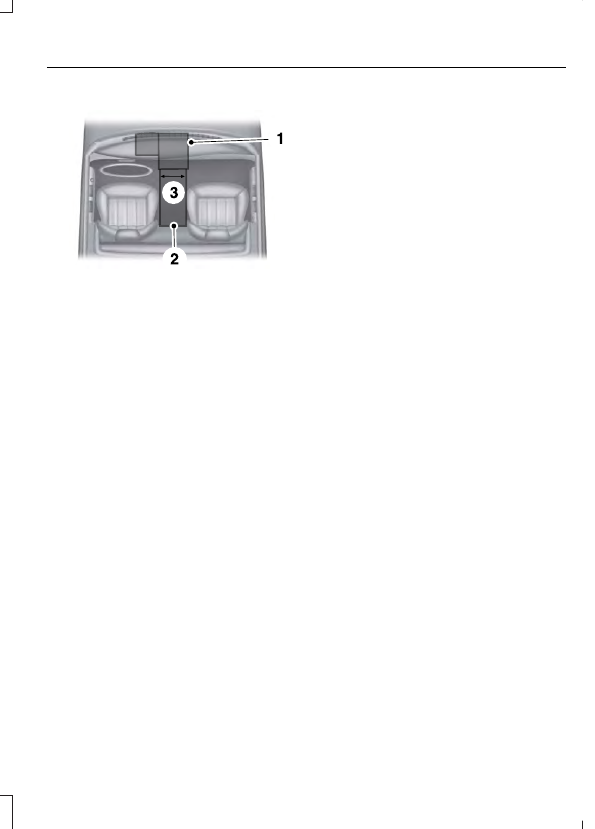

Figure 8

E201583

Area on top of the instrument
panel. Note: Equipment must
not interfere with driver visibility.

1.

Area on tunnel between seats.

2.

9 inches (229 millimeters).

3.

AIRBAG DISPOSAL

Contact your authorized dealer as soon as
possible. Airbags must be disposed of by
qualified personnel.

PRINCIPLE OF OPERATION

The remote control allows you to:
•

Remotely lock or unlock the vehicle
doors.

•

Unlock the doors without actively using
a key or remote control (intelligent
access only).

•

Remotely open the power liftgate (if
equipped).

•

Remotely start or stop the engine and
user pre-set features (if equipped).

•

Arm and disarm the anti-theft system.

•

Activate the panic alarm.

GENERAL INFORMATION ON
RADIO FREQUENCIES

This device complies with Part 15 of the
FCC Rules and with Licence exempt RSS
Standards of Industry Canada. Operation
is subject to the following two conditions:
•

This device may not cause harmful
interference, and

•

This device must accept any
interference received, including
interference that may cause undesired
operation.

WARNING

Changes or modifications not
expressively approved by the party
responsible for compliance could

void the user's authority to operate the
equipment. The term "IC:" before the radio
certification number only signifies that
Industry Canada technical specifications
were met.

The typical operating range for your
transmitter is approximately 33 ft (10 m).
Vehicles with the remote start feature will
have a greater range. One of the following
could cause a decrease in operating range:
•

Weather conditions.

•

Nearby radio towers.

•

Structures around the vehicle.

•

Other vehicles parked next to your
vehicle.

Other short distance radio transmissions,
for example amateur radios, medical
equipment, wireless headphones, remote
controls and alarm systems can also use
the radio frequency used by your remote
control. If the frequencies are jammed, you
will not be able to use your remote control.
You can lock and unlock the doors with the
key.

Note: Make sure to lock your vehicle before
leaving it unattended.

Note: If you are in range, the remote control
will operate if you press any button
unintentionally.

Note: The remote control contains sensitive
electrical components. Exposure to moisture
or impact may cause permanent damage.

REMOTE CONTROL

 (If Equipped)

Note: If there are problems with the remote
entry system, make sure to take all remote
entry transmitters with you to an authorized
dealer in order to aid in troubleshooting the
problem.

Type 1

E203600

Type 2

E218100

Changing the Remote Control
Battery

The remote control uses one coin-type
three-volt lithium battery CR2032 or
equivalent.

E107998

Make sure that you dispose of
old batteries in an
environmentally friendly way.

Seek advice from your local authority
about recycling old batteries.

1

E203601

2

1.

Twist a thin coin in the slot of the
transmitter near the key ring to remove
the battery cover.

Note: Do not remove the rubber cover and
circuit board from the front housing of the
remote control.

Note: Do not wipe off any grease on the
battery terminals or on the back surface of
the circuit board.

2. Remove the old battery.

3. Insert the new battery.  Refer to the

symbols inside the transmitter for the
correct orientation of the battery.
Press the battery down to make sure
it is fully in the housing.

4. Reinstall the battery housing cover

onto the transmitter.

Note:  Replacing the battery does not erase
the programmed key from your vehicle.  The
transmitter should operate normally.

Sounding the Panic Alarm

 (If Equipped)

E138624

On Type 1, press the button to
sound the panic alarm.  Press the
button again or switch the

ignition on to turn it off.

Note: The panic alarm operates regardless
of the ignition position.

Opening the Liftgate With the
Liftgate Button

 (If Equipped)

On Type 2, press the button to
unlock the liftgate. The liftgate
unlocks for 45 seconds, during

which time you can open the liftgate using
the exterior liftgate release button.  See
Manual Liftgate (page 58).

Note: Only the liftgate unlocks. All other
passenger doors remain in the previous
locking state.

Note: If you do not open the liftgate within
45 seconds of unlocking it, the liftgate locks
again. Press the button on the remote
control or use the key blade inserted into
the liftgate lock cylinder to unlock the
liftgate again.

Note: The liftgate does not unlock when
you unlock all the doors using the remote
control or power door lock control.

REPLACING A LOST KEY OR
REMOTE CONTROL
