Ford Mustang (2018 year). Manual - part 26

Transmission

Action

Message

See your authorized dealer.

Transmission Malfunc-

tion Service Now

The transmission is overheating and needs to cool. Stop in a

safe place as soon as it is possible.

Transmission Over-
heating Stop Safely

The transmission has overheated and needs to cool. Stop in

a safe place as soon as it is possible.

Transmission Over

Temperature Stop

Safely

See your authorized dealer.

Transmission Service

Required

Transmission is getting hot. Stop to let it cool.

Transmission Too Hot

Press Brake

Displays when the transmission has overheated and has

limited functionality.

Transmission Limited

Function See Manual

Transmission is too cold. Wait for it to warm up before you

drive.

Transmission Warming

Up Please Wait

Displays as a reminder to shift into park.

Transmission Not in Park

Displays as a reminder to press the brake pedal in order to

select a gear.

Press Brake Pedal

Displays when the transmission has adjusted the shift

strategy.

Transmission Adjusted

Displays when the transmission is adjusting the shift strategy.

Transmission Adapt-

Mode

Displays when the transmission shift lever is locked and unable

to select gears.

Transmission Indicat-

Mode Lockup On

Displays when the transmission shift lever is unlocked and

free to select gears.

Transmission Indicat-

Mode Lockup Off

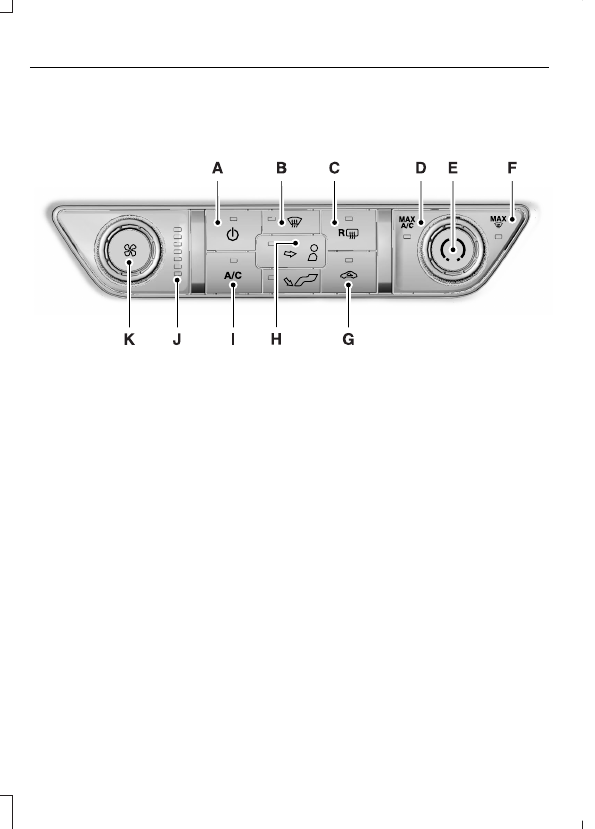

MANUAL CLIMATE CONTROL

(If Equipped)

E174095

Power: Press to switch the system on and off. When the system is off, it
prevents outside air from entering the vehicle.

Defrost: Press to distribute air through the windshield air vents and de-mister.
Air distribution to the instrument panel and footwell vents turns off. You can
also use this setting to defog and clear the windshield of a thin covering of ice.

Heated rear window: Press to switch the heated rear window on and off. See
Heated Windows and Mirrors (page 113).

MAX A/C: Turn to the left for maximum cooling. Recirculated air flows through
the instrument panel vents, air conditioning turns on and the fan adjusts to the
highest speed.

Temperature control: Adjusts the temperature of the air circulated in your
vehicle.

MAX Defrost: Turn to the right to switch on defrost. Air flows through the
windshield vents and the fan adjusts to the highest speed. You can also use
this setting to defog and clear the windshield of a thin covering of ice. The heated
rear window also turns on when you select maximum defrost.

Note: To prevent window fogging, you cannot select recirculated air when
maximum defrost is on.

Recirculated air: Press to switch between outside air and recirculated air. The
air currently in the passenger compartment recirculates. This may reduce the
time needed to cool the interior (when used with A/C) and reduce unwanted
odors from entering your vehicle.

Note: Recirculated air may turn off (or prevent you from switching on) in all air
flow modes except MAX A/C to reduce the risk of fogging. Recirculation may
also turn on and off in Panel or Panel/Floor air flow modes during hot weather
in order to improve cooling efficiency.

Air distribution control: Press to switch air flow from the windshield,
instrument panel or footwell vents on or off. You can distribute air through any
combination of these vents.

A/C: Press to switch the air conditioning on or off. Use A/C with recirculated
air to improve cooling performance and efficiency.

Note: In certain conditions (for example, maximum defrost), the air conditioning
compressor may continue to operate even though you switch off the air
conditioning.

Fan speed indicator: Illuminates to indicate fan speed.

Fan speed control: Adjusts the volume of air circulated in the vehicle.

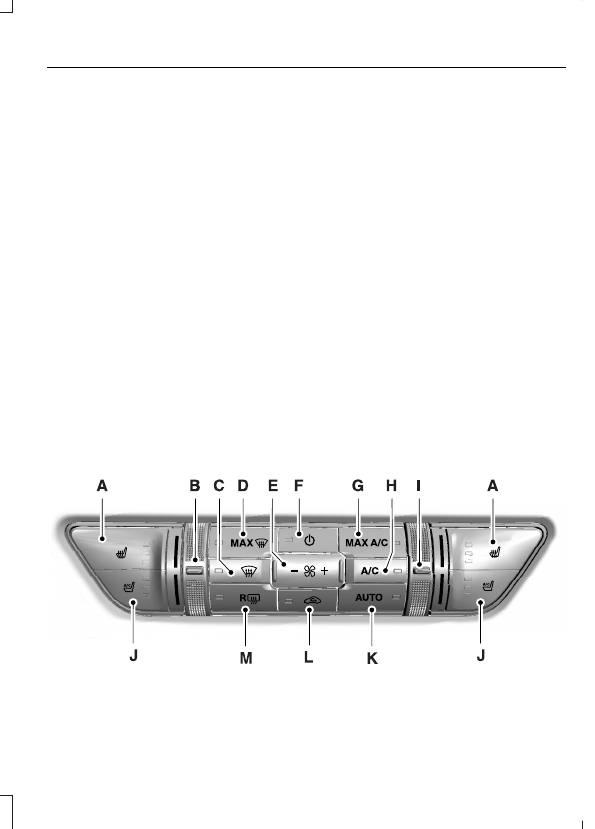

AUTOMATIC CLIMATE CONTROL

(If Equipped)

E174096

Heated seats: Press to switch the heated seats on and off. See Climate
Controlled Seats (page 120).

Left-hand temperature control: Adjusts the temperature setting on the
left-hand side.

Note: The system may limit the maximum difference between driver and
passenger settings. Whenever you make an adjustment that would result in a
larger difference, both settings change together.

MAX Defrost: Press to switch on defrost. The driver and passenger settings
set to HI, air flows through the windshield vents, and the fan adjusts to the
highest speed. You can also use this setting to defog and clear the windshield
of a thin covering of ice. The heated rear window also turns on when you select
maximum defrost.

Note: To prevent window fogging, you cannot select recirculated air when
maximum defrost is on.

Fan speed control: Adjusts the volume of air circulated in the vehicle.

Power: Press to switch the system on and off. When the system is off, it
prevents outside air from entering the vehicle.

MAX A/C: Press for maximum cooling. The driver and passenger settings set
to LO, recirculated air flows through the instrument panel vents, air conditioning
turns on and the fan adjusts to the highest speed.

A/C: Press to switch the air conditioning on or off. Use A/C with recirculated
air to improve cooling performance and efficiency.

Note: In certain conditions (for example, maximum defrost), the air conditioning
compressor may continue to operate even though you switch off the air
conditioning.

Right-hand temperature control: Adjusts the temperature setting on the
right-hand side.

Climate controlled seats: Press to switch the climate controlled seats on
and off. See Climate Controlled Seats (page 120).

AUTO: Press to switch on automatic operation. Adjust to select the desired
temperature. Fan speed, air distribution, air conditioning operation, and outside
or recirculated air adjust to heat or cool the vehicle to maintain the desired
temperature. You can also switch off dual zone mode by pressing and holding
for more than two seconds.
