Ford GT (2018 year). Manual - part 38

Protected Components

Fuse Rating

Fuse or Relay

Number

Power mirror/window switch (motor).
Right smart window motor (logic).
Left smart window motor (logic).

Central lock relay.

20A

1

24

Central unlock relay.

Left smart window motor.

30A

1

25

Right smart window motor.

30A

1

26

Not used (spare).

30A

1

27

Electronic steering column lock (relay
supply).

20A

1

28

Not used (spare).

30A

1

29

Not used (spare).

30A

1

30

Not used (spare).

15A

1

31

SYNC.

10A

1

32

Audio on/off switch.
Gear shift module (GSM).
HVAC ECU power.

Audio control module (ACM).

20A

1

33

Run-start relay (R12).

30A

1

34

Steering angle sensor (SSAM).

5A

1

35

Auxiliary power point.

15A

1

36

Battery junction box (BJB) F60, F62, F64,
F66, F65.

20A

1

37

Not used.

—

38

1

Micro 2 fuse.

2

Micro 3 fuse.

CHANGING A FUSE

Fuses

WARNING

Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage

rating can cause severe wire damage and
could start a fire.

E217331

If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.

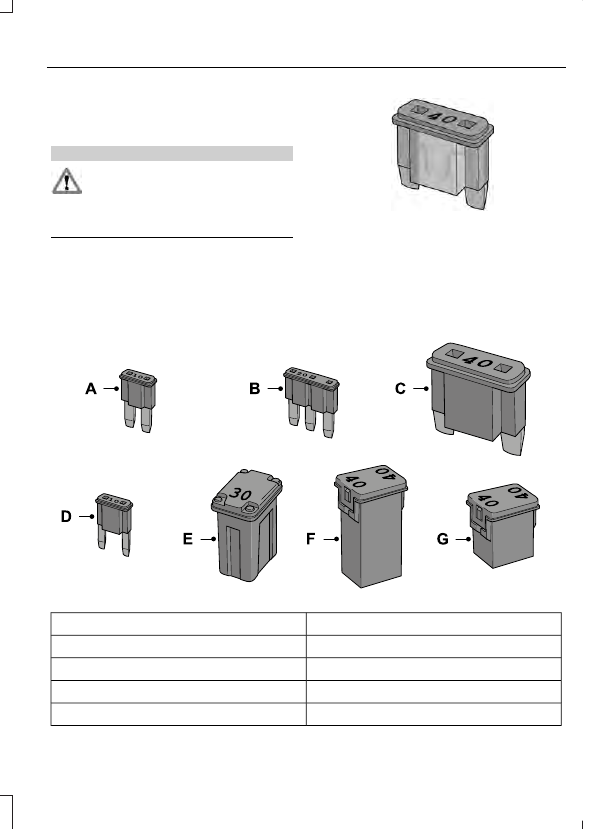

Fuse Types

E207206

Fuse Type

Callout

Micro 2

A

Micro 3

B

Maxi

C

Mini

D

Fuse Type

Callout

M Case

E

J Case

F

J Case Low Profile

G

GENERAL INFORMATION

Have your Ford GT serviced regularly to
help maintain its roadworthiness and
resale value. There is a network of Ford GT
service dealers that are certified to help
you with their professional servicing
expertise. We believe that their specially
trained technicians are best qualified to
service your vehicle properly and expertly.
They are supported by a range of highly
specialized tools developed specifically
for servicing the Ford GT.

If your vehicle requires professional service,
an authorized dealer can provide the
necessary parts and service. Check your
warranty information to find out which
parts and services are covered.

Use only recommended fuels, lubricants,
fluids and service parts conforming to
specifications. Motorcraft® parts are
designed and built to provide the best
performance in your vehicle.

Precautions

•

Do not work on a hot engine.

•

Make sure that nothing gets caught in
moving parts.

•

Do not work on a vehicle with the
engine running in an enclosed space,
unless you are sure you have enough
ventilation.

•

Keep all open flames and other burning
material (such as cigarettes) away
from the battery and all fuel related
parts.

Working with the Engine Off

1.

Set the parking brake and shift to park
(P).

2. Switch off the engine.

3. Block the wheels.

Working with the Engine On

WARNING

To reduce the risk of vehicle damage
and personal burn injuries, do not
start your engine with the air cleaner

removed and do not remove it while the
engine is running.

1.

Set the parking brake and shift to park
(P).

2. Block the wheels.

OPENING AND CLOSING THE
HOOD

Opening the Front Hood

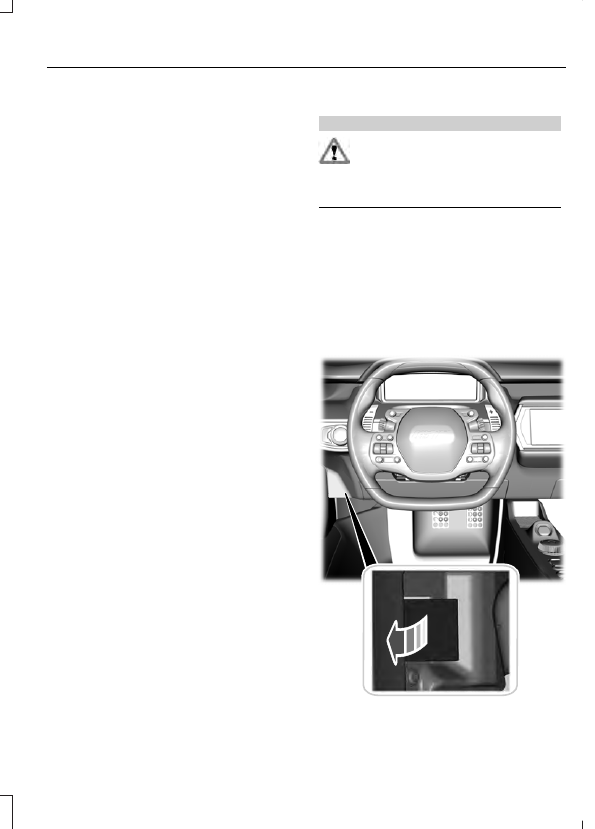

E229939
