Ford GT (2018 year). Manual - part 37

Protected Components

Fuse Rating

Fuse or Relay

Number

Starter.

30A

2

22

Charge air cooler fan.

30A

2

23

Shunt.

—

24

Charge air cooler fan relay.

—

25

Not used.

—

26

Fuel pump 1 relay.

—

27

AC clutch relay.

—

28

Starter relay.

—

29

Fuel injection relay.

—

30

Fuel pump 2 relay.

—

31

Engine control module relay.

—

32

1

Mini fuse.

2

J-case low profile fuse.

Rear Power Distribution Box 2

The rear power distribution box is in the
engine compartment.  See Under Hood
Overview (page 160).  It has high-current
fuses that protect your vehicle's main
electrical systems from overloads. These
are in the right side of the engine
compartment behind an access door in the
engine surround panel. If replacement of
these high-current fuses is required, see
an authorized dealer.

If you disconnect and reconnect the
battery, you will need to reset some
features.  See Changing the 12V Battery
(page 168).

E270327

Protected Components

Fuse Rating

Fuse or Relay

Number

Transmission gear fluid cooler fan relay.

—

1

Engine oil cooler fan relay.

—

2

Transmission clutch fluid cooler fan relay.

—

3

Not used.

—

4

Not used.

—

5

Not used.

—

6

Engine oil cooler fan.

20A

1

7

Transmission clutch fluid cooler fan.

30A

1

8

Transmission gear fluid cooler fan.

20A

1

9

Not used.

—

10

1

J-case low profile fuse.

Passenger Compartment Fuse
Panel

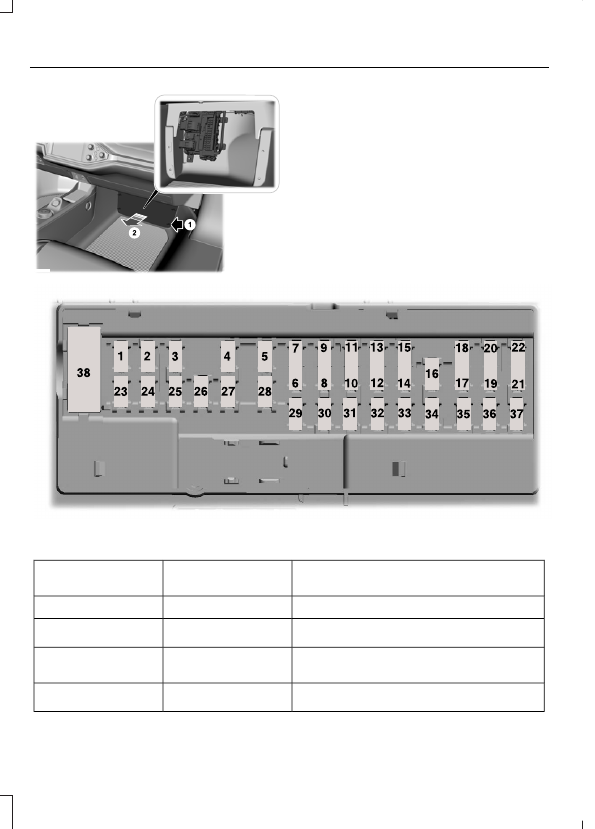

The fuse panel is in the passenger footwell
behind the toeboard panel.

E238973

To remove the toeboard panel, rotate each
of the four fasteners, and then pull the
toeboard panel toward you. Once you
remove this panel, you can access the fuse
panel. After replacing a fuse, reinstall the
toeboard panel and rotate the fasteners
back to their original position.

E145984

Protected Components

Fuse Rating

Fuse or Relay

Number

Not used.

—

1

Not used (spare).

7.5A

1

2

Driver unlock relay.

20A

1

3

Double lock relay.

Not used (spare).

5A

1

4

Protected Components

Fuse Rating

Fuse or Relay

Number

Not used (spare).

20A

1

5

Not used (spare).

10A

2

6

Not used (spare).

10A

2

7

Not used (spare).

10A

2

8

Brake on/off (BOO) switch.

10A

2

9

Push button start switch.

5A

2

10

Right and left exterior door locks and
handles.

5A

2

11

RF transceiver module (RTM).

7.5A

2

12

Steering column control module logic.

7.5A

2

13

Smart datalink connector logic.
Instrument cluster.

Extended power mode (EPM) module.

10A

2

14

Smart datalink connector (SDLC) power.

10A

2

15

Decklid release relay.

15A

1

16

Combined sensor module.

5A

2

17

Telematics control unit (TCU)- Modem.

5A

2

18

Not used (spare).

7.5A

2

19

Front damper controllers.

7.5A

2

20

Shift indicator module (HUD).

5A

2

21

Interior temperature sensor.

Extended power mode module.

5A

2

22

Right window switch illumination.

10A

1

23

Right door lock switch illumination.
Left door lock switch illumination.
