Ford Fusion Hybrid / Fusion Energi (2018 year). Manual - part 32

REAR SEATS

Note: Your vehicle may have split
seatbacks that you must fold individually.

Note: Make sure the center safety belt is
unbuckled before folding the seatback.

To lower the seat back(s) from inside the
vehicle, do the following:

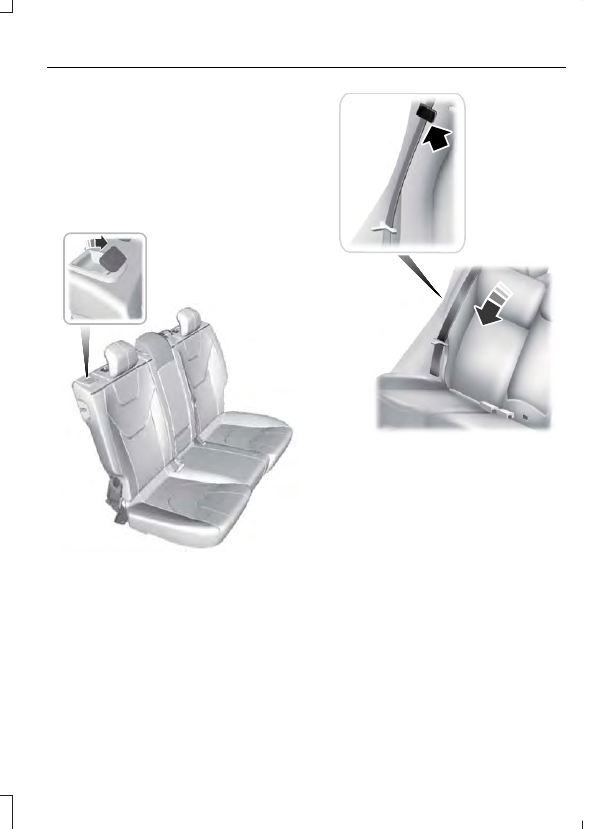

E144634

1.

Pull the handle to release the seatback.

2. Push the seatback forward.

E164098

3. Stow the safety belt in the stowage

clip. This will prevent the safety belt
from getting caught in the seat latch.

When raising the seat back(s), make sure
you hear the seat latch into place.

HEATED SEATS

 (If Equipped)

WARNING

People who are unable to feel pain
to their skin because of advanced
age, chronic illness, diabetes, spinal

cord injury, medication, alcohol use,
exhaustion or other physical conditions,
must exercise care when using the heated
seat. The heated seat may cause burns
even at low temperatures, especially if
used for long periods of time. Do not place
anything on the seat that insulates against
heat, such as a blanket or cushion. This
may cause the heated seat to overheat.
Do not puncture the seat with pins, needles
or other pointed objects. This may damage
the heating element which may cause the
heated seat to overheat. An overheated
seat may cause serious personal injury.

Do not do the following:
•

Place heavy objects on the seat.

•

Operate the heated seat if water or any
other liquid is spilled on the seat. Allow
the seat to dry thoroughly.

•

Operate the heated seats unless the
engine is running. Doing so can cause
the battery to lose charge.

E146941

Press the heated seat symbol to cycle
through the various heat settings and off.
Warmer settings are indicated by more
indicator lights.

CLIMATE CONTROLLED SEATS

(If Equipped)

Heated Seats

WARNING

Persons who are unable to feel pain
to the skin because of advanced age,
chronic illness, diabetes, spinal cord

injury, medication, alcohol use, exhaustion,
or other physical conditions, must exercise
care when using the seat heater. The seat
heater may cause burns even at low
temperatures, especially if used for long
periods of time. Do not place anything on
the seat that insulates against heat, such
as a blanket or cushion, because this may
cause the seat heater to overheat. Do not
puncture the seat with pins, needles, or
other pointed objects because this may
damage the heating element which may
cause the seat heater to overheat. An
overheated seat may cause serious
personal injury.

Do not do the following:
•

Place heavy objects on the seat.

•

Operate the seat heater if water or any
other liquid spills on the seat. Allow the
seat to dry thoroughly.

•

Operate the heated seats unless the
engine is running. Doing so can cause
the battery to lose charge.

E146322

Press the heated seat symbol to cycle
through the various heat settings and off.
More indicator lights indicate warmer
settings.

Cooled Seats

The cooled seats will only function when
the engine is running.

E146309

To operate the cooled seats:

Press the cooled seat symbol to cycle
through the various cooling settings and
off. More indicator lights indicate cooler
settings.

If the engine falls below 350 RPM while
the cooled seats are on, the feature will
turn itself off. You will need to reactivate
it.

Climate controlled seat air filter
replacement

Your vehicle is equipped with lifetime air
filters that are integrated with the seats.
Regular maintenance or replacement is
not needed.

REAR SEAT ARMREST

 (If Equipped)

E144635

Fold the armrest down to use the armrest
and cupholder.

HomeLink Wireless Control
System

WARNINGS

Make sure that the garage door and
security device are free from
obstruction when you are

programming. Do not program the system
with the vehicle in the garage.

Do not use the system with any
garage door opener that does not
have the safety stop and reverse

feature as required by U.S. Federal Safety
Standards (this includes any garage door
opener manufactured before April 1, 1982).
A garage door opener which cannot detect
an object, signaling the door to stop and
reverse, does not meet current federal
safety standards. Using a garage door
opener without these features increases
the risk of serious injury or death.

Note: Make sure you keep the original
remote control transmitter for use in other
vehicles as well as for future system
programming.

Note: We recommend that upon the sale
or lease termination of your vehicle, you
erase the programmed function buttons for
security reasons. See Erasing the Function
Button Codes later in this section.

Note: You can program a maximum of
three devices. To change or replace any of
the three devices after it has been initially
programmed, you must first erase the
current settings. See Erasing the Function
Button Codes.

E188211

The universal garage door opener replaces
the common hand-held garage door
opener with a three-button transmitter
integrated into the driver’s sun visor.

The system includes two primary features,
a garage door opener and a platform for
remote activation of devices within the
home. You can program garage doors as
well as entry gate operators, security
systems, entry door locks and home or
office lighting.

Additional system information can be
found online at www.homelink.com,
www.youtube.com/user/HomeLinkGentex
or by calling the toll-free help line at
1-800-355-3515.

In-Vehicle Programming

This process is to program your in-vehicle
HomeLink function button with your
hand-held transmitter.

Note: The programming steps below
assume you will be programming HomeLink
that was not previously programmed. If your
HomeLink was previously programmed, you
may need to erase your HomeLink buttons.
See Erasing the Function Button Codes.

Note: Put a new battery in the hand-held
transmitter. This helps ensure quicker
training and accurate transmission of the
radio-frequency signal.

 (If Equipped)
