Ford Fusion Hybrid / Fusion Energi (2018 year). Manual - part 31

The front head restraints tilt for extra
comfort. To tilt the head restraint, do the
following:

1.

Adjust the seatback to an upright
driving or riding position.

2. Pivot the head restraint forward toward

your head to the desired position.

After the head restraint reaches the
forward-most tilt position, pivoting it
forward again will then release it to the
rearward, un-tilted position.

MANUAL SEATS

 (If Equipped)

WARNINGS

Do not adjust the driver seat or
seatback when your vehicle is
moving.

Rock the seat backward and forward
after releasing the lever to make sure
that it is fully engaged.

Reclining the seatback can cause an
occupant to slide under the seat's
safety belt, resulting in severe

personal injuries in the event of a crash.

The driver and passenger manual seats
may consist of:

A

B C

D

E144631

A bar to move the seat backward
and forward.

A

A control to adjust the lumbar of
the seatback (driver seat only).

B

A lever to adjust the height of the
seat (driver seat only).

C

A lever to adjust the angle of the
seatback.

D

POWER SEATS

 (If Equipped)

WARNINGS

Do not adjust the driver seat or
seatback when your vehicle is
moving.

Do not place cargo or any objects
behind the seatback before returning
it to the original position.

Note: Driver seat shown, passenger seat
similar.

6-way power seat

E176793

10-way power seat

E144632

Power Lumbar

 (If Equipped)

E165608

MEMORY FUNCTION

 (If Equipped)

WARNINGS

Before activating the memory seat,
make sure that the area immediately
surrounding the seat is clear of

obstructions and that all occupants are
clear of moving parts.

Do not use the memory function
when your vehicle is moving.

This feature automatically recalls the
position of the following features:

•

Driver seat.

•

Power mirrors.

•

Power steering column.

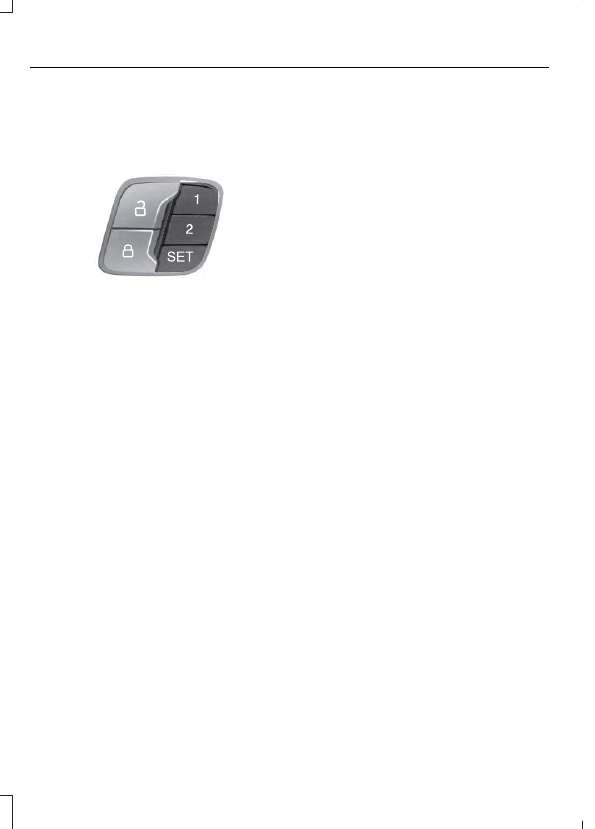

The memory control is on the driver door.

E223340

Saving a PreSet Position

1.

Adjust the memory features to your
desired position.

2. Press the SET button until you hear a

single tone.

3. Press the desired preset button until

you hear a single tone.

You can save up to two preset memory
positions. You can save a memory preset
at any time.

Recalling a PreSet Position

Press and release the preset button
associated with your desired driving
position. The memory features move to
the position stored for that preset.

Note: You can only recall a preset memory
position when you switch the ignition off, or
when the transmission is in park (P) or
neutral (N) if the ignition is on and the
vehicle is not moving.

You can also recall a preset memory
position by:
•

Pressing the unlock button on your
intelligent access key fob if it is linked
to a preset position.

•

Unlocking the intelligent driver door
handle if a linked key fob is present.

Note: Using a linked key fob to recall your
memory position when the ignition is off
moves the seat to the Easy Entry position.

Note: Pressing any active memory feature
control - power seat, mirror, or steering
column (or any memory button) during a
memory recall cancels the operation.

Linking a PreSet Position to your
Remote Control or Intelligent
Access Key Fob

Your vehicle can save the preset memory
positions for up to two remote controls or
intelligent access (IA) keys.

After you have saved your desired memory
preset positions:

1.

Press and hold the desired preset
button for about three seconds until
you hear a single tone.

2. Within three seconds, press the lock

button on the remote control you are
linking.

To unlink a remote control, follow the
same procedure – except in step 2, press
the unlock button on the remote control.

Note: If more than one linked remote
control or intelligent access key is in range,
the memory function moves to the settings
of the first key to initiate a memory recall.

Easy Entry and Exit Feature

If you enable the easy entry and exit
feature, it automatically moves the driver
seat position rearward up to 2 in (5 cm)
when you switch the ignition off.

The driver seat returns to the previous
position when you switch the ignition on.

You can enable or disable this feature in
the information display.  See General
Information (page 97).
