E87786

4. Open the hood.  Support the hood with

the strut.

Closing the Hood

1.

Remove the hood strut from the catch
and secure it correctly after use.

2. Lower the hood and allow it to drop

under its own weight for the last 8-12
in (20-30 cm).

Note: Make sure that the hood is correctly
closed.

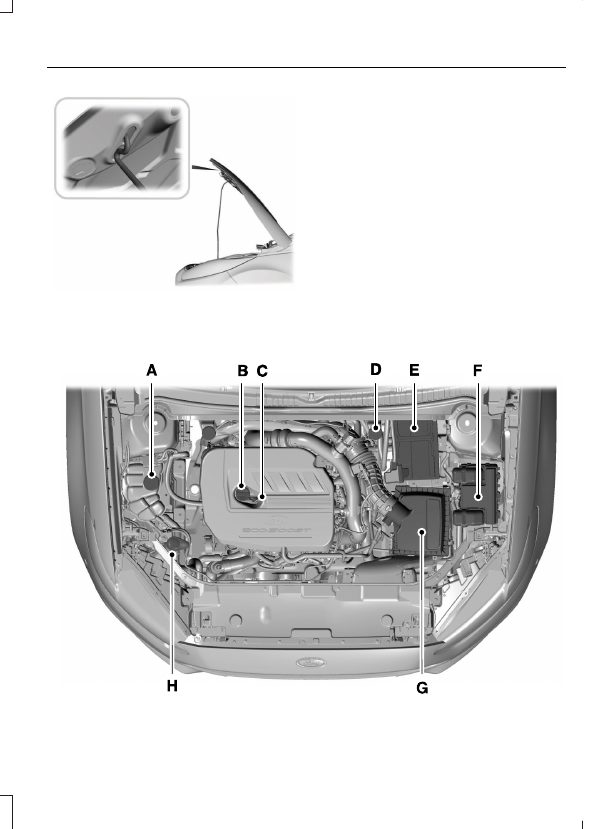

UNDER HOOD OVERVIEW - 1.5L ECOBOOST™

E184600

Engine coolant reservoir.  See Engine Coolant Check (page 261).

A

Engine oil filler cap.  See Engine Oil Check (page 259).

B

Engine oil dipstick.  See Engine Oil Dipstick (page 259).

C

Brake fluid reservoir.  See Brake Fluid Check (page 266).

D

Battery.  See Changing the 12V Battery (page 267).

E

Engine compartment fuse box.  See Fuses (page 243).

F

Air filter.  See Changing the Engine Air Filter (page 274).

G

Washer system fluid reservoir.  See Washer Fluid Check (page 267).

H

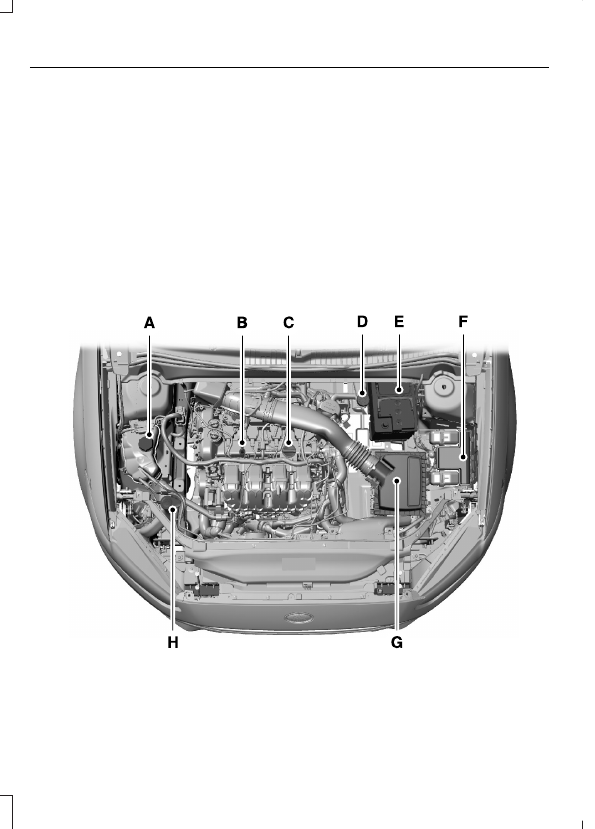

UNDER HOOD OVERVIEW - 2.0L ECOBOOST™

E159754

Engine coolant reservoir.  See Engine Coolant Check (page 261).

A

Engine oil dipstick.  See Engine Oil Dipstick (page 259).

B

Engine oil filler cap.  See Engine Oil Check (page 259).

C

Brake fluid reservoir.  See Brake Fluid Check (page 266).

D

Battery.  See Changing the 12V Battery (page 267).

E

Engine compartment fuse box.  See Fuses (page 243).

F

Air filter.  See Changing the Engine Air Filter (page 274).

G

Washer system fluid reservoir.  See Washer Fluid Check (page 267).

H

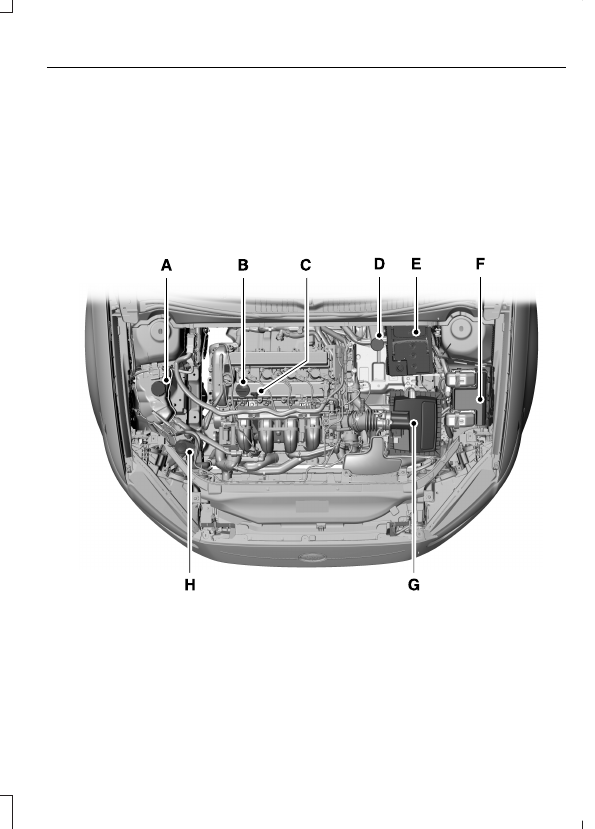

UNDER HOOD OVERVIEW - 2.5L

E169801

Engine coolant reservoir.  See Engine Coolant Check (page 261).

A

Engine oil filler cap.  See Engine Oil Check (page 259).

B

Engine oil dipstick.  See Engine Oil Dipstick (page 259).

C

Brake fluid reservoir.  See Brake Fluid Check (page 266).

D

Battery.  See Changing the 12V Battery (page 267).

E

Engine compartment fuse box.  See Fuses (page 243).

F

Air filter.  See Changing the Engine Air Filter (page 274).

G

Washer system fluid reservoir.  See Washer Fluid Check (page 267).

H

UNDER HOOD OVERVIEW - 2.7L ECOBOOST™

A

I

E

F

G

H

B

C

D

E188730

Engine coolant reservoir.  See Engine Coolant Check (page 261).

A

Brake fluid reservoir.  See Brake Fluid Check (page 266).

B

Battery.  See Changing the 12V Battery (page 267).

C

Power distribution box.  See Fuses (page 243).

D

Air filter assembly.  See Changing the Engine Air Filter (page 274).

E

Automatic transmission fluid dipstick.  See Automatic Transmission Fluid
Check (page 265).

F

Engine oil dipstick.  See Engine Oil Dipstick (page 259).

G

Engine oil filler cap.  See Engine Oil Check (page 259).

H

Windshield washer fluid reservoir.  See Washer Fluid Check (page 267).

I
