Ford Fusion (2018 year). Manual - part 61

E145983

1.

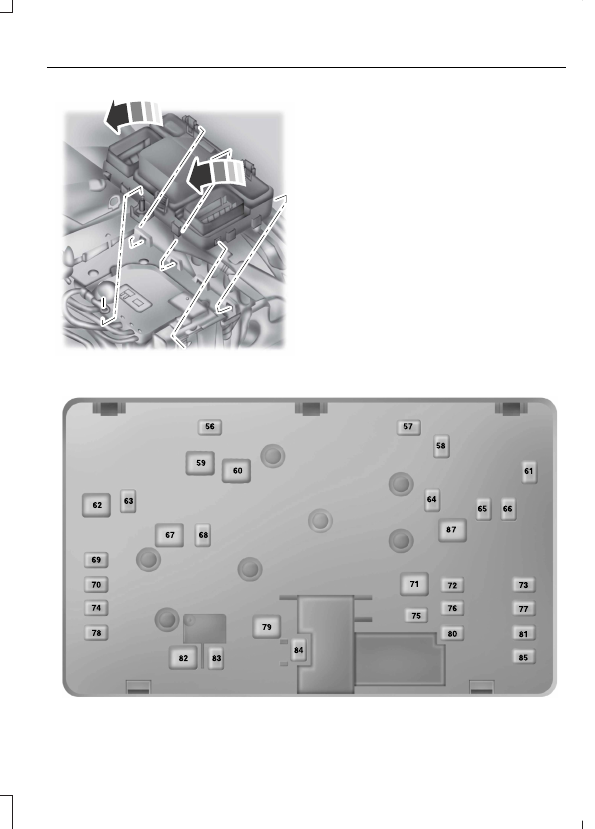

Release the two latches, located on
both sides of the fuse box.

2. Raise the inboard side of the fuse box

from the cradle.

3. Move the fuse box toward the center

of the engine compartment.

4. Pivot the outboard side of the fuse box

to access the bottom side.

E190798

Protected Components

Fuse Rating

Fuse or Relay

Number

Not used.

—

56

Not used.

—

57

Fuel pump feed.

30A

1

58

Electric fan 3 (1.5L, 2.0L, and 2.5L engines).

30A

2

59

Electric fan 3 (3.0L engine).

40A

2

Electric fan 1 (1.5L, 2.0L, and 2.5L engines).

30A

2

60

Electric fan 1 (3.0L engine).

40A

2

Not used.

—

61

Body control module 1.

50A

2

62

Electric fan 2 (1.5L, 2.0L, and 2.5L engines).

25A

1

63

Electric fan 2 (3.0L engine).

30A

1

Not used (spare).

30A

1

64

Front heated seat.

20A

1

65

Not used (spare).

15A

1

66

Body control module 2.

50A

2

67

Heated rear window.

40A

1

68

Anti-lock brake system valves.

30A

1

69

Passenger seat.

30A

1

70

Not used.

—

71

Trans oil pump.

20A

1

72

Rear heated seats.

20A

1

73

Driver seat module.

30A

1

74

Protected Components

Fuse Rating

Fuse or Relay

Number

Wiper motor 1.

25A

1

75

Not used (spare).

30A

1

76

Climate control seat module.

30A

1

77

Not used.

—

78

Blower motor.

40A

2

79

Wiper motor 2.

25A

1

80

Inverter.

40A

1

81

Not used.

–

82

TRCM shifter.

20A

1

83

Starter solenoid.

30A

1

84

Not used (spare).

30A

1

85

Not used (spare).

30A

1

86

Anti-lock brake system pump.

60A

2

87

1

 M case fuse.

2

J case fuse.

Passenger Compartment Fuse
Panel

The fuse panel is located under the
instrument panel to the left of the steering
column.

Note: It may be easier to access the fuse
panel if you remove the finish trim piece.

E145984

Protected Components

Fuse Rating

Fuse or Relay

Number

Lighting (ambient, glove box, vanity, dome,
trunk).

10A

1

1

Lumbar.

7.5A

1

2

Driver door unlock.

20A

1

3

Not used (spare).

5A

1

4

Subwoofer amplifier.

20A

1

5

Not Used (spare).

10A

2

6

Not used (spare).

10A

2

7

Not used (spare).

10A

2

8

Not used (spare).

10A

2

9

Keypad.

5A

2

10

Cellphone passport module.

Not used (spare).

5A

2

11
