Ford Fusion (2018 year). Manual - part 22

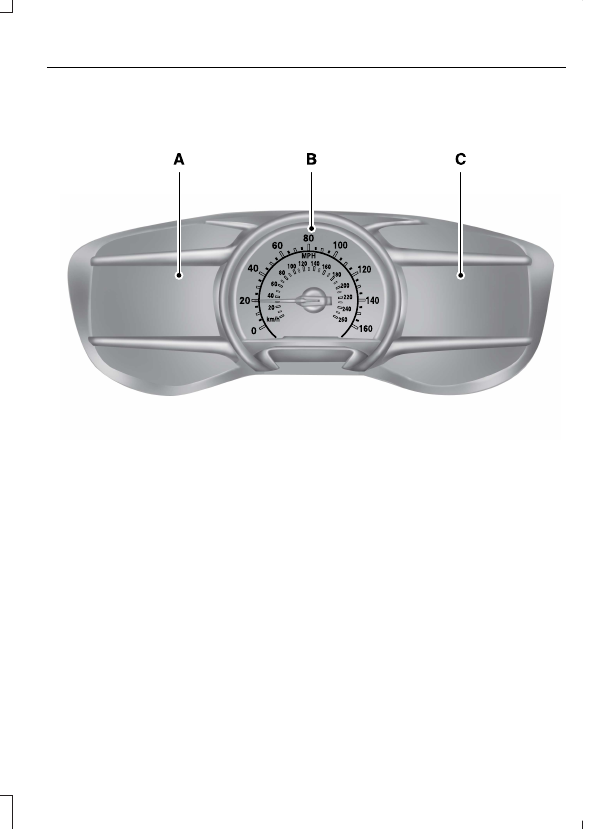

Type 3

E144486

Left Information Display

A

Speedometer

B

Right Information Display.  See General Information (page 96).

C

Left Information Display

Odometer

Located in the bottom of the information
display. Registers the accumulated
distance your vehicle has traveled.

Trip Computer

See General Information (page 96).

Vehicle Settings and Personalization

See General Information (page 96).

WARNING LAMPS AND
INDICATORS

The following warning lamps and
indicators alert you to a vehicle condition
that may become serious.  Some lamps
illuminate when you start your vehicle to
make sure they work.  If any lamps remain
on after starting your vehicle, refer to the
respective system warning lamp for further
information.

Note: Some warning indicators appear in
the information display and operate the
same as a warning lamp but do not
illuminate when you start your vehicle.

Adaptive Cruise Control

 (If Equipped)

E144524

The speed control system
indicator light changes color to
indicate what mode the system

is in:  See Using Cruise Control (page 195).

On (white light): Illuminates when the
adaptive cruise control system is turned
on. Turns off when the speed control
system is turned off.

Engaged (green light): Illuminates when
the adaptive cruise control system is
engaged. Turns off when the speed control
system is disengaged.

Anti-Lock Braking System

If it illuminates when you are
driving, this indicates a
malfunction.  You will continue

to have the normal braking system
(without ABS) unless the brake system
warning lamp is also illuminated.  Have the
system checked by your authorized dealer.

Auto Start-stop

 (If Equipped)

It will illuminate to inform you
when the engine shuts down or
in conjunction with a message.

Battery

If it illuminates while driving, it
indicates a malfunction.  Switch
off all unnecessary electrical

equipment and have the system checked
by your authorized dealer immediately.

Blind Spot Monitor

 (If Equipped)

E151262

It will illuminate when you switch
this feature off or in conjunction
with a message.  See Blind Spot

Information System (page 208).  See
Information Messages (page 105).

Brake System

WARNING

Driving your vehicle with the warning
lamp on is dangerous. A significant
decrease in braking performance

may occur. It may take you longer to stop
your vehicle. Have your vehicle checked as
soon as possible. Driving extended
distances with the parking brake engaged
can cause brake failure and the risk of
personal injury.

E138644

It will illuminate when you
engage the parking brake with
the ignition on.

If it illuminates when you are driving, check
that the parking brake is not engaged. If
the parking brake is not engaged, this
indicates low brake fluid level or a brake
system malfunction. Have the system
checked immediately by your authorized
dealer.

Cruise Control

E71340

It will illuminate when you switch
this feature on.

Direction Indicator

Illuminates when the left or right
turn signal or the hazard warning
flasher is turned on. If the

indicators stay on or flash faster, check for
a burned out bulb.  See Changing a Bulb
(page 271).

Door Ajar

Displays when the ignition is on
and any door is not completely
closed.

Electric Park Brake

E146190

It will illuminate when the
electric parking brake has a
malfunction.

Engine Coolant Temperature

Illuminates when the engine
coolant temperature is high.
Stop the vehicle as soon as

possible, switch off the engine and let cool.

Engine Oil

If it illuminates with the engine
running or when you are driving,
this indicates a malfunction.

Stop your vehicle as soon as it is safe to
do so and switch the engine off. Check the
engine oil level.  See Engine Oil Check
(page 259).

Note: Do not resume your journey if it
illuminates despite the level being correct.
Have the system checked by your authorized
dealer immediately.

Fasten Seatbelt

E71880

It will illuminate and a chime will
sound to remind you to fasten
your seatbelt.  See Seatbelt

Reminder (page 37).

Front Airbag

E67017

If it fails to illuminate when you
start your vehicle, continues to
flash or remains on, it indicates

a malfunction. Have the system checked
by your authorized dealer.

Front Fog Lamps

 (If Equipped)

It will illuminate when you switch
the front fog lamps on.

Grade Assist

 (If Equipped)

E144523

Lights when you switch on the
grade assist function.

Heads Up Display

 (If Equipped)

E156133

A red beam of lights will
illuminate on the windshield in
certain instances when using

adaptive cruise control and/or the collision
warning system. It will also illuminate
momentarily when you start your vehicle
to make sure the display works.

High Beam

It will illuminate when you switch
the high beam headlamps on. It
will flash when you use the

headlamp flasher.

Hood Ajar

E159324

Displays when the ignition is on
and the hood is not completely
closed.

Lane Keeping Aid

 (If Equipped)

E144813

Illuminates when the lane
keeping system is activated.

Low Fuel Level

It will illuminate when the fuel
level is low or the fuel tank is
nearly empty.  Refuel as soon as

possible.

Low Tire Pressure Warning

It will illuminate when your tire
pressure is low.  If the lamp
remains on with the engine

running or when driving, check your tire
pressure as soon as possible.

It will also illuminate momentarily when
you switch the ignition on to confirm the
lamp is functional. If it does not illuminate
when you switch the ignition on, or begins
to flash at any time, have the system
checked by your authorized dealer.

Parking Lamps

It will illuminate when you switch
the parking lamps on.

Powertrain Fault

Illuminates when a powertrain
or an AWD fault has been
detected.  Contact your

authorized dealer as soon as possible.

Service Engine Soon

If it illuminates when the engine
is running this indicates a
malfunction. The On Board

Diagnostics system has detected a
malfunction of the vehicle emission control
system.

If it flashes, engine misfire may be
occurring. Increased exhaust gas
temperatures could damage the catalytic
converter or other vehicle components.
Drive in a moderate fashion (avoid heavy
acceleration and deceleration) and have
your vehicle immediately serviced.

It illuminates when you switch the ignition
on prior to engine start to check the bulb
and to indicate whether your vehicle is
ready for Inspection and Maintenance
(I/M) testing.

Normally, it illuminates until the engine is
cranked and automatically turns off if no
malfunctions are present. However, if after
15 seconds it flashes eight times, this
indicates that your vehicle is not ready for
Inspection and Maintenance (I/M) testing.

See Emission Law (page 160).

Sport Mode

E176099

Illuminates when you switch the
sport mode on.

Stability Control

E138639

It will flash when the system is
active. If it remains illuminated
or does not illuminate when you

switch the ignition on, this indicates a
malfunction. During a malfunction the
system will switch off. Have the system
checked by your authorized dealer
immediately.  See Using Stability
Control (page 181).

Stability Control Off

E130458

It will illuminate when you switch
the system off. It will go out
when you switch the system

back on or when you switch the ignition
off.  See Using Stability Control (page
181).
