Stop Lamp, Direction Indicator and
Reverse Lamp

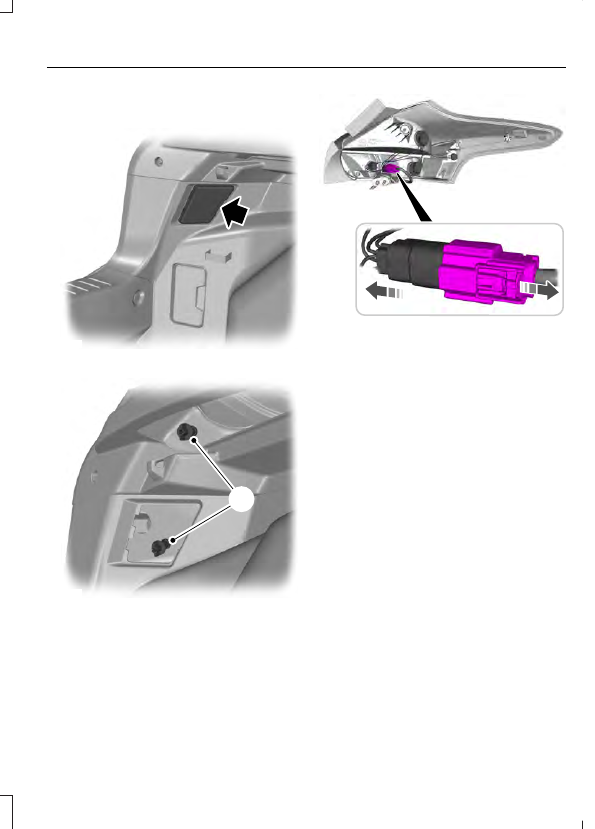

E133111

1.

Carefully remove the cover.

E133112

2

2. Remove the wing nuts and detach the

clip.

3. Remove the lamp.

E184158

4

4. Disconnect the electrical connector.

5. Turn the bulb holder counterclockwise

and remove it.

6. Remove the bulb by pulling it straight

out.

Licence Plate and High Mounted
Stop Lamp

These lamps have LED bulbs.  LED lamps
are not serviceable.  Have your vehicle
checked as soon as possible.

BULB SPECIFICATION CHART

Replacement bulbs are specified in the
chart below. Headlamp bulbs must be
marked with an authorized “D.O.T.” for
North America to ensure lamp
performance, light brightness and pattern
and safe visibility. The correct bulbs will
not damage the lamp assembly or void the
lamp assembly warranty and will provide
quality bulb burn time.

Trade number

Function

D8S

* Headlamp high/low beam (HID)

LED

* Sidemarker - front

LED

* Park lamp - front

PY21W

Direction indicator - front

3757 NAK

Direction indicator - rear

3157K

Brake lamp

LED

* Rear lamp

921

Backup lamp

LED

* License plate lamp

LED

* High-mount brake lamp

LED

* Interior lamps

* To replace these lamps, contact an authorized dealer.

To replace all instrument panel lights, contact an authorized dealer.

GENERAL INFORMATION

Your dealer has many quality products
available to clean your vehicle and protect
its finishes.

CLEANING PRODUCTS

For best results, use the following products
or products of equivalent quality:

Materials

Specification

Name

-

Motorcraft® Bug and Tar Remover (U.S.)
Dissolvant de goudron et éliminateur d’insectes Motorcraft® (Canada)
ZC-42 (U.S. & Canada)

ESR-M5B194-B

Motorcraft® Custom Bright Metal Cleaner (U.S.)
Nettoyant pour métal brillant Motorcraft® (Canada)
ZC-15 (U.S. & Canada)

ESR-M14P4-A

Motorcraft® Detail Wash (U.S.)
Shampooing superfin Motorcraft® (Canada)
ZC-3-A (U.S. & Canada)

ESR-M14P3-A

Motorcraft® Engine Shampoo and Degreaser
Engine Shampoo and Degreaser
ZC-20 (U.S.)

-

Engine Shampoo
Shampooing pour moteur Motorcraft® (Canada)
CXC-66-A (Canada)

WSS-M99P43-B

Motorcraft® Premium Leather and Vinyl Cleaner (U.S.)
Nettoyant pour cuir et vinyle de haute qualité Motorcraft® (Canada)
ZC-56 (U.S. & Canada)

-

Motorcraft® Multi-Purpose Cleaner (U.S.)
Nettoyant multi-usage Motorcraft® (Canada)
CXC-101 (U.S. & Canada)

WSS-M14P19-A

Motorcraft® Premium Windshield Wash Concentrate with Bitterant
(U.S.)
Liquide lave-glace de haute qualité Motorcraft® (Canada)
ZC-32-B2 (U.S.)
CXC-37-A/B/D/F (Canada)

-

Motorcraft® Professional Strength Carpet & Upholstery Cleaner (U.S.)
Nettoyant professionnel pour sellerie et moquette Motorcraft®
(Canada)
ZC-54 (U.S. & Canada)

-

Motorcraft® Spot and Stain Remover
Spot and Stain Remover
ZC-14 (U.S.)

ESR-M14P5-A

Motorcraft® Ultra-Clear Spray Glass Cleaner (U.S.)
Nettoie-vitres de qualité supérieure Motorcraft® (Canada)
ZC-23 (U.S.)
CXC-100 (Canada)

Specification

Name

-

Motorcraft® Wheel and Tire Cleaner (U.S.)
Nettoyant pour roues et pneus Motorcraft® (Canada)
ZC-37-A (U.S. & Canada)

CLEANING THE EXTERIOR

Wash your vehicle regularly with cool or
lukewarm water and a neutral pH
shampoo, we recommend Motorcraft
Detail Wash.

•

Never use strong household detergents
or soap, for example dish washing or
laundry liquid. These products can
discolor and spot painted surfaces.

•

Never wash your vehicle when it is hot
to the touch, or during strong or direct
sunlight.

•

Dry your vehicle with a chamois or soft
terry cloth towel to eliminate water
spotting.

•

Immediately remove fuel spillages, bird
droppings, insect deposits and road tar.
These may cause damage to your
vehicle’s paintwork or trim over time.
We recommend Motorcraft Bug and
Tar Remover.

•

Remove any exterior accessories, for
example antennas, before entering a
car wash.

Note: Suntan lotions and insect repellents
can damage painted surfaces. If these
substances come in contact with your
vehicle, wash the affected area as soon as
possible.

Cleaning the Headlamps

Note: Do not scrape the headlamp lenses
or use abrasives, alcoholic solvents or
chemical solvents to clean them.

Note: Do not wipe the headlamps when
they are dry.

Exterior Chrome Parts

•

Apply a high quality-cleaning product
to bumpers and other chrome parts.
Follow the manufacturer’s instructions.
We recommend Motorcraft Custom
Bright Metal Cleaner.

•

Do not apply the cleaning product to
hot surfaces. Do not leave the cleaning
product on chrome surfaces longer
than the time recommended.

•

Using non-recommended cleaners can
result in severe and permanent
cosmetic damage.

Note: Never use abrasive materials, for
example steel wool or plastic pads as they
can scratch the chrome surface.

Note: Do not use chrome cleaner, metal
cleaner or polish on wheels or wheel covers.

Exterior Plastic Parts

For routine cleaning we recommend
Motorcraft Detail Wash. If tar or grease
spots are present, we recommend
Motorcraft Bug and Tar Remover.

Stripes or Graphics

 (If Equipped)

Hand washing your vehicle is preferred
however, pressure washing may be used
under the following conditions:

•

Do not use water pressure higher than
2,000 psi (14,000 kPa).

•

Do not use water hotter than 179°F
(82°C).

•

Use a spray with a 40° wide spray
angle pattern.

•

Keep the nozzle at a 12 in (305 mm)
distance and 90° angle to your
vehicle's surface.
