CHANGING THE REAR WIPER
BLADES

Note: Do not hold the wiper blade when
lifting the wiper arm.

Note: Make sure that the wiper arm does
not spring back against the glass when the
wiper blade is not attached.

1.

Lift the wiper arm.

E130060

3

2

2. Slightly rotate the wiper blade.

3. Disengage the wiper blade from the

wiper arm.

4. Remove the wiper blade.

5. Install in the reverse order.

Note: Make sure that the wiper blade locks
into place.

ADJUSTING THE HEADLAMPS

Vertical Aim Adjustment

If your vehicle has been involved in a crash,
have the aim of the headlamp beam
checked by an authorized dealer.

Headlamp Aiming Target

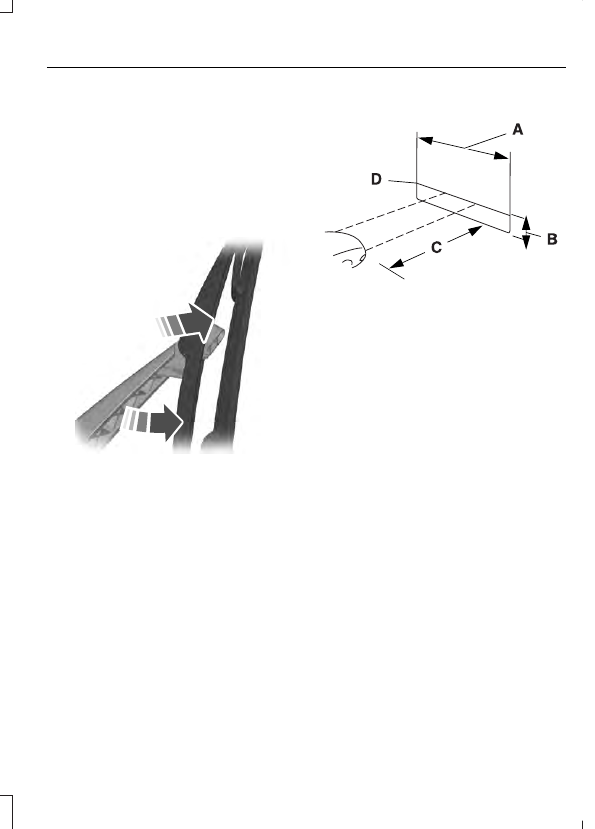

E142592

8 ft (2.4 m)

A

Ground to the center of the
headlamp low beam bulb

B

25 ft (7.6 m)

C

Horizontal reference line

D

Vertical Aim Adjustment Procedure

1.

Park your vehicle on level ground
approximately 25 ft (7.6 m) from a wall
or screen.

2. Measure the distance from the ground

to the center of the headlamp low
beam bulb and mark an 8 ft (2.4 m)
long horizontal reference line on the
wall or screen at this height.

E199411

Note: There may be an identifying mark on
the lens to help you locate the center of the
bulb.

Note: To see a clearer light pattern while
adjusting one headlamp, you may want to
block the light from the other headlamp.

3. Switch on the low beam headlamps

and open the hood.

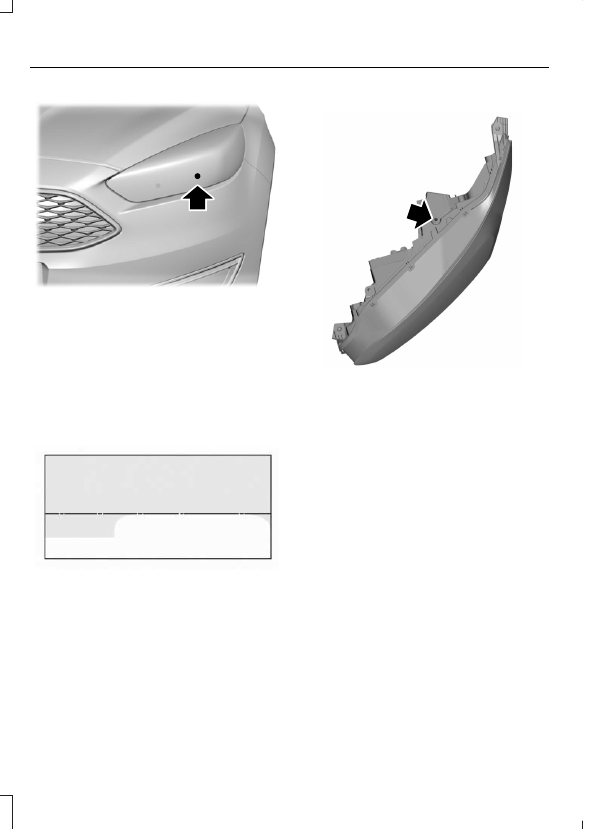

E142465

4. On the wall or screen you will observe

a flat zone of high intensity light
located at the top of the beam pattern.
If the top edge of the flat zone of high
intensity light is not on the horizontal
reference line, adjust the aim of the
headlamp beam.

E164485

5. Locate the vertical adjuster on each

headlamp. Use a suitable tool, for
example a screwdriver or hexagonal
socket, to turn the adjuster clockwise
or counterclockwise to adjust the
vertical aim of the headlamp. The
horizontal edge of the brighter light
should touch the horizontal reference
line.

6. Close the hood and switch off the

lamps.

Horizontal Aim Adjustment

The horizontal aim of the headlamp beam
on your vehicle is not adjustable.

REMOVING A HEADLAMP

1.

Open the hood.  See Opening and
Closing the Hood (page 170).

E133215

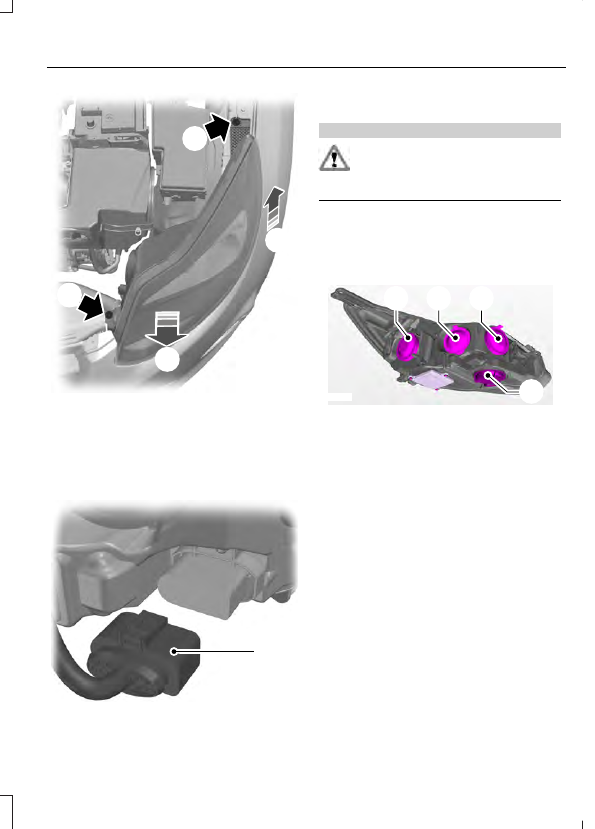

2

2

4

3

2. Remove the screws.

3. Pull the headlamp as far as possible

towards the front of the vehicle to
disengage it from the lower fixing point.

4. Lift the outer side of the headlamp and

remove it.

E133750

5

5. Disconnect the electrical connector.

CHANGING A BULB

WARNING

Bulbs can become hot. Let the bulb
cool down before removing it. Failure
to do so could result in personal

injury.

Headlamp

You must remove the headlamp assembly
prior to replacing any bulb.  See
Removing a Headlamp (page 178).

E246947

A

B

C

D

Headlamp low beam.

A

Headlamp high beam.

B

Cornering lamp.

C

Front direction indicator.

D

Your vehicle has high intensity discharge
lamps.  These lamps operate at a high
voltage.  Contact an authorized dealer.

Front Direction Indicator

1.

Remove the headlamp.  See
Removing a Headlamp (page 178).

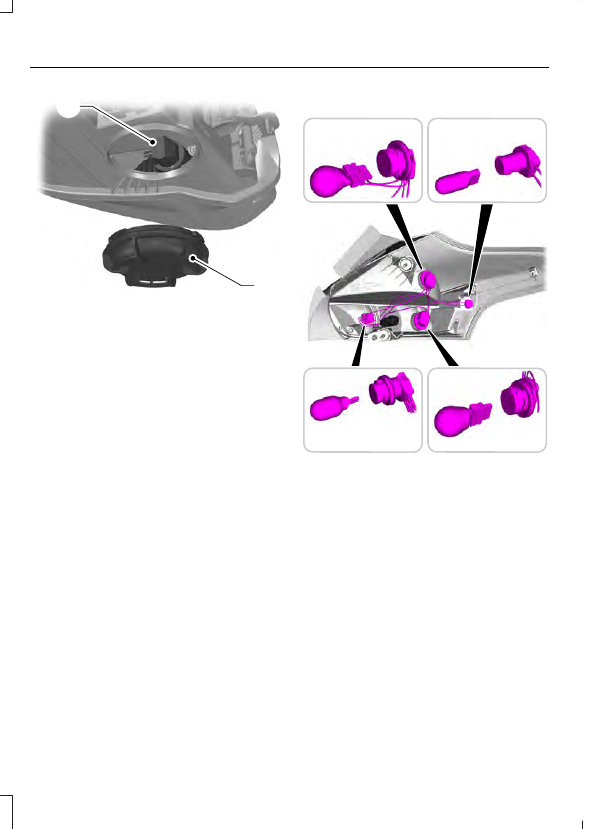

E133104

2

3

2. Carefully remove the cover.

3. Turn the bulb holder counterclockwise

and remove it.

4. Press the bulb in and turn the bulb

counterclockwise to remove it.

Rear Lamp

D

A

B

E184159

C

Stop lamp.

A

Rear lamp.

*

B

Rear direction indicator.

C

Reverse lamp.

D

*

These lamps have LED bulbs. LED lamps

are not serviceable. Have your vehicle
checked as soon as possible.
