Ford Focus Electric (2018 year). Manual - part 40

Protected Component

Relay Number

Not used.

R9

Brake vacuum pump.

R10

Not used.

R11

Electronic fan control module.

R12

Blower motor.

R13

Electric motor control.

R14

Brake vacuum pump mechanical relay.

R15

Ignition.

R16

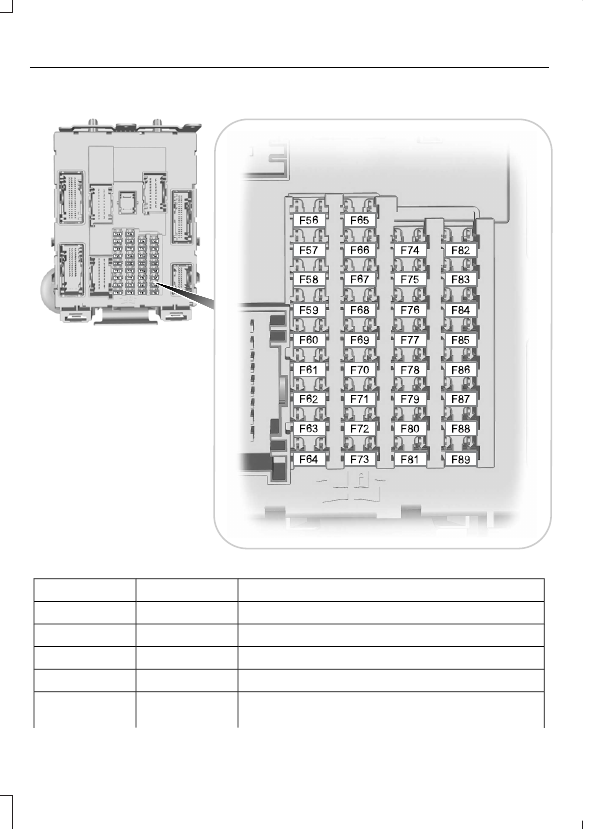

Passenger Compartment Fuse Box

E129926

Protected Component

Fuse Rating

Fuse Number

Not used (spare).

20A

F56

Not used.

-

F57

Not used.

-

F58

Not used (spare).

5A

F59

Interior lamp.

10A

F60

Driver door switch pack.

Protected Component

Fuse Rating

Fuse Number

Glove compartment lamp.
Ambient lighting lamp.

Front cigar lighter socket.

20A

F61

Rear auxiliary power points.

Not used (spare).

5A

F62

Not used.

-

F63

Not used.

-

F64

Luggage compartment lid release.

10A

F65

Not used (spare).

20A

F66

Global positioning sensor.

7.5A

F67

SYNC module.

Not used.

-

F68

Instrument panel cluster.

5A

F69

Not used (spare).

20A

F70

Air conditioning.

7.5A

F71

Steering wheel control module.

7.5A

F72

Smart data link module.

7.5A

F73

High beam headlamp.

15A

F74

Not used (spare).

15A

F75

Reversing lamp.

10A

F76

Washer pump.

20A

F77

Push button ignition switch.

5A

F78

Keyless vehicle module (supply).

Audio unit.

15A

F79

Hazard flasher switch.

Not used (spare).

20A

F80

Radio frequency receiver.

5A

F81

Ground fuse (front washer pump relay supply).

20A

F82

Ground fuse (rear washer pump relay supply).

Protected Component

Fuse Rating

Fuse Number

Ground fuse (central lock supply).

20A

F83

Ground fuse (central unlock supply).

Ground fuse (driver door unlock relay supply).

20A

F84

Ground fuse (central/double lock relay supply).
Ground fuse ( release relay supply).

Heated seats (ignition sense).

7.5A

F85

Restraint system.

10A

F86

Passenger airbag deactivation switch.
Occupant weight sensor.

Not used (spare).

15A

F87

Not used.

-

F88

Not used.

-

F89

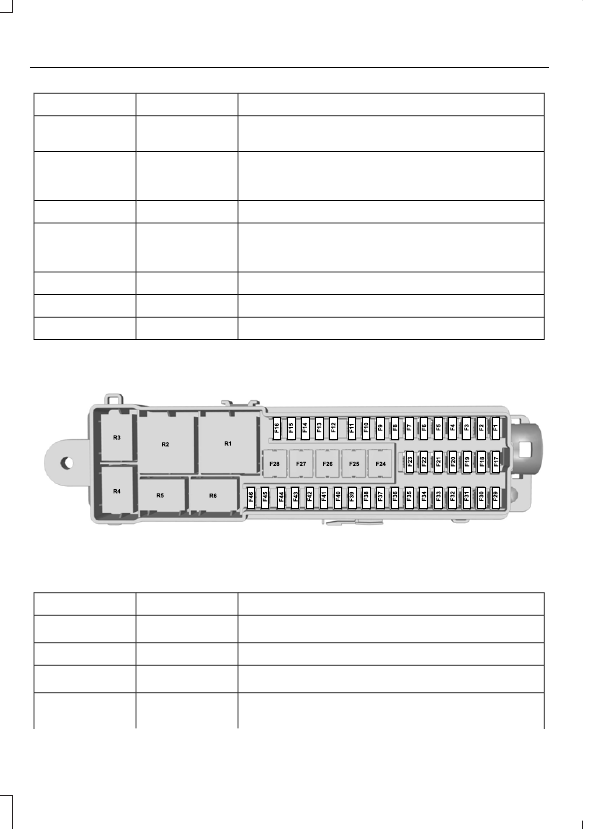

Luggage Compartment Fuse Box

E129927

Protected Component

Fuse Rating

Fuse Number

Cellphone passport module.

5A

*

F1

Not used.

-

F2

Keyless vehicle door handles.

5A

*

F3

Left-hand front power windows.

25A

*

F4

Left-hand heated exterior mirror.
