Protected Component

Fuse Rating

Fuse Number

High voltage battery coolant element one and two.

70A

F5

Load compartment fuse box.

70A

F6

Not used.

-

F7

Electric fan control module.

50A

F8

Body control module (KL30B supply).

50A

F9

High voltage battery coolant element three.

40A

F10

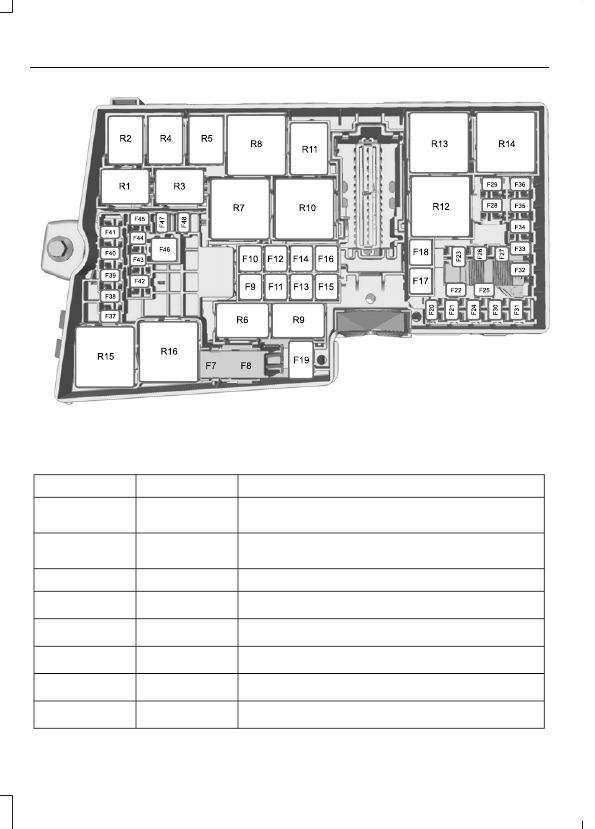

Electric Motor Compartment Fuse
Box

WARNING

To reduce risk of electrical shock,
always replace the cover to the
power distribution box before

reconnecting the battery or refilling fluid
reservoirs.

Always disconnect the battery before
servicing high current fuses.

This fuse box contains several high current
fuses that protect your vehicle's main
electrical systems from overloads.

If the 12 volt battery is disconnected and
reconnected, some features need to be
reset.

E129925

Lift the release lever at the rear of the cover
to remove it.

Protected Component

Fuse Rating

Fuse Number

Anti-lock brake system.

40A

**

F7

Stability control (KL30V).

Anti-lock brake system.

30A

**

F8

Stability control (KL30P).

Not used.

-

F9

Blower motor module.

40A

**

F10

Brake vacuum pump relay.

40A

**

F11

Electric motor control relay.

40A

**

F12

Battery charging control module.

40A

**

F13

Coolant heater one.

40A

**

F14

Protected Component

Fuse Rating

Fuse Number

Body control module (KL30C supply).

30A

**

F15

Coolant heater two.

40A

**

F16

Not used.

-

F17

Windshield wiper.

20A

**

F18

Anti-lock brake system.

5A

*

F19

Stability control (KL15).

Horn.

15A

*

F20

Stop lamp switch.

5A

*

F21

Battery monitoring system.

15A

*

F22

Relay coils.

5A

*

F23

Lighting control switch module.

5A

*

F24

Not used.

-

F25

Powertrain control module.

10A

*

F26

Charge port light ring.

15A

*

F27

Vacuum pump monitor.

5A

*

F28

Not used.

-

F29

Transmission control module (12V supply).

5A

*

F30

Smart data link/on-board diagnostic connector.

10A

*

F31

Coolant valve.

10A

*

F32

Air conditioning solenoid.
Chiller solenoid.

Powertrain control module.

10A

*

F33

A/C compressor PSR feedback.

High voltage battery.

15A

*

F34

Electric vehicle communication controller.

5A*

F35

Protected Component

Fuse Rating

Fuse Number

Coolant pump.

20A

*

F36

Vehicle audible signal for pedestrians.

5A

*

F37

Powertrain control module (KL15 supply).

15A

*

F38

Not used.

-

F39

Electronic power assist steering.

5A

*

F40

Body control module (KL15 supply).

20A

*

F41

Rear wiper motor.

15A

*

F42

Daytime running light.

15A

*

F43

Not used.

-

F44

Not used.

-

F45

Not used.

-

F46

Not used.

-

F47

Mechanical relay coil.

5A

*

F48

*

Mini fuses

**

Cartridge fuses

Protected Component

Relay Number

Not used.

R1

Horn.

R2

Not used.

R3

High voltage battery.

R4

Engine control module (contactor sense).

Not used.

R5

Not used.

R6

Coolant heater element three.

R7

Coolant heater element one and two.

R8
