Ford Focus RS (2011 year). Instruction - part 104





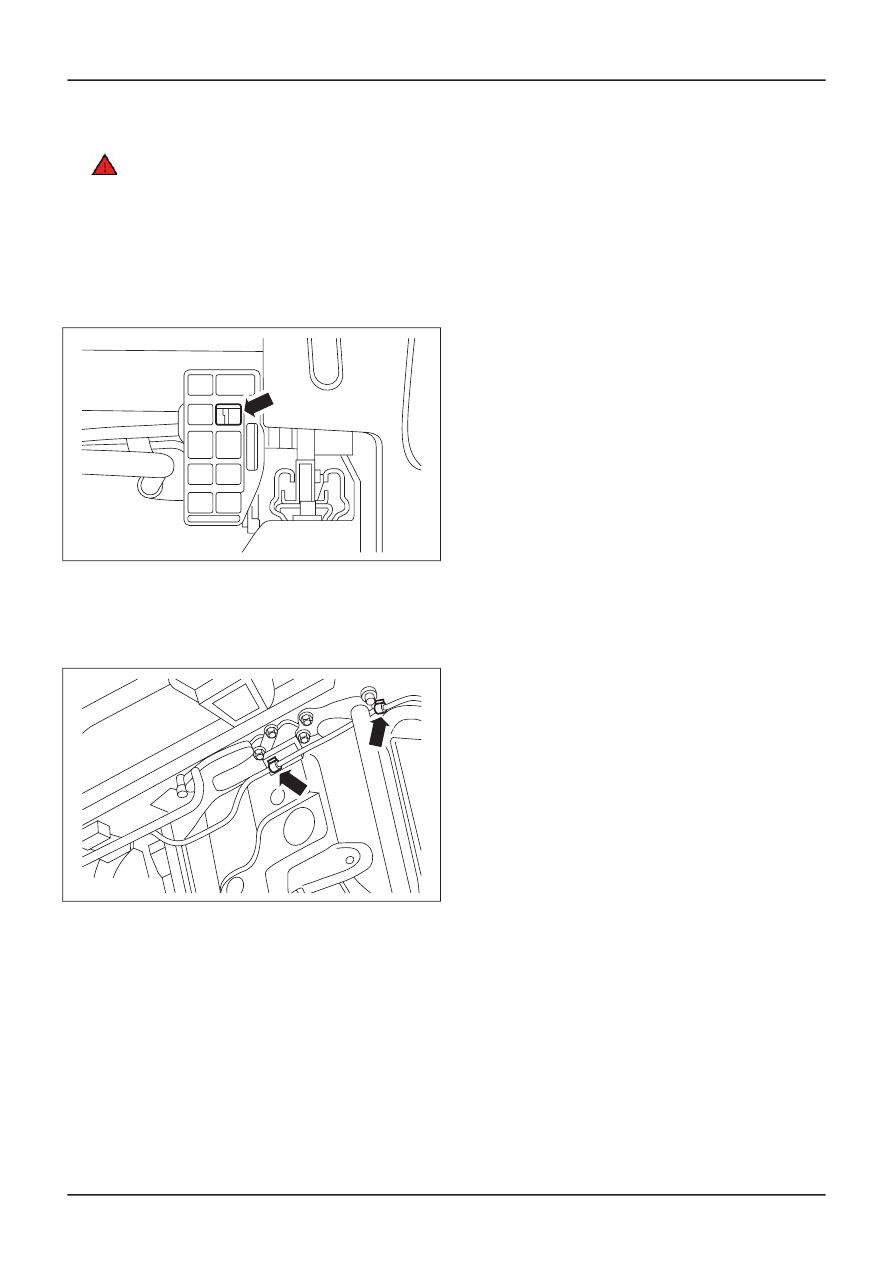

Item 1

Side air bag module wiring harness

1.

WARNING: Note the position of the wiring

harness, to aid installation. An incorrectly
routed wiring harness could become
damaged when the seat is moved. Failure to
follow this instruction may result in personal
injury.

Detach the side air bag electrical connector
from the connector block.

TIE39630

2. Detach the side air bag module wiring

harness from the seat frame.

• Use a trim tool to carefully release the

retaining clips.

TIE39631

G296350en

501-20B-

136

Supplemental Restraint System

501-20B-

136

REMOVAL AND INSTALLATION

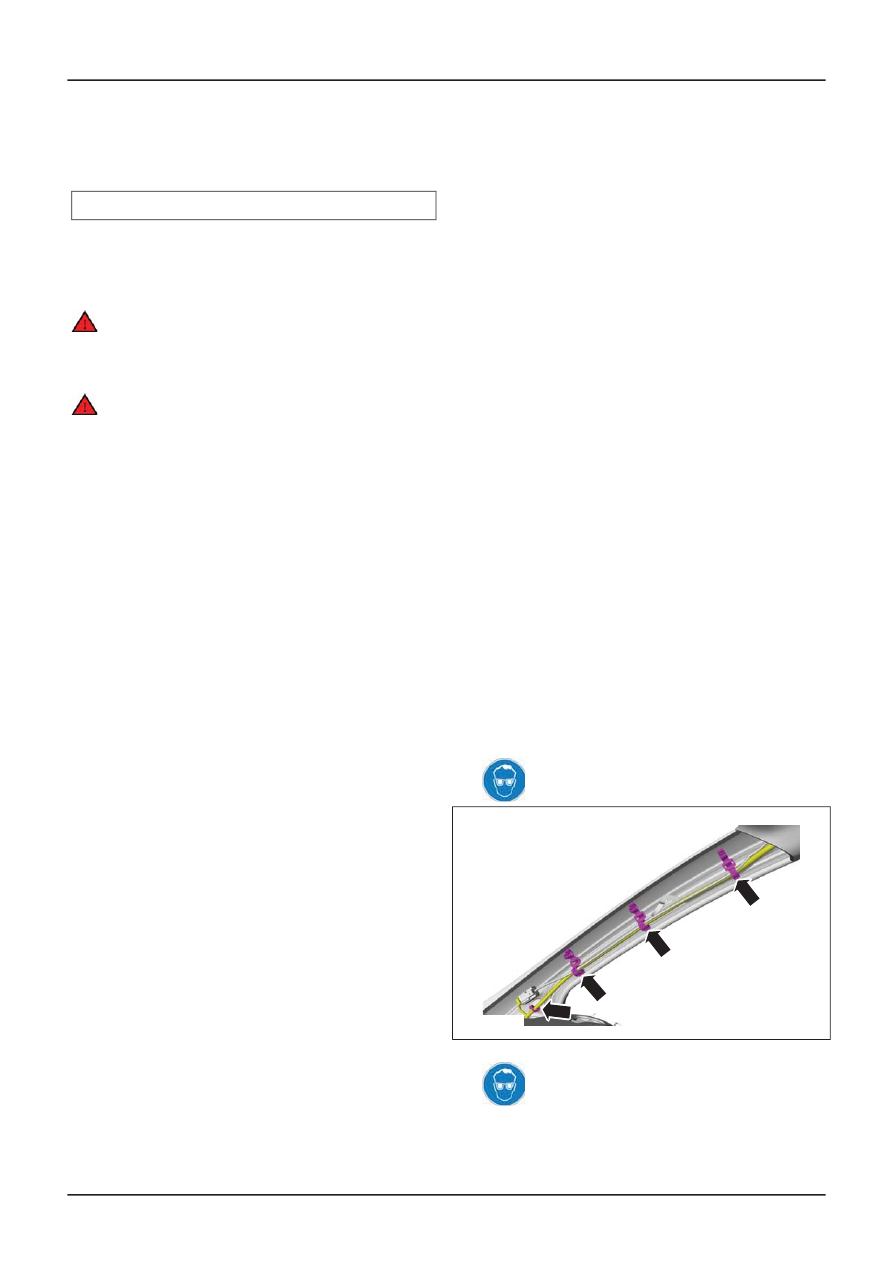

Side Air Curtain Module — Vehicles Built From: 22-06-2007

General Equipment

Long Nose Pliers

Removal

WARNINGS:

After the power supply has been
disconnected, wait for a minimum of 3
minutes before disconnecting or removing
any pyrotechnic components.

Make sure that the vehicle electrical
system is fully depowered and no other
power source is connected.

NOTE: Removal steps in this procedure may
contain installation details.

General Information, Description and
Operation).

(414-01 Battery, Mounting and Cables,
General Procedures).

Trim and Ornamentation, Removal and
Installation).

Trim and Ornamentation, Removal and
Installation).

Trim and Ornamentation, Removal and
Installation).

Trim and Ornamentation, Removal and
Installation).

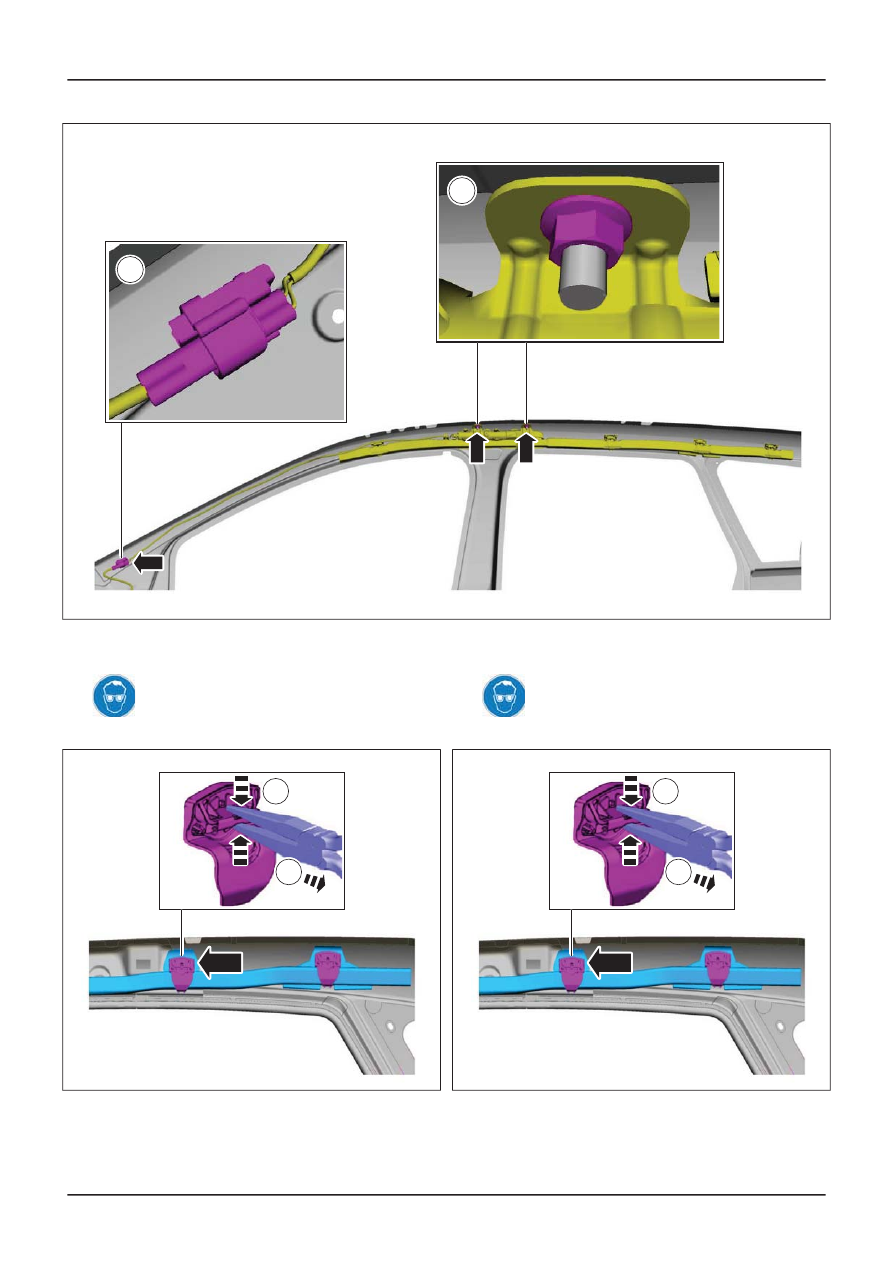

4.

E94863

5.

G1249050en

501-20B-

137

Supplemental Restraint System

501-20B-

137

REMOVAL AND INSTALLATION

1. Refer to:

Supplemental Restrai

nt System (SRS)

2. Refer to:

Battery Disconnect and Connect

Health and Safety Precautions

(100-00

Sliding Roof Opening Panel

(501-05 Interior

Refer to:

Headliner - 3-Door, Vehicles Without:

3. Refer to:

Headliner - 3-Door, Vehicles With:

Sliding Roof Opening Panel

(501-05 Interior

Refer to:

Headliner - 5-Door, Vehicles With:

Refer to:

Headliner - 5-Door, Vehicles Without:

Sliding Roof Opening Panel

(501-05 Interior

Sliding Roof Opening Panel

(501-05 Interior

E121928

1

2

3-door

6.

General Equipment: Long Nose Pliers

E121918

1

2

x5

4-door, 5-door and wagon

7.

General Equipment: Long Nose Pliers

E121931

1

2

x4

G1249050en

501-20B-

138

Supplemental Restraint System

501-20B-

138

REMOVAL AND INSTALLATION

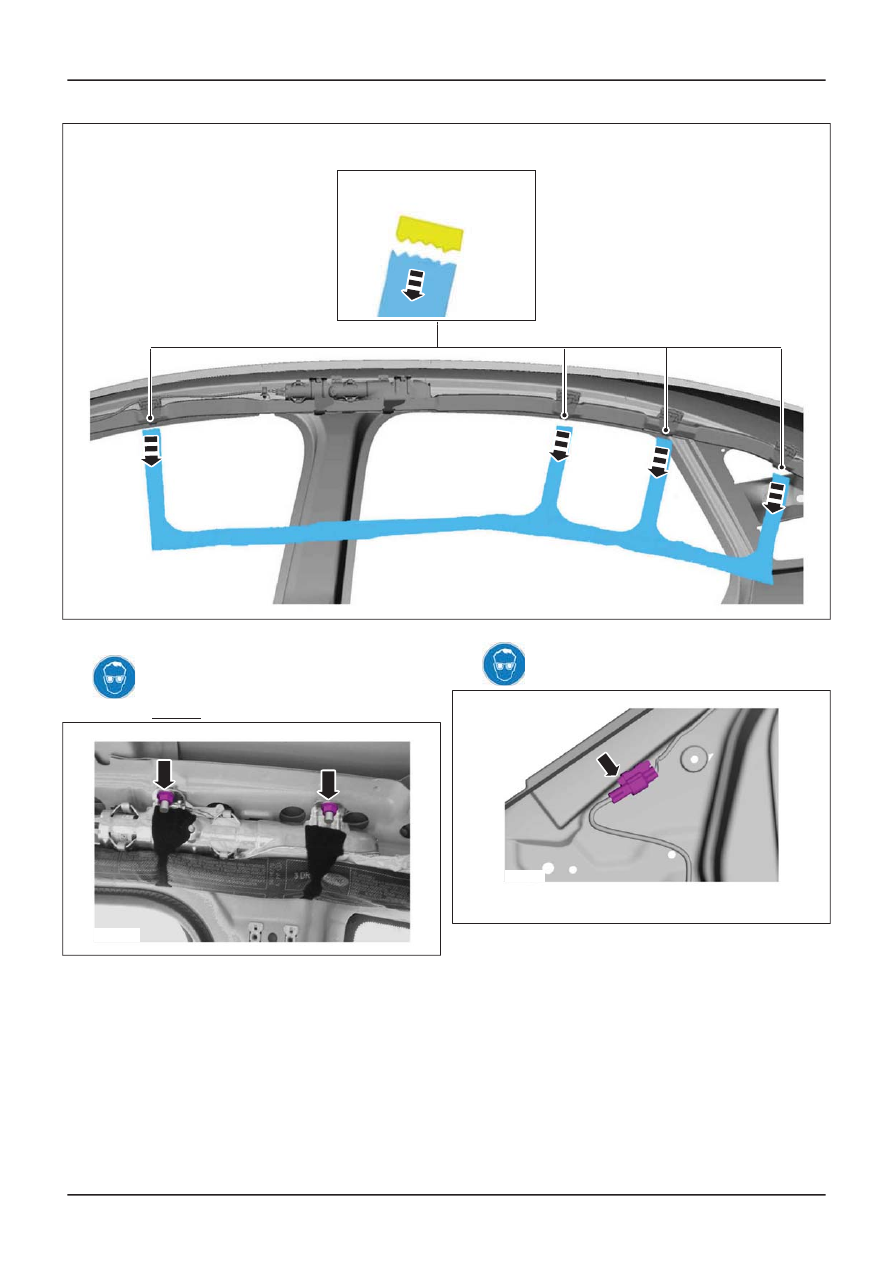

Installation

1.

E122336

2.

G1249050en

501-20B-

139

Supplemental Restraint System

501-20B-

139

REMOVAL AND INSTALLATION

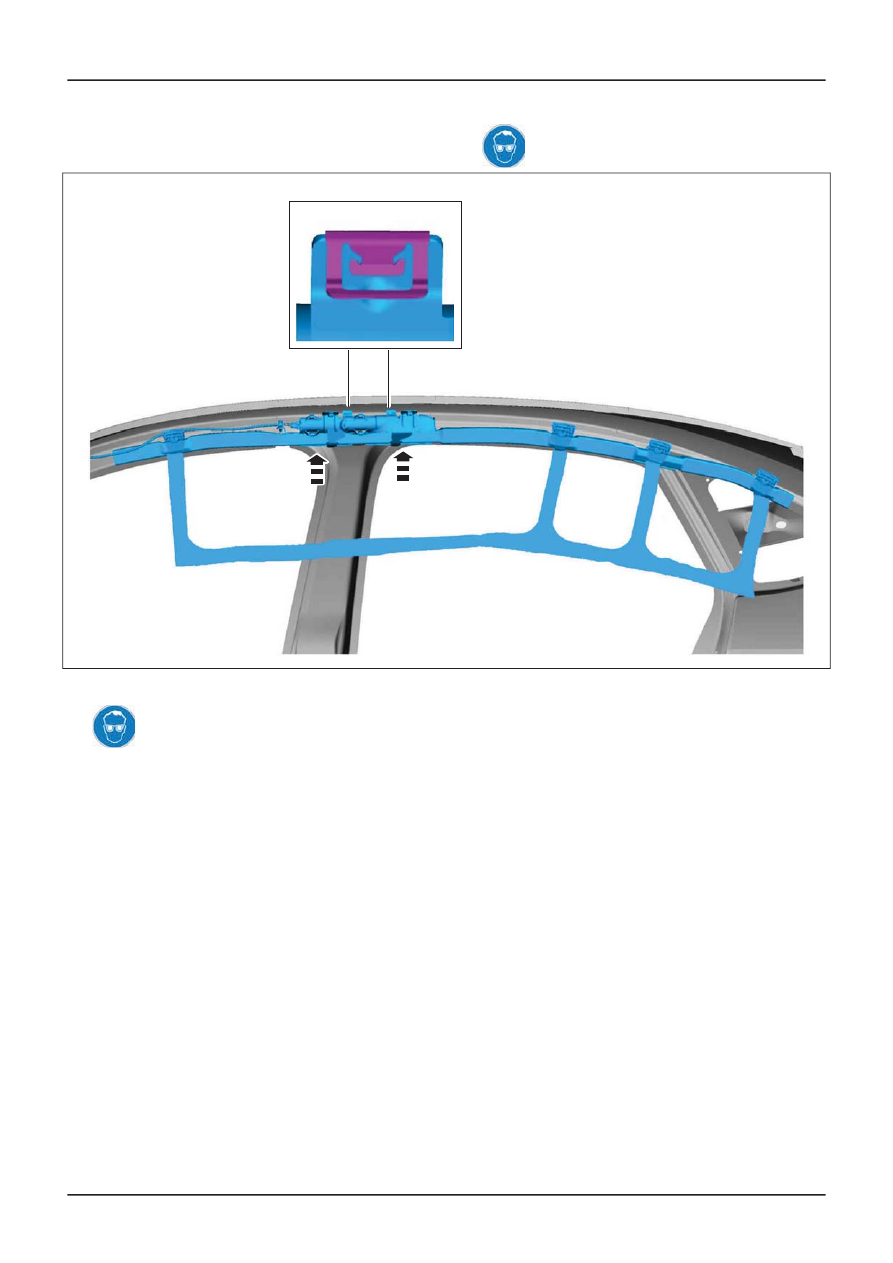

E122350

3.

G1249050en

501-20B-

140

Supplemental Restraint System

501-20B-

140

REMOVAL AND INSTALLATION

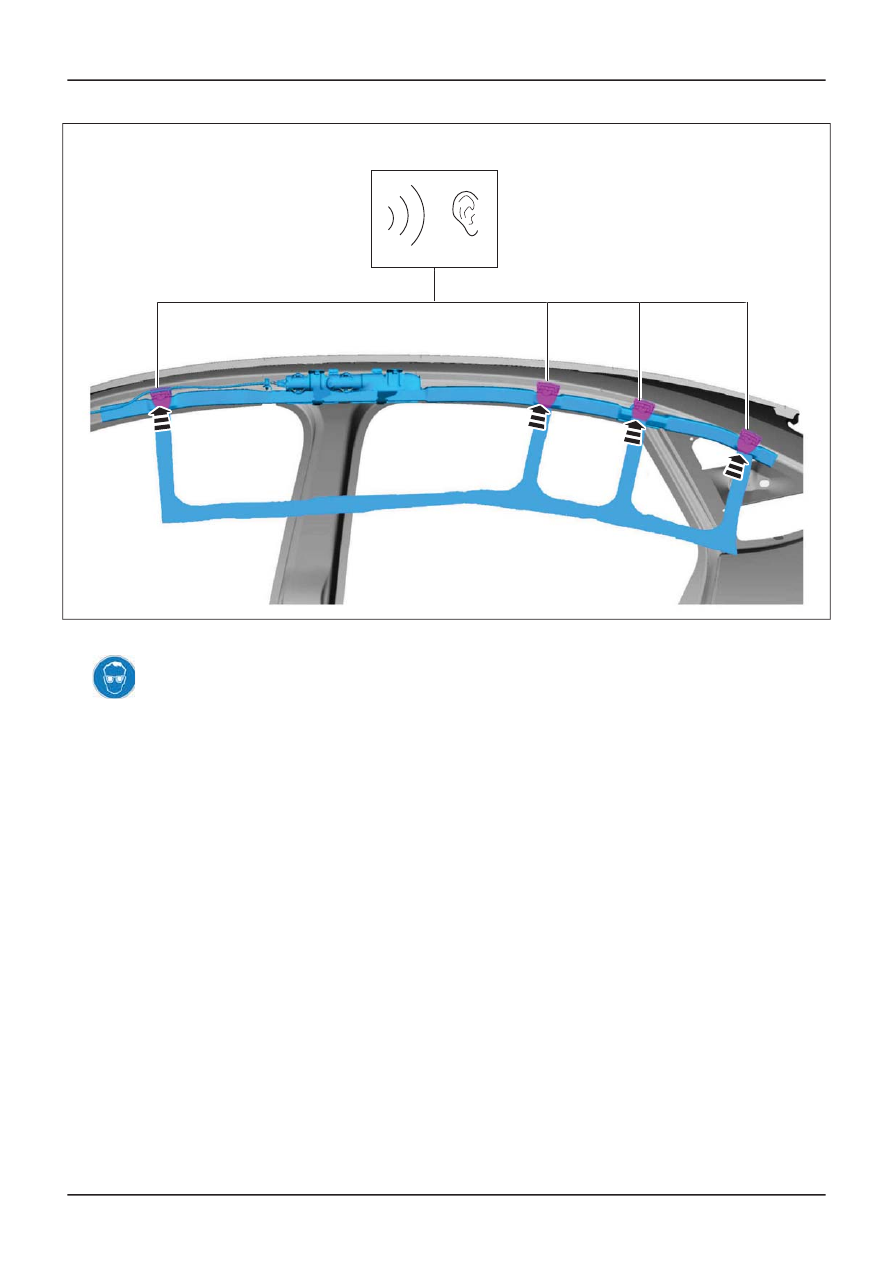

E122337

4.

Torque: 10 Nm

E122354

5.

E122355

G1249050en

501-20B-

141

Supplemental Restraint System

501-20B-

141

REMOVAL AND INSTALLATION

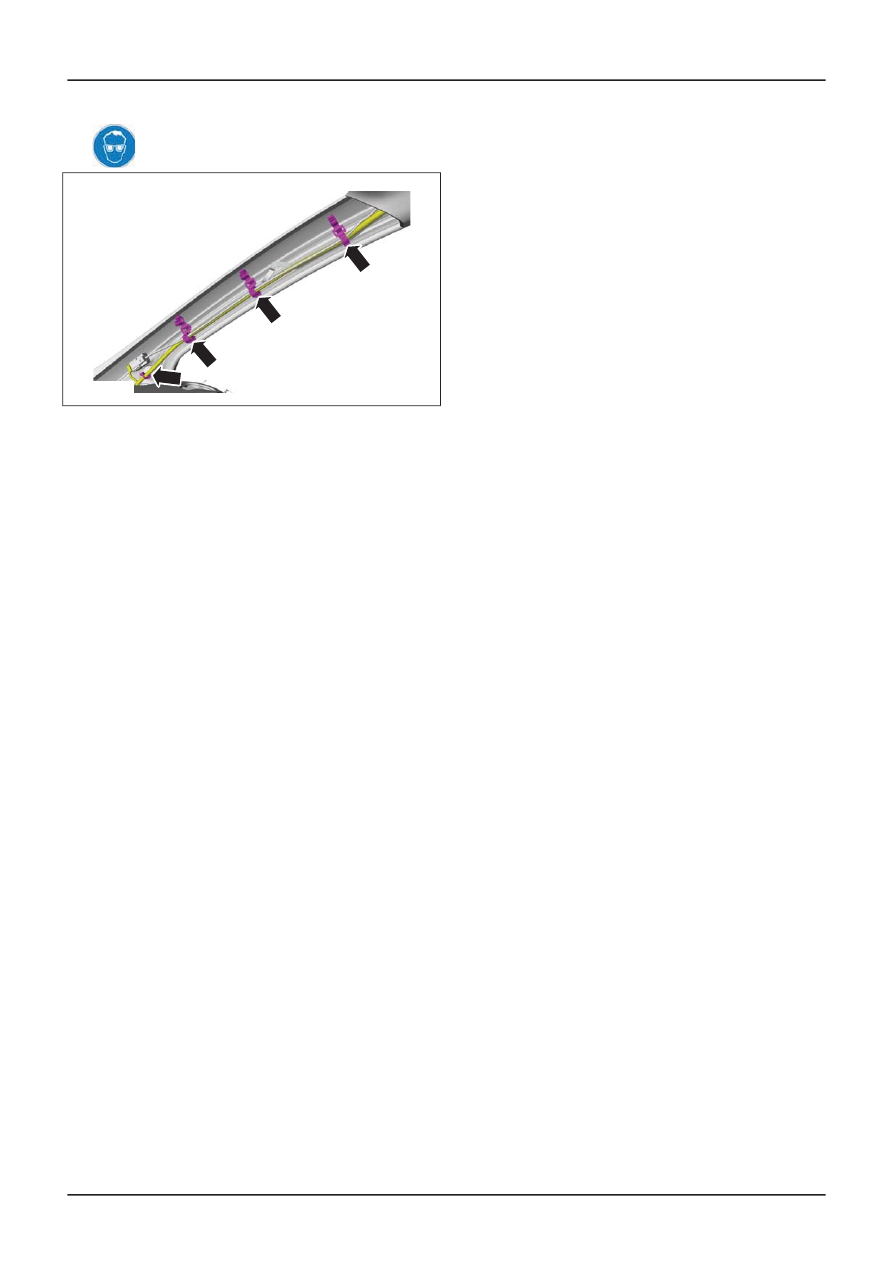

6.

E94863

Trim and Ornamentation, Removal and
Installation).

Trim and Ornamentation, Removal and
Installation).

Trim and Ornamentation, Removal and
Installation).

Trim and Ornamentation, Removal and
Installation).

(414-01 Battery, Mounting and Cables,
General Procedures).

G1249050en

501-20B-

142

Supplemental Restraint System

501-20B-

142

REMOVAL AND INSTALLATION

7. Refer to:

Headliner - 3-Door, Vehicles With:

Refer to:

Headliner - 3-Door, Vehicles Without:

Sliding Roof Opening Panel

(501-05 Interior

Sliding Roof Opening Panel

(501-05 Interior

Refer to:

Headliner - 5-Door, Vehicles With:

Sliding Roof Opening Panel

(501-05 Interior

Refer to:

Headliner - 5-Door, Vehicles Without:

Sliding Roof Opening Panel

(501-05 Interior

8. Refer to:

Battery Disconnect and Connect

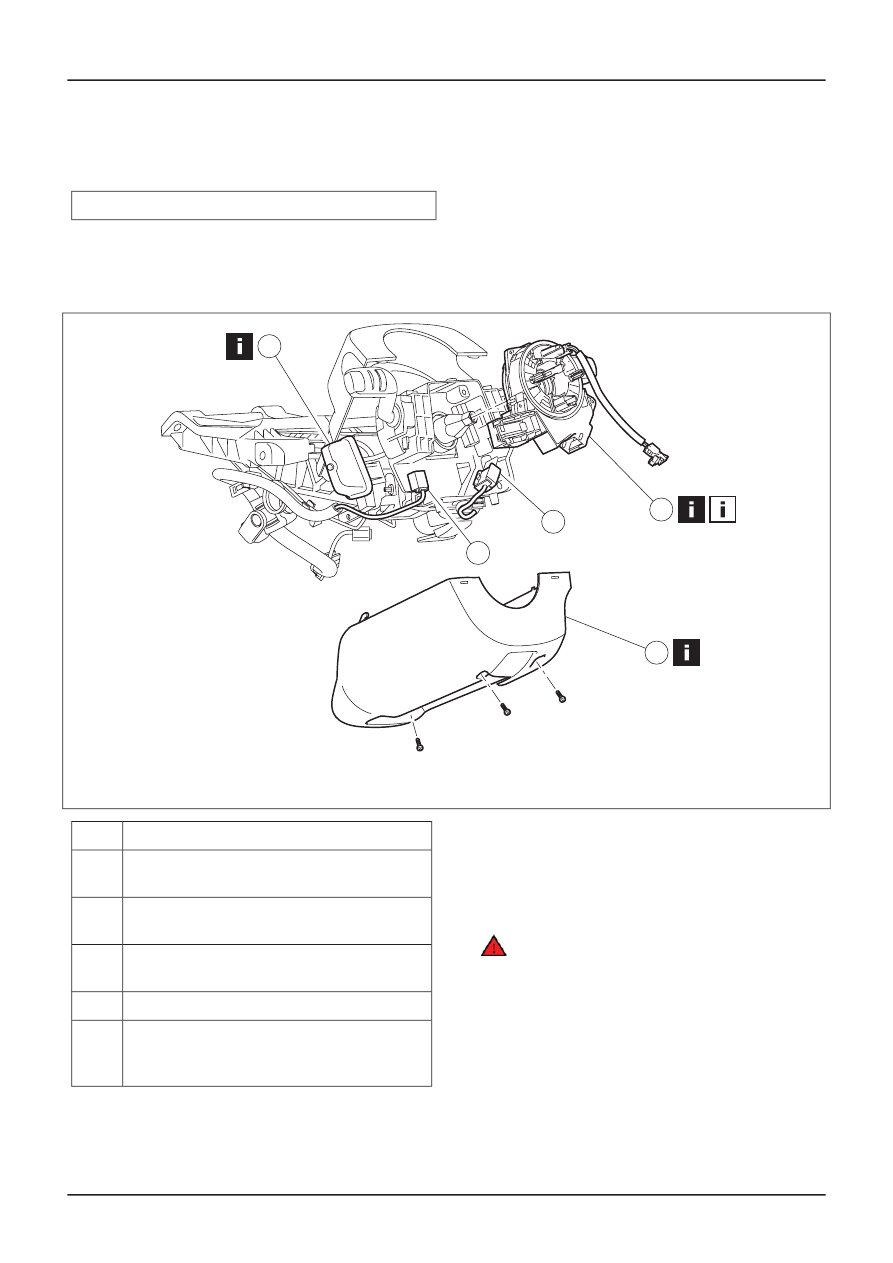

Clockspring

General Equipment

Worldwide diagnostic system (WDS)

1. Remove the steering wheel.

and Installation).

2. Remove the components in the order

indicated in the following illustration(s) and
table(s).

E48261

1

4

3

2

5

Description

Item

Audio control switch (if equipped)

1

Steering column lower shroud

See Removal Detail

2

Steering wheel rotation sensor electrical
connector (if equipped)

3

Clockspring electrical connector

4

Clockspring

See Removal Detail
See Installation Detail

5

All vehicles

3. To install, reverse the removal procedure.

Vehicles with stability assist

4.

WARNING: The electronic stability

program must be re-configured. Failure to
follow this instruction may result in personal
injury.

Configure the stability assist program using

WDS.

Removal Details

G391268en

501-20B-

143

Supplemental Restraint System

501-20B-

143

REMOVAL AND INSTALLATION

For additional information, refer to:

Steering

Wheel

(211-04 Steering Column, Removal

See Removal Detail
