E113368

Installation

1. To install, reverse the removal procedure.

G1224140en

501-14-

207

Handles, Locks, Latches and Entry Systems

501-14-

207

REMOVAL AND INSTALLATION

Keyless Vehicle Rear Bumper Antenna

Removal

1.

Refer to: Jacking

(100-02 Jacking and Lifting,

Description and Operation).

Refer to: Lifting

(100-02 Jacking and Lifting,

Description and Operation).

2.
3.

If equipped.

1.
2. On both sides.

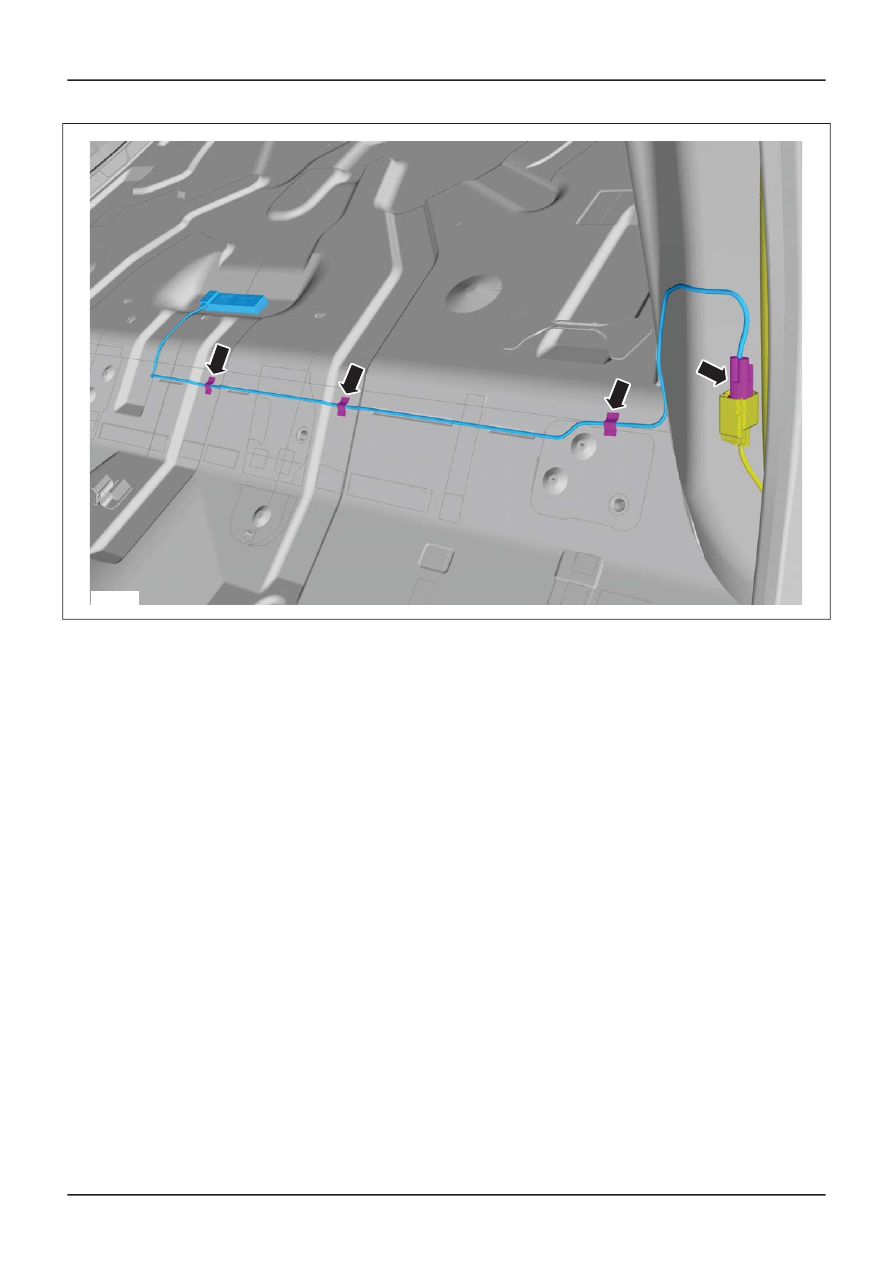

E99377

1

4.

E99591

x2

x2

x2

5.

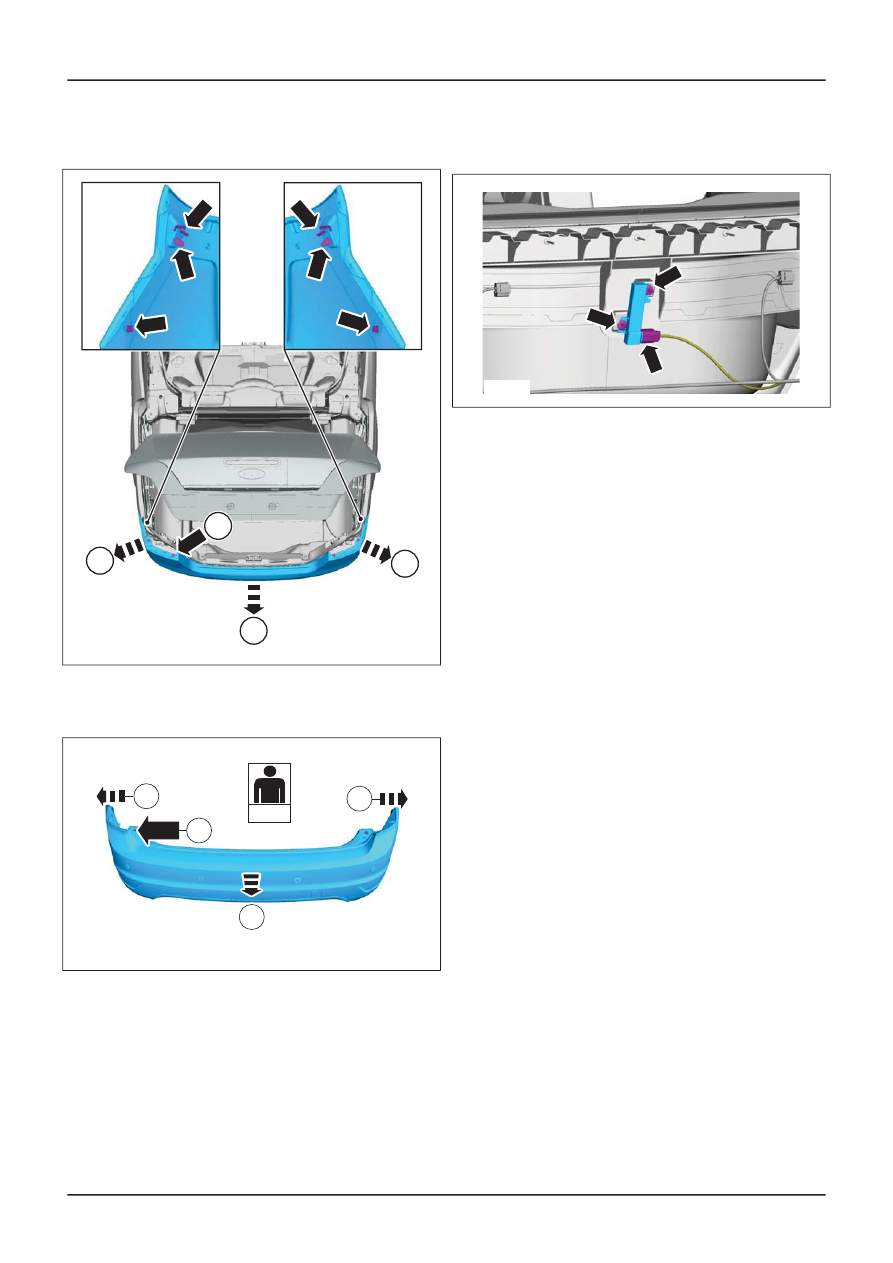

E76894

x2

Convertible

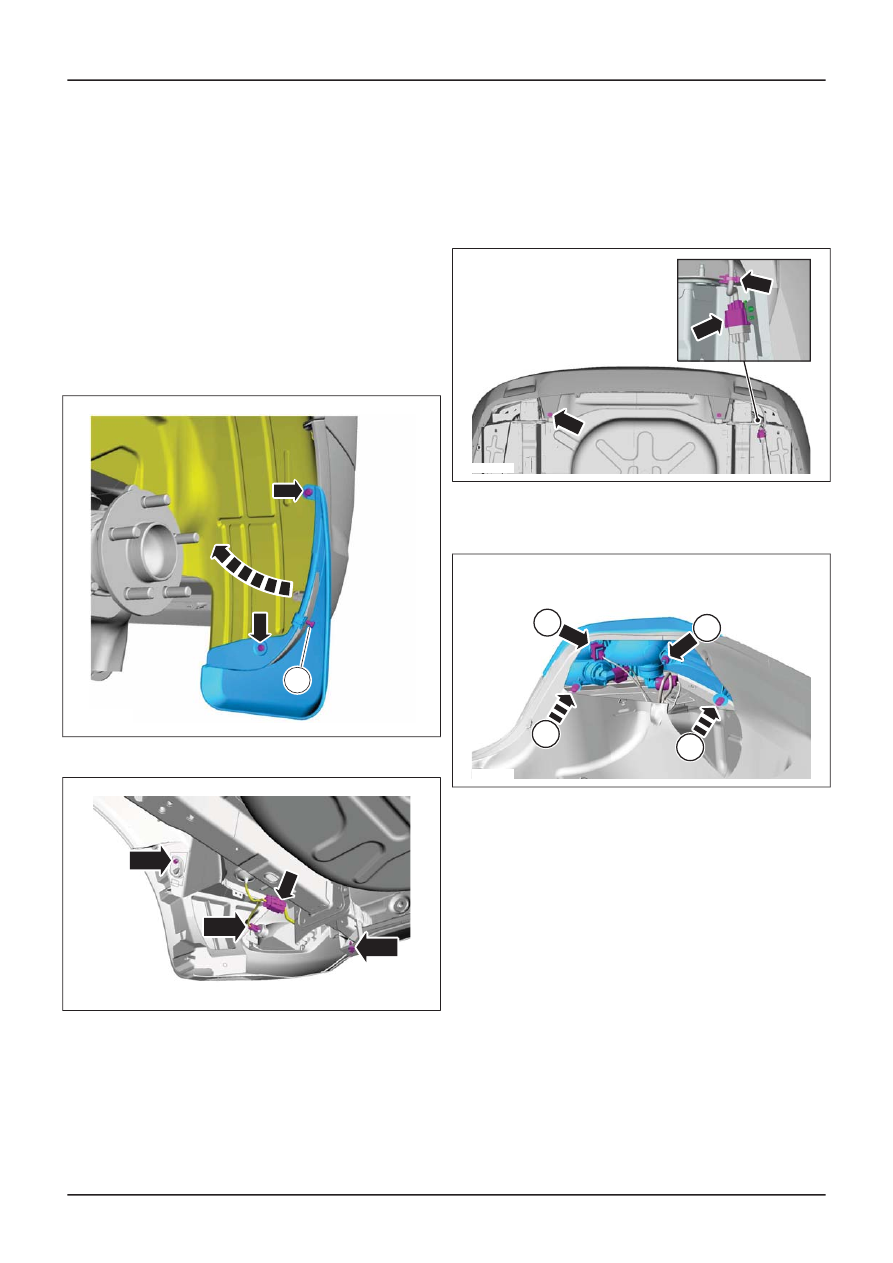

6.

E76895

1

3

2

2

x3

G1224142en

501-14-

208

Handles, Locks, Latches and Entry Systems

501-14-

208

REMOVAL AND INSTALLATION

7. NOTE: This step requires the aid of another

technician.

E76896

3

x4

2

2

1

3-door, 4-door and 5-door

8.

E99588

x2

1

2

2

x2

3

All vehicles

9.

E119169

Installation

1. To install, reverse the removal procedure.

G1224142en

501-14-

209

Handles, Locks, Latches and Entry Systems

501-14-

209

REMOVAL AND INSTALLATION

Radio Frequency (RF) Receiver

Removal

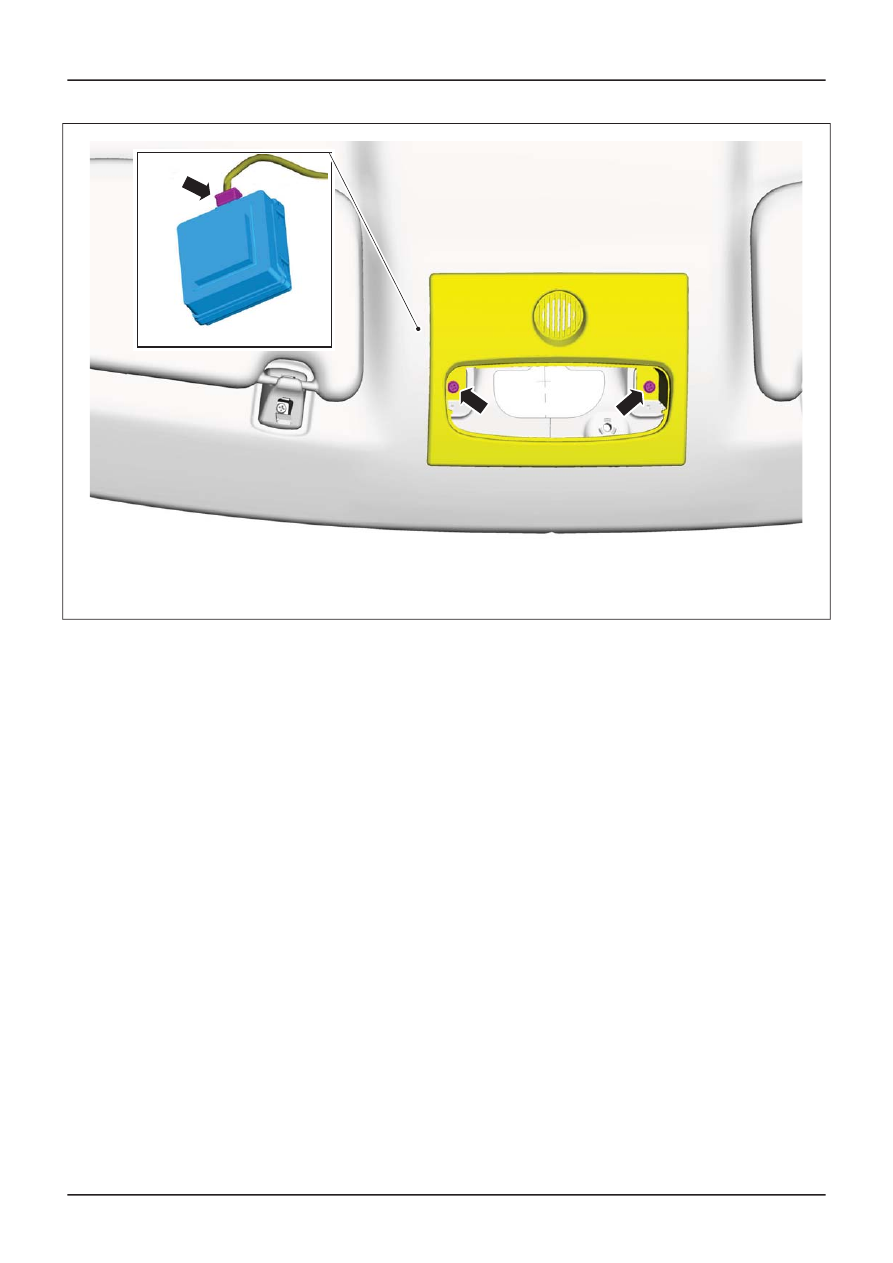

1.

E119793

2.

G1226581en

501-14-

210

Handles, Locks, Latches and Entry Systems

501-14-

210

REMOVAL AND INSTALLATION

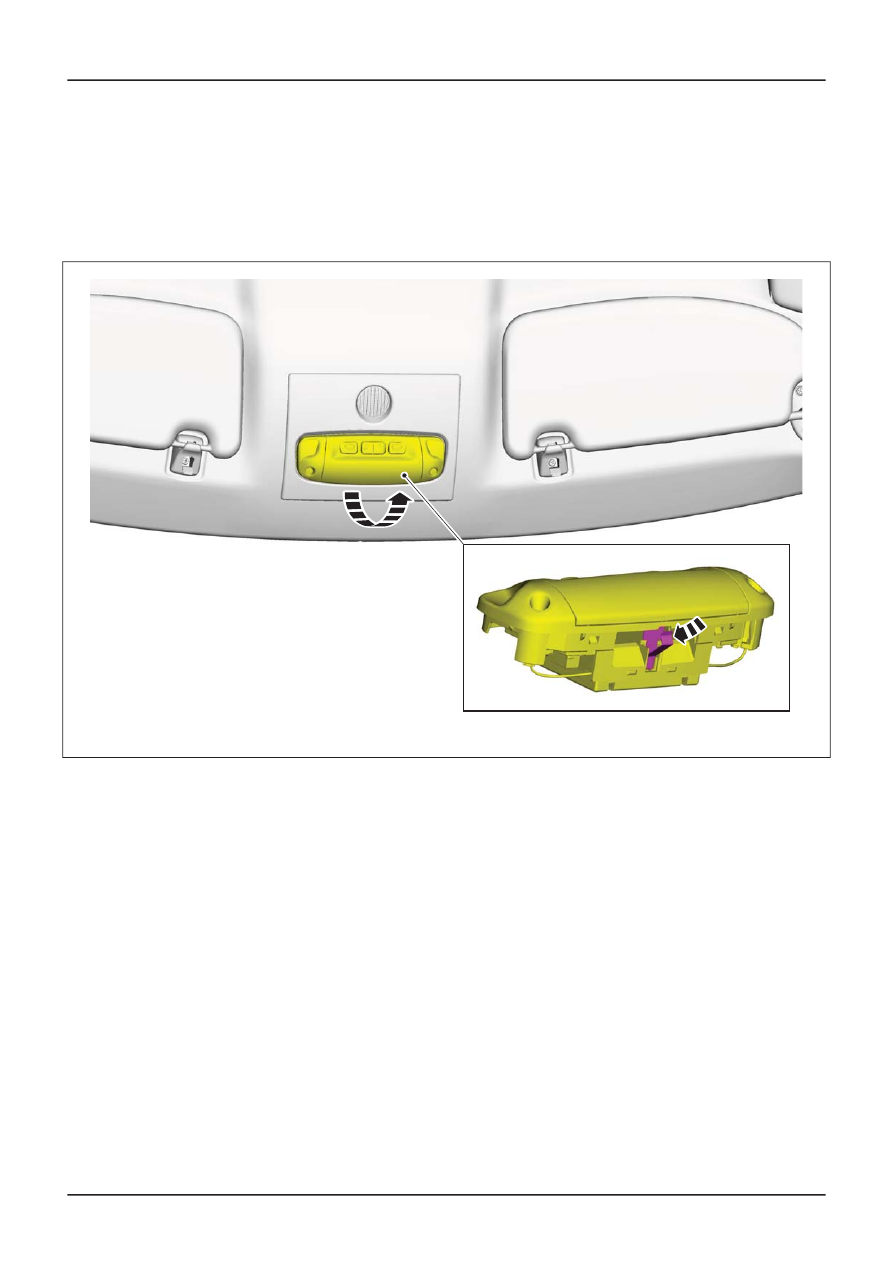

E119794

Installation

1. To install, reverse the removal procedure.

G1226581en

501-14-

211

Handles, Locks, Latches and Entry Systems

501-14-

211

REMOVAL AND INSTALLATION

Hood Lock Cylinder

General Equipment

Punch

NOTE: To obtain the key code, please use either
the driver door lock cylinder, ignition lock cylinder
or tailgate lock cylinder. The hood lock cannot be
used, because two of the ten tumblers have been
removed from the hood lock cylinder.

1. Remove the hood lock cylinder.

For additional information,

refer to: Hood

Lock Cylinder

(501-14 Handles, Locks,

Latches and Entry Systems, Removal and
Installation).

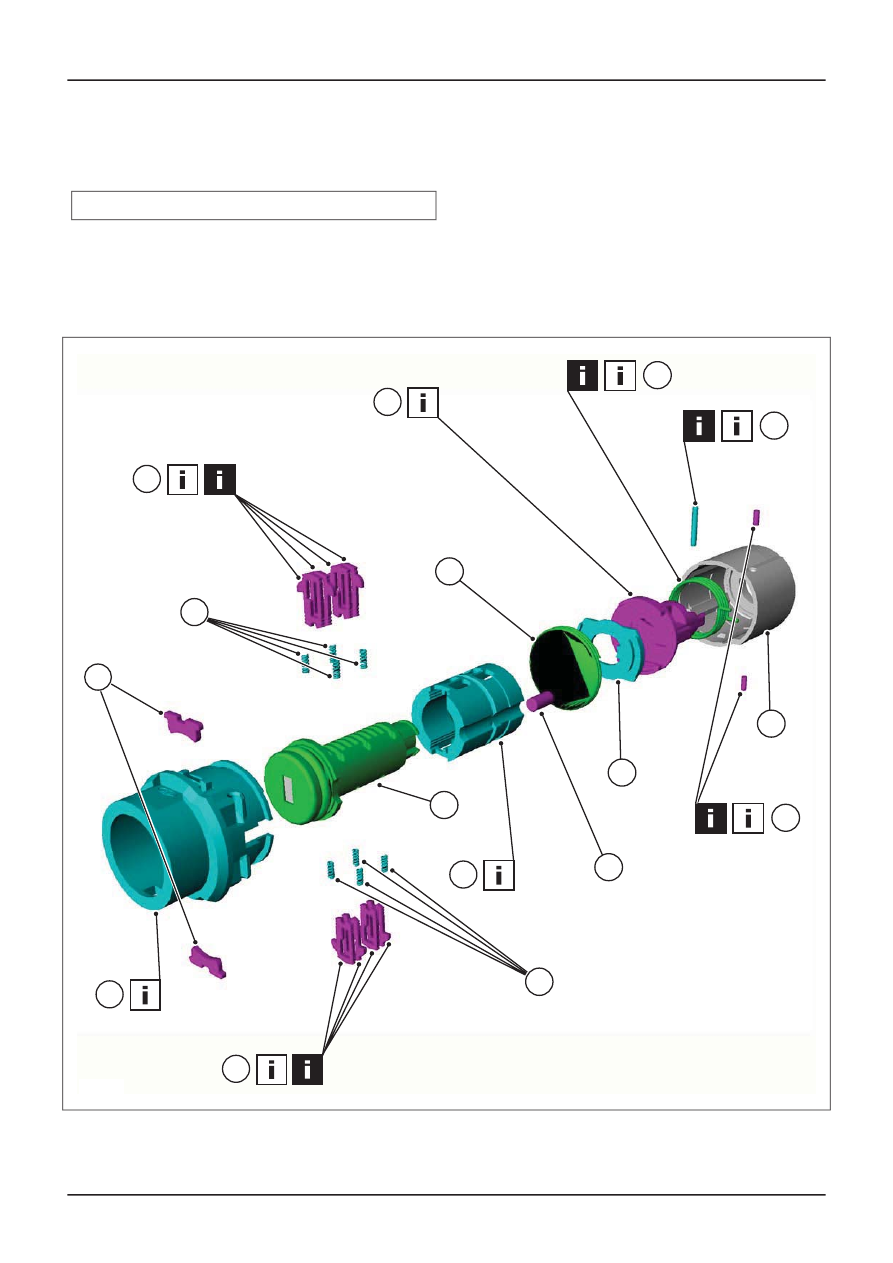

2. Disassemble the components in the order

indicated in the following illustration(s) and
table(s).

E51559

1

2

5

6

7

8

11

12

3

4

12

14

10

9

13

13

G413491en

501-14-

212

Handles, Locks, Latches and Entry Systems

501-14-

212

DISASSEMBLY AND ASSEMBLY

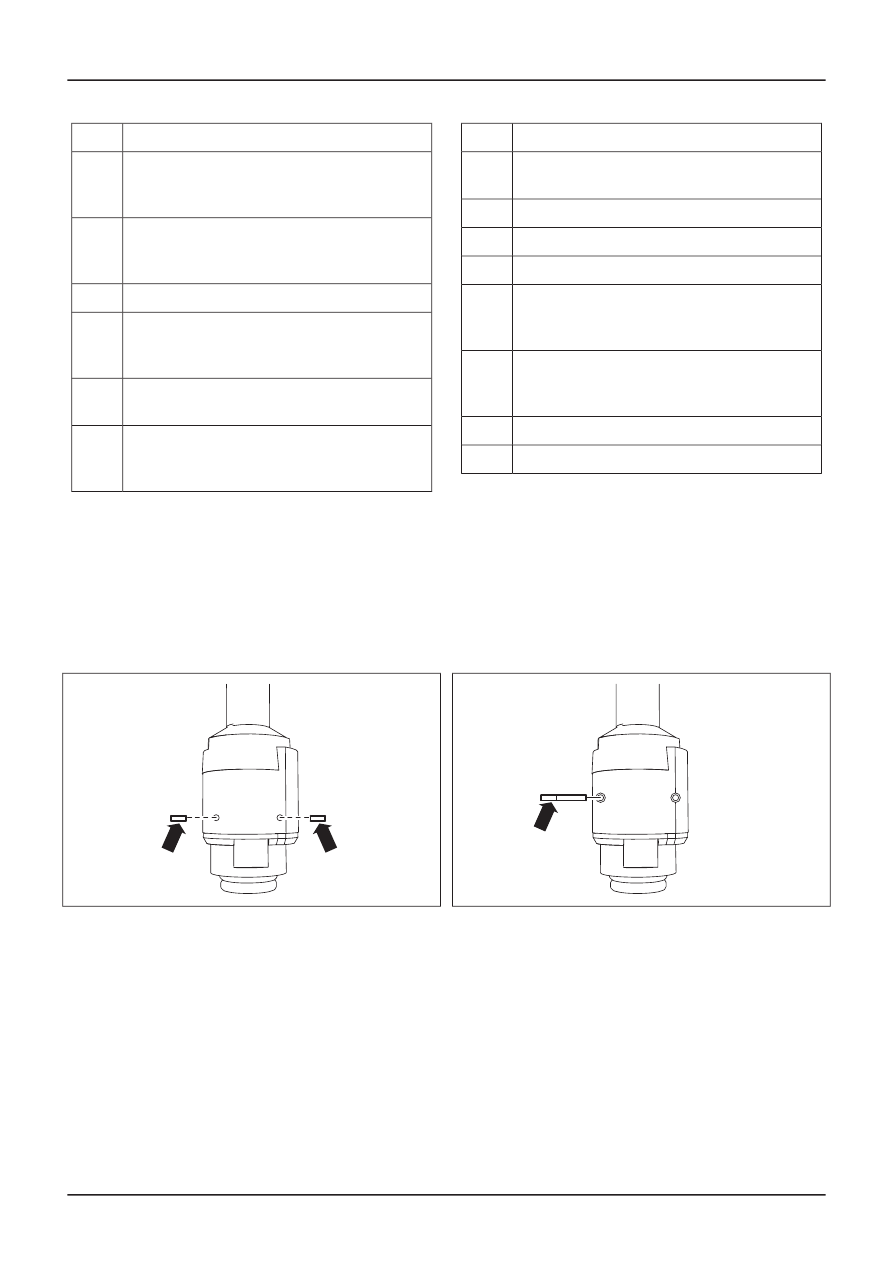

Description

Item

Hood lock cylinder locking pins

See Assembly Detail

1

Hood lock cylinder locking pin

See Assembly Detail

2

Hood lock cylinder housing

3

Hood lock cylinder barrel cover locking
clips

See Disassembly Detail

4

Hood lock cylinder barrel cover

See Assembly Detail

5

Hood lock cylinder return spring

See Disassembly Detail
See Assembly Detail

6

Description

Item

Hood lock cylinder connecting clip

See Assembly Detail

7

Hood lock cylinder washer

8

Hood lock cylinder spring

9

Hood lock cylinder roll pin

10

Hood lock cylinder barrel cover

See Disassembly Detail
See Assembly Detail

11

Hood lock cylinder barrel tumblers

See Disassembly Detail
See Assembly Detail

12

Hood lock cylinder barrel tumbler springs

13

Hood lock cylinder barrel

14

3. To assemble, reverse the disassembly

procedure.

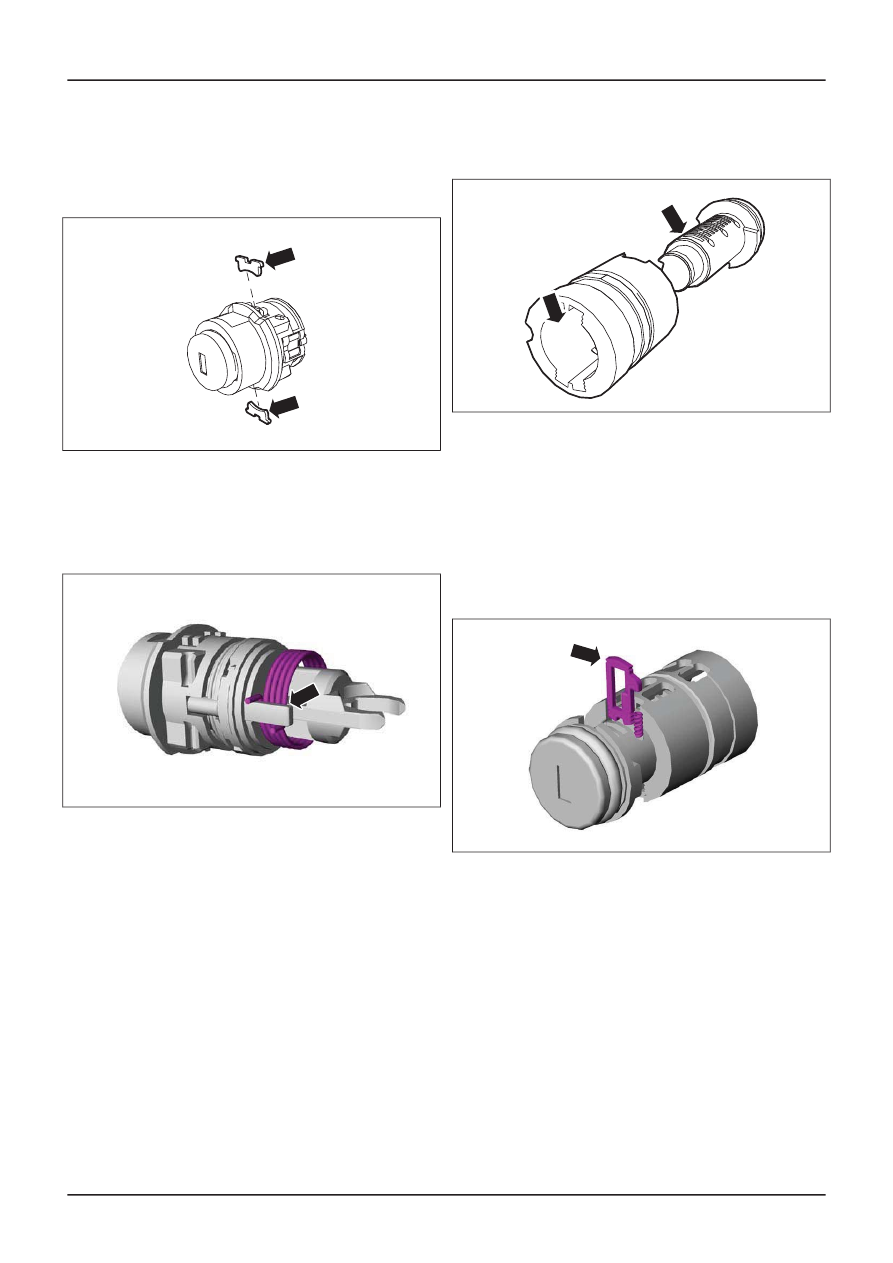

Disassembly Details

Item 1

Hood lock cylinder locking pins

1. Using a suitable

Punch

, remove the hood

lock cylinder

locking pins.

E43524

Item 2

Hood lock cylinder locking pin

1. Using a suitable

Punch

, remove the hood

lock cylinder

locking pin.

E43523

G413491en

501-14-

213

Handles, Locks, Latches and Entry Systems

501-14-

213

DISASSEMBLY AND ASSEMBLY

See Disassembly Detail

See Disassembly Detail

Item 4

Hood lock cylinder barrel cover locking

clips

1. Using a suitable tool, remove the hood lock

cylinder barrel cover locking clips.

E43522

Item 6

Hood lock cylinder return spring

1. NOTE: Make a note of the position of the

hood lock cylinder return spring.

Remove the hood lock cylinder return spring.

E59904

Item 11

Hood lock cylinder barrel cover

1. Remove the hood lock cylinder barrel guide.

E43467

Item 12

Hood lock cylinder barrel tumblers

1. NOTE: Make sure to read the key code from

the key entry to the end of the lock barrel in
sequence.

NOTE: Make a note of the position and orientation
of the hood lock cylinder barrel tumblers.

Remove the hood lock cylinder barrel
tumblers in the correct order.

E59873

Assembly Details

Item 12

Hood lock cylinder barrel tumblers

1. NOTE: Make sure to read the key code from

the key entry to the end of the lock barrel in
sequence.

NOTE: One group of tumblers is signed with a one
digit number (1 to 5), the other group of tumblers
is signed with a two digit number (11 to 15).

G413491en

501-14-

214

Handles, Locks, Latches and Entry Systems

501-14-

214

DISASSEMBLY AND ASSEMBLY
