Ford Focus RS (2011 year). Instruction - part 57





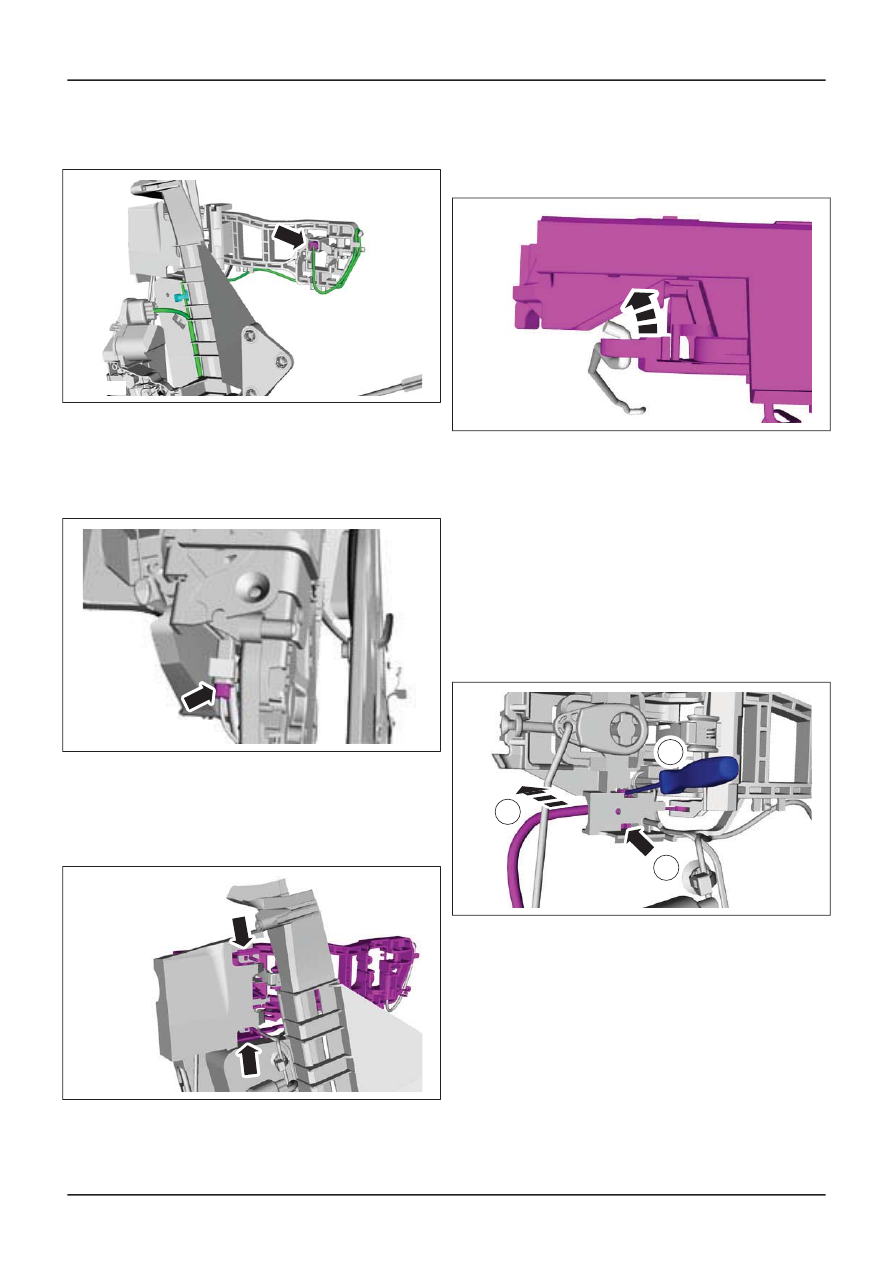

harness from the front door handle
reinforcement.

E52077

Item 15

Front door lock cylinder position sensor

electrical connector

1. Disconnect the front door lock cylinder

position sensor electrical connector.

E52031

Item 16

Front door handle reinforcement

1. Detach the front door handle reinforcement

from the front door handle, lock and latch
retaining bracket.

E51956

Item 17

Front door lock cylinder actuator rod

1. Detach the front door lock cylinder actuator

rod from the front door handle reinforcement.

E51959

Item 18

Front door exterior handle remote

control cable

1. Detach the front door exterior handle remote

control cable from the front door handle
reinforcement.

1. Using a suitable flat blade screwdriver,

release the front door exterior handle remote
control cable retaining clips.

2. Slide the front door exterior handle remote

control cable off of the front door handle
reinforcement retainers.

E51957

1

1

2

G413505en

501-14-

135

Handles, Locks, Latches and Entry Systems

501-14-

135

REMOVAL AND INSTALLATION

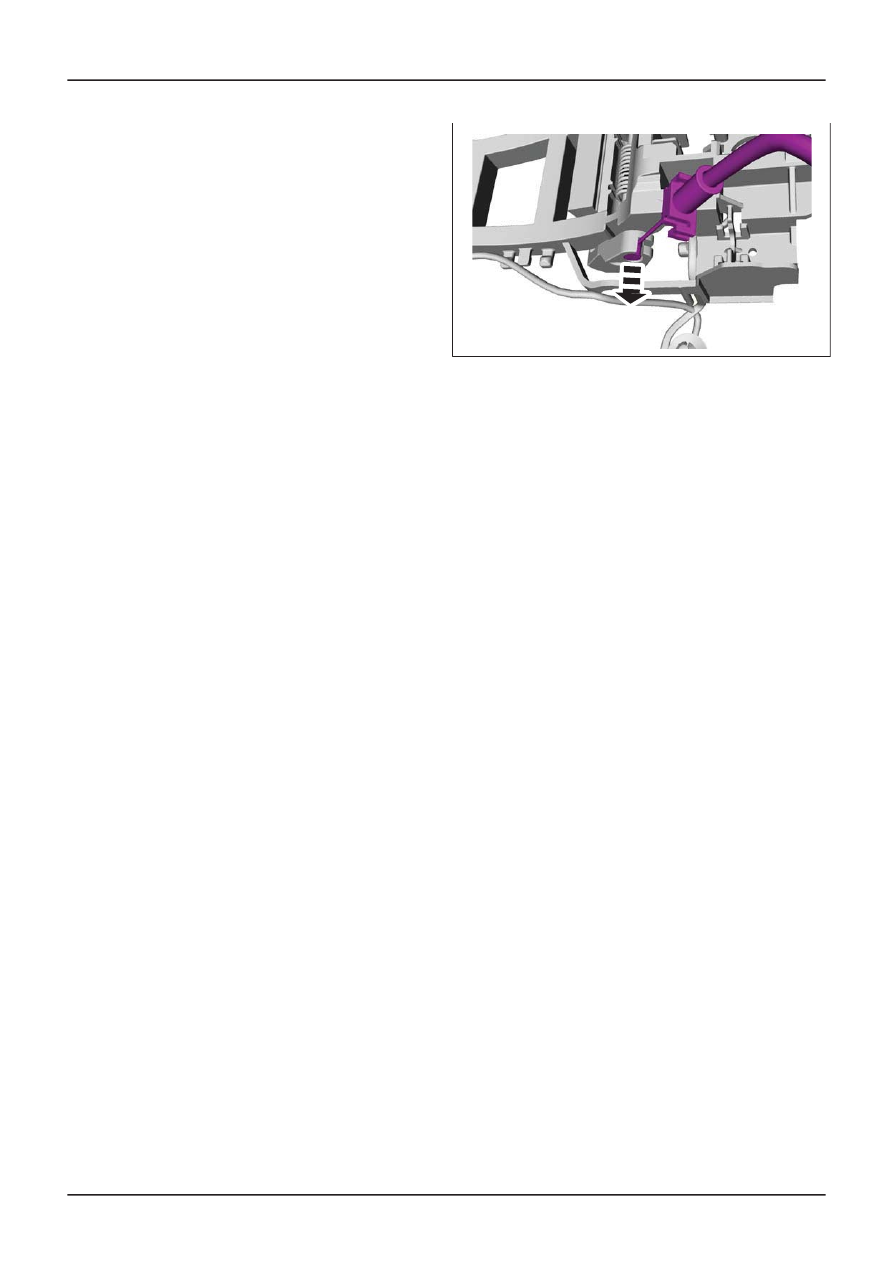

2. Align the front door exterior handle remote

control inner cable with the slot in the front
door handle reinforcement and remove.

E51958

Installation Details

Item 13

Front door inner panel

1. Before installing the front door inner panel

retaining bolts, feed the door wiring harness
electrical connector through the front door
wiring harness hole.

Item 12

Front door lock actuator retaining screw

1. Install the front door lock actuator to the

front door.

2. Tighten the front door lock actuator retaining

screw.

Item 5

Door hinge retaining bolts.

1. Apply a coating of

adhesive to

the door hinge

retaining bolts.

G413505en

501-14-

136

Handles, Locks, Latches and Entry Systems

501-14-

136

REMOVAL AND INSTALLATION

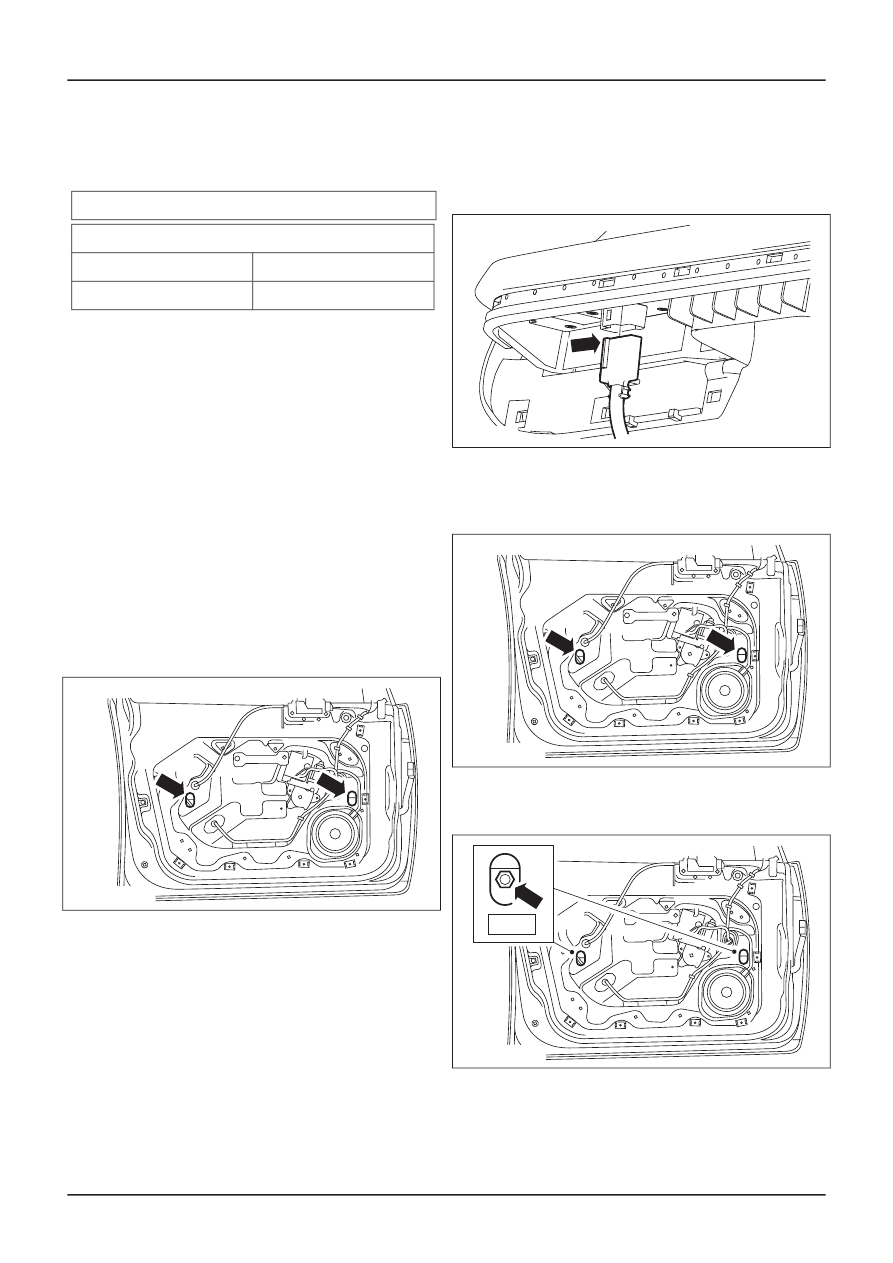

Front Door Lock Actuator — 4-Door/5-Door/Wagon

General Equipment

Trolley jack

Materials

Specification

Name

WSK-M2G349-A7

Adhesive - Loctite 243

1. Remove the front door trim panel.

For additional information,

refer to: Front

Door Trim Panel - 4-Door/5-Door/Wagon

(501-05 Interior Trim and Ornamentation,
Removal and Installation).

2. Remove the exterior front door handle.

For additional information,

refer to: Exterior

Front Door Handle

(501-14 Handles, Locks,

Latches and Entry Systems, Removal and
Installation).

3. Connect the battery ground cable.

For additional information,

refer to: Battery

Disconnect and Connect

(414-01 Battery,

Mounting and Cables, General Procedures).

4. Remove the front door window regulator

grommets.

E42003

5. NOTE: Support the front door power window

control unit.

Connect the front door power window control
unit electrical connector.

E39524

6. Using the front door power window control

unit, align the front door window glass clamp
bolts with the access holes.

E42003

7. Loosen the front door window glass clamp

retaining bolts.

TIE39519

8 Nm

G413510en

501-14-

137

Handles, Locks, Latches and Entry Systems

501-14-

137

REMOVAL AND INSTALLATION

8. Disconnect the front door power window

control unit electrical connector.

E39524

9. Raise the front door window glass.

10. Using suitable tape, secure the front door

window glass to the front door.

E42004

11. Disconnect the battery ground cable.

For additional information,

refer to: Battery

Disconnect and Connect

(414-01 Battery,

Mounting and Cables, General
Procedures).

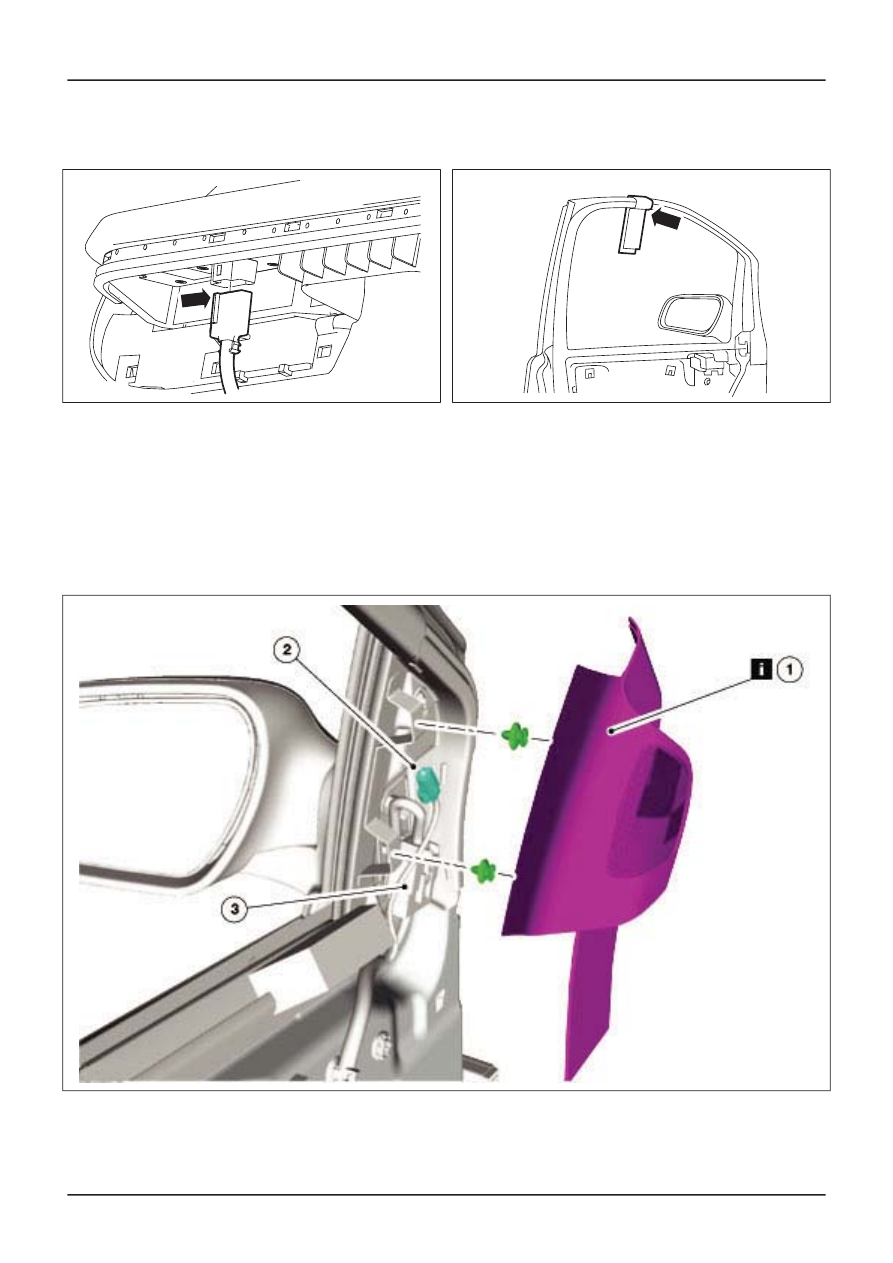

12. Remove the components in the order

indicated in the following illustration(s) and
table(s).

E51757

G413510en

501-14-

138

Handles, Locks, Latches and Entry Systems

501-14-

138

REMOVAL AND INSTALLATION

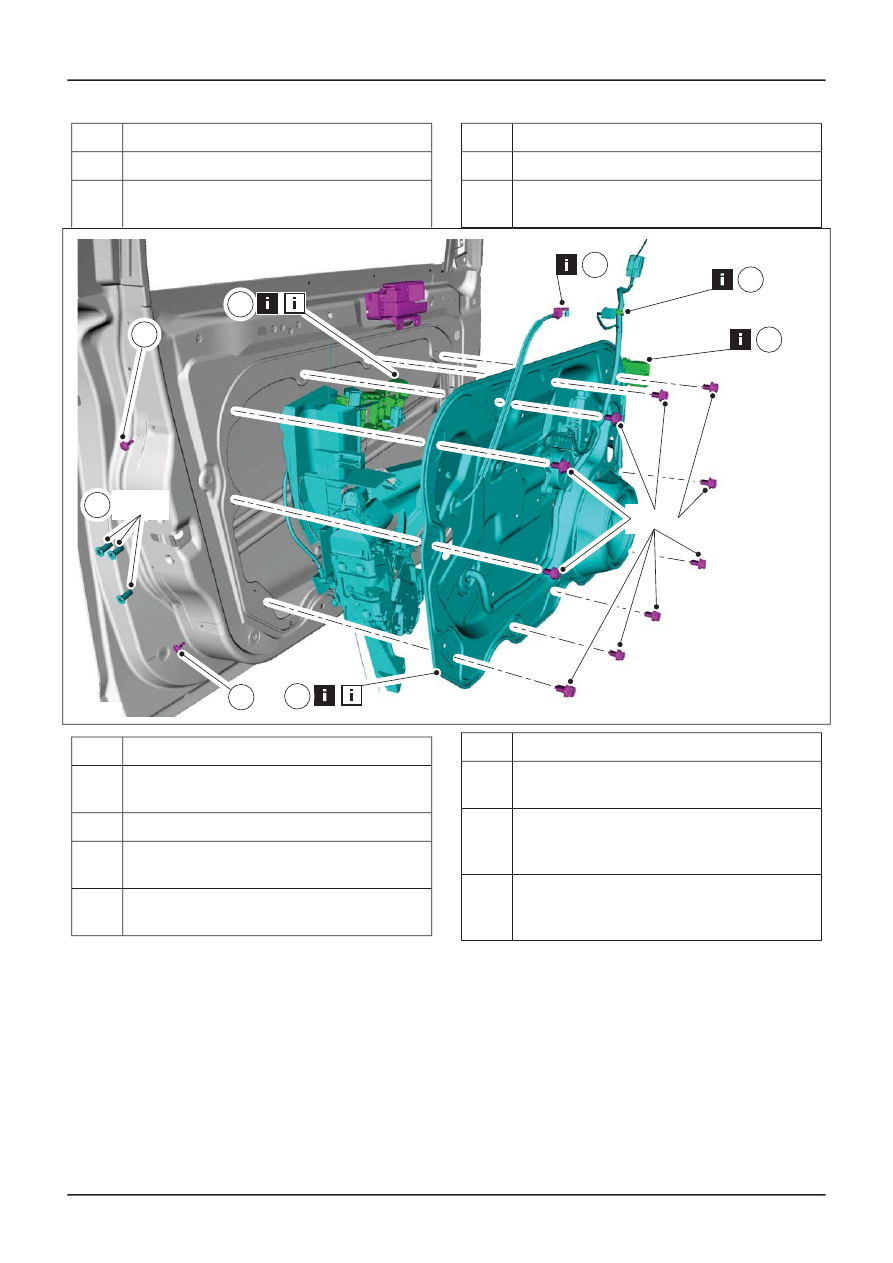

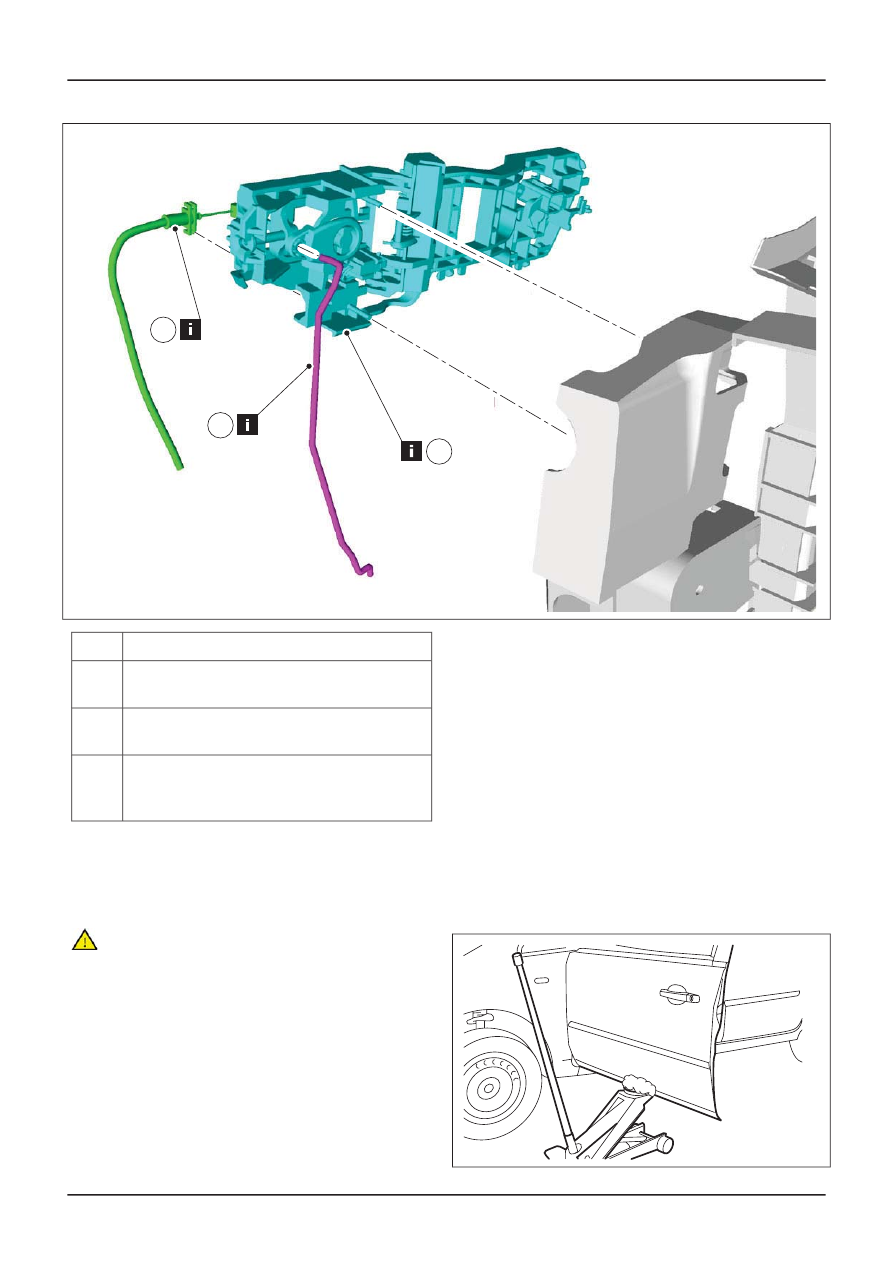

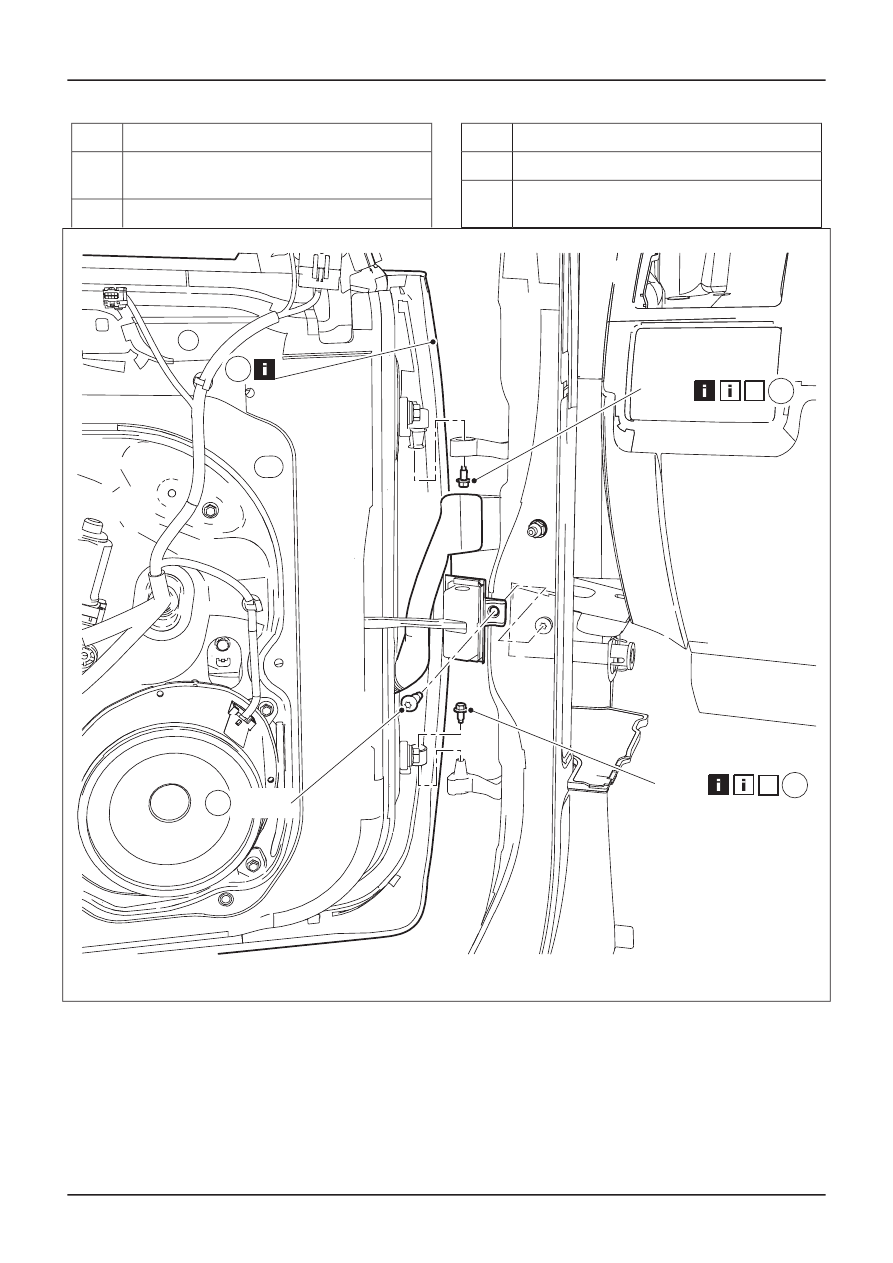

Description

Item

Exterior mirror interior trim panel

See Removal Detail

1

Front door tweeter speaker electrical

2

Description

Item

connector

Exterior mirror electrical connector (if
equipped)

3

E47359

6

15 Nm

5

15 Nm

23 Nm

4

N

5

N

G413510en

501-14-

139

Handles, Locks, Latches and Entry Systems

501-14-

139

REMOVAL AND INSTALLATION

Description

Item

Door check strap

4

Door hinge retaining bolts

See Removal Detail

5

Description

Item

See Installation Detail

Door

See Removal Detail

6

E52072

8

10

8 Nm

7

8 Nm

13

12

9

11

7

Description

Item

Front door handle, lock and latch retaining
bracket retaining screws

7

Front door latch retaining bolts

8

Front door wiring harness retaining clip

See Removal Detail

9

Front door latch remote control cable

See Removal Detail

10

Description

Item

Front door wiring harness

See Removal Detail

11

Front door lock actuator retaining screw

See Removal Detail
See Installation Detail

12

Front door inner panel

See Removal Detail
See Installation Detail

13

G413510en

501-14-

140

Handles, Locks, Latches and Entry Systems

501-14-

140

REMOVAL AND INSTALLATION

E51993

14

15

16

Description

Item

Front door lock actuator

See Removal Detail

14

Front door lock cylinder actuator rod

See Removal Detail

15

Front door exterior handle remote control
cable

See Removal Detail

16

13. To install, reverse the removal procedure.

14. Vehicles with global closing, initialize the

door window motors.

For additional information,

refer to: Door

Window Motor Initialization

(501-11 Glass,

Frames and Mechanisms, General
Procedures).

Removal Details

Item 1

Exterior mirror interior trim panel

CAUTION: Do not place excessive strain
on the exterior mirror and front door
tweeter speaker wiring harness.

Item 5

Door hinge retaining bolts

TIE41214

G413510en

501-14-

141

Handles, Locks, Latches and Entry Systems

501-14-

141

REMOVAL AND INSTALLATION

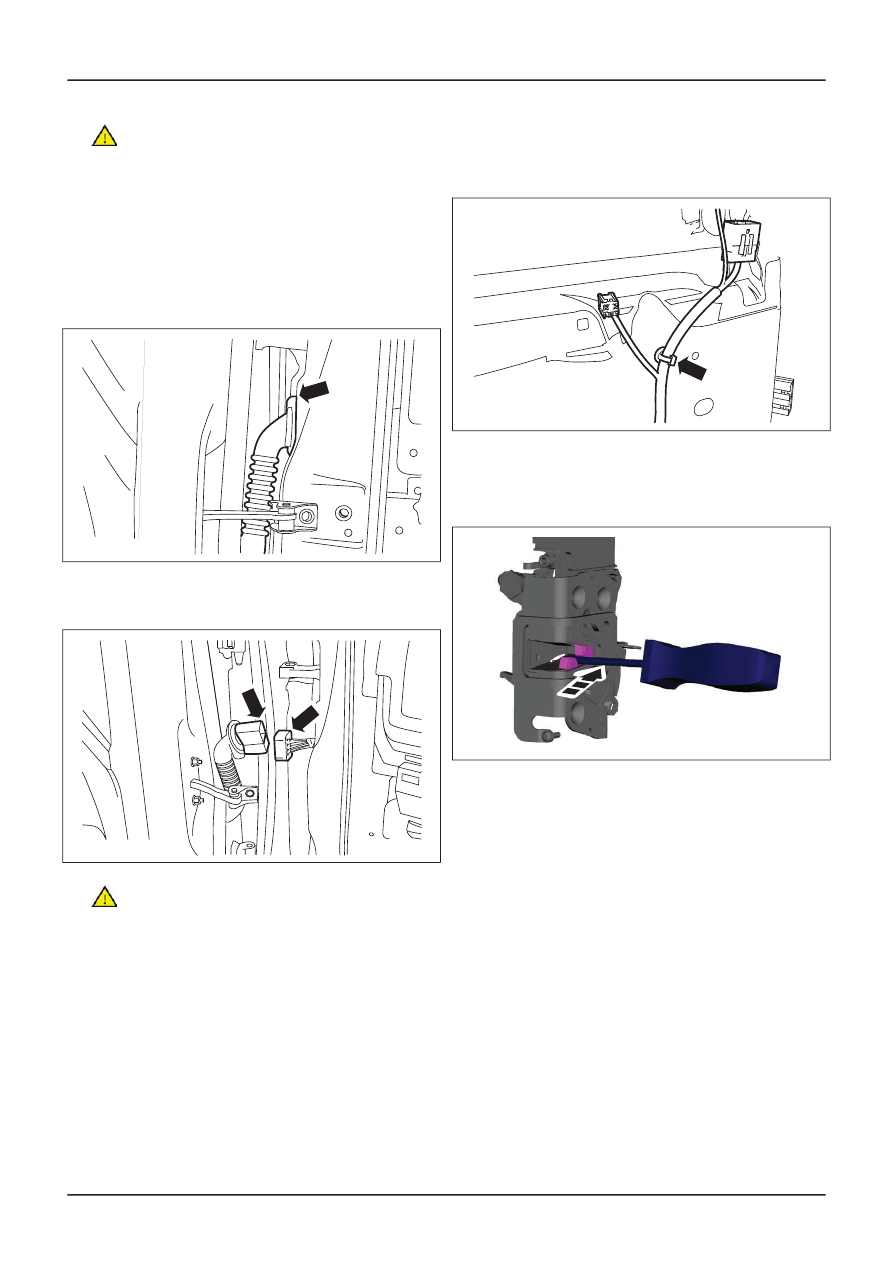

1.

CAUTION: Protect the door using a soft

cloth to prevent damage to the front door.

With the aid of another technician and a
suitable trolley jack, support and detach the
front door from the front door hinges.

Item 6

Door

1. Detach the front door wiring harness from

the A-pillar.

TIE41215

2. Disconnect the front door wiring harness

electrical connector.

TIE41216

3.

CAUTION: After the front door wiring

harness electrical connector has been
disconnected, position the front door back
onto the front door hinges. Failure to follow
this instruction may cause damage to the
front door.

Position the front door onto the front door
hinges.

Item 9

Front door wiring harness retaining clip

1. Detach the front door wiring harness

retaining clip from the front door.

E47330

Item 10

Front door latch remote control cable

1. Using a suitable screwdriver, latch the front

door lock into the closed position.

E52756

2. Detach the front door latch remote control

cable from the front door latch remote
control handle.

1. Operate the door latch remote control handle

lock to the lock position.

2. Release the remote control cable retaining

clips.

G413510en

501-14-

142

Handles, Locks, Latches and Entry Systems

501-14-

142

REMOVAL AND INSTALLATION
