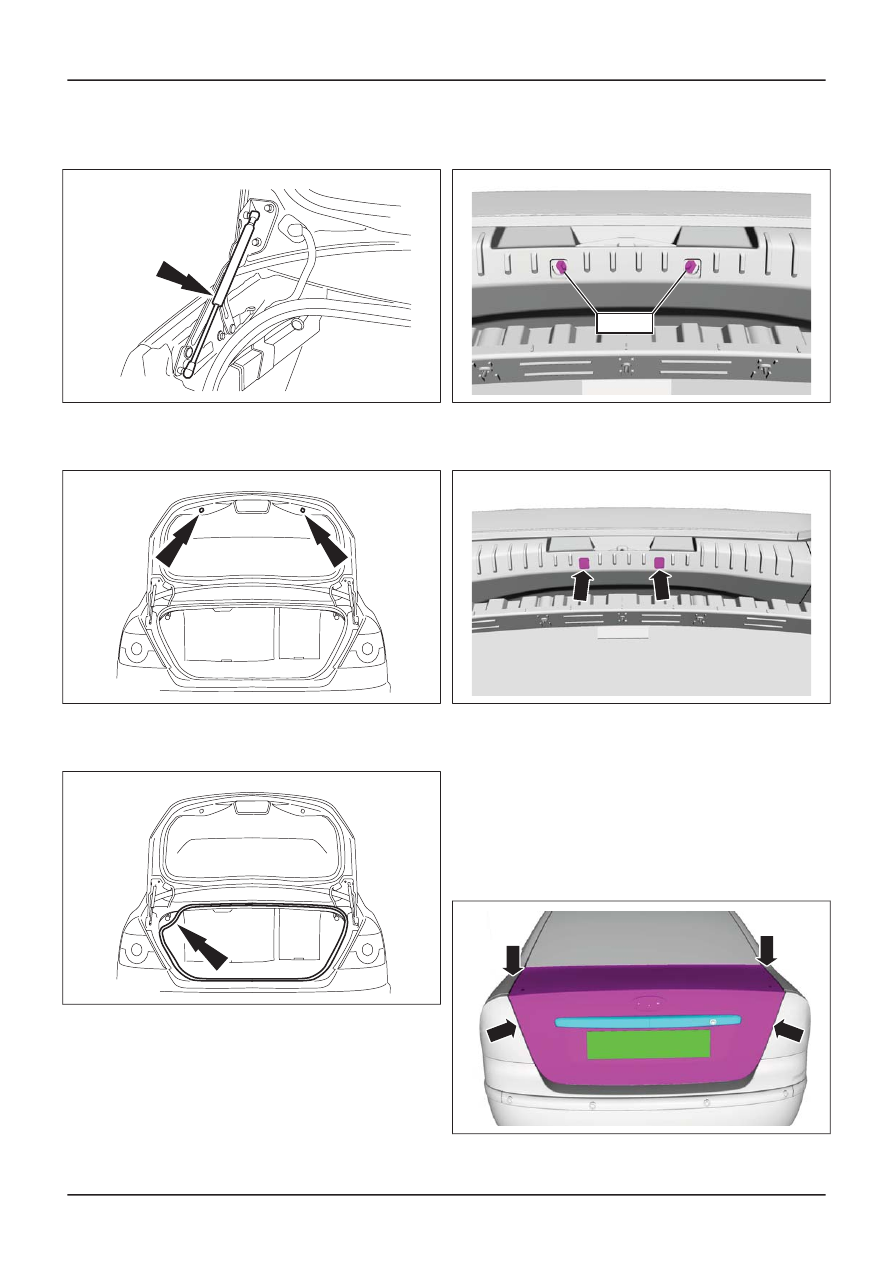

15. Install the luggage compartment lid support

strut on both sides.

TIE0023907

16. Install the luggage compartment lid bump

stops.

TIE0023906

17. Install the luggage compartment lid

weatherstrip.

TIE0024380

18. Tighten the luggage compartment lid striker

retaining bolts.

E59327

25 Nm

19. Install the luggage compartment lid striker

retaining bolt covers.

E59325

20. NOTE: Make sure that the luggage

compartment lid is in the fully closed
position.

Close the luggage compartment lid.

21. Check that the luggage compartment lid is

flush with the rear quarter panel on both
sides. Repeat the luggage compartment lid
alignment procedure if necessary.

E60057

G468127en

501-03-

27

Body Closures

501-03-

27

GENERAL PROCEDURES

SECTION 501-05 Interior Trim and Ornamentation

PAGE

CONTENTS

SPECIFICATIONS

501-05-2

Specifications......................................................................................................................

REMOVAL AND INSTALLATION

501-05-3

A-Pillar Trim Panel..............................................................................................................

501-05-5

B-Pillar Trim Panel — 3-Door.............................................................................................

501-05-7

B-Pillar Trim Panel — 4-Door/5-Door.................................................................................

501-05-11

C-Pillar Trim Panel — 3-Door.............................................................................................

501-05-14

C-Pillar Trim Panel — 4-Door/5-Door.................................................................................

501-05-16

D-Pillar Trim Panel — 5-Door.............................................................................................

501-05-19

Front Door Trim Panel — 3-Door........................................................................................

501-05-22

Front Door Trim Panel — 4-Door/5-Door/Wagon...............................................................

501-05-25

Rear Door Trim Panel — Vehicles With: Manual Windows................................................

501-05-29

Rear Door Trim Panel — Vehicles With: Power Windows..................................................

501-05-34

Front Scuff Plate Trim Panel...............................................................................................

501-05-37

Rear Scuff Plate Trim Panel...............................................................................................

501-05-38

Loadspace Trim Panel — 3-Door.......................................................................................

501-05-42

Loadspace Trim Panel — 5-Door.......................................................................................

501-05-46

Headliner — 3-Door, Vehicles With: Sliding Roof Opening Panel......................................

501-05-58

Headliner — 5-Door, Vehicles With: Sliding Roof Opening Panel......................................

501-05-68

Headliner — 3-Door, Vehicles Without: Sliding Roof Opening Panel.................................

501-05-80

Headliner — 5-Door, Vehicles Without: Sliding Roof Opening Panel.................................

501-05-90

Rear Quarter Trim Panel — 3-Door....................................................................................

501-05-94

Rear Quarter Trim Panel — 5-Door/Wagon.......................................................................

501-05-

Interior Trim and Ornamentation

501-05-

1

.

VEHICLE APPLICATION:

Torque Specifications

lb-in

lb-ft

Nm

Description

-

28

38

Front seat belt lower anchor retaining bolt

-

28

38

Rear seat belt lower anchor retaining bolt

71

-

8

Front door trim panel retaining bolts

71

-

8

Rear door trim panel retaining bolts

G167515en

501-05-

2

Interior Trim and Ornamentation

501-05-

2

SPECIFICATIONS

A-Pillar Trim Panel

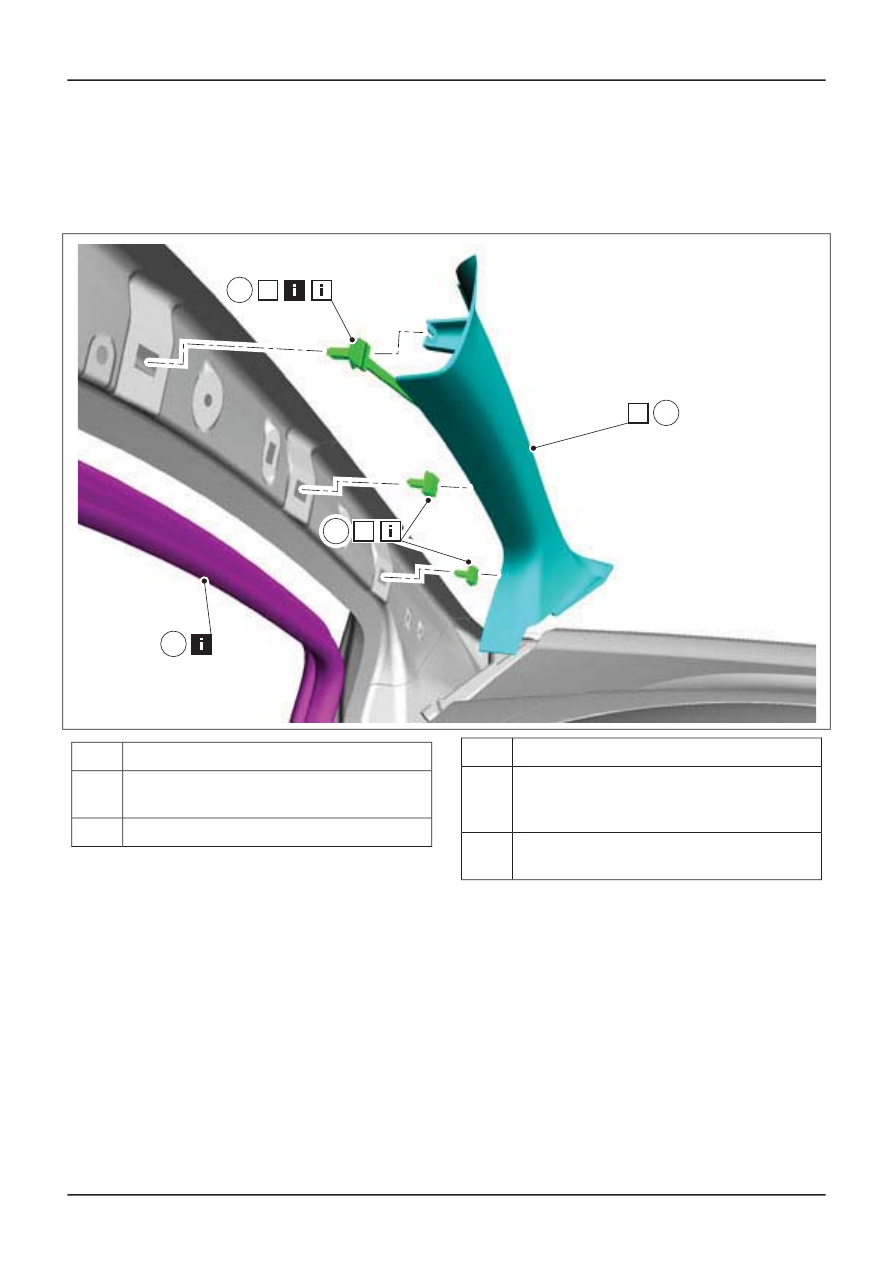

1. Remove the components in the order

indicated in the following illustration(s) and
table(s).

E51267

2

3

4

1

N

N

N

Description

Item

Front door opening weatherstrip

See Removal Detail

1

A-pillar trim panel

2

Description

Item

A-pillar trim panel security strap

See Removal Detail
See Installation Detail

3

A-pillar trim panel retaining clips

See Installation Detail

4

2. To install, reverse the removal procedure.

Removal Details

Item 1

Front door opening weatherstrip

1. Detach the front door opening weatherstrip.

G410718en

501-05-

3

Interior Trim and Ornamentation

501-05-

3

REMOVAL AND INSTALLATION

Item 3

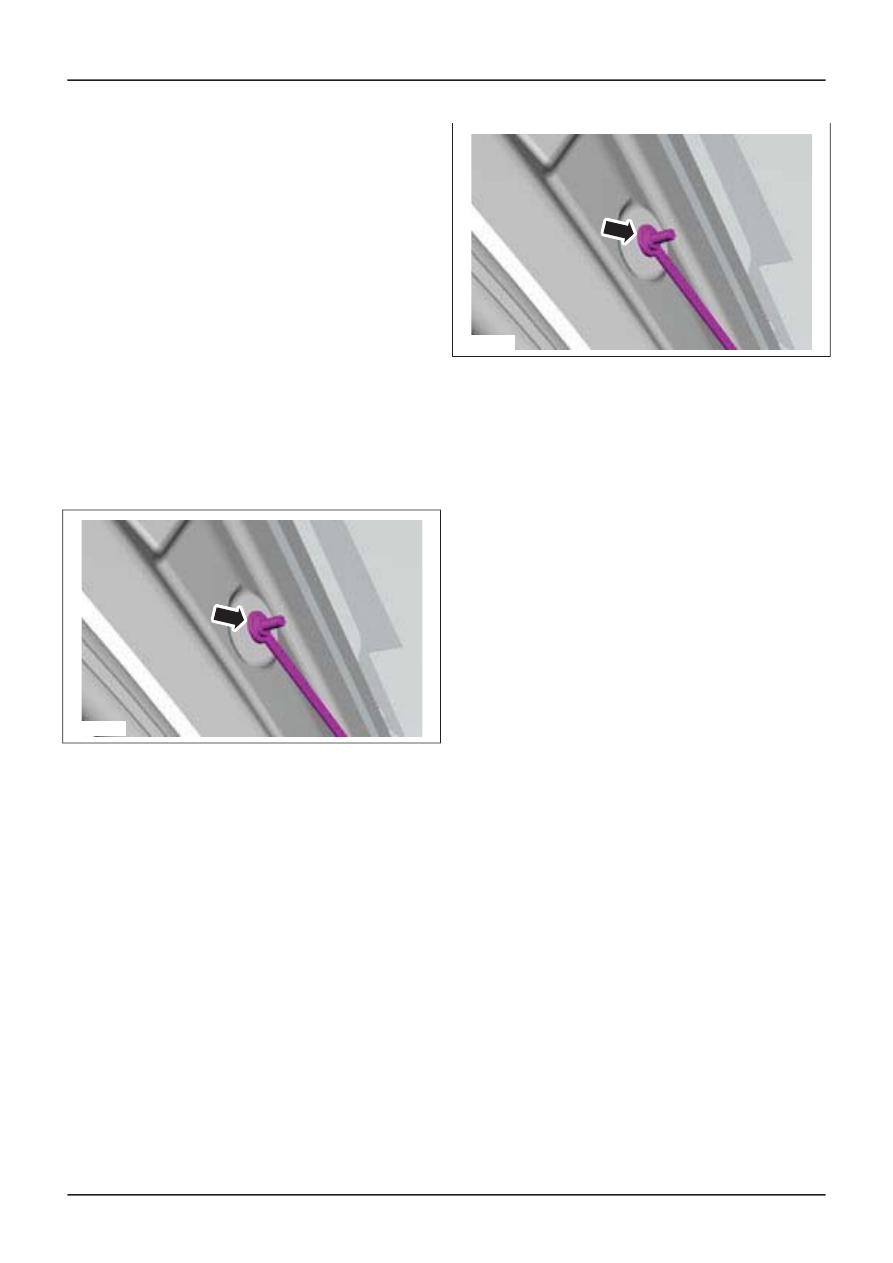

A-pillar trim panel security strap

1. Remove the security strap from the A-pillar.

E51472

Installation Details

Item 3

A-pillar trim panel security strap

1. Install the A-pillar trim panel security strap

to the A-pillar.

E51472

Item 4

A-pillar trim panel retaining clips

1. Install the A-pillar trim panel retaining clips

to the A-pillar trim panel.

G410718en

501-05-

4

Interior Trim and Ornamentation

501-05-

4

REMOVAL AND INSTALLATION

B-Pillar Trim Panel — 3-Door

CAUTION: The bolt securing the safety belt
anchor is held captive by a metal washer.
The bolt, spacer and metal washer must
remain on the safety belt anchor at all
times when the safety belt is detached or
removed.

1. Detach the safety belt lower anchor.

1. Remove the front safety belt lower anchor

retaining bolt.

2. Slide the safety belt off the anchor rail.

E50743

38 Nm

1

2

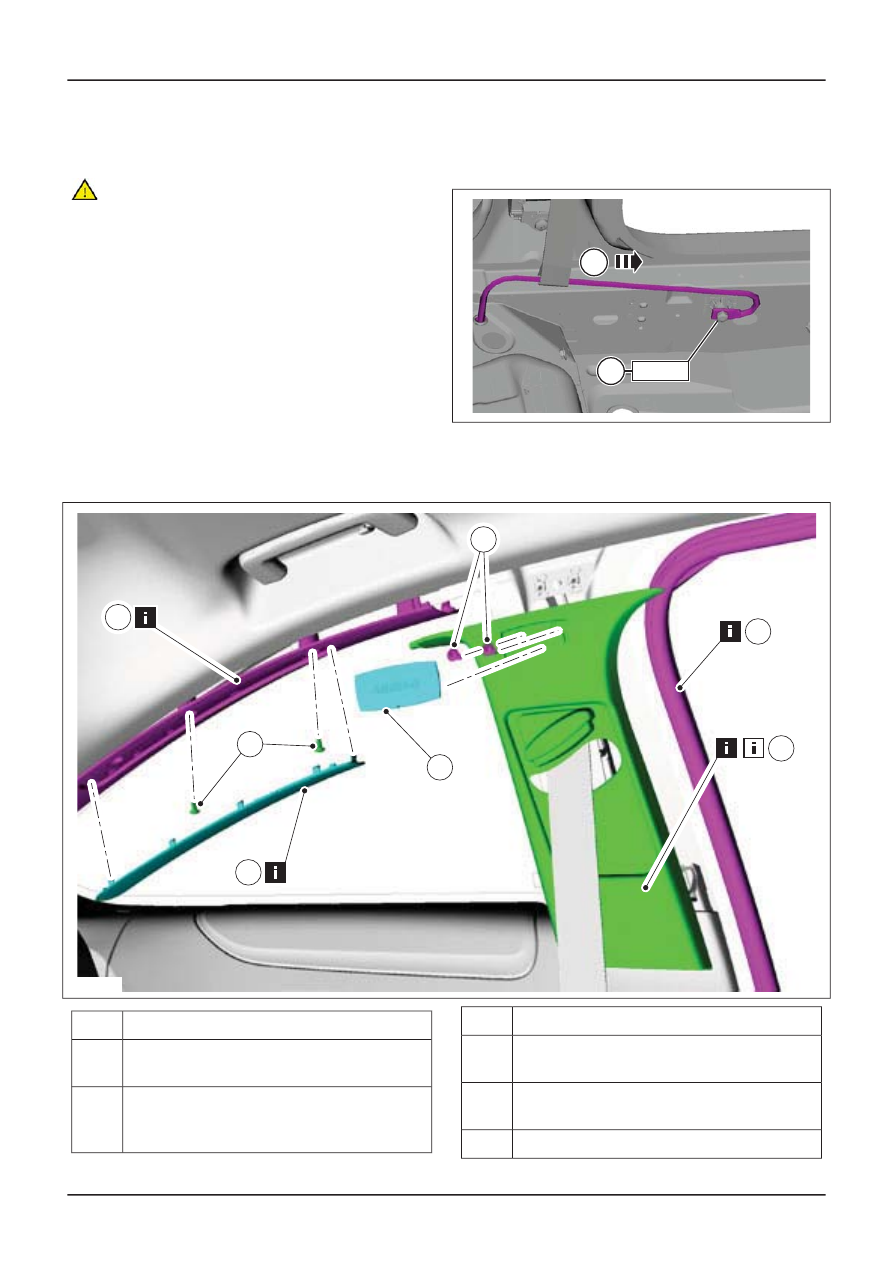

2. Remove the components in the order

indicated in the following illustration(s) and
table(s).

4

2

1

7

3

5

6

E51423

Description

Item

Front door opening weatherstrip

See Removal Detail

1

Rear quarter glass trim panel retaining
screw trim cover

See Removal Detail

2

Description

Item

Rear quarter glass trim panel retaining
screws

3

Rear quarter glass trim panel

See Removal Detail

4

B-pillar trim panel retaining screw cover

5

G410719en

501-05-

5

Interior Trim and Ornamentation

501-05-

5

REMOVAL AND INSTALLATION

Description

Item

B-pillar trim panel retaining screws

6

B-pillar trim panel

7

Description

Item

See Removal Detail
See Installation Detail

3. To install, reverse the removal procedure.

Removal Details

Item 1

Front door opening weatherstrip

1. Detach the front door opening weatherstrip.

Item 2

Rear quarter glass trim panel retaining

screw trim cover

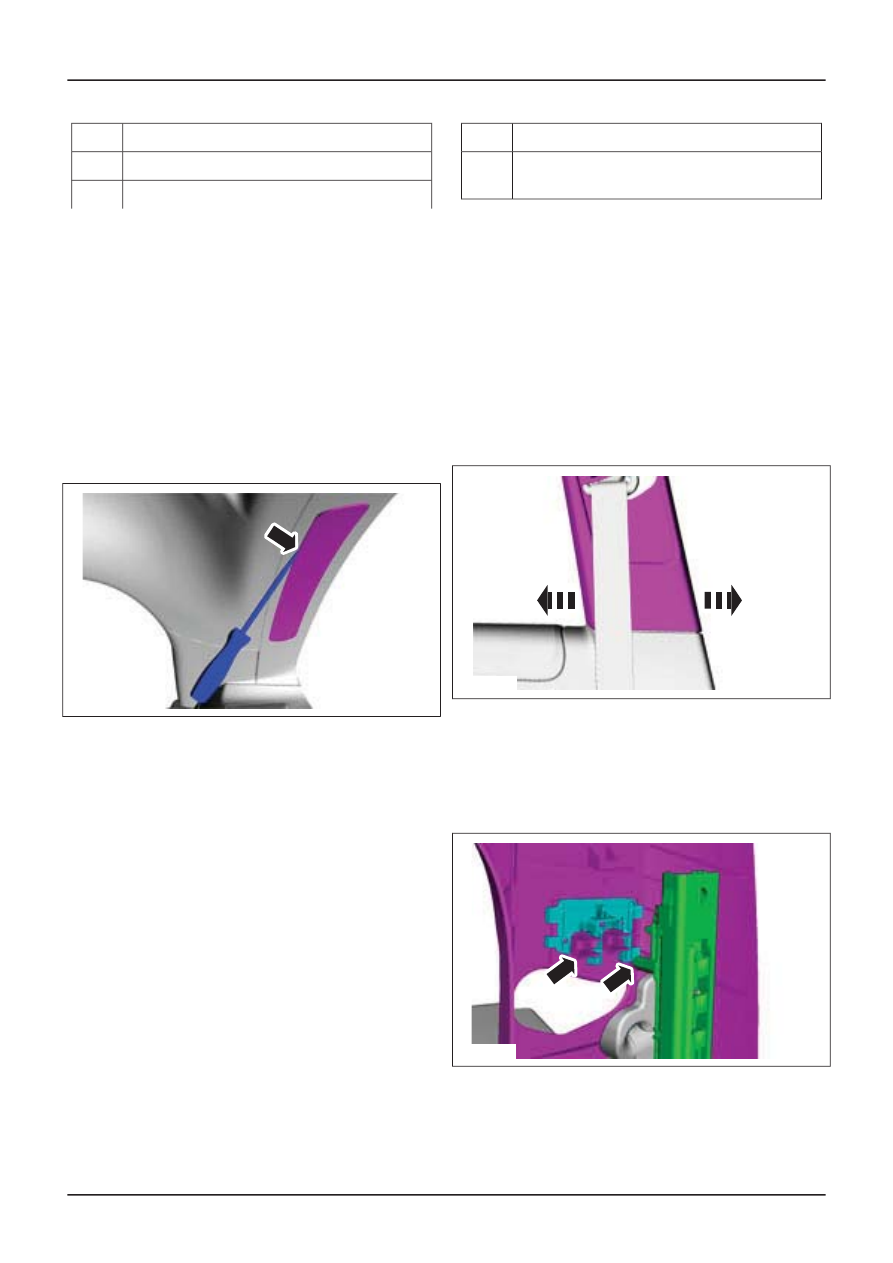

1. Using a suitable flat blade screwdriver, lever

out the rear quarter glass trim panel retaining
screw trim cover.

E51011

Item 4

Rear quarter glass trim panel

1. Detach the rear quarter glass trim panel.

Item 7

B-pillar trim panel

1. Detach the B-pillar trim panel.

• Feed the safety belt webbing through the

B-pillar upper trim panel.

E51012

Installation Details

Item 7

B-pillar trim panel

1. Feed the safety belt webbing through the

B-pillar upper trim panel before installation.

2. NOTE: Make sure the B-pillar seatbelt height

adjustment lever is in alignment with the
seatbelt height adjustment mechanism.

Install the B-pillar trim panel.

E51422

G410719en

501-05-

6

Interior Trim and Ornamentation

501-05-

6

REMOVAL AND INSTALLATION

B-Pillar Trim Panel — 4-Door/5-Door

1. Remove the Rear Scuff Plate Trim Panel.

For additional information, refer to:

Rear

Scuff Plate

Tr

im Panel

(501-05 Interior Trim

and Ornamentation, Removal and
Installation).

2. Remove the components in the order

indicated in the following illustration(s) and
table(s).

G410720en

501-05-

7

Interior Trim and Ornamentation

501-05-

7

REMOVAL AND INSTALLATION
