Ford Focus RS (2011 year). Instruction - part 1





To the best of our knowledge, the illustrations, technical information, data and
descriptions in this issue were correct at the time of going to print. The right to
change prices, specifications, and equipment and maintenance instructions at
any time without notice is reserved as part of FORD policy of continuous
development and improvement for the benefit of our customers.

No part of this publication may be reproduced, stored in a data processing
system or transmitted in any form, electronic, mechanical, photocopy, recording,
translation or by any other means without prior permission of Ford Motor
Company. No liability can be accepted for any inaccuracies in this publication,
although every possible care has been taken to make it as complete and
accurate as possible.

FOREWORD

GROUP

5

SECTION TITLE

PAGE

Body and Paint

Body System - General Information...............................................................................501-00
Front End Body Panels..................................................................................................501-02
Body Closures................................................................................................................501-03
Interior Trim and Ornamentation....................................................................................501-05
Exterior Trim and Ornamentation...................................................................................501-08
Rear View Mirrors..........................................................................................................501-09
Seating...........................................................................................................................501-10
Glass, Frames and Mechanisms....................................................................................501-11
Instrument Panel and Console.......................................................................................501-12
Handles, Locks, Latches and Entry Systems................................................................501-14
Wipers and Washers......................................................................................................501-16
Roof Opening Panel.......................................................................................................501-17
Bumpers.........................................................................................................................501-19
Safety Belt System.........................................................................................................501-20A
Supplemental Restraint System.....................................................................................501-20B
Body Repairs - General Information..............................................................................501-25
Body Repairs - Vehicle Specific Information and Tolerance Checks.............................501-26
Front End Sheet Metal Repairs......................................................................................501-27
Roof Sheet Metal Repairs..............................................................................................501-28
Side Panel Sheet Metal Repairs....................................................................................501-29
Rear End Sheet Metal Repairs......................................................................................501-30
Paint - General Information............................................................................................501-36

Frame and Mounting

Uni-Body, Subframe and Mounting System...................................................................502-00



FORD FOCUS RS & ST

FORD FOCUS RS & ST

SECTION 501-00 Body System - General Information

PAGE

CONTENTS

DESCRIPTION AND OPERATION

501-00-2

Body (Overview).................................................................................................................

501-00-2

General information

............................................................................................................

501-00-

Body System - General Information

501-00-

1

.

VEHICLE APPLICATION:

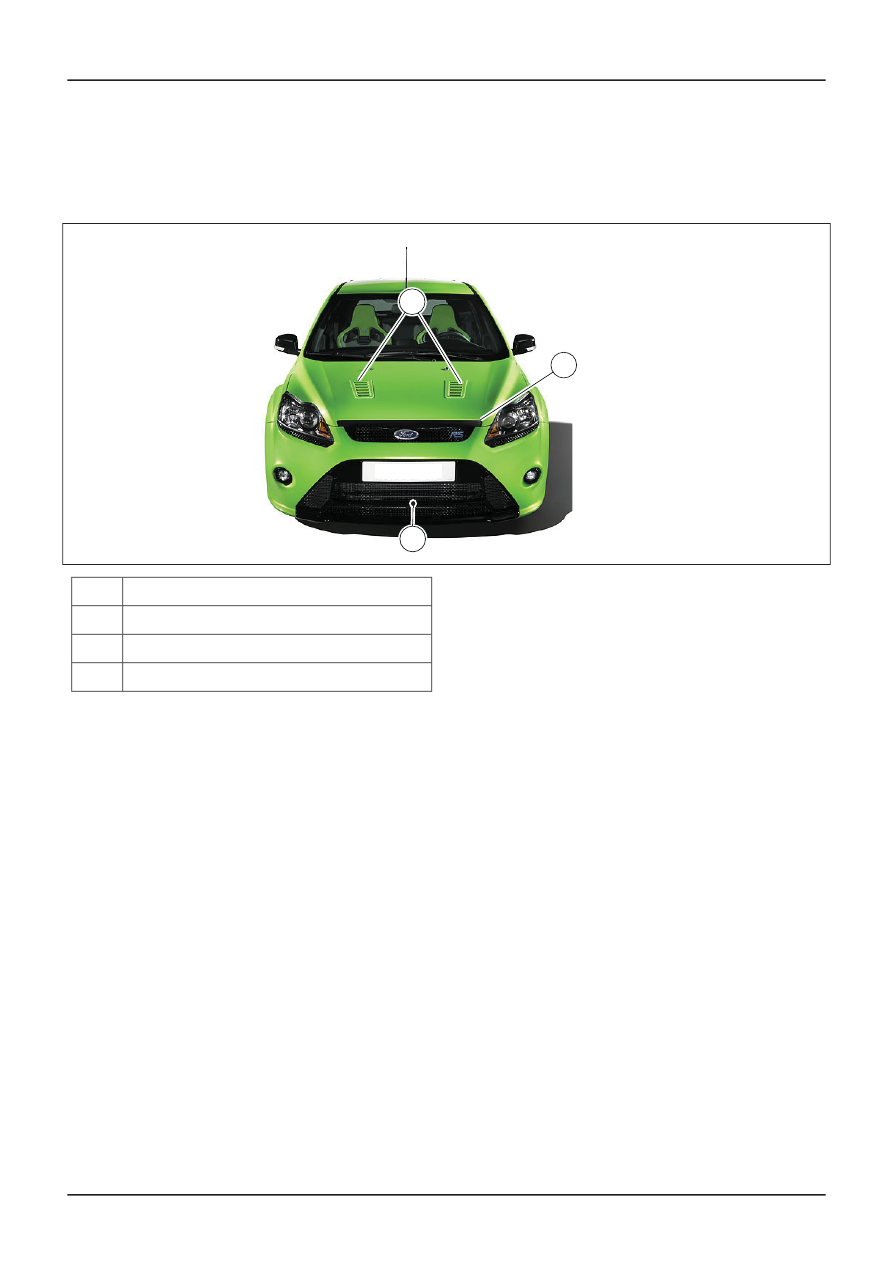

Body – Overview

General information

E112836

2

1

3

Description

Item

Ventilation slits

1

Finisher

2

Large trapezoidal air inlet

3

The completely newly designed front bumper
features a generously dimensioned, grille-covered
air inlet in a trapezoidal shape with a high-gloss
piano-black paint finish.

The trim strip at the front edge of the hood provides
a striking contrast and is also finished in
piano-black.

Two ventilation slits have been incorporated in the
hood. These provided the engine with additional
cooling.

The wheel arches of the front and rear fenders
have been enlarged in order to afford enough
space for the 19-inch wheels and to allow for the
increased track width.

Triangular air vents with the RS emblem are
integrated behind the front wheel arches.

501-00-

2

Body System - General Information

501-00-

2

DESCRIPTION AND OPERATION

*HQ

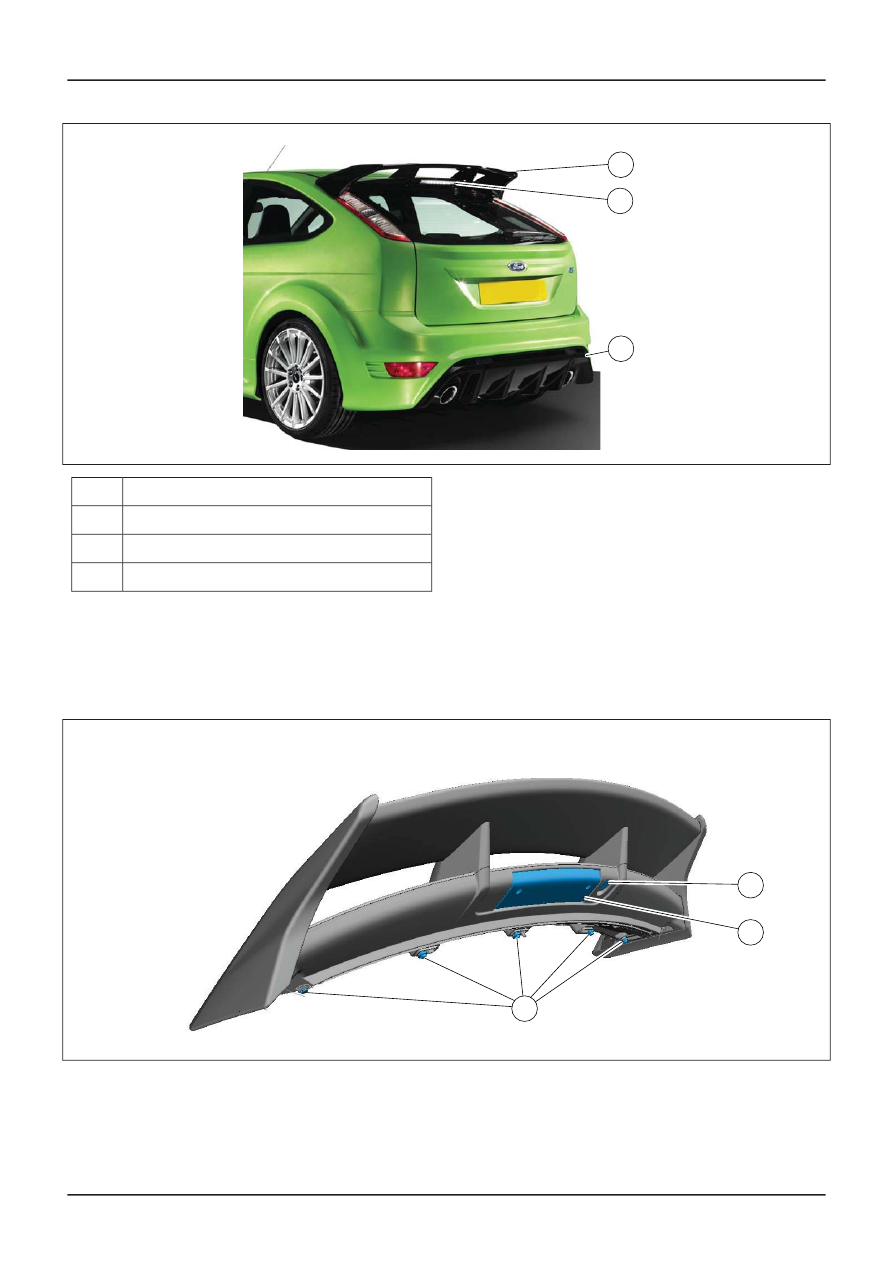

E112837

1

2

3

Description

Item

Split rear spoiler

1

High Mounted Stop Lamp Control

2

Diffuser plate

3

In order to increase downforce, a diffuser has been
integrated in the lower part of the rear, along with
a split rear spoiler above the rear window.

The diffuser is framed by two chrome-plated end
pipes. Small vent openings on both sides of the

rear apron further emphasize the width of the
vehicle.

The high-mounted stoplamp and the rear window
washer nozzle are integrated in the split rear
spoiler.

E112838

3

1

2

G1165408en

501-00-

3

Body System - General Information

501-00-

3

DESCRIPTION AND OPERATION

Description

Item

Rear window washer nozzle

1

High Mounted Stop Lamp Control

2

Description

Item

3

Attachment bolts

The high-mounted stoplamp uses LEDs rather than
conventional bulbs.

NOTE: The LEDs cannot be replaced individually.
In event of failure the entire stoplamp needs to be
replaced.

The rear window washer nozzle is positioned next
to the high-mounted stoplamp.

The rear spoiler is attached to the tailgate with five
bolts.

G1165408en

501-00-

4

Body System - General Information

501-00-

4

DESCRIPTION AND OPERATION

SECTION 501-02 Front End Body Panels

PAGE

CONTENTS

GENERAL PROCEDURES

501-02-2

(41 213 0)

Hood Alignment..............................................................................................

REMOVAL AND INSTALLATION

501-02-4

Cowl Panel Grille................................................................................................................

501-02-6

Fender................................................................................................................................

501-02-7

Air Deflector........................................................................................................................

501-02-

Front End Body Panels

501-02-

1

.

VEHICLE APPLICATION:

2011

.00 Focus

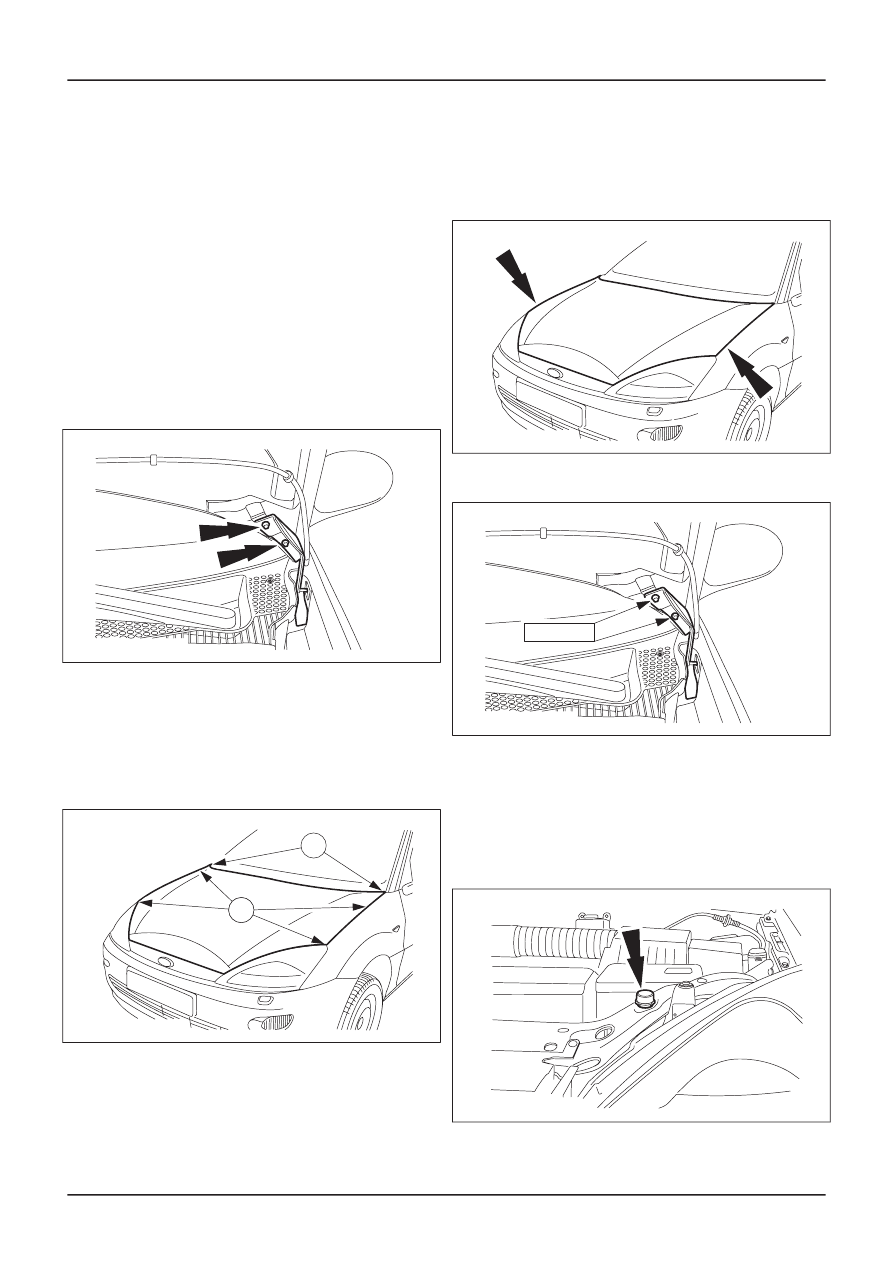

Hood Alignment(41 213 0)

Adjustment

1. NOTE: Adjust the hood without the hood

latch.

Remove the hood latch. For additional

501-14

[Handles, Locks, Latches and Entry
Systems].

2. NOTE: It is not possible to adjust the rear of

the hood to the hight of the fender.

Slacken the screws of the hood hinge
approximately half a turn.

DEE0002965

3. Adjust the hood in the longitudinal direction.

1. Adjust the hood so that the rear edges of the

fender and the edge of the hood line up.

2. Check that the clearances with the left and

right-hand fenders run parallel and correct
them if necessary.

DEE0002966

1

2

4. Adjust the clearances with the left and

right-hand fenders.

• The clearances with the fenders must be the

same width on the left and right-hand sides.
The clearances can be equalized by opening

the hood on the hood support rod and
correcting by pressing it to the left or right.

DEE0002967

5. Tighten the screws.

DEE0002968

10 Nm

6. NOTE: The hood must rest uniformly on both

bump stop rubbers.

Adjust the front of the hood to the height of
the fenders.

• Adjust the hood to the height of the fenders

with the bump stop rubbers.

DEE0002964

G18453en

501-02-

2

Front End Body Panels

501-02-

2

GENERAL PROCEDURES

information,

refer to Section
