Use the following procedure to reset the fuel pump shut-off switch.

1. Turn the ignition to the OFF position.

2. Check the fuel system for leaks.

3. If no fuel leak is apparent, reset the fuel pump shut-off switch by
pushing in on the reset button.

4. Turn the ignition to the ON position. Pause for a few seconds and
return the key to the OFF position.

5. Make a further check for leaks in the fuel system.

FUSES AND RELAYS

Fuses

If electrical components in the
vehicle are not working, a fuse may
have blown. Blown fuses are
identified by a broken wire within
the fuse. Check the appropriate
fuses before replacing any electrical
components.

Always replace a fuse with one that has the specified amperage
rating. Using a fuse with a higher amperage rating can cause

severe wire damage and could start a fire.

15

Roadside emergencies

145

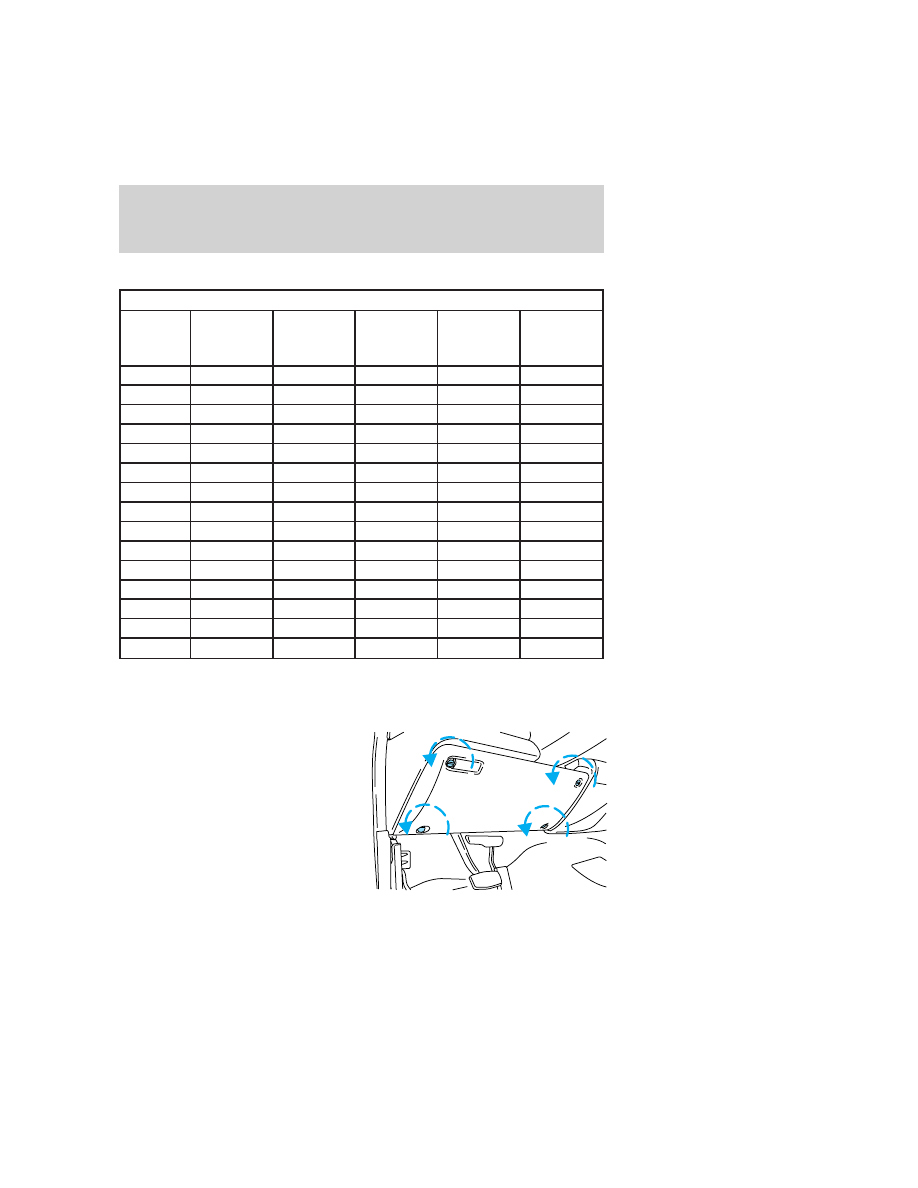

Standard fuse amperage rating and color

COLOR

Fuse

Rating

Mini

Fuses

Standard

Fuses

Maxi

Fuses

Cartridge

Maxi

Fuses

Fuse Link

Cartridge

2A

Grey

Grey

3A

Violet

Violet

4A

Pink

Pink

5A

Tan

Tan

7.5A

Brown

Brown

10A

Red

Red

15A

Blue

Blue

20A

Yellow

Yellow

Yellow

Blue

Blue

25A

Natural

Natural

30A

Green

Green

Green

Pink

Pink

40A

Orange

Green

Green

50A

Red

Red

Red

60A

Blue

Yellow

70A

Tan

Brown

80A

Natural

Black

Passenger compartment fuse panel

The fuse panel is located below and to the left of the steering wheel by
the brake pedal. Remove the panel cover to access the fuses.

To remove the fuse panel cover,
turn the panel fasteners
counterclockwise.

Roadside emergencies

146

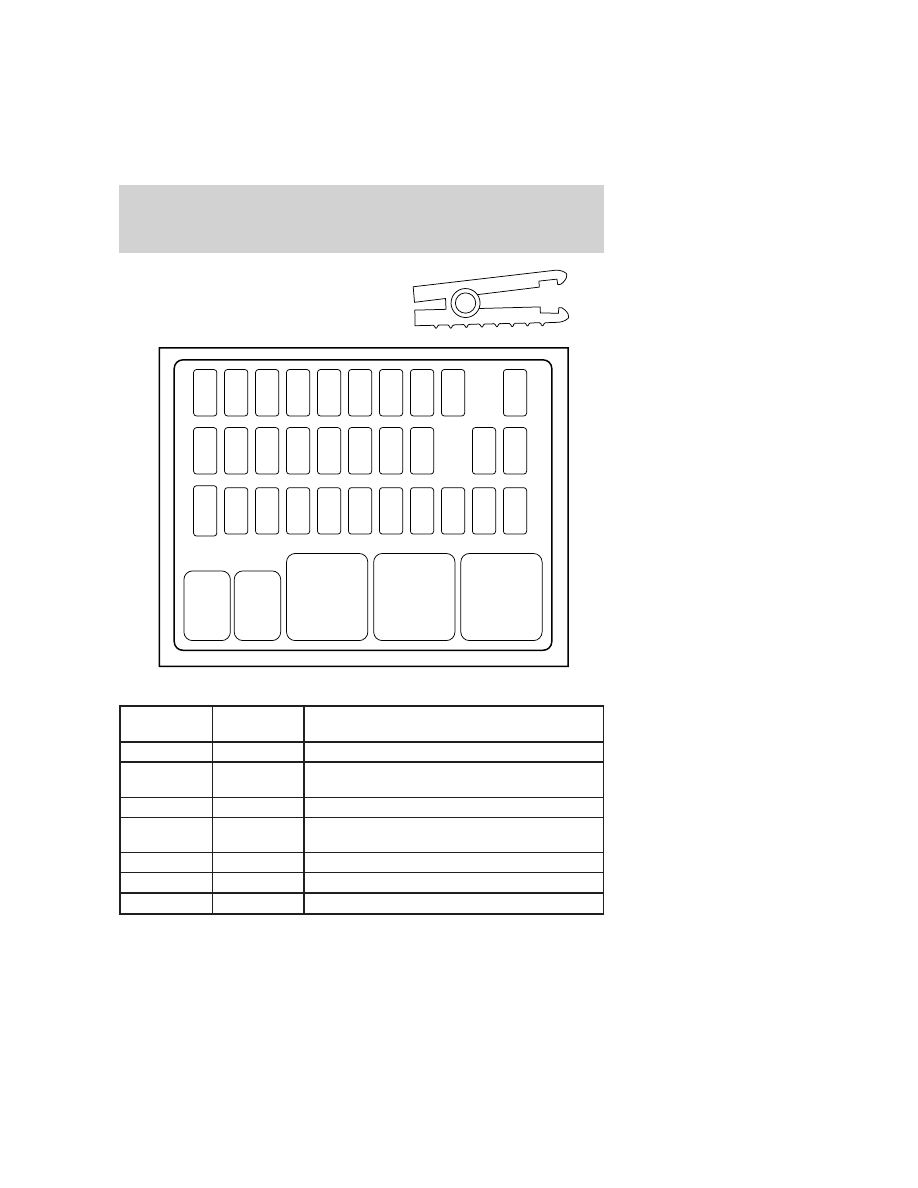

To remove a fuse use the fuse puller
tool provided on the fuse panel
cover.

The fuses are coded as follows.

Fuse/Relay

Location

Fuse Amp

Rating

Description

1

20A

Electronic Flasher

2

5A

Instrument Cluster, Powertrain Control
Module (PCM) Keep Alive Memory

3

20A

Cigar Lighter, OBDII

4

10A

Glove Box Lamp, Map Lamps, Power
Mirrors, Underhood Lamp

5

Not Used

6

Not Used

7

5A

Power Window Lock Switch Illumination

FUSE1

RELAY

1

RELAY

3

(NOT

USED)

RELAY

4

RELAY

5

12

22

21

3

2

3

31

4

2

4

4

16

15

25

52

6

61

7

2

7

71

8

2

8

81

9

2

9

11

21

31

93

0

10

20

Roadside emergencies

147

Fuse/Relay

Location

Fuse Amp

Rating

Description

8

5A

Radio, Headlamp Switch Illumination

9

Not Used

10

Not Used

11

10A

Washer Pump, Wiper Run/Park Relay Coil,
Wiper Hi/LO Relay Coil, Washer Pump
Relay Coil

12

15A

Horn

13

20A

Stop Lamps, Center High-mount Stop
Lamp, Trailer Tow Stop Lamp

14

10A

Dome Lamp, Cargo Lamp, Courtesy Lamps

15

5A

Generic Electronic Module (GEM),
Powertrain Control Module (PCM),
Anti-lock Brake System (ABS) Module,
Brake Shift Interlock, Speed Control

16

15A

Instrument Cluster, Hi-beam Headlamps

17

Not Used

18

Not Used

19

10A

Auxiliary Powertrain Control Module
(APCM) (Diesel only), Instrument Cluster,
GEM Module, Overdrive Cancel Switch, Idle
Validation Switch (Diesel only), Overhead
Console

20

15A

Starter Motor Relay Coil, PCM (Gasoline
only)

21

Not Used

22

10A

Air Bag Module, Passenger Air Bag
Activation Switch, Blower Motor Relay Coil

23

10A

Electronic Flasher

24

10A

Blend Door Actuator, Trailer Tow Battery
Charge Relay Coil

25

5A

4-Wheel Anti-Lock Brake System (4WABS)
Module

26

Not Used

Roadside emergencies

148
