Ford F-150 (2018 year). Manual - part 105

Capacity

Item

6.5 qt (6.15 L)

Engine oil (with oil filter)

13.7 qt (13 L)

Engine coolant

Between MIN/MAX on brake fluid reservoir

Brake fluid

13.1 qt (12.4 L)*

Automatic transmission fluid

1.8 qt (1.7 L)

Front axle fluid (Four-wheel drive)

2.7 qt (2.6 L)

Rear axle fluid

1.5 qt (1.4 L)

Transfer case fluid
Four-wheel drive (Electronic Shift-on-the-
Fly)

1.5 qt (1.4 L)

Transfer case fluid
Automatic four-wheel drive (Torque on
demand)

Fill as required

Windshield washer fluid

26 gal (98.4 L)

Fuel tank

22.5 qt (21.3 L)

Diesel Exhaust Fluid (DEF)

29 oz (0.82 kg)

A/C refrigerant

4.1 fl oz (120 ml)

A/C refrigerant compressor oil

*Approximate dry fill capacity.  Actual amount may vary during fluid changes.

Specifications

Materials

Specification

Name

WSS-M2C214-B1

Recommended motor oil (U.S., Canada and Mexico):
Motorcraft® SAE 5W-30 Diesel Motor Oil
XO-5W30-QFA

WSS-M97B44-D2

Engine coolant (U.S. and Mexico):
Motorcraft® Orange Prediluted Antifreeze/Coolant
VC-3DIL-B

WSS-M97B44-D2

Engine coolant (Canada):
Motorcraft® Orange Prediluted Antifreeze/Coolant
CVC-3DIL-B

Specification

Name

WSS-M99C130-A

Diesel Exhaust Fluid (DEF):
Motorcraft® Diesel Exhaust Fluid
PM-27-Gal / PM-27-Jug

WSS-M6C65-A2

Brake fluid:
Motorcraft® DOT 4 Low Viscosity (LV) High Performance
Motor Vehicle Brake Fluid
PM-20

WSS-M2C942-A

Front axle fluid:
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid
Gear Lubricant
XY-75W85-QL

WSS-M2C942-A

Rear axle fluid:
Motorcraft® SAE 75W-85 Premium Synthetic Hypoid
Gear Lubricant
XY-75W85-QL

WSS-M2C94-A

Automatic transmission fluid:

MERCON ULV

Motorcraft MERCON ULV Automatic Transmission Fluid
XT-12-ULV

WSS-M2C938-A

Transfer case fluid (U.S. and Mexico):

MERCON LV

Motorcraft® MERCON LV Automatic Transmission Fluid
XT-10-QLVC

WSS-M2C938-A

Transfer case fluid (Canada):

MERCON LV

Motorcraft® MERCON LV Automatic Transmission Fluid
CXT-10-LV12

WSS-M14P19-A

Windshield washer fluid (U.S. and Mexico):
Motorcraft® Premium Windshield Wash Concentrate
with Bitterant
ZC-32-B2

WSS-M14P19-A

Windshield washer fluid (Canada):
Motorcraft® Premium Quality Windshield Washer Fluid
CXC-37-(A, B, D, F)

WSS-M17B21-A

A/C refrigerant (U.S.):
R-1234yf Refrigerant
YN-33-A

WSS-M17B21-A

A/C refrigerant (Canada):
R-1234yf Refrigerant
HS7Z-19B519-BA

WSH-M17B19-A

A/C refrigerant (Mexico):

Specification

Name

Motorcraft® R-134a Refrigerant
MYN-19

WSS-M2C300-A2

A/C refrigerant compressor oil (U.S. and Canada):
Motorcraft® R-1234yf Refrigerant PAG Oil
YN-35

WSH-M1C231-B

A/C refrigerant compressor oil (Mexico):
Motorcraft® PAG Refrigerant Compressor Oil
YN-12-D

ESA-M1C75-B

Transmission, parking brake linkage and pivots and brake
pedal shift grease:
Premium Long-Life Grease
XG-1-E1

ESB-M1C93-B

Multi-purpose grease:
Motorcraft® Multi-Purpose Grease Spray
XL-5-A

-

Lock cylinders (U.S.):
Penetrating and Lock Lubricant
XL-1

-

Lock cylinders (Canada):
Penetrating Fluid
CXC-51-A

-

Lock cylinders (Mexico):
Penetrating and Lock Lubricant
MXL-1

If you use oil and fluids that do not meet
the defined specification and viscosity
grade, this may lead to:
•

Component damage which may not be
covered by the vehicle Warranty.

•

Longer engine cranking periods.

•

Increased emission levels.

•

Reduced engine performance.

•

Reduced fuel economy.

•

Reduced brake performance.

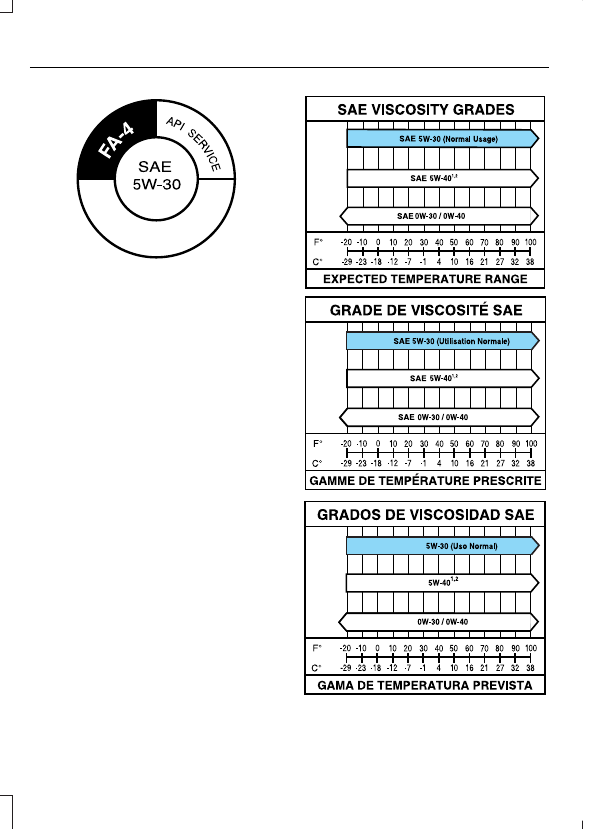

The use of correct oil viscosities for diesel
engines is important for satisfactory
operation. Determine which oil viscosity
best suits the temperature range you
expect to encounter for the next service
interval from the following SAE viscosity
grade chart.

E258300

The American Petroleum Institute (API)
service symbol is used to identify the
proper engine oil for your engine. The API
service symbol will be displayed on the oil
container you purchase. The API symbol
displays the oil performance category in
the top half of symbol and the viscosity
grade in the center of the symbol.

E258348
