Ford F-150 (2018 year). Manual - part 103

MOTORCRAFT PARTS - 5.0L MODULAR - V8

Part Number

Component

FA-1883

Air filter element.

FL-500-S

Oil filter.

BAGM-48H6-760

Battery.

BAGM-94RH7-800

(King Ranch, Lariat and Premium)

SP-551

Spark plugs.

WW-2242

Windshield wiper blade.

FP-79

Cabin air filter.

For scheduled maintenance, we
recommend Motorcraft® replacement
parts available at your Ford dealer or at
fordparts.com. These parts meet or exceed
Ford Motor Company’s specifications and
are engineered for your vehicle. Use of
other parts may impact vehicle
performance, emissions and durability.
Your warranty may be void for any damage
related to use of other parts.

If a Motorcraft® oil filter is not available,
use an oil filter that meets industry
performance specification
SAE/USCAR-36.

For spark plug replacement, contact an
authorized dealer.  Replace the spark plugs
at the appropriate intervals.  See
Scheduled Maintenance (page 554).

VEHICLE IDENTIFICATION
NUMBER

The vehicle identification number is
located on the left-hand side of the
instrument panel.

E142476

Please note that in the graphic, XXXX is
representative of your vehicle identification
number.

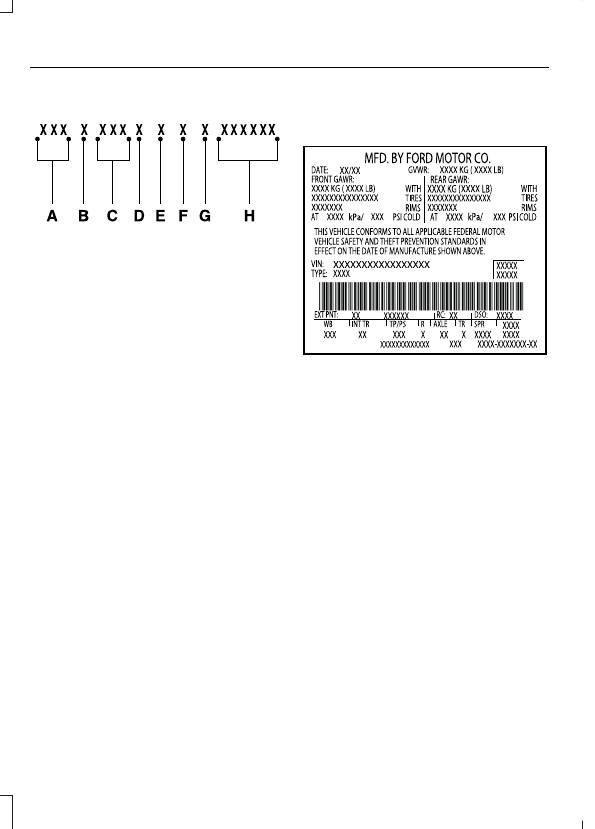

The Vehicle Identification Number contains
the following information:

E142477

World manufacturer identifier

A

Brake system, Gross Vehicle
Weight Rating, Restraint Devices
and their locations

B

Make, vehicle line, series, body
type

C

Engine type

D

Check digit

E

Model year

F

Assembly plant

G

Production sequence number

H

VEHICLE CERTIFICATION
LABEL

E167469

The National Highway Traffic Safety
Administration Regulations require that a
Safety Compliance Certification Label be
affixed to a vehicle and prescribe where
the Safety Compliance Certification Label
may be located. The Safety Compliance
Certification Label shall be affixed to either
the door hinge pillar, the door latch post,
or the edge of the door near the door latch,
next to the driver's seating position.

TRANSMISSION CODE
DESIGNATION

E167814

The transmission code is on the Safety
Compliance Certification Label. The
following table shows the transmission
code along with the transmission
description.

Code

Description

6

Six-speed automatic transmission 6R80

G

Ten-speed automatic transmission 10R80

CAPACITIES AND SPECIFICATIONS - 2.7L ECOBOOST™

Capacities

WARNING

The air conditioning refrigerant system contains refrigerant under high pressure.
Only qualified personnel should service the air conditioning refrigerant system.
Opening the air conditioning refrigerant system can cause personal injury.

Capacity

Item

6.0 qt (5.7 L)

Engine oil (with oil filter)

15.1 qt (14.3 L)

Engine coolant

Between MIN/MAX on brake fluid reservoir

Brake fluid

3.5 pt (1.7 L)

Front axle fluid (Four-wheel drive)

5.5 pt (2.6 L)

Rear axle fluid

13.1 qt (12.4 L) *

Automatic transmission fluid

1.5 qt (1.4 L)

Transfer case fluid
Four-wheel drive (Electronic Shift-on-the-
Fly)

1.5 qt (1.4 L)

Transfer case fluid
Automatic four-wheel drive (Torque on
demand)

Fill as required

Windshield washer fluid

23.0 gal (87.1 L)

Fuel tank (Regular Cab and SuperCab)

26.0 gal (98.4 L)

Fuel tank (SuperCrew Cab)

36.0 gal (136.3 L)

Fuel tank
(Optional)

29 oz (0.82 kg)

A/C Refrigerant

2.7 fl oz (80 ml)

A/C Refrigerant Compressor Oil

*Approximate dry fill capacity.  Actual amount may vary during fluid changes.
