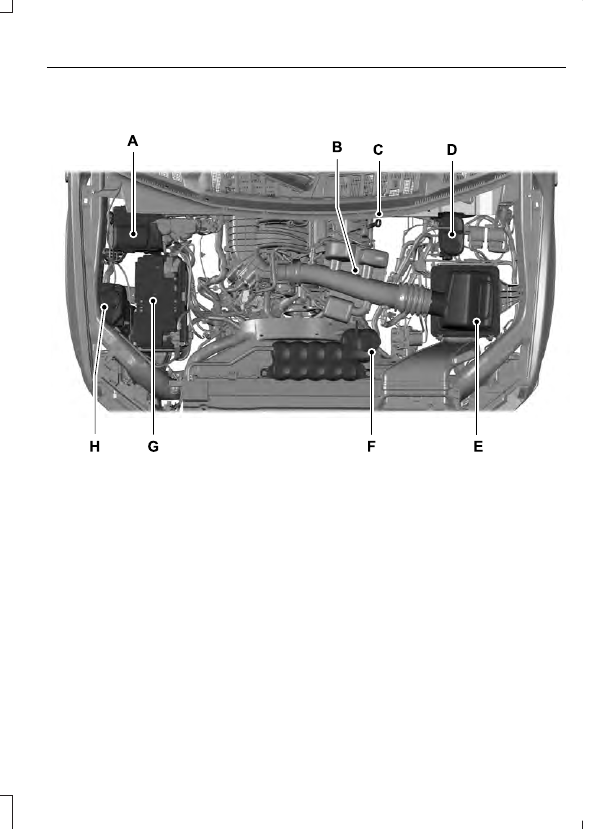

UNDER HOOD OVERVIEW - 3.3L DURATEC - V6

E247636

Power distribution box.  See Fuses (page 329).

A.

Engine oil filler cap.  See Engine Oil Check (page 347).

B.

Engine oil dipstick.  See Engine Oil Dipstick (page 346).

C.

Brake fluid reservoir.  See Brake Fluid Check (page 354).

D.

Air filter assembly.  See Changing the Engine Air Filter (page 366).

E.

Engine coolant reservoir.  See Engine Coolant Check (page 349).

F.

Battery.  See Changing the 12V Battery (page 355).

G.

Windshield washer fluid reservoir.  See Washer Fluid Check (page 354).

H.

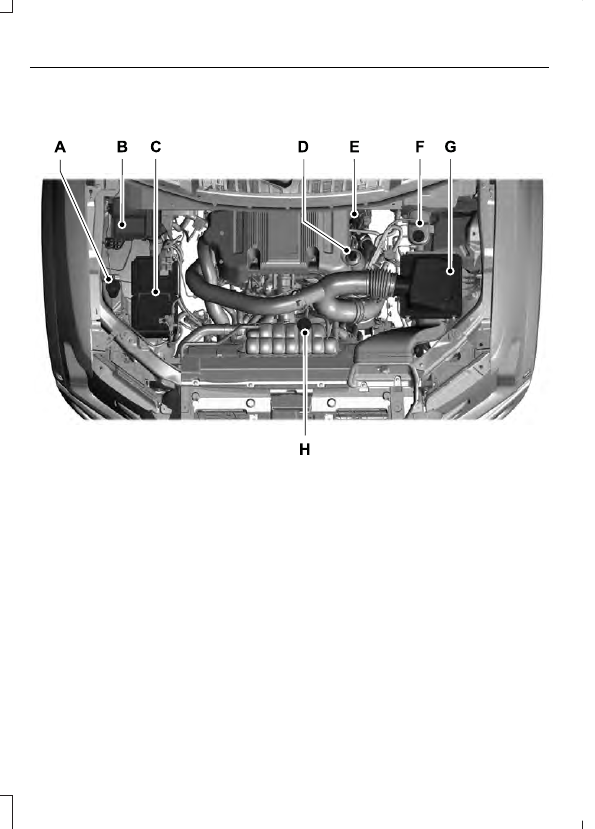

UNDER HOOD OVERVIEW - 3.5L ECOBOOST™

E258054

Windshield washer fluid reservoir.  See Washer Fluid Check (page 354).

A.

Power distribution box. See Changing a Fuse (page 338).

B.

Battery. See Changing the 12V Battery (page 355).

C.

Engine oil filler cap. See Engine Oil Check (page 347).

D.

Engine oil dipstick. See Engine Oil Dipstick (page 346).

E.

Brake fluid reservoir.  See Brake Fluid Check (page 354).

F.

Air filter. See Changing the Engine Air Filter (page 366).

G.

Engine coolant reservoir.  See Engine Coolant Check (page 349).

H.

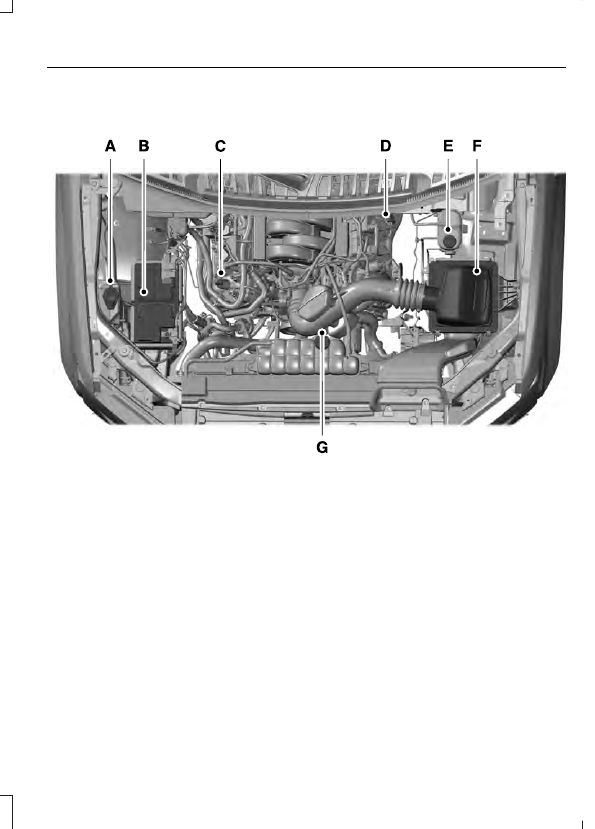

UNDER HOOD OVERVIEW - 5.0L MODULAR - V8

E251845

Windshield washer fluid reservoir.  See Washer Fluid Check (page 354).

A.

Battery.  See Changing the 12V Battery (page 355).

B.

Engine oil filler cap.  See Engine Oil Check (page 347).

C.

Engine oil dipstick.  See Engine Oil Dipstick (page 346).

D.

Brake fluid reservoir.  See Brake Fluid Check (page 354).

E.

Air filter assembly.  See Changing the Engine Air Filter (page 366).

F.

Engine coolant reservoir.  See Engine Coolant Check (page 349).

G.

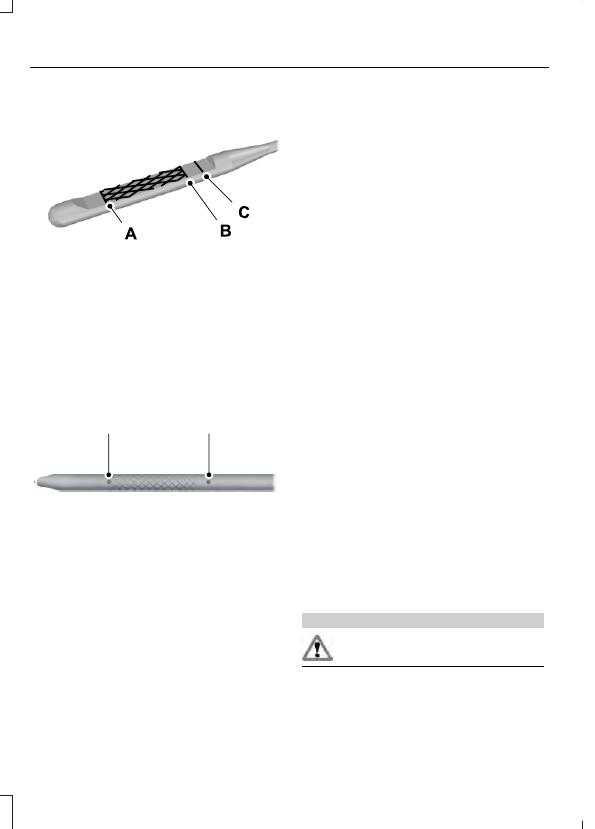

ENGINE OIL DIPSTICK - DIESEL

E249448

MIN

A.

FULL

B.

MAX

C.

ENGINE OIL DIPSTICK -
GASOLINE

E161560

A

B

MIN

A

MAX

B

ENGINE OIL CHECK - DIESEL

To check the engine oil level consistently
and accurately, do the following:

1.

Make sure that your vehicle is on level
ground.

2. Run the engine until it reaches normal

operating temperature.

3. Make sure the parking brake is on. Make

sure the transmission is in park (P) or
neutral (N).

4. Switch the engine off and wait 15

minutes for the oil to drain into the oil
pan.  Checking the engine oil level too
soon after you switch the engine off
may result in an inaccurate reading.

5. Open the hood.  See Opening and

Closing the Hood (page 340).

6. Remove the dipstick and wipe it with

a clean, lint-free cloth.  See Under
Hood Overview (page 341).

7.

Replace the dipstick and remove it
again to check the oil level.  See
Engine Oil Dipstick (page 346).

8. Make sure that the oil level is between

the maximum and minimum marks. If
the oil level is at the minimum mark,
add oil immediately.  See Capacities
and Specifications (page 418).

9. If the oil level is correct, replace the

dipstick and make sure it is fully seated.

Note: Do not remove the dipstick when the
engine is running.

Note:  If the oil level is between the
maximum and minimum marks, the oil level
is acceptable.  Do not add oil.

Note: The oil consumption of new engines
reaches its normal level after approximately
3,000 mi (5,000 km).

Adding Engine Oil

WARNING

Do not remove the filler cap when
the engine is running.
