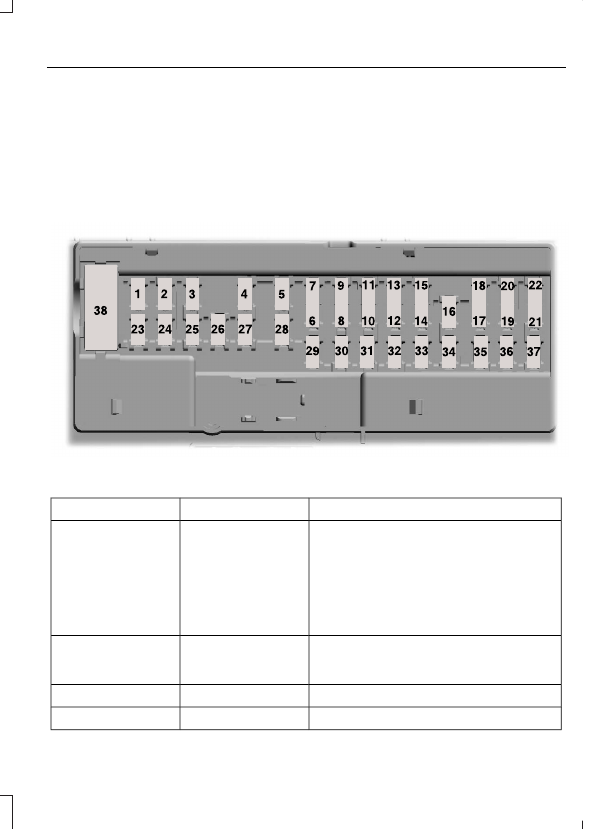

Passenger Compartment Fuse
Panel

The fuse panel is in the right-hand side of
the passenger footwell behind a trim panel.

To remove the trim panel, pull it toward
you and swing it away from the side. To
reinstall it, line up the tabs with the grooves
on the panel, and then push it shut.

To remove the fuse panel cover, press in
the tabs on both sides of the cover, and
then pull it off.

To reinstall the fuse panel cover, place the
top part of the cover on the fuse panel and
push the bottom part until it latches.
Gently pull on the cover to make sure it has
latched properly.

E145984

Protected Components

Fuse Rating

Fuse Number

Demand lamp relay.

10A

1

Power seats relay.
Glove box.
Vanity lamps.
Overhead console.
Dome.
Courtesy.
Map lamps.

Memory module logic.

7.5A

2

Memory seat switches.
Lumbar motor.

Driver door lock motor.

20A

3

Trailer brake control.

5A

4

Protected Components

Fuse Rating

Fuse Number

Not used (spare).

20A

5

Not used (spare).

10A

6

Not used (spare).

10A

7

Not used (spare).

10A

8

Extended power module (Raptor only).

10A

9

Embedded modem module.

5A

10

Combined sensor module.

5A

11

Climate head module.

7.5A

12

Smart datalink converter.

Cluster.

7.5A

13

Smart climate control module.

Brake on/off switch.

10A

14

Smart datalink converter.

10A

15

Tailgate release.

15A

16

Heads up display.

5A

17

Terrain switch.

Ignition switch and passive-entry passive-
start start stop switch.

5A

18

Key inhibit solenoid.

Extended power module (except Raptor).

7.5A

19

Restraint control module (Raptor only).

7.5A

Not used.

—

20

Heads up display.

5A

21

In car temperature with humidity sensor.

Passenger open control system. (Raptor
only)

5A

22

Power driven rear glass switch.

10A

23

Inverter.
Driver side window.
Moonroof.
Vista roof.

Protected Components

Fuse Rating

Fuse Number

Central lock/unlock.

20A

24

Driver door control module.

30A

25

Passenger door control module.

30A

26

Vista roof.

30A

27

Moonroof.

Not used (spare).

20A

28

Not used (spare).

30A

29

Not used (spare).

30A

30

Adjustable pedal switch and motor.

15A

31

Multi-function display.

10A

32

SYNC.
Radio frequency receiver.

Radio.

20A

33

Run-start relay.

30A

34

Selectable drive mode switch (Raptor
only).

5A

35

360 camera module.

15A

36

Heated steering wheel module.
Rear-view mirror.
Rear heated seats.
Lane departure warning module.
Automatic high beam module.
Image processing module A.

Not used (spare).

20A

37

Rear window switches and motors.

30A Circuit breaker.

38

CHANGING A FUSE

Fuses

WARNING

Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage

rating can cause severe wire damage and
could start a fire.

E217331

If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.

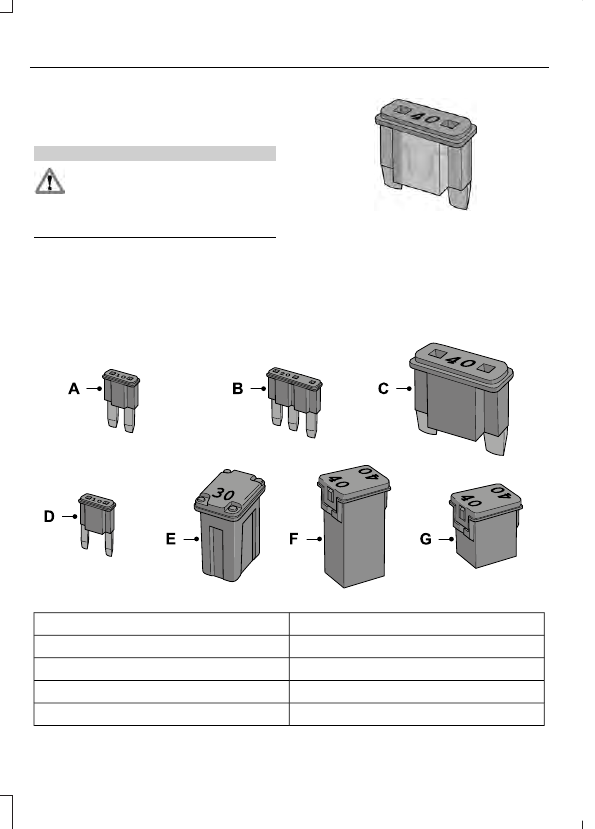

Fuse Types

E207206

Fuse Type

Callout

Micro 2

A

Micro 3

B

Maxi

C

Mini

D
