REPORTING SAFETY DEFECTS
(U.S. ONLY)

E142557

If you believe that your vehicle has
a defect which could cause a
crash or could cause injury or
death, you should immediately
inform the National Highway
Traffic Safety Administration
(NHTSA) in addition to notifying
Ford Motor Company.

If NHTSA receives similar
complaints, it may open an
investigation, and if it finds that a
safety defect exists in a group of
vehicles, it may order a recall and
remedy campaign. However,
NHTSA cannot become involved
in individual problems between
you, your dealer, or Ford Motor
Company.

To contact NHTSA, you may call
the Vehicle Safety Hotline
toll-free at 1-888-327-4236 (TTY:
1-800-424-9153); go to
http://www.safercar.gov; or write
to:

Administrator

1200 New Jersey Avenue,
Southeast

Washington, D.C. 20590

You can also obtain other
information about motor vehicle
safety from
http://www.safercar.gov.

REPORTING SAFETY DEFECTS
(CANADA ONLY)

If you believe that your vehicle has a defect
which could cause a crash or could cause
injury or death, you should immediately
inform Transport Canada and Ford of
Canada.

Transport Canada Contact Information

http://www.tc.gc.ca/eng/motorvehiclesafety/reporting-defects-motor-
vehicles.html (English)

Website

http://www.tc.gc.ca/fra/securiteautomobile/signaler-defauts-vehicules-
automobiles.html (French)

Website

1–800–333–0510

Phone

Ford of Canada Contact Information

www.ford.ca

Website

1–800–565-3673

Phone

FUSE SPECIFICATION CHART

Power Distribution Box

WARNINGS

Always disconnect the battery before
servicing high current fuses.

To reduce risk of electrical shock,
always replace the cover to the
power distribution box before

reconnecting the battery or refilling fluid
reservoirs.

The power distribution box is in the engine
compartment. It has high-current fuses
that protect your vehicle's main electrical
systems from overloads.

If you disconnect and reconnect the
battery, you will need to reset some
features.  See Changing the 12V Battery
(page 355).

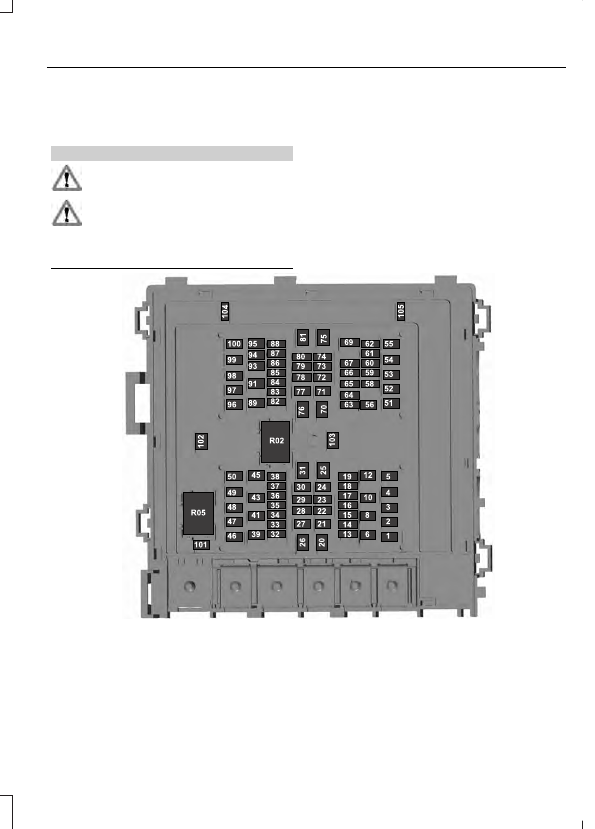

E251921

Protected Components

Fuse Rating

Fuse or Relay

Number

Horn.

25A

1

1

Electric fan 1.

50A

2

2

Windshield wiper motor.

30A

2

3

Body control module.

60A

2

4

Starter relay.

30A

2

5

Cigar lighter power point 1.

20A

2

6

Cigar lighter power point 2.

20A

2

8

Rain sensor.

5A

1

10

Upfitter 1 relay (Raptor).

15A

2

12

4x4 run/start.

10A

1

13

Adaptive cruise control run/start.

Not used (spare).

15A

1

14

Front view camera.

7.5A

1

15

Voltage quality module.

15A(Raptor)

1

Headlamp leveling run/start.

Powertrain control module.

10A

1

16

Anti-lock brakes run/start.

10A

1

17

Electric power steering run/start.

10A

1

18

Upfitter 5 relay (Raptor).

5A

1

19

Blower motor.

40A

2

20

Passenger seat motors.

30A

2

21

Radio amplifier.

20A

1

22
