AUTO-START-STOP

 (If Equipped)

The system helps reduce fuel consumption
by automatically stopping and restarting
the engine when your vehicle has stopped.
The engine restarts automatically when
you release the brake pedal.

In some situations, your vehicle may restart
automatically, for example:
•

To maintain interior comfort.

•

To recharge the battery.

Note: Power assist steering turns off when
the engine is off.

Note: If your vehicle is flex fuel capable,
Auto-Start-Stop will be inhibited for a short
time after a refuel event while the system
is verifying the fuel type being used.

WARNINGS

Always fully apply the parking brake.
Make sure you shift into park (P) for
vehicles with an automatic

transmission. Switch the ignition off and
remove the key whenever you leave your
vehicle.

Before opening the hood or
performing any maintenance, fully
apply the parking brake, shift into

park (P) or neutral (N) and switch the
ignition off.

Always switch the ignition off before
leaving the vehicle. If the ignition is
switched on an automatic restart

may occur at any time.

The system may require the engine
to automatically restart when the
auto-start-stop indicator illuminates

green or flashes amber. Failure to follow
this instruction could result in personal
injury.

The Auto-Start-Stop system status is
available at a glance within the information
display.  See Information Displays (page
111).

Enabling Auto-Start-Stop

The system automatically enables every
time you start your vehicle if:

•

You do not press the Auto-Start-Stop
button (not illuminated).

•

Your vehicle exceeds an initial speed
of 3 mph (5 km/h) after you have
initially started your vehicle.

•

You have stopped your vehicle.

•

Your foot is on the brake pedal.

•

The driver door is closed.

•

There is adequate brake vacuum.

•

The interior compartment has cooled
or warmed to an acceptable level.

•

The front windshield defroster is off.

•

You have not turned the steering wheel
rapidly or you do not have it at a sharp
angle.

•

The vehicle is not on a steep road
grade.

•

The battery is within optimal operating
conditions (battery state of charge and
temperature in range).

•

The engine coolant is at operating
temperature.

•

Elevation is below about 11,000 ft
(3,350 m).

•

Ambient temperature is moderate.

•

The trailer is not connected.

•

If you select Normal, Eco, Snow/Wet
or Grass/Gravel/Snow modes. (if
equipped).

•

You are not in 4H or 4L.

•

You have not selected Manual shift
mode.

•

Hill descent control is not active.

•

You have not selected Tow haul, Sport,
Sand, Mud/Rut or Baja modes. (if
equipped).

Note: Note when in Sport mode it can be
enabled by pressing the Auto-Start-Stop
button.

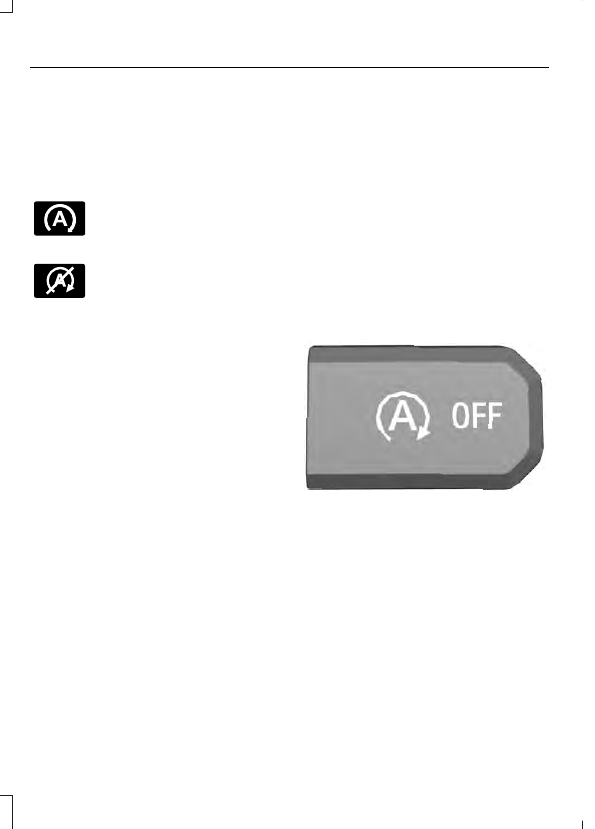

The green Auto-Start-Stop
indicator light on the instrument
cluster will illuminate to indicate

when the automatic engine stop occurs.

E146361

If the instrument cluster is
equipped with a grey
Auto-Start-Stop indicator light,

it illuminates when automatic engine stop
is not available due to one of the above
noted conditions not being met.

Automatic Engine Restart

Any of the following conditions will result
in an automatic restart of the engine:
•

You have removed your foot from the
brake pedal.

•

You press the accelerator pedal.

•

You press the accelerator and the
brake pedal at the same time.

•

The driver safety belt becomes
unfastened or the driver door is ajar.

•

Your vehicle is moving.

•

The interior compartment does not
meet customer comfort when air
conditioning or heat is on.

•

Fogging of the windows could occur
and the air conditioning is on.

•

The battery is not within optimal
operating conditions.

•

You have exceeded the maximum
engine off time.

•

When you press the Auto-Start-Stop
button with the engine automatically
stopped.

•

The front defroster is turned to the Max
setting.

Any of the following conditions may result
in an automatic restart of the engine:
•

You have increased the blower fan
speed or changed the climate control
temperature.

•

You have an electrical accessory
turned on or plugged in.

Note: You may notice that the climate seat
fan fluctuates during an automatic restart.

Disabling Auto-Start-Stop

E181352

Press the Auto-Start-Stop button located
on the center console to switch the system
off. The button will illuminate. Deactivating
using the button lasts only 1 key cycle.
Press the button again to restore
Auto-Start-Stop function.

Note: If the Shift to P, Restart Engine
message appears and the amber
Auto-Start-Stop indicator light is flashing,
automatic restart is not available. You must
restart the vehicle manually.  See
Information Displays (page 111).

If your vehicle is in an engine off
Auto-Start-Stop, shifting from drive (D) to
neutral (N) will not cause a restart while
the brake pedal is not pressed, the
message Auto-Start-Stop Press Brake to
Start Engine will appear. You must press
the brake pedal within 60 seconds or a
shift to park (P) and a manual restart will
be required.

SAFETY PRECAUTIONS

WARNINGS

Do not overfill the fuel tank. The
pressure in an overfilled tank may
cause leakage and lead to fuel spray

and fire.

The fuel system may be under
pressure. If you hear a hissing sound
near the fuel filler inlet, do not refuel

until the sound stops. Otherwise, fuel may
spray out, which could cause serious
personal injury.

Fuels can cause serious injury or
death if misused or mishandled.

Fuel may contain benzene, which is
a cancer-causing agent.

When refueling always shut the
engine off and never allow sparks or
open flames near the fuel tank filler

valve. Never smoke or use a cell phone
while refueling. Fuel vapor is extremely
hazardous under certain conditions. Avoid
inhaling excess fumes.

Follow these guidelines when refueling:
•

Extinguish all smoking materials and
any open flames before refueling your
vehicle.

•

Always switch the engine off before
refueling.

•

Automotive fuels can be harmful or
fatal if swallowed. Fuel is highly toxic
and if swallowed can cause death or
permanent injury. If fuel is swallowed
immediately call a physician, even if no
symptoms are immediately apparent.
The toxic effects of fuel may not be
apparent for hours.

•

Avoid inhaling fuel vapors.  Inhaling fuel
vapor can lead to eye and respiratory
tract irritation.  In severe cases,
excessive or prolonged breathing of
fuel vapor can cause serious illness and
permanent injury.

•

Avoid getting fuel in your eyes. If you
splash fuel in your eyes, immediately
remove contact lenses (if worn), flush
with water for 15 minutes and seek
medical attention.  Failure to seek
proper medical attention could lead to
permanent injury.

•

Fuels can be harmful if absorbed
through the skin. If you splash fuel on
your skin, clothing or both, promptly
remove contaminated clothing and
thoroughly wash your skin with soap
and water. Repeated or prolonged skin
contact causes skin irritation.

•

Be particularly careful if you are taking
Antabuse or other forms of Disulfiram
for the treatment of alcoholism.
Breathing fuel vapors could cause an
adverse reaction, serious personal
injury or sickness. Immediately call a
physician if you experience any adverse
reactions.

FUEL QUALITY - DIESEL

Fuel Requirements - Choosing The
Right Fuel: Vehicles Operated
Where Ultra Low Sulfur Diesel Fuel
Is Required (United
States/Canada/Puerto Rico/U.S.
Virgin Islands And Other Locales)

Note: Your warranty will not cover damage
caused by using an improper type of fuel or
fuel additive.
