Ford Explorer (2018 year). Manual - part 32

Transmission

Action

Message

Contact an authorized dealer.

Transmission Malfunc-

tion Service Now

The transmission is overheating and needs to cool. Stop in a

safe place as soon as possible.

Transmission Overtem-

perature Stop Safely

The transmission is overheating and needs to cool. Stop in a

safe place as soon as possible.

Transmission Over-
heating Stop Safely

Contact an authorized dealer.

Transmission Service

Required

The transmission is getting hot. Stop to let it cool.

Transmission Too Hot

Press Brake

The transmission has overheated and has limited functionality.

See Automatic Transmission (page 184).

Transmission Limited

Function See Manual

The transmission is too cold. Wait for it to warm up before

you drive.

Transmission Warming

Up Please Wait

A reminder to shift into park.

Transmission Not in Park

A request for you to apply the brake as needed by the trans-

mission.

Press Brake Pedal

The transmission has adjusted the shift strategy.

Transmission Adjusted

The transmission is adjusting the shift strategy.

Transmission Adapt-

Mode

The transmission is locked and unable to select gears.

Transmission Indicat-

Mode Lockup On

The transmission is unlocked and free to select gears.

Transmission Indicat-

Mode Lockup Off

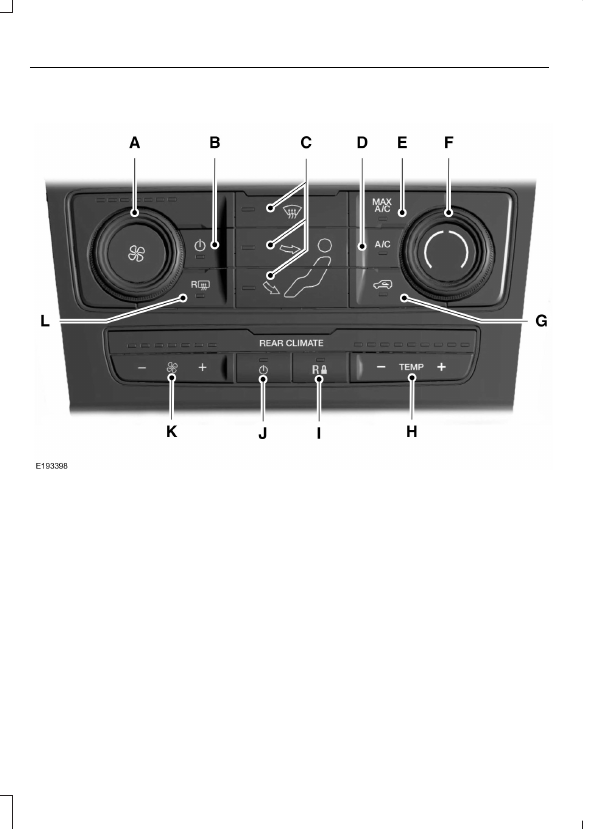

MANUAL CLIMATE CONTROL

Fan speed control: Adjusts the volume of air circulated in the vehicle.

A

Power: Press to switch the system on and off. When the system is off, it
prevents outside air from entering the vehicle.

B

Air distribution control: Press to switch air flow from the windshield,
instrument panel, or footwell vents on or off. You can distribute air through any
combination of these vents.

C

Note: At least one of these buttons illuminates on when the system is on.

A/C: Press to switch the air conditioning on or off. Use A/C with recirculated
air to improve cooling performance and efficiency.

D

MAX A/C: Press for maximum cooling. Recirculated air flows through the
instrument panel vents, air conditioning turns on and the fan adjusts to the
highest speed.

E

Temperature control: Adjusts the temperature of the air circulated in your
vehicle.

F

Recirculated air: Press to switch between outside air and recirculated air. The
air currently in the passenger compartment recirculates. This may reduce the
time needed to cool the interior (when used with A/C) and reduce unwanted
odors from entering your vehicle.

G

Note: Recirculated air may turn off (or prevent you from switching on) in all air
flow modes except MAX A/C to reduce the risk of fogging. Recirculation may
also turn on and off in Panel or Panel/Floor air flow modes during hot weather
in order to improve cooling efficiency.

Rear passenger temperature control: Adjusts the temperature setting for
the rear passenger compartment.

H

Rear fan speed control lock: When illuminated, you can only operate the rear
passenger settings through the front controls.

I

Rear passenger power: Press to switch the rear system on and off.

J

Rear fan speed control: Adjusts the volume of air circulated to the rear
passenger compartment.

K

Heated rear window: Press to switch the heated rear window on and off.  See
Heated Windows and Mirrors (page 141).

L

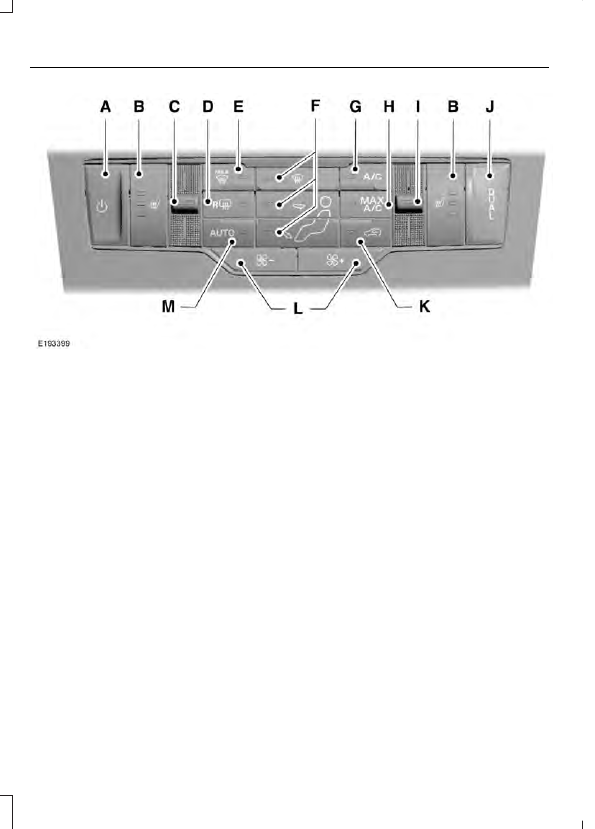

AUTOMATIC CLIMATE
CONTROL - VEHICLES WITH:
PREMIUM AM/FM/CD

Note: You can switch temperature units
between Fahrenheit and Celsius. See your
SYNC information.

Power: Press to switch the system on and off. When the system is off, it
prevents outside air from entering the vehicle.

A

Heated seats: Press to switch the heated seats on and off.

B

Driver temperature control: Adjusts the temperature setting on the driver
side. This control also adjusts the passenger side temperature when you switch
off dual zone mode.

C

Heated rear window: Press to switch the heated rear window on and off.  See
Heated Windows and Mirrors (page 141).

D

MAX Defrost: Press to switch on defrost. The driver and passenger settings
set to HI, air flows through the windshield vents, and the fan adjusts to the
highest speed. You can also use this setting to defog and clear the windshield
of a thin covering of ice. The heated rear window also turns on when you select
maximum defrost.

E

Note: To prevent window fogging, you cannot select recirculated air when
maximum defrost is on.

Air distribution control: Press to switch air flow from the windshield,
instrument panel, or footwell vents on or off. You can distribute air through any
combination of these vents.

F

A/C: Press to switch the air conditioning on or off. Use A/C with recirculated
air to improve cooling performance and efficiency.

G

Note: In certain conditions (for example, maximum defrost), the air conditioning
compressor may continue to operate even though you switch off the air
conditioning.
