Ford Explorer (2018 year). Manual - part 17

From the Instrument Panel

With the transmission in park
(P), press the button on the
instrument panel.

With the Remote Control

Press the button twice within
three seconds.

With the Outside Control Button

Opening the Liftgate

Unlock the liftgate with the remote
control or power door unlock control.
If an intelligent access key is within 3 ft
(1 m) of the liftgate, the liftgate unlocks
when you press the liftgate release
button.

2. Press the control button located in the

top of the liftgate pull-cup handle.

Note: Allow the power system to open the
liftgate. Manually pushing or pulling the
liftgate may activate the system’s obstacle
detection feature and stop the power
operation or reverse its direction, replicate
a strut failure, or damage mechanical
components.

Closing the Liftgate

WARNING

Keep clear of the liftgate when using
the rear switch.

Press and release the liftgate button.

Stopping the Liftgate Movement

Note: Do not apply sudden excessive force
to the liftgate while it is in motion. This
could damage the power liftgate and its
components.

You can stop the liftgate movement by
doing any of the following:
•

Pressing the liftgate control button.

•

Pressing the liftgate button on the
remote control twice.

•

Pressing the liftgate button on the
instrument panel.

•

Moving your foot under and away from
the center rear bumper in a single-kick
motion.*

*This method only works for vehicles with
the hands-free liftgate feature.

Setting the Liftgate Open Height

Open the liftgate.

2. Stop the liftgate movement by pressing

the control button on the liftgate when
it reaches the desired height.

Note: Once the liftgate has stopped
moving, you can also manually move it to
the desired height.

3. Press and hold the liftgate control

button on the liftgate until you hear a
tone, indicating programming is
complete.

Note: You can only use the liftgate control
button to program the height.

Note: You cannot program the height if the
liftgate position is too low.

The new open liftgate height is recalled
when the power liftgate is opened. To
change the programmed height, repeat the
above procedure. Once you open the
power liftgate, you can manually move it
to a different height.

Note: The system recalls the new
programmed height until you reprogram it,
even if you disconnect the battery.

When operating the power liftgate after
you have programmed a lower height than
fully open, you can fully open the liftgate
by manually pushing it upward to the
maximum open position.

Obstacle Detection

When Closing

The system stops when it detects an
obstacle. A tone sounds and the system
reverses to open. Once you remove the
obstacle, you can power close the liftgate.

Note: Entering your vehicle while the
liftgate is closing can cause your vehicle to
bounce and activate obstacle detection. To
prevent this, let the power liftgate close
completely before you enter your vehicle.
Before driving off, check the instrument
cluster for a liftgate or door ajar message or
warning indicator. Failure to do this could
result in unintentionally leaving the liftgate
open while driving.

When Opening

The system stops when it detects an
obstacle and a tone sounds. Once you
remove the obstacle, you can continue to
operate the liftgate.

Hands-Free Feature

(If Equipped)

Make sure you have a passive key within
3 ft (1 m) of the liftgate.

Stand behind your vehicle, and face the
liftgate.

2. Move your foot, in a single-kick motion,

without pausing, under and away from
the rear bumper detection area.

3. The liftgate opens or closes.

Vehicles Without a Trailer Hitch

The detection area is in the center of the
rear bumper.

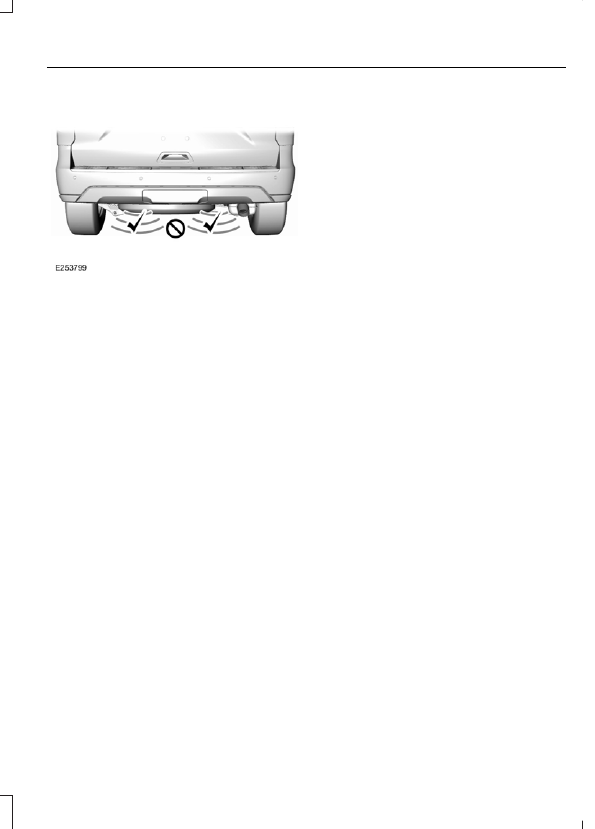

Vehicles With a Trailer Hitch

The detection area is on the left-hand side
and right-hand side of the hitch, between
the exhaust and the hitch.

Avoid the following actions when using the
hands-free opening feature:

•

Making physical contact with the
bumper.

•

Holding your foot under the bumper.

•

Sweeping your foot from side to side,
or kicking at an odd angle.

Note: Splashing water may cause the
hands-free liftgate to open. Keep the
passive key away from the rear bumper
detection area when you wash your vehicle.

PASSIVE ANTI-THEFT
SYSTEM

Note: The system is not compatible with
non-Ford aftermarket remote start systems.
Use of these systems may result in vehicle
starting problems and a loss of security
protection.

Note: Metallic objects, electronic devices
or a second coded key on the same key
chain may cause vehicle starting problems
if they are too close to the key when starting
the engine. Prevent these objects from
touching the coded key while starting the
engine. Switch the ignition off, move all
objects on the key chain away from the
coded key and restart the engine if a
problem occurs.

Note: Do not leave a duplicate coded key
in the vehicle. Always take your keys and
lock all doors when leaving the vehicle.

SecuriLock®

The system is an engine immobilization
system. It is designed to help prevent the
engine from being started unless a coded
key programmed to your vehicle is used.
Using the wrong key may prevent the
engine from starting. A message may
appear in the information display.

If you are unable to start the engine with a
correctly coded key, a malfunction has
happened and a message may appear in
the information display.

Automatic Arming

The vehicle arms immediately after you
switch the ignition off.

Automatic Disarming

Switching the ignition on with a coded key
disarms the vehicle.

Replacement Keys

Note: Your vehicle comes equipped with
two integrated keyhead transmitters or two
intelligent access keys.

The integrated keyhead transmitter
functions as a programmed ignition key
that operates all the locks and starts the
vehicle, as well as a remote control.

The intelligent access key functions as a
programmed key that operates the driver
door lock and activates the intelligent
access with push button start system, as
well as a remote control.

If your programmed transmitters or
standard SecuriLock coded keys
(integrated keyhead transmitters only) are
lost or stolen and you do not have an extra
coded key, you will need to have your
vehicle towed to an authorized dealer. You
need to erase the key codes from your
vehicle and program new coded keys.

Store an extra programmed key away from
the vehicle in a safe place to help prevent
any inconveniences. See your authorized
dealer to purchase additional spare or
replacement keys.

Programming a Spare Integrated
Keyhead Transmitter

Note: You can program a maximum of eight
coded keys to your vehicle. All eight can be
integrated keyhead transmitters.

You can program your own integrated
keyhead transmitter or standard
SecuriLock coded keys to your vehicle. This
procedure will program both the engine
immobilizer keycode and the remote entry
portion of the remote control to your
vehicle

Only use integrated keyhead transmitters
or standard SecuriLock keys.
