Ford Expedition (2018 year). Manual - part 77

Protected Component

Fuse Rating

Fuse or Relay

Number

Trailer brake controller.

5A

1

4

Speaker amplifier.

20A

1

5

Not used (spare).

10A

2

6

Not used (spare).

10A

2

7

Not used.

—

8

Rear seat entertainment module.

10A

2

9

Head up display.

Wireless AC charger module.

5A

2

10

Hands free liftgate module.
Power liftgate module.
Wireless charger.

Keypad.

5A

2

11

Combined sensor module.

Cluster.

7.5A

2

12

Electronic control panel.
Smart datalink connector logic.

Gear shift module.

7.5A

2

13

Steering column control module.

Extended power module.

10A

2

14

Brake switch.

Smart datalink connector power.

10A

2

15

Liftglass release.

15A

1

16

Telematics control unit - modem.

5A

2

17

Ignition switch.

5A

2

18

Key inhibit solenoid.
Push button start switch.

Transmission control switch.

7.5A

2

19

Gearshift module.

Not used.

7.5A

2

20

Protected Component

Fuse Rating

Fuse or Relay

Number

Humidity and in–car temperature sensor.

5A

2

21

Electrochromatic mirror.

5A

2

22

Second row heated seat module.

Moonroof logic.

10A

1

23

Inverter.
Power window switch.
Power mirror switch.
DVD player (if equipped).

Central lock unlock

20A

1

24

Left front door zone module.

30A

1

25

Right front door zone module.

30A

1

26

Moonroof.

30A

1

27

Stereo amplifier.

20A

1

28

Left rear door zone module.

30A

1

29

Right rear door zone module.

30A

1

30

Adjustable pedals.

15A

1

31

SYNC

10A

1

32

Drive mode switch module.
4x4 switch.
Radio frequency transceiver module.
Rear heating, ventilation and air condi-
tioning control module.

Audio control module.

20A

1

33

Not used.

—

34

Extended power mode module.

5A

1

35

Image processing module A.

15A

1

36

Automated park assist module.
Continuous control damping module.

Protected Component

Fuse Rating

Fuse or Relay

Number

Heated steering wheel.

15A

1

37

Left rear power window.

30A Circuit Breaker

38

Right rear power window.

1

Micro 2 fuse.

2

Micro 3 fuse.

CHANGING A FUSE

Fuses

WARNING

Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage

rating can cause severe wire damage and
could start a fire.

E217331

If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.

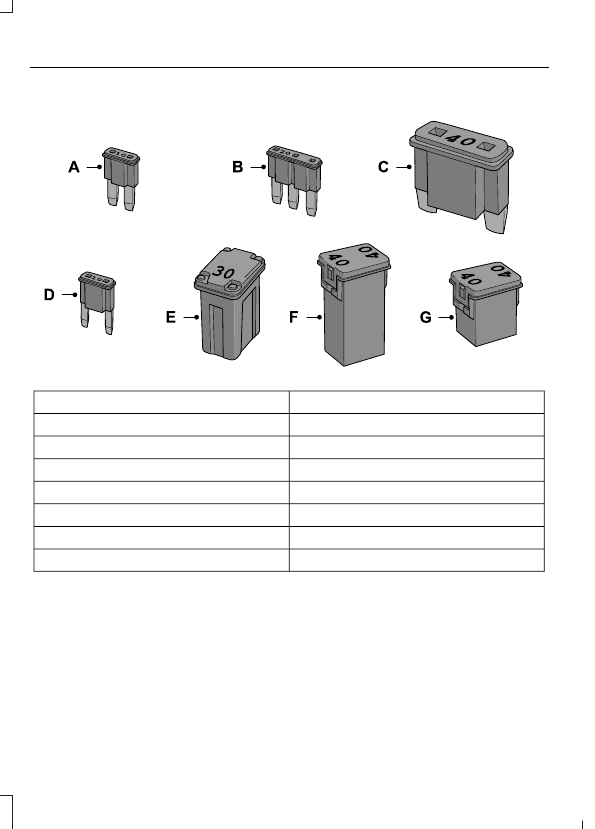

Fuse Types

E207206

Fuse Type

Callout

Micro 2

A

Micro 3

B

Maxi

C

Mini

D

M Case

E

J Case

F

J Case Low Profile

G
