Protected Component

Fuse Rating

Fuse Number

Trailer tow class II-IV battery charge.

25A

2

30

Power folding seat module.

50A

2

31

A/C clutch.

10A

1

32

Not used.

—

33

Not used.

—

34

Vehicle power 4.

20A

1

35

Vehicle power 3.

10A

1

36

Vehicle power 2.

25A

1

37

Vehicle power 1.

25A

1

38

Not used.

—

39

Inverter.

50A

2

41

Trailer Tow Light Module Class II-IV.

20A

2

43

Front/rear washer pump.

20A

2

45

Family entertainment system.

7.5A

1

46

Not used.

—

47

Not used.

—

48

Not used.

—

49

Fuel pump.

30A

2

50

Power point 3.

20A

2

51

Body control module (BCM) voltage quality
module (VQM).

50A

2

52

Trailer tow park lamps relay.

25A

2

53

Electronic limited slip differential relay.

40A

2

54

Protected Component

Fuse Rating

Fuse Number

AUX blower.

40A

2

55

Power point 4.

20A

2

56

Not used (spare).

5A

1

58

Not used.

—

59

Not used (spare).

5A

1

60

Not used (spare).

25A

1

61

Not used (spare).

25A

1

62

4x4 module.

25A

1

63

Not used.

—

64

Not used.

—

65

Not used.

—

66

Not used.

—

67

Not used.

—

69

Anti-lock brake system / parking brake
module.

40A

2

70

4x4 module.

25A

2

71

Not used.

—

72

Not used.

—

73

Trailer tow backup lamps.

10A

1

74

Not used.

—

75

Body control module power 2.

50A

2

76

Climate controlled (Heated/Vented) seat
module.

30A

2

77

Not used (spare).

20A

1

78

Not used.

—

79

Protected Component

Fuse Rating

Fuse Number

Heated wiper park.

10A

1

80

Not used.

—

81

Not used.

—

82

Transmission control module power.

15A

1

83

Not used.

—

84

Not used.

—

85

USB smart charger 5.

5A

1

86

USB smart charger 3.

5A

1

87

Multi-contour seats relay.

10A

1

88

Power running boards.

40A

2

89

Power liftgate module.

30A

2

91

Heated mirrors.

15A

1

93

USB smart charger 1.

5A

1

94

USB smart charger 2.

10A

1

95

Rear wiper motor relay.

30A

2

96

Intercooler puller relay fan.

40A

2

97

Transmission oil pump.

15A

2

98

Heated backlite.

40A

2

99

Power point 5.

20A

2

100

Fan 2.

25A

2

101

Not used.

—

102

Not used.

—

103

Protected Component

Fuse Rating

Fuse Number

Not used.

—

104

Not used.

—

105

1

Micro fuse.

2

M case use.

Protected Component

Relay Number

Electronic fan 2.

R02

Powertrain Control Module.

R05

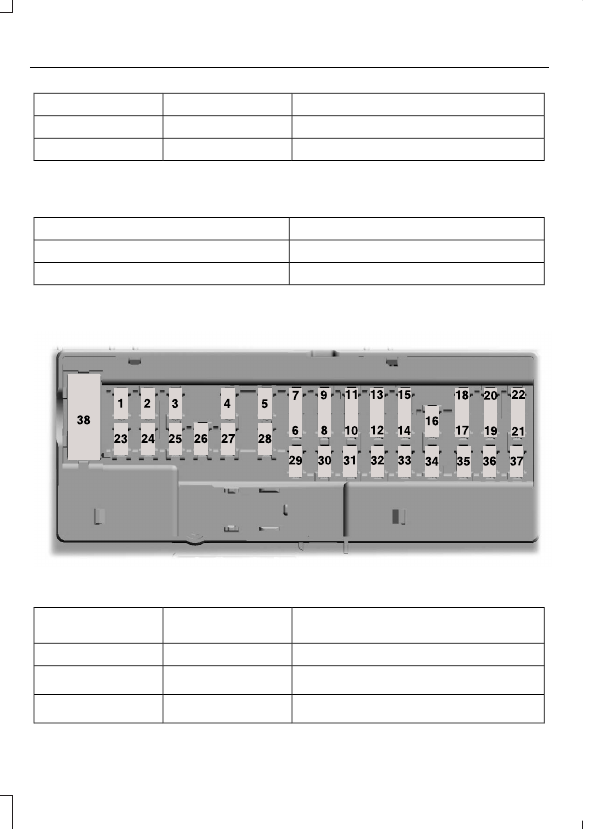

Passenger Compartment Fuse Box

E145984

Protected Component

Fuse Rating

Fuse or Relay

Number

Not used.

—

1

Driver seat switch.

7.5A

1

2

Driver door unlock.

20A

1

3
