Ford Escape (2018 year). Manual - part 79

E249988

Vol and Power: Turn to adjust the volume. Press to switch the system on and
off.

A

Function buttons: Select different functions of the audio system depending
on which mode you are in (such as Radio mode or CD mode).

B

CD slot: Insert a CD.

C

Eject: Press to eject a CD.

D

Number block: In radio mode, you can store your favorite radio stations. To
store a radio station, tune to the station, then press and hold a preset button
until sound returns. In CD mode, select a track. In phone mode, enter a phone
number.

E

Tune and Play or Pause: In radio mode, press to search through the radio
frequency band. In media mode, turn to select a new track. Press to either play
or pause a track. This button also mutes the radio sources.

F

Phone: Press to access the phone features of the SYNC system. See your SYNC
information.

G

Menu: Press to access different audio system features.

H

Clock: Press to access the clock setting. Use the center arrow controls to change
the hours and minutes. You can also set the clock by pressing MENU and
scrolling to Clock Settings. If not in phone mode, press to display the clock.

I

Seek, Fast Forward and Reverse: In radio mode, select a frequency band
and press either button. The system stops at the first station it finds in that
direction. In CD mode, press to select the next or previous track. Press and hold
to move quickly forward or backward through the current track.

J

OK and cursor arrows: Press the up and down arrow buttons to select the
various settings. When you make your selection, press the left and right arrow
buttons to change the settings. Press OK to set, or press MENU to exit.

K

Sound: Press to access settings for Treble, Midrange, Bass, Fade and Balance.
Use the up and down arrow buttons to select the various settings. When you
make your selection, press the left and right arrow buttons to change the
settings. Press OK to set or press MENU to exit. Sound settings can be set for
each audio source independently.

L

Radio: Press to listen to the radio or change radio stations. Press the function
buttons below the radio screen to select different radio functions.

M

Media: Press to open the media source menu. You can press this multiple times
to change to CD or to a SYNC-Media device or scroll through the media sources
using the arrow buttons. Press OK to select a source.

N

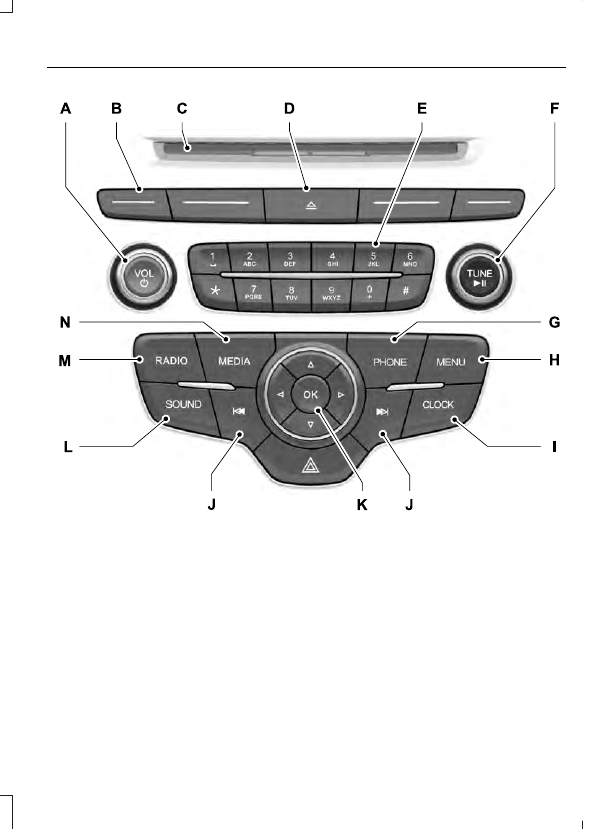

AUDIO UNIT - VEHICLES WITH:
AM/FM/CD/SYNC/
TOUCHSCREEN DISPLAY

WARNING

Driving while distracted can result in
loss of vehicle control, crash and
injury. We strongly recommend that

you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the safe
operation of your vehicle. We recommend
against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving.

Note: Some features, such as SIRIUS
satellite radio, may not be available in your
location. Check with an authorized dealer.

Note:  The touchscreen system controls
most of the audio features.  See your SYNC
information.

E185024

TUNE: In radio mode, press to search through the radio frequency band. In
SIRIUS mode, press to find the previous or next available satellite radio station.

A

CD slot: Insert a CD.

B

Vol and Power: Turn to adjust the volume. Press to switch the system on and
off.

C

SOURCE: Press to access different audio modes, for example AM, FM and CD.

D

Eject: Press to eject a CD.

E

DISP: Press to switch the display screen on and off.

F

SOUND: Press to access settings for Treble, Midrange, Bass, Fade or Balance.

G

Seek, Fast Forward and Reverse: In radio mode, select a frequency band
and press either button. The system stops at the first station it finds in that
direction. In SIRIUS mode, press to select the next or previous satellite radio
station. If you select a specific category (such as jazz, rock or news), press to
find the next or previous station in the category you select. In CD mode, press
to select the next or previous track. Press and hold to move quickly forward or
backward through the current track.

H

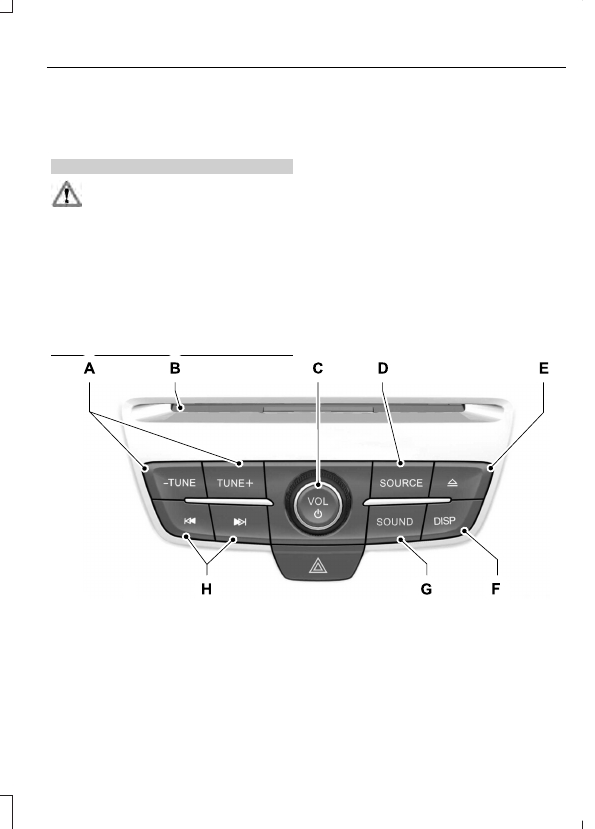

AUDIO UNIT - VEHICLES WITH:
SONY AUDIO SYSTEM

WARNING

Driving while distracted can result in
loss of vehicle control, crash and
injury. We strongly recommend that

you use extreme caution when using any
device that may take your focus off the
road. Your primary responsibility is the safe
operation of your vehicle. We recommend
against the use of any hand-held device
while driving and encourage the use of
voice-operated systems when possible.
Make sure you are aware of all applicable
local laws that may affect the use of
electronic devices while driving.

Note: Some features, such as SIRIUS
satellite radio, may not be available in your
location. Check with an authorized dealer.

Note:  The touchscreen system controls
most of the audio features.  See your SYNC
information.

Note: The CD slot is directly above the
touchscreen.
