minutes for the oil to drain into the oil
pan. Checking the engine oil level too
soon after you switch the engine off
may result in an inaccurate reading.

5. Open the hood. See Opening and

Closing the Hood (page 240).

6. Remove the dipstick and wipe it with

a clean, lint-free cloth. See Under

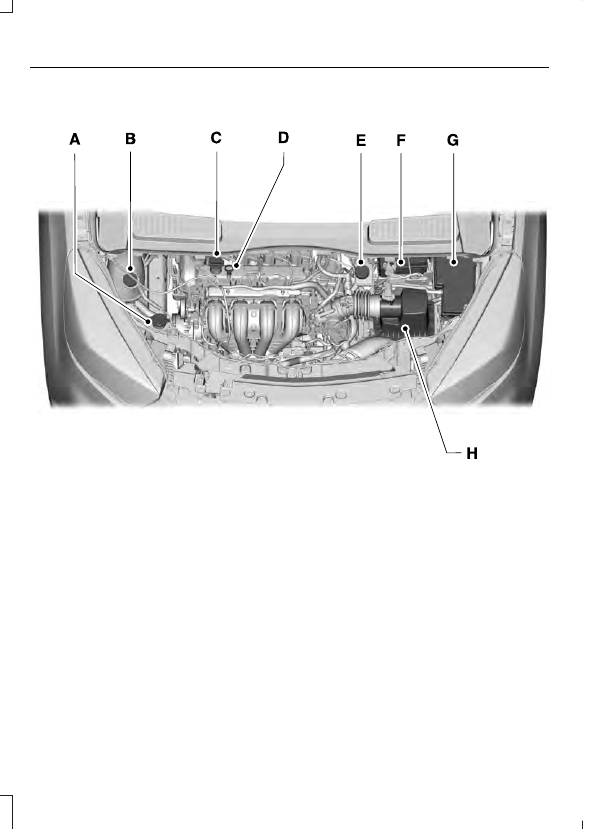

Hood Overview (page 242).

Replace the dipstick and remove it
again to check the oil level. See Under
Hood Overview (page 242).

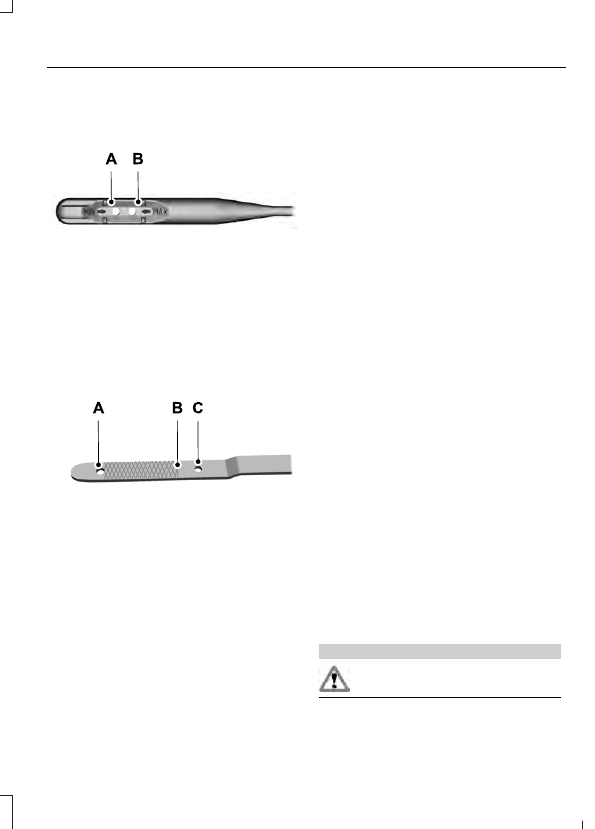

8. Make sure that the oil level is between

the maximum and minimum marks. If
the oil level is at the minimum mark,
add oil immediately. See Capacities
and Specifications (page 304).

9. If the oil level is correct, replace the

dipstick and make sure it is fully seated.

Note: Do not remove the dipstick when the
engine is running.

Note: If the oil level is between the
maximum and minimum marks, the oil level
is acceptable. Do not add oil.

Note: The oil consumption of new engines
reaches its normal level after approximately
3,000 mi (5,000 km).

Adding Engine Oil

WARNING

Do not remove the filler cap when
the engine is running.

Do not use supplemental engine oil
additives because they are unnecessary
and could lead to engine damage that may
not be covered by the vehicle Warranty.

E142732

Only use oils certified for gasoline engines
by the American Petroleum Institute (API).
An oil with this trademark symbol
conforms to the current engine and
emission system protection standards and
fuel economy requirements of the
International Lubricants Specification
Advisory Committee (ILSAC).

To top up the engine oil level do the
following:

Clean the area surrounding the engine
oil filler cap before you remove it.

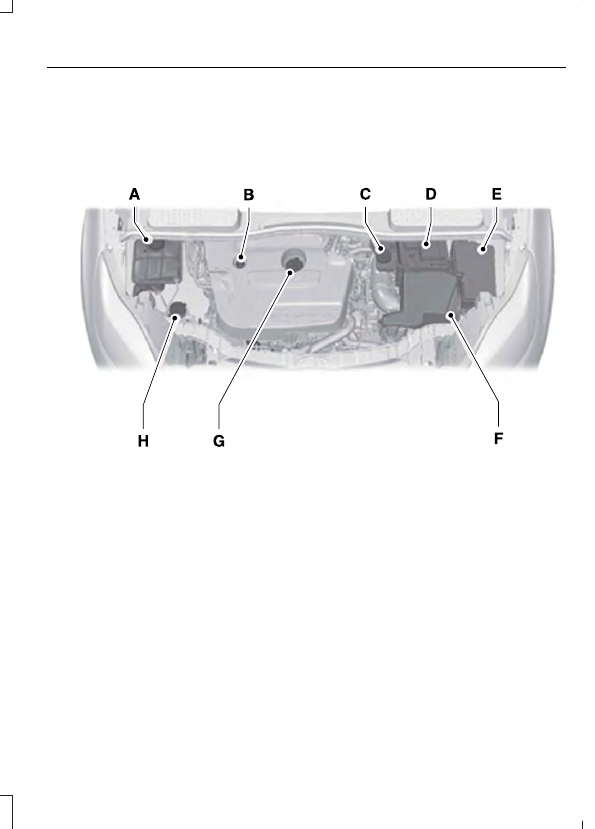

2. Remove the engine oil filler cap. See

Under Hood Overview (page 242).
Turn it counterclockwise and remove
it.

3. Add engine oil that meets Ford

specifications. See Capacities and
Specifications (page 304). You may
have to use a funnel to pour the engine
oil into the opening.

4. Recheck the oil level.

5. If the oil level is correct, replace the

dipstick and make sure it is fully seated.

6. Replace the engine oil filler cap. Turn

it clockwise until you feel a strong
resistance.

Note: Do not add oil further than the
maximum mark. Oil levels above the
maximum mark may cause engine damage.

Note: Make sure you install the oil filler cap
correctly.

Note: Soak up any spillage with an
absorbent cloth immediately.

OIL CHANGE INDICATOR
RESET

Use the information display controls on
the steering wheel to reset the oil change
indicator.

From the main menu scroll to:

Action and description

Message

Press the right arrow button,
then from this menu scroll
to the following message.

Settings

Press the right arrow button,
then from this menu scroll
to the following message.

Vehicle

Press the right arrow button,
then from this menu scroll
to the following message.

Oil Life

Press and hold the OK
button until the instrument
cluster displays the
following message.

Hold OK to
Reset

Reset Successful

When the oil change indic-
ator resets the instrument
cluster displays 100%.

Remaining Life

{00}%
