Ford Escape (2018 year). Manual - part 58

Protected Components

Fuse Rating

Fuse or Relay

Number

Hazard light switch.
Door lock switch.

Moonroof supply.

20A

F80

Interior motion sensor supply.

—

F81

Radio frequency receiver supply.
Panorama roof power/open.

Washer pump.

20A

F82

Central locking.

20A

F83

Lock/unlock relay.

20A

F84

Liftgate relay.

Electronic 15 feed.

7.5A

F85

Airbag module.

10A

F86

Occupant classification system.
Passenger airbag deactivation indicator.

Heated steering wheel.

15A

F87

Not used.

—

F88

Not used.

—

F89

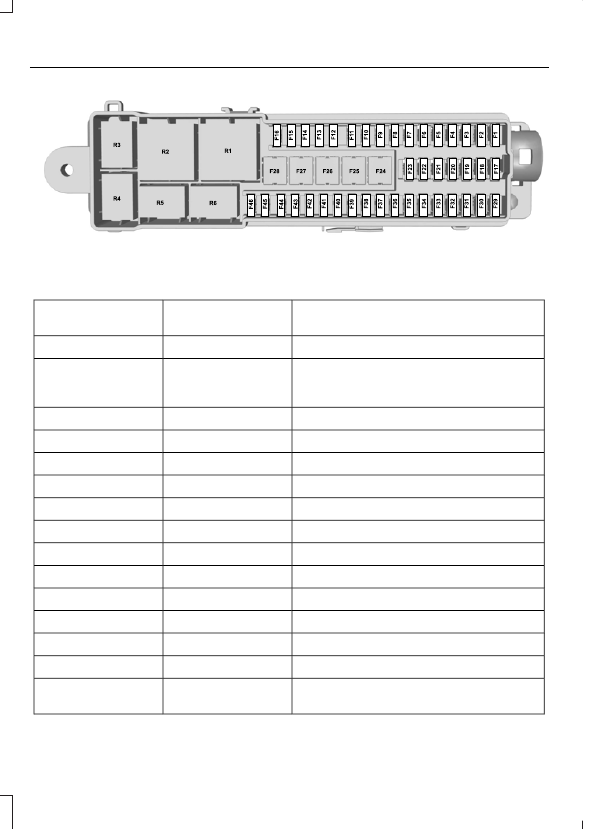

Luggage Compartment Fuse Panel

The fuse panel is in the luggage
compartment behind the passenger side
wheel well. Remove the fuse panel cover
to gain access to the fuses.

E129927

Protected Components

Fuse Rating

Fuse or Relay

Number

Hands-free liftgate entry module.

5A

F1

Heated outside mirror (without door
control unit).

15A

F2

Heated wiper park.

Keyless vehicle door handles.

5A

F3

Door control unit front left.

25A

F4

Door control unit front right.

25A

F5

Door control unit rear left.

25A

F6

Door control unit rear right.

25A

F7

Passenger seat.

25A

F8

Driver seat.

25A

F9

Driver seat memory module logic feed.

5A

F10

Rear ignition coil feed.

5A

F11

Not used.

—

F12

Not used.

—

F13

High current power windows (front relay).

5A

F14

Not used (vehicles with one-touch up
power windows).

—

F15

Protected Components

Fuse Rating

Fuse or Relay

Number

Not used.

—

F16

Not used.

—

F17

Not used.

—

F18

Not used.

—

F19

Embedded modem.

5A

F20

Not used.

—

F21

Heated rear window.

25A

F22

Audio amplifier.

25A

F23

DC/AC power converter.

30A

F24

Power liftgate (vehicles with one-touch up
power windows).

25A

F25

Trailer tow (vehicles without one-touch up
power windows).

40A

Rear power outlet.

20A

F26

Luggage compartment power outlet.

20A

F27

Trailer tow (vehicles with one-touch up
power windows).

40A

F28

Driver and passenger high current power
windows (vehicles without one-touch up
power windows).

25A

Blind spot detection system.

5A

F29

Rear view camera with park assist.

Parking aid module.

5A

F30

Not used.

—

F31

DC/AC power converter.

5A

F32

High current power window switch.

10A

F33

Not used.

—

F34

Not used.

—

F35

Not used.

—

F36

Protected Components

Fuse Rating

Fuse or Relay

Number

Not used.

—

F37

Not used.

—

F38

Not used.

—

F39

Not used.

—

F40

Not used.

—

F41

Not used.

—

F42

Not used.

—

F43

Not used.

—

F44

Not used.

—

F45

Heated outside mirror relay coil.

5A

F46

Delay accessory relay.

Power relay

R1

Rear 15 relay.

Mini relay

R2

Heated rear window relay.

Micro relay

R3

Not used.

—

R4

Not used.

—

R5

Heated outside mirror relay.

Micro relay

R6

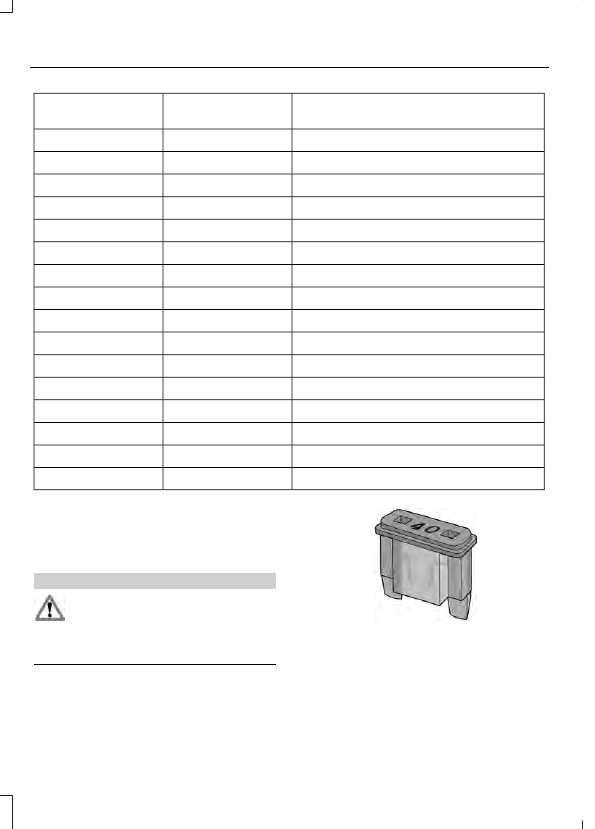

CHANGING A FUSE

Fuses

WARNING

Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage

rating can cause severe wire damage and
could start a fire.

E217331

If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.
