Protected Components

Fuse Rating

Fuse or Relay

Number

Electronic power assist steering 15 feed.

5A

2

F40

Body control module 15 feed.

20A

2

F41

Rear wiper.

15A

2

F42

Headlamp control module supply.

15A

2

F43

Forward looking radar.

5A

2

F44

Heated passenger seat.

20A

2

F45

Smart wiper motor modules.

40A

1

F46

Not used.

—

F47

Keypad.

5A

2

F48

Cooling fan (750W).

Micro relay

R1

Horn.

Micro relay

R2

Not used.

—

R3

Not used.

—

R4

Cooling fan (750W).

Micro relay

R5

Cooling fan (600W and 750W).

Micro relay

R6

Partially heated windshield.

Power relay

R7

High current power windows front.

Mini Relay

R8

Not used.

—

R9

Starter relay.

Mini relay

R10

Air conditioner clutch.

Micro relay

R11

Cooling fan.

Power relay

R12

Heater blower.

Mini relay

R13

Engine control relay.

Mini relay

R14

Protected Components

Fuse Rating

Fuse or Relay

Number

Cooling fan (600W and 750W).

Power relay

R15

Ignition 15.

Power relay

R16

1

Cartridge Fuse

2

Mini Fuse

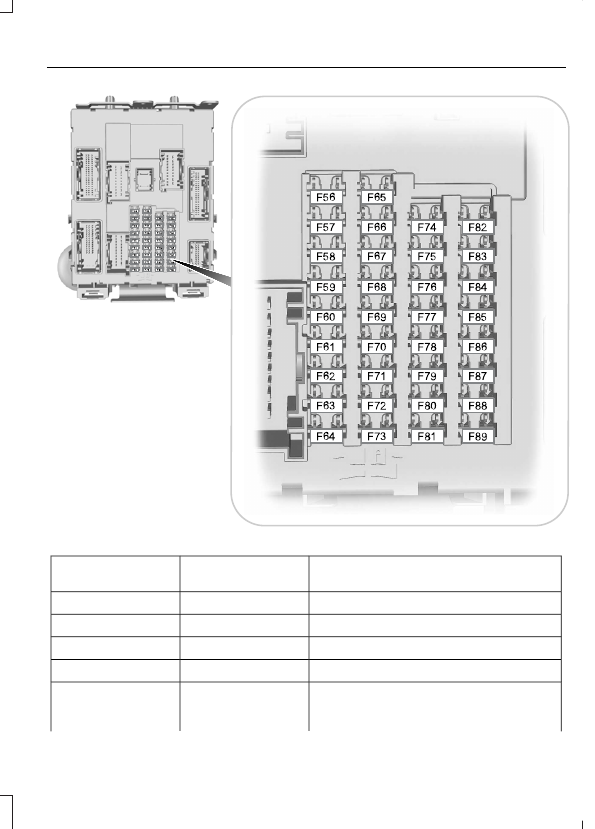

Passenger Compartment Fuse
Panel

The fuse panel is on the right side below
the glove box.

E129926

Protected Components

Fuse Rating

Fuse or Relay

Number

Fuel pump supply.

20A

F56

Not used.

—

F57

Interior lights relay.

5A

F58

Passive anti-theft transceiver.

5A

F59

Interior light.

10A

F60

Driver door switch pack.
Glove box light.

Protected Components

Fuse Rating

Fuse or Relay

Number

Overhead console switch bank.

Cigar lighter.

20A

F61

Power point.

Rain sensor module.

5A

F62

Light sensor module.

Front sensing module.

10A

F63

Forward looking radar.

Not used.

—

F64

Liftgate release.

10A

F65

Driver door unlock.

20A

F66

SYNC.

7.5A

F67

Multifunction display.
Global positioning system module.

Not used (spare).

15A

F68

Instrument cluster.

5A

F69

Central lock and unlock supply.

20A

F70

Heating control head (manual air condi-
tioner).

7.5A

F71

Dual electronic automatic temperature
control.

Data link connector.

7.5A

F72

Steering wheel module.

7.5A

F73

Headlamp supply.

15A

F74

Fog lamp.

15A

F75

Reversing lamp.

10A

F76

Washer pump.

20A

F77

Ignition switch.

5A

F78

Start button.
Keyless vehicle module.

Radio.

15A

F79

Electronic finish panel.
