Protected Components

Fuse Rating

Fuse or Relay

Number

Transmission oil pump logic power (start/
stop).

15A

2

21

Air conditioner clutch solenoid.

10A

2

22

Run-start 6.

15A

2

23

Blind spot information system.
Rear view camera.
Adaptive cruise control.
Heads-up display.
Voltage quality module (start/stop).
Front split view camera.
Front split view camera module.

Not used (spare).

10A

2

24

Run-start anti-lock brake system.

10A

3

25

Run-start powertrain control module.

10A

3

26

Not used.

—

27

Rear washer pump.

10A

2

28

Not used.

—

29

Not used.

—

30

Not used.

—

31

Electronic fan 1 relay.

—

32

A/C clutch relay.

—

33

Not used (spare).

15A

2

34

Not used.

—

35

Not used.

—

36

Power transfer unit fan.

10A

2

37

Electronic fan 2 relay

—

38

Electric fan 3 relay.

—

39

Horn relay.

—

40

Protected Components

Fuse Rating

Fuse or Relay

Number

Not used.

—

41

Fuel pump relay.

—

42

2nd row easy fold seat release.

10A

2

43

LH HID headlamp.

20A

2

44

Not used.

—

45

Not used.

—

46

Not used.

—

47

Not used (spare).

15A

2

48

Not used.

—

49

Horn.

20A

2

50

Not used.

—

51

Not used.

—

52

Not used.

—

53

Brake on off switch.

10A

3

54

ALT sensor.

10A

3

55

Not used.

–

86

1

M case fuse.

2

Micro 2 fuse.

3

Micro 3 fuse.

Power Distribution Box - Bottom

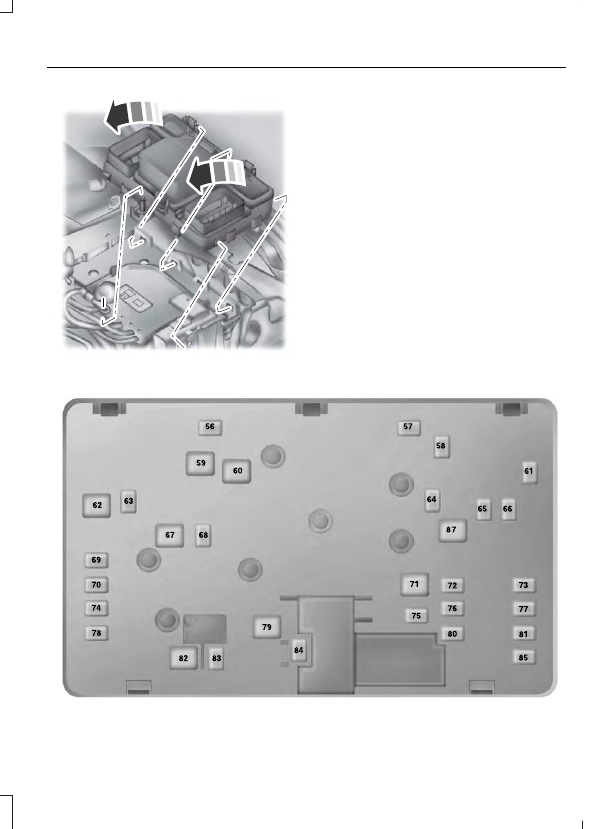

There are fuses located on the bottom of
the fuse box. To access the bottom of the
fuse box, do the following:

E145983

1.

Release the two latches, located on
both sides of the fuse box.

2. Raise the inboard side of the fuse box

from the cradle.

3. Move the fuse box toward the center

of the engine compartment.

4. Pivot the outboard side of the fuse box

to access the bottom side.

E190798

Protected Components

Fuse Rating

Fuse or Relay

Number

Not used.

—

56

Not used.

—

57

Fuel pump feed.

30A

1

58

Port fuel injectors (3.5L).

Electronic fan 3.

40A

2

59

Electronic fan 1.

40A

2

60

Not used.

—

61

Body control module 1.

50A

2

62

Electronic fan 2.

25A

1

63

Not used.

—

64

Front heated seat.

20A

1

65

Heated wiper park.

15A

1

66

Body control module 2.

50A

2

67

Heated rear window.

40A

1

68

Anti-lock brake system valves.

30A

1

69

Passenger seat.

30A

1

70

Not used.

—

71

Transmission oil pump (start/stop).

20A

1

72

Rear heated seats.

20A

1

73

Driver seat module.

30A

1

74

Power driver seat (less memory).

Wiper motor 1.

25A

1

75

Power liftgate module.

30A

1

76
