Ford C-MAX Hybrid / Energi (2017 year). Manual - part 98

Action and Description

Menu Item

Item

This area of the screen shows your scheduled Go Time and
your cabin conditioning information.

My GO Times

A

This is the time and date of your next set drive time. Your
vehicle automatically schedules charging and cabin condi-
tioning to finish by this time.

Next GO Time

B

This is the chosen cabin conditioning setting for this GO
Time.

Temperature

C

This accesses your GO Time Schedule (see GO Time
Schedule later in this section).

Edit

D

This cancels the cabin conditioning for the present GO Time.
Once you touch Skip, the GO Time and Temperature grey
out, and the LED illuminates on the Skip button. Touch the
button again to switch on the cabin conditioning. This
feature allows you to ignore the present GO Time without
having to delete it or having to switch off the entire schedule
(see GO Time Schedule later in this section). After the
present GO Time passes, this feature resets.

Skip

E

Conflict Notification

The system alerts you to any conflicts by
highlighting areas of the screen in colored
text.

If your battery cannot have a full charge by the scheduled drive time, the system
highlights your next GO Time and Charge Complete time and the following
message appears:

Action and Description

Menu Item

This is normal; the vehicle is informing you of the conflicting situation.
This notification only displays when the gearshift selector lever is in
position P.

Charge time
not sufficient
to meet
scheduled
GO Time
settings

Note: Charging occurs as soon as you plug the vehicle in. The system
limits cabin conditioning to 15 minutes before your GO Time.

To eliminate the conflict notification
immediately or to prevent a conflict in the
future, try the following:
•

Switch the present GO Time to occur
later.

•

Plug the vehicle into a 240V high
current charging station instead of
using the 120V low current convenience
cord. Higher power charging yields
shorter charge times.

•

Plug the vehicle in sooner.

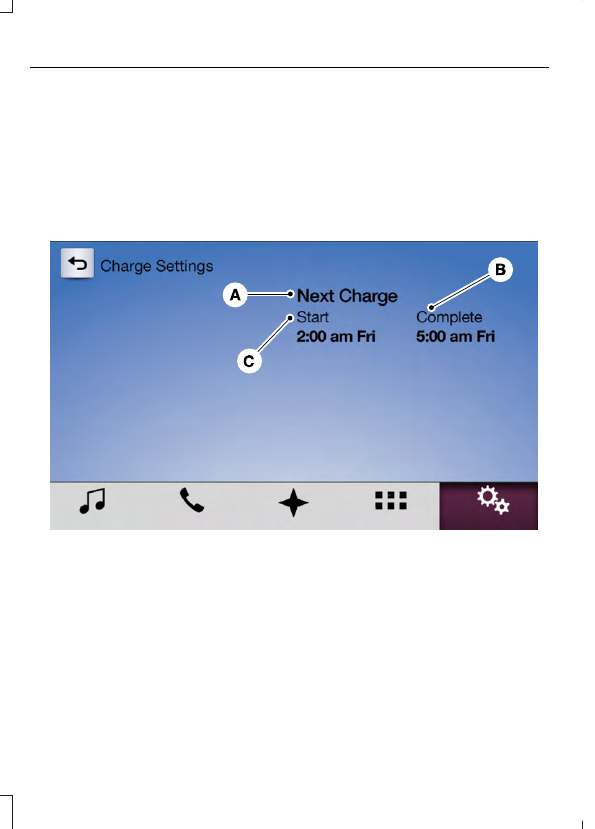

Charging Status and Actual Times

E231149

Action and Description

Menu Item

Item

This is the status of the charging system, which includes
the charging plug, high-voltage battery and charger.

Charge Status

A

This means the vehicle is
unplugged. Charge Start and
Complete information is for the
present vehicle location.

Next Charge

This means you plugged the
vehicle in and it is ready to
charge. Typical of Value Charge
mode, the vehicle may not start
charging right away because it
is set to charge at times with
lower utility costs.

Waiting to charge

This means the high-voltage
battery is charging.

Charging

This informs you that the high-
voltage battery is fully charged
and not currently scheduled for
further charging.

Charged

This alerts you that a fault is
present and is preventing the
high-voltage battery from
charging. Check the charge
plug connection, charge cord,
and charging station.

Fault

This is the estimated time of charge completion.

Complete

B

When the vehicle is in Charge
Now mode, and unplugged, the
system displays the charging
duration in hours. Once you
plug in the vehicle, the value
shows the estimated time to
finish charging.

Charge Now Duration

Action and Description

Menu Item

Item

When the vehicle is in Value
Charge mode, the system
displays the estimated charge
complete time. It is normal for
the estimated complete time
to change when charging. The
vehicle keeps charging until the
high-voltage battery is fully
charged.

Scheduled Charge
Complete Time

This is the scheduled start time of charging.

Start

C

When the vehicle is in Charge
Now mode, and unplugged, the
message At Plug In appears,
indicating the vehicle immedi-
ately starts charging once you
plug it in. Once you plug it in,
the system shows the actual
charge start time.

At Plug-In

When the vehicle is in Value
Charge mode, the system
displays the scheduled charge
start time (for example, 8:00
PM). Once charging starts, the
system continues to display the
actual charge start time.

Scheduled Charge Start
Time
