Ford C-MAX Hybrid / Energi (2017 year). Manual - part 53

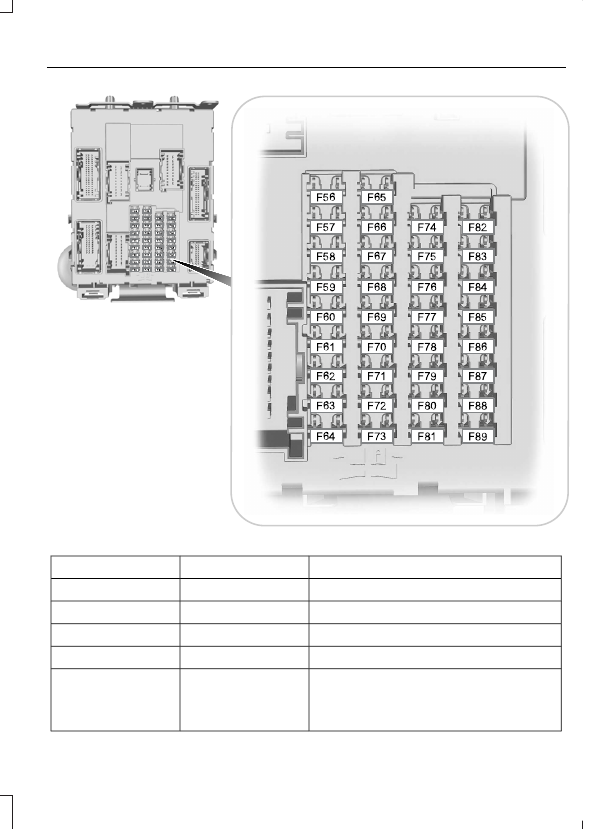

E129926

Protected components

Fuse amp rating

Fuse or relay number

Fuel pump supply.

20A

F56

Not used.

—

F57

Not used (spare).

5A

F58

Passive anti-theft system.

5A

F59

Interior light.

10A

F60

Driver door switch pack.
Glove box illumination.
Overhead console switch bank.

Protected components

Fuse amp rating

Fuse or relay number

Cigar lighter.

20A

F61

Second row power point.

Autowiper module.

5A

F62

Autodimming rear view mirror.

Not used (spare).

10A

F63

Not used.

—

F64

Liftgate release.

10A

F65

Driver door unlock supply.

20A

F66

Cell phone passport (C-MAX Energi).

7.5A

F67

Multi-function display.
GPS module.
Sync.

Not used (spare).

15A

F68

Instrument cluster.

5A

F69

Central lock and unlock supply.

20A

F70

Climate control module.

7.5A

F71

Steering wheel module.

7.5A

F72

Data link connector.

7.5A

F73

OBD II supply.

Headlamp supply.

15A

F74

Fog lamp supply.

15A

F75

Reversing lamp supply.

10A

F76

Washer pump.

20A

F77

Ignition switch, Start button.

5A

F78

Radio.

15A

F79

Hazard light switch.

Not used (spare).

20A

F80

Power sun shade.

5A

F81

Remote receiver antenna.

Washer pump ground.

20A

F82

Protected components

Fuse amp rating

Fuse or relay number

Central locking ground.

20A

F83

Drive door unlock ground.

20A

F84

Electronic 15 feed.

7.5A

F85

Restraints control module.

10A

F86

Passenger air bag deactivation indicator.

Not used (spare).

15A

F87

Not used (spare).

25A

F88

Not used.

—

F89

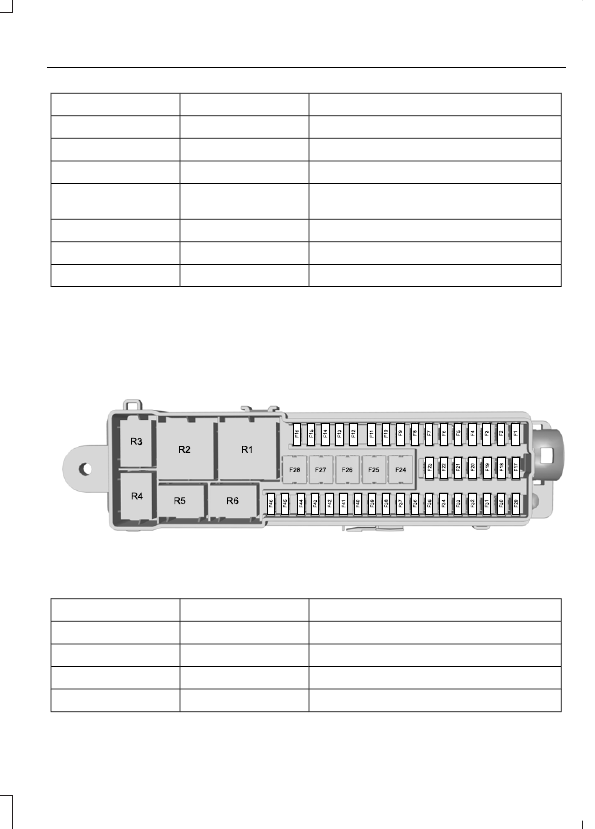

Luggage Compartment Fuse Panel

The fuse panel is located in the luggage
compartment behind the left side wheel
well. Remove the fuse panel cover to gain
access to the fuses.

E129927

Protected components

Fuse amp rating

Fuse or relay number

Hands-free liftgate entry module.

5A

F1

Keyless vehicle module.

10A

F2

Keyless vehicle door handles.

5A

F3

Door control unit front left.

25A

F4

Protected components

Fuse amp rating

Fuse or relay number

Door control unit front right.

25A

F5

Door control unit rear left.

25A

F6

Door control unit rear right.

25A

F7

Passenger seat motor.

25A

F8

Driver seat motor.

25A

F9

Heated rear window.

25A

F10

Ignition relay.

5A

F11

Battery electronics control module.

15A

F12

Not used.

—

F13

Charger (C-MAX Energi).

10A

F14

Not used.

—

F15

Not used.

—

F16

Battery electronics control module.

10A

F17

Battery electronics control module — fan.

15A

F18

Charger fan (C-MAX Energi).

15A

F19

Not used.

—

F20

Smart datalink connector.

15A

F21

Active noise cancellation.

10A

F22

Not used.

—

F23

DC/AC power converter.

30A

F24

Power liftgate.

25A

F25

AC/DC charger (C-MAX Energi).

40A

F26

Luggage compartment outlet.

20A

F27

Not used.

—

F28

Blind spot detection.

5A

F29

Parking aid module.

5A

F30

Rear view camera.

5A

F31
