FUSE SPECIFICATION CHART

Pre-Fuse Box

Your vehicle has a pre-fuse box attached
to the power distribution box. There is a
second pre-fuse box attached to the
12-volt battery terminal in the rear of your
vehicle. They contain high-current fuses.
If you need to replace one of these fuses,
see an authorized dealer.

Power Distribution Box

WARNINGS

Always disconnect the battery before
servicing high current fuses.

WARNINGS

To reduce risk of electrical shock,
always replace the cover to the
power distribution box before

reconnecting the battery or refilling fluid
reservoirs.

The power distribution box is located in
the engine compartment. It has
high-current fuses that protect your
vehicle's main electrical systems from
overloads.

If you disconnect and reconnect the
battery, you will need to reset some
features.  See Changing the 12V Battery
(page 233).

Lift the release lever at the rear of the cover
to remove it.

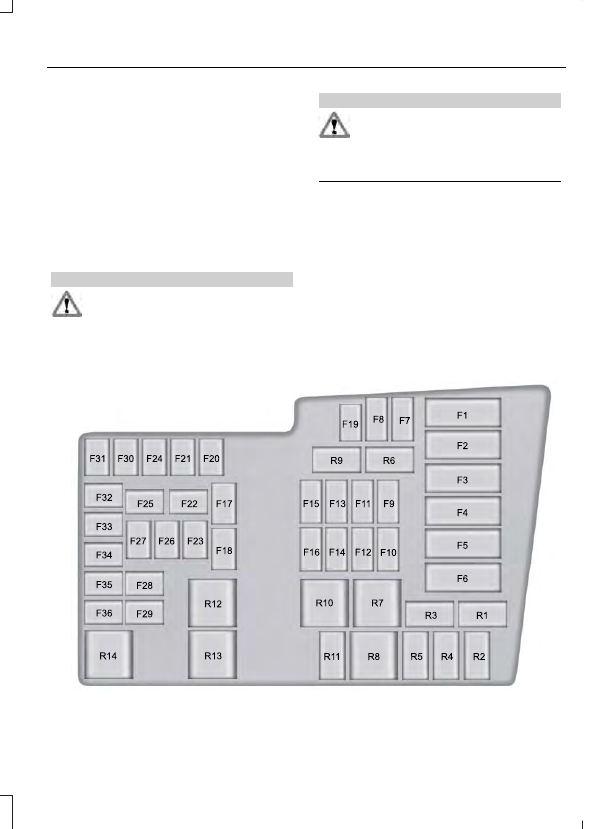

E162196

Protected components

Fuse amp rating

Fuse or relay number

Cooling fan module.

50A Midi

F1

Electric water pump.

50A Midi

F2

Body control module supply 1.

50A Midi

F3

Body control module supply 2.

50A Midi

F4

Not used.

—

F5

Not used.

—

F6

Anti-lock brake system pump.

40A

2

F7

Anti-lock brake system valve.

30A

2

F8

Vacuum pump.

40A

2

F9

Heater blower motor.

40A

2

F10

Engine management.

30A

2

F11

Not used.

—

F12

Powertrain control module relay.

25A

2

F13

Rear wiper.

20A

2

F14

Body control module KL30 supply.

30A

2

F15

Body control module 15 feed.

20A

2

F16

Transmission oil pump (C-MAX Energi).

20A

2

F17

Front wiper motor.

20A

2

F18

Anti-lock brake system and electronic
stability program module.

5A

1

F19

Horn.

15A

1

F20

Stop light switch.

5A

1

F21

Vacuum pump monitoring.

5A

1

F22

Protected components

Fuse amp rating

Fuse or relay number

Engine control module 15.

5A

1

F23

Powertrain control module 15.
Transmission oil pump 15.

Relay coils.

5A

1

F24

Light switch module.

Motor electronic cooling pump.

10A

1

F25

Electronic power assist steering module
15.

5A

1

F26

Mass air flow sensor.

5A

1

F27

Powertrain control module.

15A

1

F28

Electronic air conditioning compressor.

10A

1

F29

Positive temperature coefficient heater.

Engine control module.

10A

1

F30

Powertrain control module.

Charge port light ring (C-MAX Energi).

5A

1

F31

Vehicle power 2.

20A

1

F32

Vehicle power 4.

15A

1

F33

Injectors.

10A

1

F34

Vehicle power 3.

10A

1

F35

Vehicle power 1.

20A

1

F36

Vacuum pump.

Micro relay

R1

Horn.

Micro relay

R2

Hybrid powertrain control.

Micro relay

R3

Front wiper.

Micro relay

R4

Vacuum pump.

Micro relay

R5

Front and rear wiper high-low.

Micro relay

R6

Not used.

—

R7

Protected components

Fuse amp rating

Fuse or relay number

Ignition feed.

Power relay

R8

Not used.

—

R9

Not used.

—

R10

Not used.

—

R11

Cooling fan.

Power relay

R12

Heater blower.

Mini relay

R13

Engine control relay.

Mini relay

R14

1

Mini fuse.

2

Cartridge fuse.

Passenger Compartment Fuse
Panel

The fuse panel is located on the right-hand
side below the glove box. You may need
to remove a trim panel to access it.
