5. Gently pull the lamp assembly away

from the vehicle.

6. Remove the bulb holder.

7.

Remove the bulb.

BULB SPECIFICATION CHART

Replacement bulbs are specified in the
chart below. Headlamp bulbs must be
marked with an authorized “D.O.T.” for
North America to ensure lamp
performance, light brightness and pattern
and safe visibility. The correct bulbs will
not damage the lamp assembly or void the
lamp assembly warranty and will provide
quality bulb burn time.

Trade number

Function

9005LL

Headlamps high beam (Halogen)

H11LL

Headlamp low beam (Halogen)

168

Sidemarker - front

194

Park lamp - front

W21W

Turn lamp - front

H10 (9145)

Fog lamps

3157K

Tail/brake lamp

T20

Turn lamp - rear

921

Backup lamp

W5W

License plate lamp

W5W

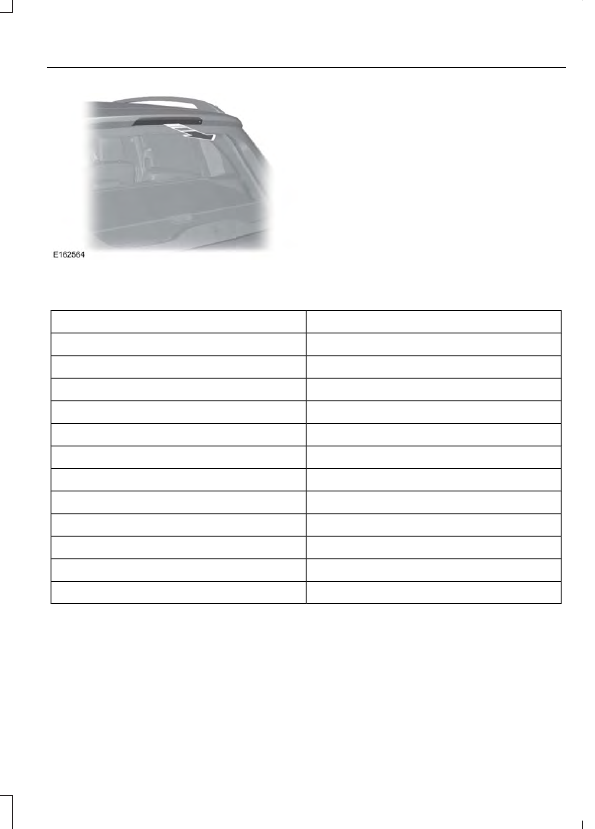

* High-mount brake lamp

LED

* Interior lamps

* To replace these lamps - see your authorized dealer.

To replace all instrument panel lights - see your authorized dealer

CHANGING THE ENGINE AIR
FILTER

WARNING

To reduce the risk of vehicle damage
and personal burn injuries, do not
start your engine with the air cleaner

removed and do not remove it while the
engine is running.

Change the air filter element at the correct
interval.

Note: When changing the air filter element,
use only the air filter element listed.  See
Capacities and Specifications (page 270).

Note:  Failure to use the correct air filter
element may result in severe engine
damage.  Resulting component damage
may not be covered by the vehicle Warranty.

Note: Failure to re-install the air cleaner
assembly properly by fully seating on the
mounting studs in five places and securing
with the two bolts may result in air cleaner
assembly dislodgement from engine and
damage to the air cleaner assembly and
other engine components. Therefore we
recommend that the air filter be serviced at
a Ford dealer.

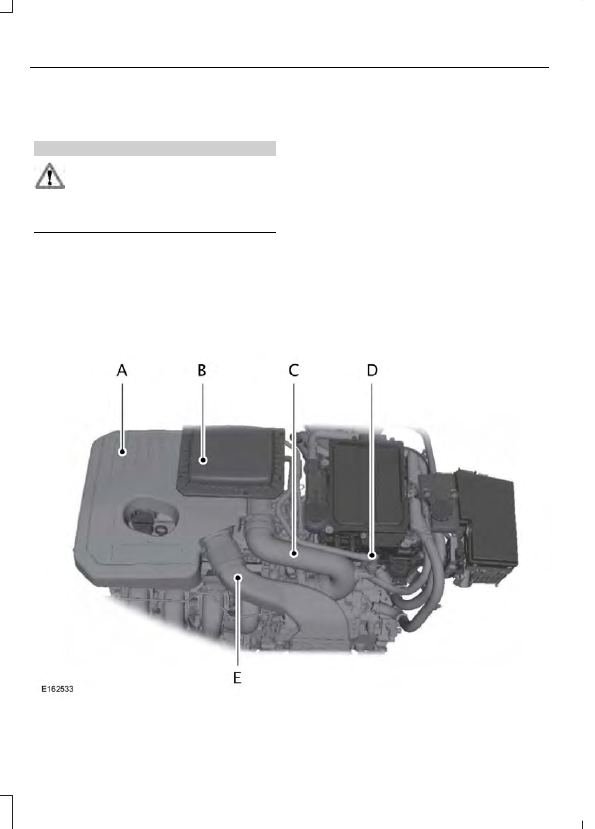

Air Cleaner Assembly Components

Air cleaner assembly.

A

Air cleaner cover.

B

Air cleaner outlet tube.

C

Positive crankcase ventilation (PCV) tube.

D

Air cleaner intake tube.

E

Removing the Engine Air Filter
Element

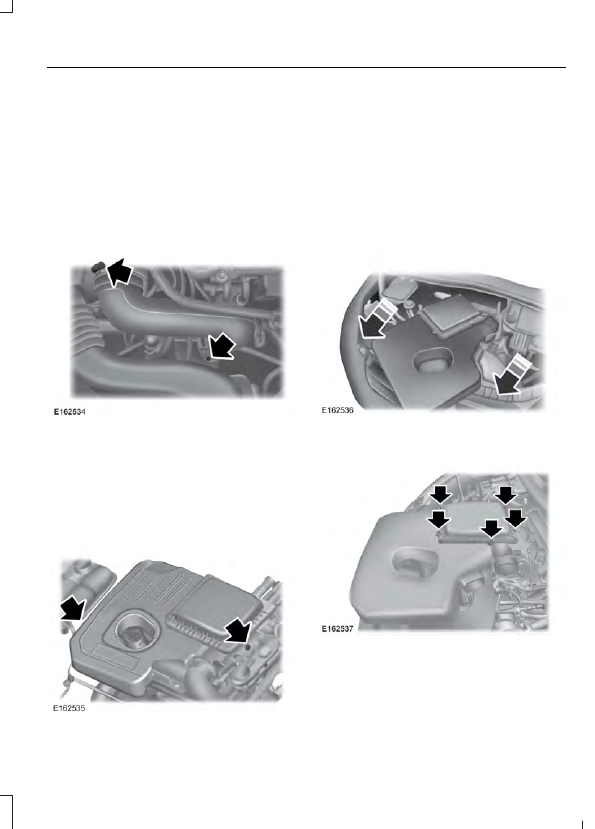

1.

Loosen the hose clamps for air cleaner
outlet tube (C). Disconnect the tube
from the air cleaner assembly (A).

2. Release the tabs and disconnect the

PCV tube (D) from the air cleaner
outlet tube (C) and remove the tube.

3. Disconnect the air cleaner intake tube

(E) from the air cleaner assembly (A).

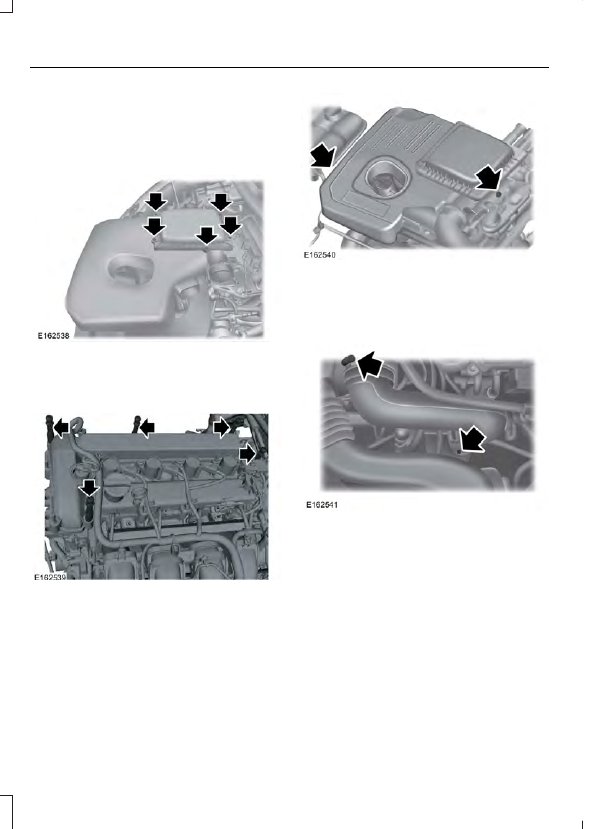

4. Remove the bolts from each side of the

air cleaner assembly (A) as shown with
arrows.

5. Lift the air cleaner assembly (A) from

the mounting studs, then rotate and
pull it toward the front of the vehicle.

6. Remove the 5 bolts from the air cleaner

cover (B).

7.

Remove the air cleaner cover (B) from
the air cleaner assembly (A).

Installing the Engine Air Filter
Element

Note: Clean the inside of the air cleaner
assembly before installing a new air filter
element.

1.

Install the new air filter element into
the engine air cleaner assembly.

2. Install the air cleaner cover (B) and

tighten the 5 bolts.

3. Position the air cleaner assembly (A)

onto the engine and make sure the
assembly is aligned with the studs.

4. Install and tighten the bolts to each

side of the air cleaner assembly (A) as
shown with arrows.

5. Attach the air cleaner intake tube (E)

to the air cleaner assembly (A).

6. Connect the PCV tube (D) to the air

cleaner outlet tube (C).

7.

Connect the air cleaner intake tube (E)
to the air cleaner assembly (A).
