Ford C-MAX Hybrid (2018 year). Manual - part 56

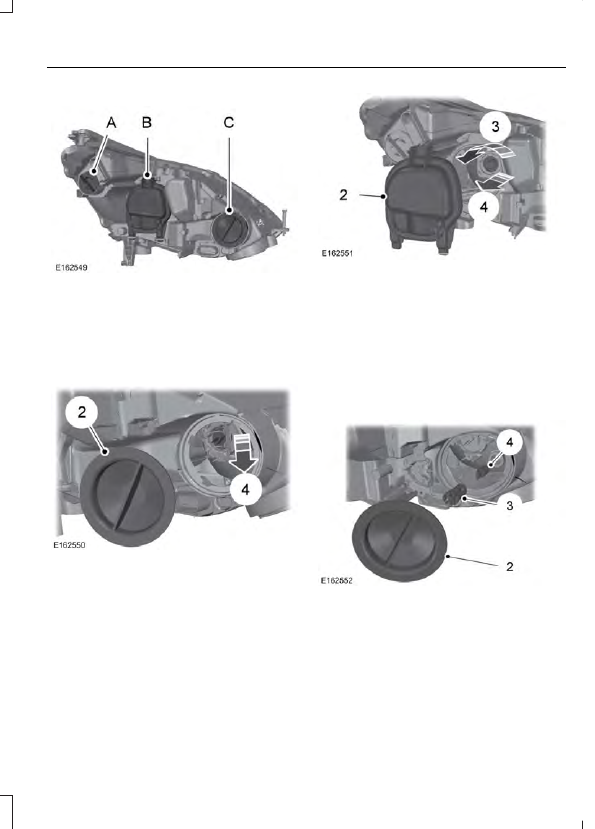

Locating the headlamp bulbs:

Direction indicator lamp.

A

Low beam headlamp.

B

High beam headlamp.

C

Replacing the High Beam Headlamp
Bulb:

1.

Remove the headlamp assembly.

2. Remove service cap.

3. Disconnect the electrical connector.

4. Remove bulb from the headlamp

assembly by turning it
counterclockwise, then pull it straight
out.

Replacing the Low Beam Headlamp
Bulb:

1.

Remove the headlamp assembly.

2. Remove service cap.

3. Disconnect the electrical connector.

4. Remove bulb from the headlamp

assembly by turning it
counterclockwise, then pull it straight
out.

Install the new bulbs in reverse order.

Replacing Side Marker Bulbs:

1.

Remove the headlamp assembly.

2. Remove service cap.

3. Remove the bulb holder.

4. Remove bulb from the headlamp

assembly.

Install the new bulb in reverse order.

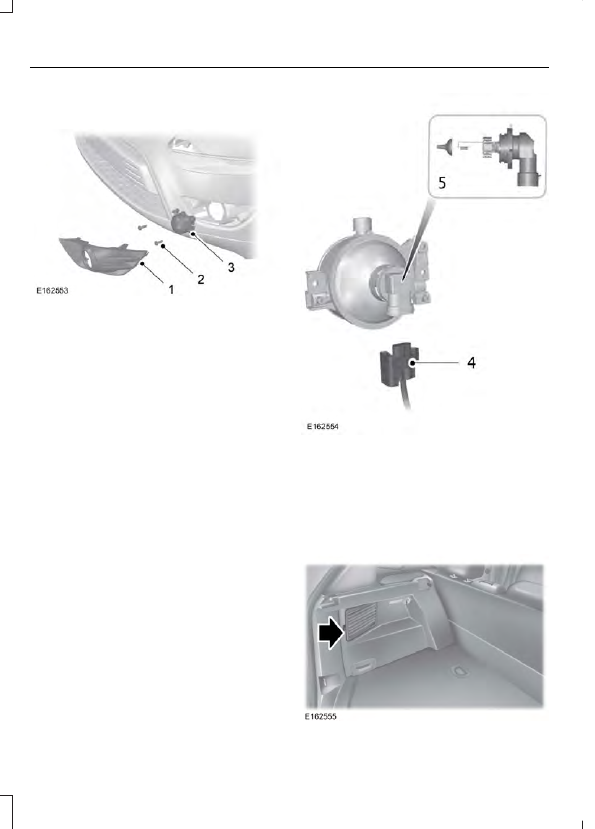

Replacing Fog, Park and Direction
Indicator Bulbs

Note: You cannot separate the fog lamp
bulb from the bulb holder.

1.

Remove the fog lamp cover.

2. Remove the 2 screws.

3. Remove the lamp.

4. Disconnect the electrical connector.

5. Turn the bulb holder counterclockwise

and remove it.

6. Install the new bulb in reverse order.

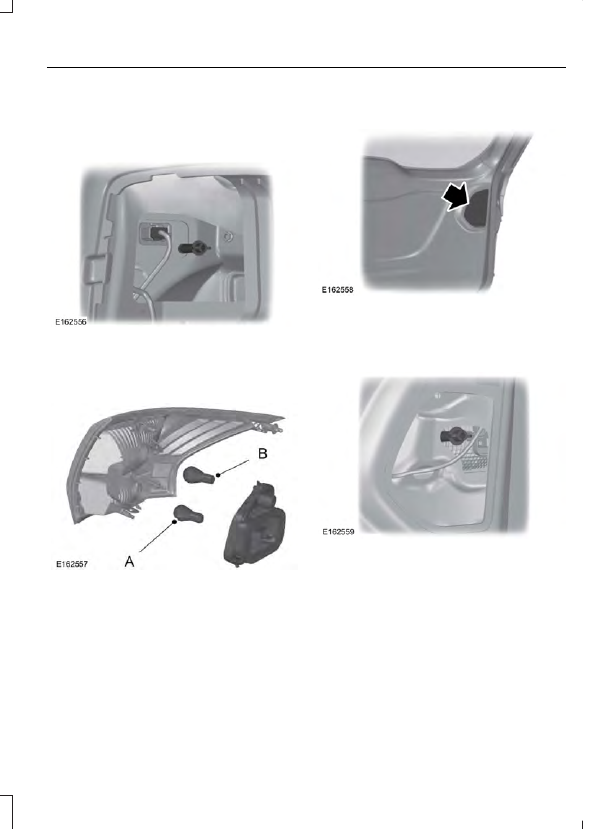

Replacing Tail, Brake and Direction
Indicator Bulbs

1.

Make sure the headlamp control is in
the off position.

2. Open the liftgate.

3. Remove the trim panel cover.

4. Disconnect the electrical connector.

5. Remove the wing nut.

6. Gently pull the lamp assembly away

from the vehicle.

7.

Remove the bulb holder.

8. Gently press the bulb into the bulb

holder, then turn the bulb
counterclockwise and remove the bulb.
(A) Taillamp and brake lamp. (B)
Direction indicator lamp.

Install the new bulb in reverse order.

Replacing Reverse Lamp and Tail
Lamp Bulbs

1.

Make sure the lighting control is in the
off position.

2. Open the liftgate.

3. Remove the trim panel cover.

4. Remove the wing nut.

5. Gently pull the lamp assembly away

from the vehicle.

6. Disconnect the electrical connector.

7.

Remove the bulb holder.

8. Gently press the bulb into the bulb

holder, turn the bulb counterclockwise,
and remove the bulb. (A) Reverse
lamp. (B) Tail lamp.

9. Install the new bulb in reverse order.

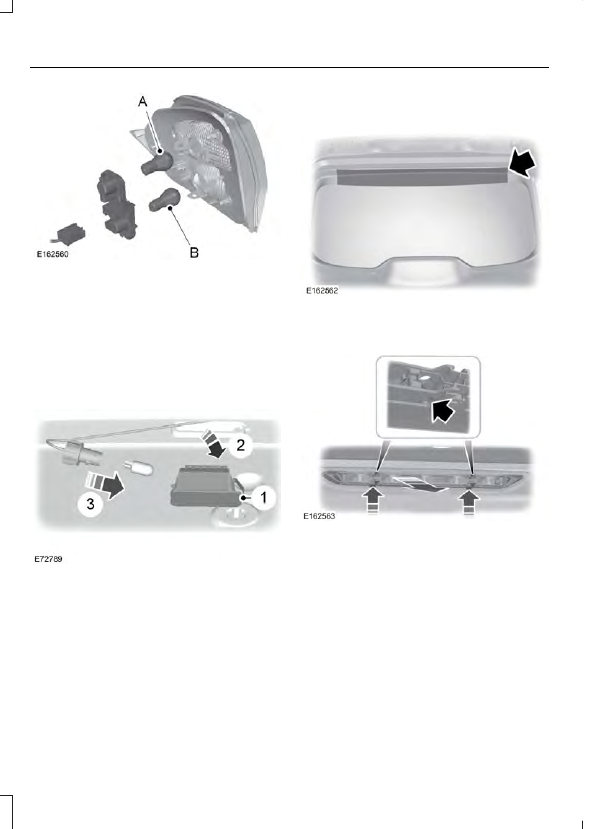

Replacing License Plate Lamp Bulb

1.

Carefully release the spring clip.

2. Remove the lamp.

3. Remove the bulb.

Reverse steps to reinstall bulb.

Replacing the Center High
Mounted Brake Lamp Bulbs

1.

Open the liftgate.

2. Detach the clips above the inboard side

of the rear window.

3. Insert a suitable tool into the holes.

4. Carefully pull the lamp towards the

front of the vehicle in order to release
the spring clips.
