Ford C-MAX Hybrid (2018 year). Manual - part 51

Protected components

Fuse amp rating

Fuse or relay number

Drive door unlock ground.

20A

F84

Electronic 15 feed.

7.5A

F85

Restraints control module.

10A

F86

Passenger air bag deactivation indicator.

Not used (spare).

15A

F87

Not used (spare).

25A

F88

Not used.

—

F89

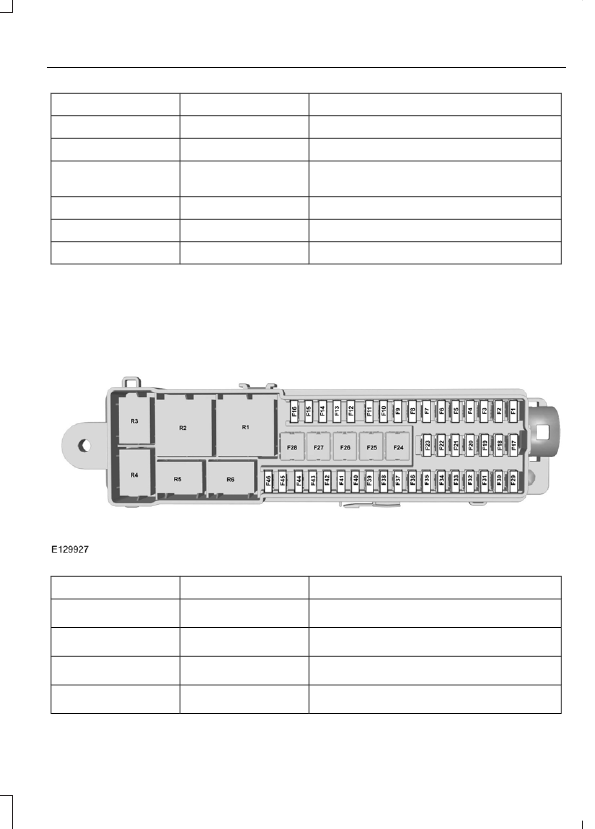

Luggage Compartment Fuse Panel

The fuse panel is located in the luggage
compartment behind the left side wheel
well. Remove the fuse panel cover to gain
access to the fuses.

Protected components

Fuse amp rating

Fuse or relay number

Hands-free liftgate entry module.

5A

1

F1

Keyless vehicle module.

10A

1

F2

Keyless vehicle door handles.

5A

1

F3

Door control unit front left.

25A

1

F4

Protected components

Fuse amp rating

Fuse or relay number

Door control unit front right.

25A

1

F5

Door control unit rear left.

25A

1

F6

Door control unit rear right.

25A

1

F7

Passenger seat motor.

25A

1

F8

Driver seat motor.

25A

1

F9

Heated rear window.

25A

1

F10

Ignition relay.

5A

1

F11

Battery electronics control module.

15A

1

F12

Not used.

—

F13

Not used (spare).

10A

1

F14

Not used.

—

F15

Not used.

—

F16

Battery electronics control module.

10A

1

F17

Battery electronics control module — fan.

15A

1

F18

Not used (spare).

15A

1

F19

Not used.

—

F20

Smart datalink connector.

15A

1

F21

Active noise cancellation.

10A

1

F22

Not used.

—

F23

DC/AC power converter.

30A

2

F24

Power liftgate.

25A

2

F25

Not used (spare).

40A

2

F26

Protected components

Fuse amp rating

Fuse or relay number

Luggage compartment outlet.

20A

2

F27

Not used.

—

F28

Blind spot detection.

5A

1

F29

Parking aid module.

5A

1

F30

Rear view camera.

5A

1

F31

DC/AC power converter.

5A

1

F32

Not used.

—

F33

Driver seat heater.

20A

1

F34

Passenger seat heater.

20A

1

F35

Not used.

—

F36

Power sun shade.

20A

1

F37

Not used.

—

F38

Not used.

—

F39

Not used.

—

F40

Not used.

—

F41

Not used.

—

F42

Not used.

—

F43

Not used.

—

F44

Not used.

-

F45

Fuel system.

10A

1

F46

Rear 15 relay.

Power relay

R1

Heated rear window.

Mini relay

R2

Not used (spare).

Micro relay

R3

Not used.

—

R4

Protected components

Fuse amp rating

Fuse or relay number

Not used.

—

R5

Rear wiper.

Micro relay

R6

1

Mini fuse.

2

J case fuse.

CHANGING A FUSE

Fuses

WARNING

Always replace a fuse with one that
has the specified amperage rating.
Using a fuse with a higher amperage

rating can cause severe wire damage and
could start a fire.

If electrical components in the vehicle are
not working, a fuse may have blown. Blown
fuses are identified by a broken wire within
the fuse. Check the appropriate fuses
before replacing any electrical
components.

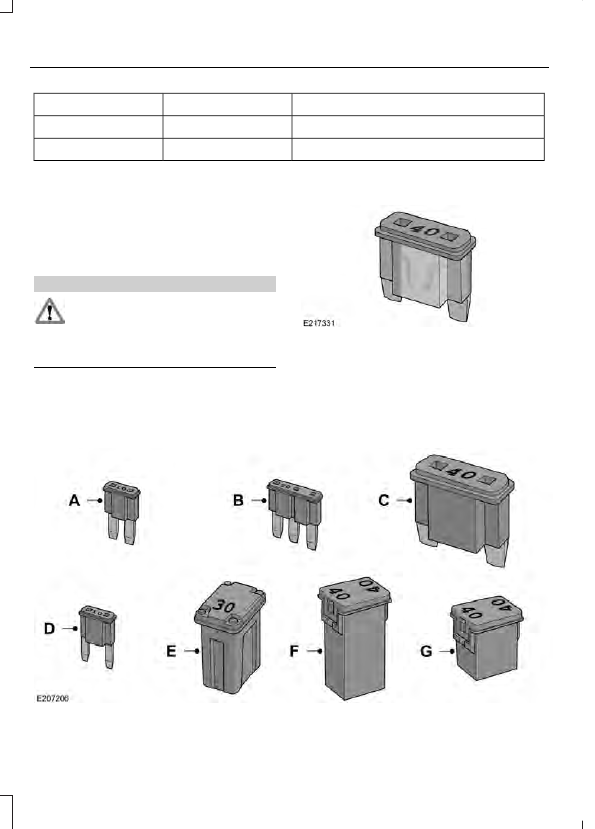

Fuse Types
